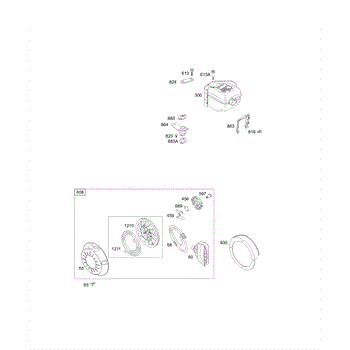

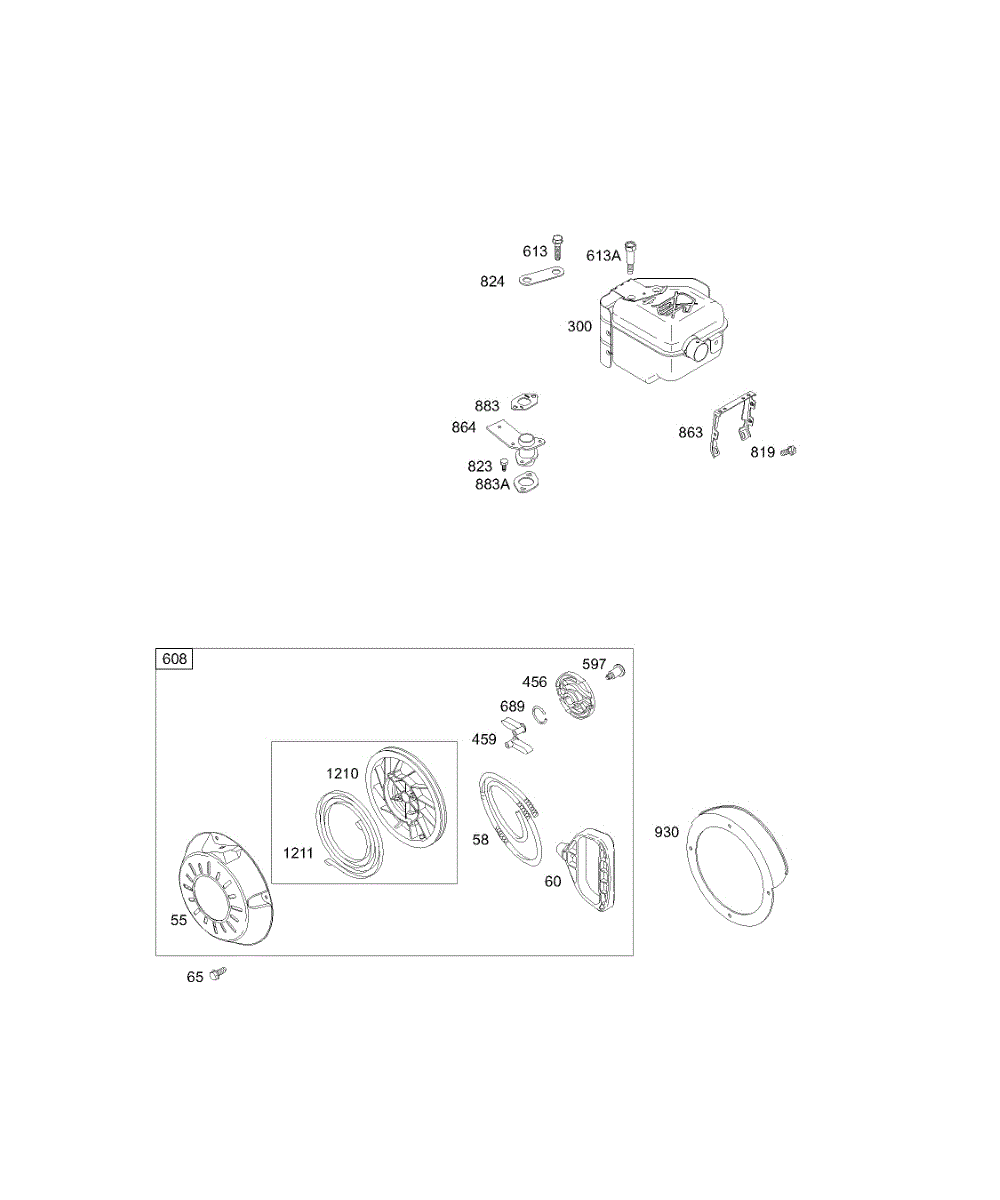

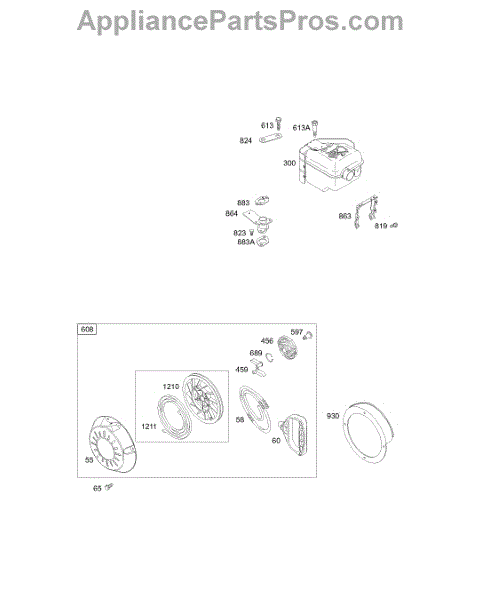

Parts for Briggs & Stratton 12A412-0100-E1: Electrical, Muffler Groups, Rewind Group Parts

The pawl friction plate on lawn and garden engines is an essential part of the starter assembly that is needed to crank start the machine. It provides power to the starter cup. If the engine on a machine will not start, it could be due to a broken or worn pawl friction plate. Replace the plate immediately to ensure your machine is working properly. This is genuine OEM part is compatible with a range of product types, including lawnmowers, snowblowers, tillers, pressure washers, generators, log splitters, wood chippers, leaf blowers, and chippers. Compatible brands include Briggs & Stratton, Craftsman, Cub Cadet, Lawn-Boy, Snapper, Simplicity, and Toro. The part is sold individually. Keep in mind that this only includes the pawl friction plate. It does not contain the screw or spring, and these will need to be purchased separately.

This durable plastic ratchet pawl is used on select engines that feature what is known as a Susa starter. In this configuration, the ratchet pawl will be responsible for engaging the recoil starting system. Then, the starting system will allow the engine to fire. Over time, the pawl can become worn or damaged due to regular use. If this happens, the recoil can slip and cause difficulties with starting the engine. If the engine isn’t starting or you can hear it slipping when you try to fire it up, a replacement ratchet pawl could be needed. Be sure to allow the engine to cool before replacing any parts or doing any work and always wear gloves. This replacement is a genuine OEM part that includes two ratchet pawls for various Briggs & Stratton engines on small lawn equipment. This part offers compatibility with over 150 engines from Briggs & Stratton, Toro, Lawn-Boy, and Vanguard by Briggs & Stratton.

This is a replacement screw to secure the pawl friction plate used in many types of lawn and garden equipment. The part is also sometimes called a flange bolt. It is identical to the original screw that came with the machine and will replace a lost or damaged screw. The screws could become damaged due to corrosion or an incident that causes the screw to bend or break. They also serve as replacements in case the screw was lost. Replacing the screw is a simple repair to make. This is an authentic OEM replacement screw that is sold individually. Some buyers might want to have an extra screw on hand. The replacement screw for the pawl friction plate can be used on lawn mowers, snowblowers, tillers, pressure washers, generators, edgers, log splitters, wood chippers, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.

Flange screws have a flange located near the top of the screw, which helps to distribute the connection force over a larger area to reduce potential damage to the machine. It also allows the screws to be used in oversized or irregular holes, and it helps to ensure they stay in place. This flange screw also has a hex top. Screws can last for a long time. However, they may become corroded or worn over time and need to be replaced. They could also become lost and need a replacement. Without all of the screws in the proper places in a machine, it could vibrate too much, which could render it less effective or unsafe to use. The flange screw is a genuine OEM part that can be used with many types of machines including lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, generators, wood chippers, and other small engines. The screws are compatible with Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn-Boy, Snapper, Simplicity, and MTD.

This replacement friction spring is a genuine OEM part meant for any number of small appliance engines run using a starter rope. This spring absorbs large amounts of kinetic energy that could damage the starter rope pulley system. It helps keep the pulley from being overstretched, which would create enough pressure to break the entire system. This spring sits at the center of the pulley system and creates resistance as the user yanks the starter rope. Friction springs can become worn out after repeated use, especially if a user tends to yank the starter rope quite forcefully. The most obvious sign of a worn of friction spring is if the pulley system lacks any resistance. As the user pulls the cord, they should feel a little pull back, but if the friction spring is worn, there will be much less resistance. Replacing this part is straightforward and will only require a screwdriver. Simply open the pulley system, carefully remove the old spring, and install the new one. This part is compatible with a wide number of appliances from Toro, Vanguard, Briggs & Stratton, and Lawnboy. It comes sourced from the original manufacturer and ships individually.

This replacement exhaust gasket is an authentic OEM part for a snowblower or lawn tractor engine. On these appliances, the exhaust is located quite near to the air filter, meaning that there is a chance that exhaust could leak into the carburetor. The carburetor requires fresh air to oxygenate fuel for combustion, so manufacturers install a gasket to help seal off the exhaust. Once installed, gaskets exist under a lot of pressure and will absorb the heat of the engine. These stresses cause gaskets to slowly degrade and eventually break their seal. If the exhaust gasket blows, the engine will not perform as it should. Be cautious of a noisy engine that burns more fuel than usual and gives off a burning smell. These are signs that the exhaust gasket has given out. If so, use a socket wrench and wrench set to disassemble the blower and air filter housings, then remove the exhaust manifold and change out the broken gasket. This high-quality replacement exhaust gasket is compatible with engines made by Toro, Husqvarna, Briggs & Stratton, and Snapper. It comes sourced from the original manufacturer and ships individually.

This exhaust gasket is a genuine Midwest Engine replacement part for appliances that use small engines, such as chipper shredders, snowblowers, leaf blowers, and lawn mowers. The function of an exhaust gasket is to seal off the carburetor from the exhaust tube in order to protect the engine from the accumulation of dirt, debris, and gunk within the inner workings. The exhaust gasket may require replacement over time from general wear and tear. If the exhaust gasket is not sealing, allowing dirt and debris to accumulate within the carburetor and leaving the exhaust tube exposed, the part should be replaced immediately. Evidence of a damaged exhaust gasket could also manifest in the form of oil leakage, black smoke arising out of the exhaust tube, and unusually low pressure from the combustion when using the appliance. Any of these symptoms can be attributable to multiple factors, so one should assess if the exhaust gasket is responsible before ordering a replacement.This exhaust gasket is compatible with the following brands: Briggs and Stratton, Cub Cadet, Toro, and Simplicity. This part sold individually.

This is an OEM replacement part for the recoil pulley and spring assembly, also called the rewind pulley and spring. The recoil starter, which is operated by a rope, will engage the drive cup on the flywheel, which will start the engine when it is pulled. These are commonly found on lawnmowers and similar outdoor equipment. If the rewind begins to bind when pulling the rope, or if it does not rewind easily, it could indicate that a replacement is needed. In addition, if the plastic on the old pulley is worn and cracked, it is a good idea to replace it before it fails entirely. This OEM assembly comes from the manufacturer and includes the pulley and the spring. The pulley is made from plastic, and the spring is metal. The part can be used for a range of machines and brands. The pulley and spring assembly are compatible with lawnmowers, tillers, and other small engines from brands like Craftsman, Briggs & Stratton, Snapper, Lawn-Boy, Toro, and Cub Cadet.

This is an OEM replacement part for the recoil pulley and spring assembly, also called the rewind pulley and spring. The recoil starter, which is operated by a rope, will engage the drive cup on the flywheel, which will start the engine when it is pulled. These are commonly found on lawnmowers and similar outdoor equipment. If the rewind begins to bind when pulling the rope, or if it does not rewind easily, it could indicate that a replacement is needed. In addition, if the plastic on the old pulley is worn and cracked, it is a good idea to replace it before it fails entirely. This OEM assembly comes from the manufacturer and includes the pulley and the spring. The pulley is made from plastic, and the spring is metal. The part can be used for a range of machines and brands. The pulley and spring assembly are compatible with lawnmowers, tillers, and other small engines from brands like Craftsman, Briggs & Stratton, Snapper, Lawn-Boy, Toro, and Cub Cadet.
