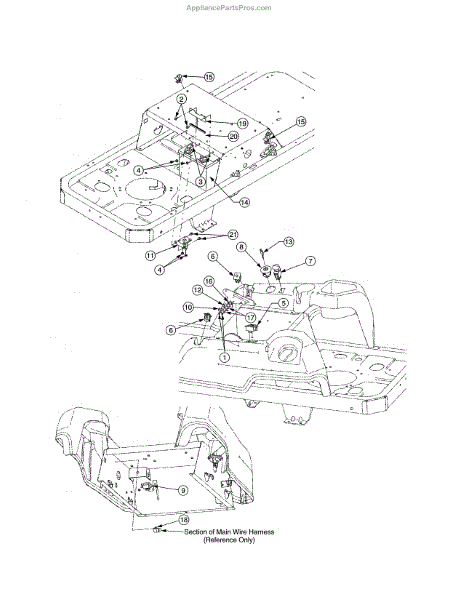

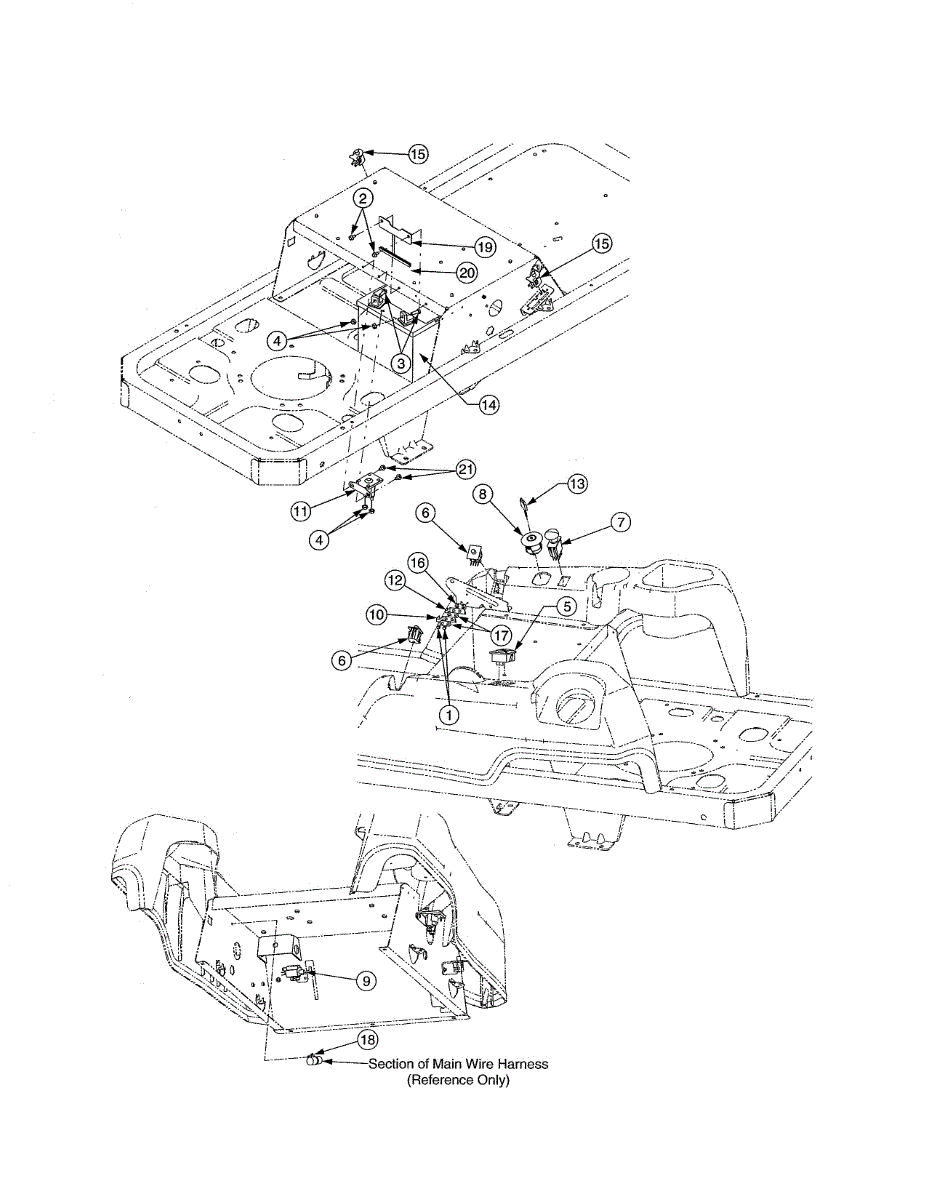

Parts for Cub Cadet 17AE2ACG756: Electrical Parts

This wire harness assembly is an authentic OEM replacement part sourced directly from the manufacturer. It is the grouping of wires and electrical cables needed to power the lawnmower and other lawn and garden equipment. The harness holds all the wiring together in one area. If this assembly becomes damaged due to debris from the lawnmower or even being chewed through by animals while the machine is stored, it will have to be replaced in order for the machine to run.This project requires a screwdriver, socket set, pliers, and wire cutters and strippers. This will take between one and two hours, depending on your skill level. Remove the fender to get access to the harness. Remove the battery and disconnect all electrical connections on the machine. Next, remove the harness and install the new one. Reconnect all wires making sure to follow the process exactly so that the connections are correct. Reinstall the battery and fender. Check all components of the machine to make sure the connections are right.This wire harness assembly is sold individually. It is designed for use in lawnmowers and other small engines manufactured by Troy-Bilt and MTD.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This part is a replacement neutral switch. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current neutral switch is broken or malfunctioning, this part can be used as a replacement. It is intended for use with a variety of lawn tractor models. The neutral switch is critical to proper and safe equipment functionality, as it detects whether or not the drive control lever is in the correct, neutral position. If the switch becomes worn, jammed, or defective, it will need to be replaced. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this neutral switch, the appropriate owner's manual and equipment diagrams should be referred to. This neutral switch is suitable for use on a variety of lawn tractor models manufactured by MTD, Craftsman, Cub Cadet, Troy-Bilt, and other brands. It is a genuine OEM part and thus is made of high-quality, durable materials. Part sold individually.

This three-pole switch is a genuine MTD part, sold individually. This three-pole switch can be used as a replacement part in a lawnmower. The purpose of a three-pole switch in a lawnmower is to regulate the electrical current distribution of one or more power sources directed to or away from the lawnmower. The three-pole switch might have to be replaced if sufficient damage occurs to the component to necessitate its removal. If this damage occurs, the switch should be removed and replaced by this genuine OEM replacement part. The switch should be removed and replaced in accordance with the proper instructions sourced from a relevant appliance manual. It is a simple replacement process that will require only basic tools to execute. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This three-pole switch is compatible with the following outdoor appliance brands: MTD, Craftsman, Troy-Bilt, Cub Cadet, Yard Machines, and Yard-Man.

This is a spring switch that is used in many types of lawn and garden equipment, such as log splitters, lawnmowers, and tillers. The spring switch is made out of durable metal and is typically located near the switch button. With ordinary use, the spring switch can experience wear or other types of damage and stop working correctly. When this occurs, it will need to be replaced.If the spring switch is broken or bent, a screwdriver will be needed to replace it. The lawn equipment should be powered off and placed on a stable surface during the replacement. Disassemble the unit and locate the contacts to access the spring switch and other small parts. The original switch can be removed using a screwdriver so the new component can be installed. Reassemble and power the tool on before use.This spring switch is a genuine OEM replacement part that is sourced directly from the manufacturer. The component is sold on an individual basis. The part is made to be compatible with lawnmowers, snowblowers, tillers, log splitters, and wood chippers manufactured by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, MasterCut, and Turf King.

This actuator spring is a genuine MTD part, sold individually. This actuator spring can be used as a replacement part in a lawn mower. The purpose of the actuator spring, also known as a seat spring switch, in a lawn mower is to provide a plate upon which the seat switch can conduct its electrical current while being held stably in place.If the actuator spring slides out of place and cannot be reinstalled or if it is bent, broken, dented, or worn beyond repair, it should be removed and replaced by this genuine OEM replacement part.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This actuator spring is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Battery does NOT contain battery acid

This replacement part is an insulator plate. It is a genuine replacement part made by MTD. This small part is important to the overall operation of many different machines. It helps to insulate other parts inside the machine as well as allow them space to operate. A new insulator plate might be needed if the current one is missing or damaged in any way including being dented, cracked, chipped, or bent. This can be due to normal wear and tear as it is common that parts become broken overtime. Be sure to refer to the correct owner's manual before attempting to replace this part. This part is a genuine OEM replacement part. This insulator plate is sold individually and is sourced directly from the manufacturer to ensure a proper fit and long-lasting use.
