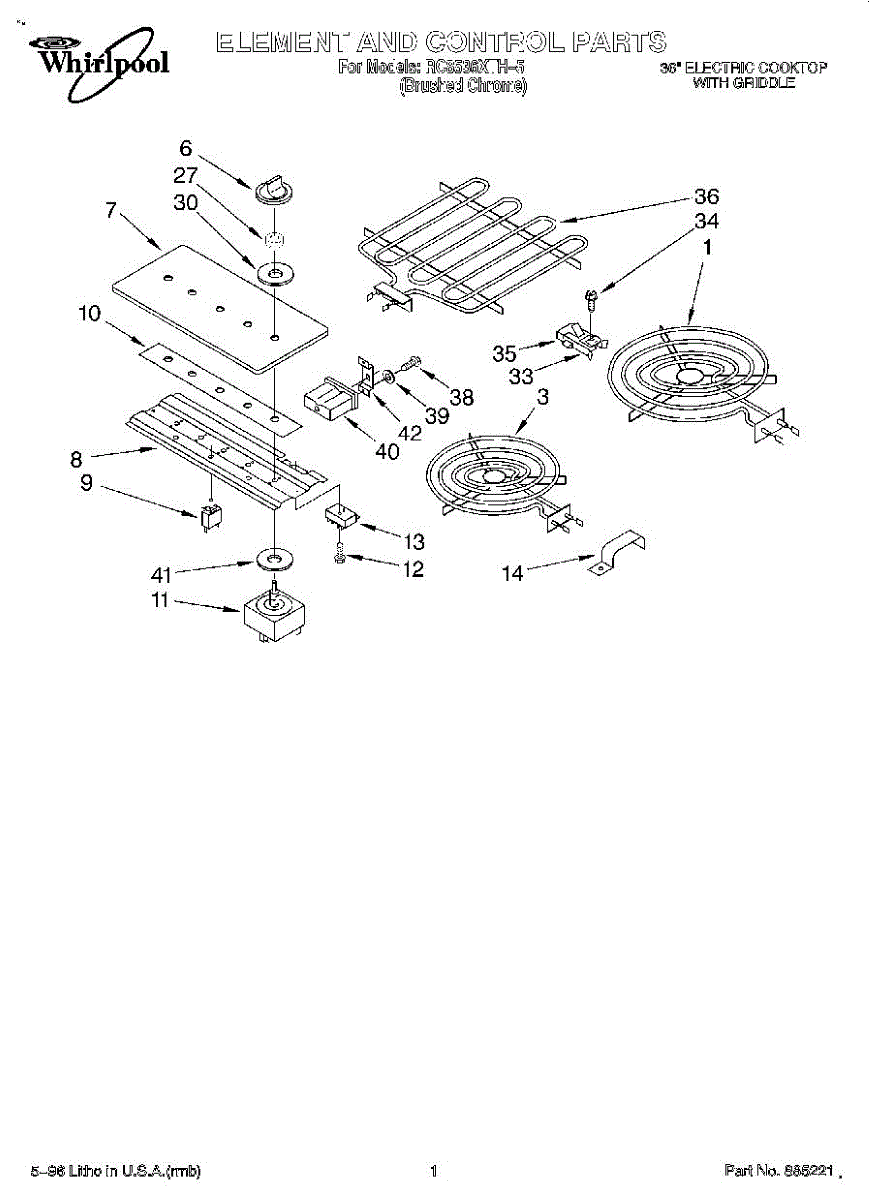

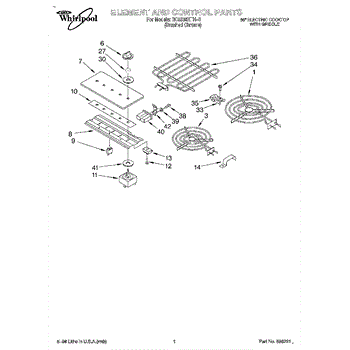

Parts for Whirlpool RC8536XTH5: 01 - Section Parts

Replacement 8-inch surface heating element that restores reliable top-of-range heating for electric cooktops. Designed to match OEM fit and restore proper burner operation when the original element fails or heats unevenly. What it does:

• Produces heat for an 8-inch cooktop burner so cookware can reach cooking temperatures.
• Replaces a failed or damaged surface element that won't heat, heats intermittently, or heats unevenly.
• Fits ranges that use coil-style terminal surface elements; installs into the cooktop terminal block for direct replacement.
• Restores consistent heat output for normal stovetop cooking tasks.

• Disconnect power at the breaker before servicing the range to avoid shock.
• Allow the cooktop and element to cool completely and wear protective gloves to avoid cuts.
• Inspect the element terminals and terminal block for damage; seat the element fully into the terminal connections for a secure fit.

This 8-inch surface coil element restores a burned-out or damaged heating element on an electric cooktop. It delivers consistent 2100W heat for everyday boiling, frying, and simmering, so your range burners perform like new.

• Provides direct, even heat for pots and pans on coil-top ranges
• Common symptoms: surface element won't heat, heats unevenly, or cycles off prematurely
• Visual signs can include blisters, breaks, or hot spots on the coil
• Helps resolve issues caused by a failed element rather than the switch or receptacle

• Unplug range or switch off circuit breaker before servicing
• Allow the old element to cool completely before handling
• Pull the element straight out from the receptacle; align and push the new one fully into place
• Inspect the element receptacle for heat damage and replace if needed for best results

1200w. Size: 6 inch. Location: Left front, right rear, and left rear.

This part has been discontinued and is no longer available.

Size: 8-18 x 1/4 inch. Self tapping.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued by the manufacturer and is no longer available.
