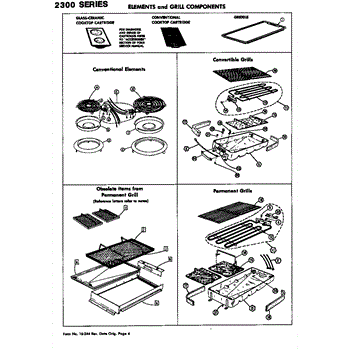

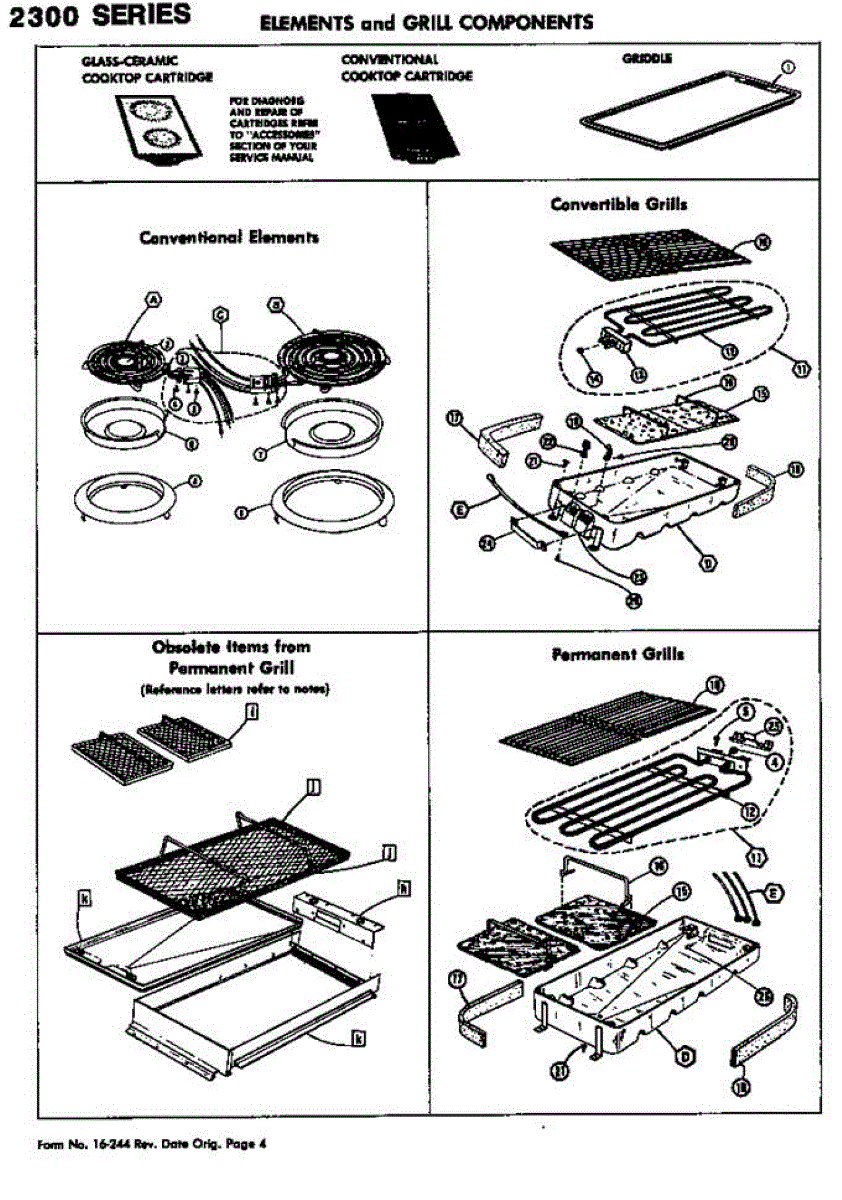

Parts for Jenn-Air 2480: 05 - Elements & Grills Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

4 Finger, 10" wide

This part has been discontinued by the manufacturer and is no longer available.

Replacement 6-inch drip pan for electric ranges and cooktops. Installs under burner element to catch spills and debris. Replace if cracked or warped.

This 8 inch drip pan installs under coil burners to catch spills and protect your cooktop. Replace cracked, rusted, or heavily stained pans to restore appearance.

6-inch adapter ring for cooktop drip pans. Replaces cracked, rusted, or worn rings on drop-in electric cooktops. Restores clean appearance.

By Jenn Air/Maytag. 8 inch adapter ring. Fits some Jenn Air models. For the 6 inch order WPY707454.

Color: Black. Includes two grates.

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

Stamped metal retaining clip that secures screws to panels and trim. Replace if clip is bent, broken, or missing to properly fasten covers and components.

This part has been discontinued and is no longer available.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

This small metal grounding clip attaches to internal components of the range to ensure a proper electrical ground connection. It helps maintain safe operation by preventing static buildup and electrical faults. Replace this clip if it is bent, broken, or missing, which could lead to intermittent electrical issues or safety concerns.

Screw: 8-16 x 3/8 inch.

Sheet metal pan head screw secures panels, brackets, and components to appliance cabinets. Replace missing, stripped, or corroded screws to restore fit.
