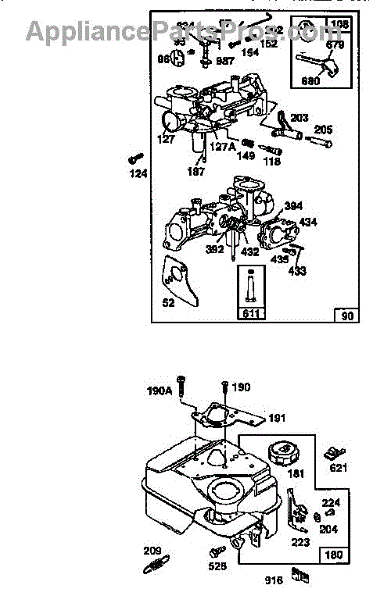

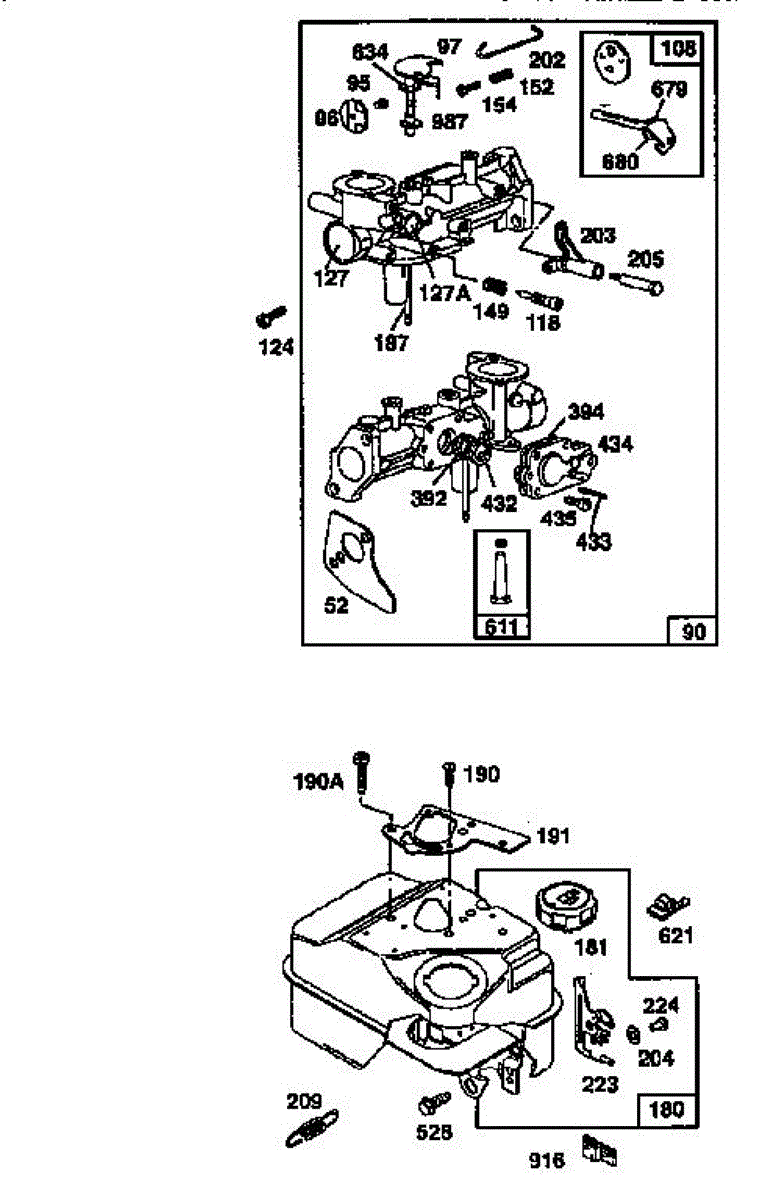

Parts for Craftsman 521244930: Engine 135212-0219-01 (71 / 500) Parts

The fuel cap is a simple but important part of a lawn care machine. It provides a seal that helps to keep dirt and other debris from getting into the fuel and contaminating it. Over time, though, there may be issues with the fuel cap. It might no longer tighten properly, form a proper seal, or be lost all together. This is an authentic OEM replacement part from the manufacturer. This fuel cap can work with a range of lawnmowers, tillers, leaf blowers, generators, and other small engine equipment. It is compatible with brands like Briggs & Stratton, Toro, Cub Cadet, Simplicity, and Craftsman.

The fuel tank gasket is made to provide an airtight seal when mounting the gas tank on a variety of different engines. The high-quality gasket is made from composite material and is made to last. Over time, though, the gaskets will dry out and become brittle. When this happens, it will create leaks, which could allow air to get into the fuel tank and cause engine problems. Proper maintenance will include checking the gaskets to ensure they are in good shape. If they appear brittle, be sure to replace them as soon as possible. To remove the screw that secures the fuel tank, you will need to use a Torx screwdriver. When replacing the gasket for the fuel tank, make sure it is seated properly before finishing the reassembly. This is a genuine OEM part that is sold individually. It can work on a range of engines, including those from Toro and Briggs & Stratton machines.

This tube-pick up was created for three to five horsepower horizontal and five horsepower vertical engines with a two to three-quart tank and a pulse jet carburetor. As part of the carburetor, the tube-pick up moves gas from the float bowl to the main body of the carburetor. Sometimes the tube-pick up can become clogged up with particles and dirt, which makes it harder for gasoline to flow through it. This component can also become damaged or cracked, which means it will need to be replaced to operate the lawn equipment. Replacement requires removing the carburetor from the fuel tank, removing the tube-pick up and installing the new version. Carb cleaner may also be used in the process. This tube-pick up is a genuine OEM product directly from the manufacturer. It comes as an individual part and is made out of plastic. It is used for engines on leaf blowers, generators, tillers, lawn tractors, and lawnmowers by Simplicity, Briggs & Stratton, Cub Cadet, and Toro. A set of pliers may be needed to install the tube-pick up.
