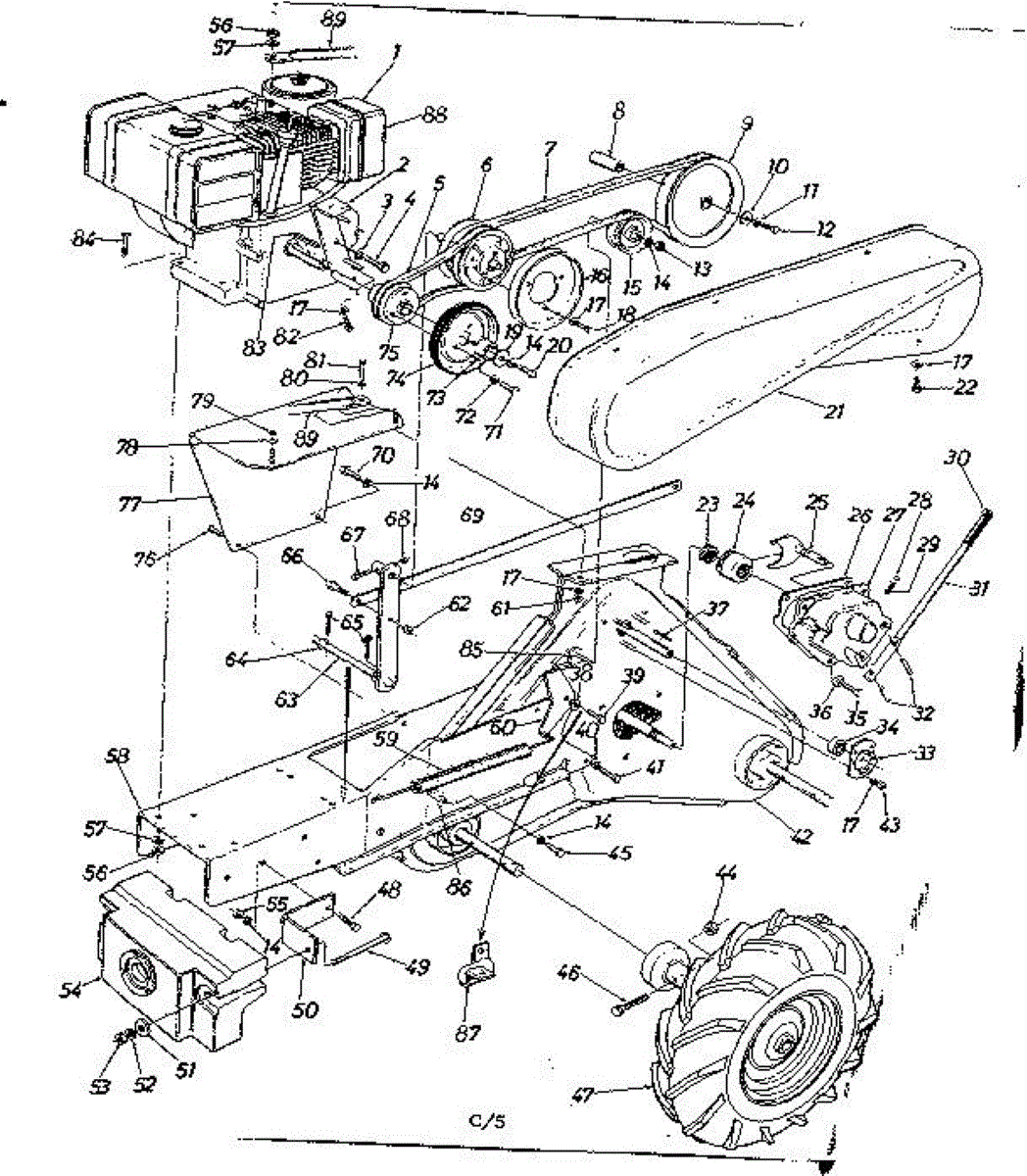

Parts for Craftsman 247297780: Engine Parts

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

An idler pulley is an essential part of many small and medium sized gasoline powered tools. This idler pulley is used in equipment such as tillers, lawn tractors, log splitters, edgers, snow blowers, and trimmers. The idler pulley is necessary so that the engine can run without the tool's moving parts being engaged. For instance, a lawn tractor running without the cutting blades turning or the wheels rolling. Once the idler pulley is engaged, the blade begins to turn. There is a great deal of resistance encountered by the idler pulley each time the equipment's tools begin to turn. Over time, the pulley can become worn and will eventually need to be replaced. If there is a squealing sound whenever the moving parts of a lawn tool are engaged, it is probably a sign that the idler pulley is about to fail. The pulley itself is attached to the engine housing with 9/16 hex bolts and requires an adjustable wrench and 9/16 ratchet to remove and replace. Always use a genuine OEM manufactured replacement part such as this one when replacing the original, as this part is identical to the original. This part is compatible with equipment manufactured by Bolens, MTD, Cub Cadet, Huskee, and Troy Bilt.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This ball detent is a genuine MTD replacement part for appliances operated by small engines, including lawn tractors, lawn mowers, snowblowers, leaf blowers, chipper shredders, and tillers. The function of a ball detent is to temporarily keep two parts in place relative to one another, as one or both of the parts rotate.A ball detent might have to be replaced in the event that it suffers damage over time or is lost or misplaced. It is possible for ball detents to fall out of their spot, meaning that the parts that it ordinarily holds in place will not be able to rotate properly. Additionally, a ball detent might have to be replaced if there is material deterioration. If this occurs, a replacement ball detent part should be ordered and secured to the small engine appliance immediately. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This ball detent is compatible with the following brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This ball bearing assembly has a wide variety of uses in a number of gasoline-powered yard tools. Bearings are used to provide smooth, friction-free motion between the rotating parts of equipment where pieces fit together and move. The weight and momentum of the rotating motion are distributed to the ball bearings, which prevents wear on the equipment and allows smooth, repetitive motion. Ball bearings are used in equipment such as tillers and lawn tractors, as well as other power equipment that is self-propelled. The bearings will wear out over time since they are on the receiving end of all the angular momentum of the equipment being used. One of the chief locations where bearing assemblies need to be replaced are the drive wheels of the riding mowers and lawn tractors. The bearings are located in brass housings specifically machined to hold them. Since it can be difficult to remove the old ball bearing assemblies from these housings, it is worth considering simply replacing the entire housing as well as the bearing. These bearings are genuine OEM manufactured replacement parts. They are compatible with MTD, Yard-Man, Troy-Bilt, Husky, Cub Cadet, and Yard Machine lawn tools.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This replacement part is a hex screw. This part is small but important in many different kinds of machinery. Screws secure components within the equipment.Over time, screws can become stripped or corroded, causing them to break or get stuck in place. Excessive vibration during the use could also eventually lead to a screw coming loose and being lost.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This replacement part is a hex screw. It is a genuine replacement part made by MTD. Hex screws are able to hold other parts in place and secure them so that everything can operate smoothly. This part is small yet very important to the overall operation of many different machines.A new hex screw might be needed if the user notices that the current ones are damaged or missing. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous screw is stuck. It is possible that screws become stripped or lodged over time and should be replaced when this occurs. Be sure the engine is completely powered down before starting a repair. This is a genuine OEM replacement part sourced directly from the manufacturer. This screw is sold individually. Be sure to purchase the correct amount as many appliances require more than one.

This lock washer is a genuine MTD part, sold individually. This lock washer can be used as a replacement part in lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers.The lock washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced during the typical lifespan of the appliance. If this occurs, it should be replaced once the operator of the appliance notices its absence. The washer can also be stripped away as a result of general wear and tear, in which case it should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This lock washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Broan, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

This part is a replacement flat washer. This is a genuine OEM part made by Husqvarna and has been sourced directly from the manufacturer. This part can be used to replace a lost or defective flat washer in a variety of outdoor power equipment. Flat washers are a standard piece of hardware that is typically used to securely fix together different components. Flat washers increase the surface area to allow bolts and screws to work better. They should be replaced if corroded, lost, or defective in any way. When working on or near an engine, it's important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and equipment diagrams should be utilized.As an authentic replacement part, this flat washer is suitable for use on several different models of outdoor power equipment manufactured by Husqvarna, Poulan, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.
