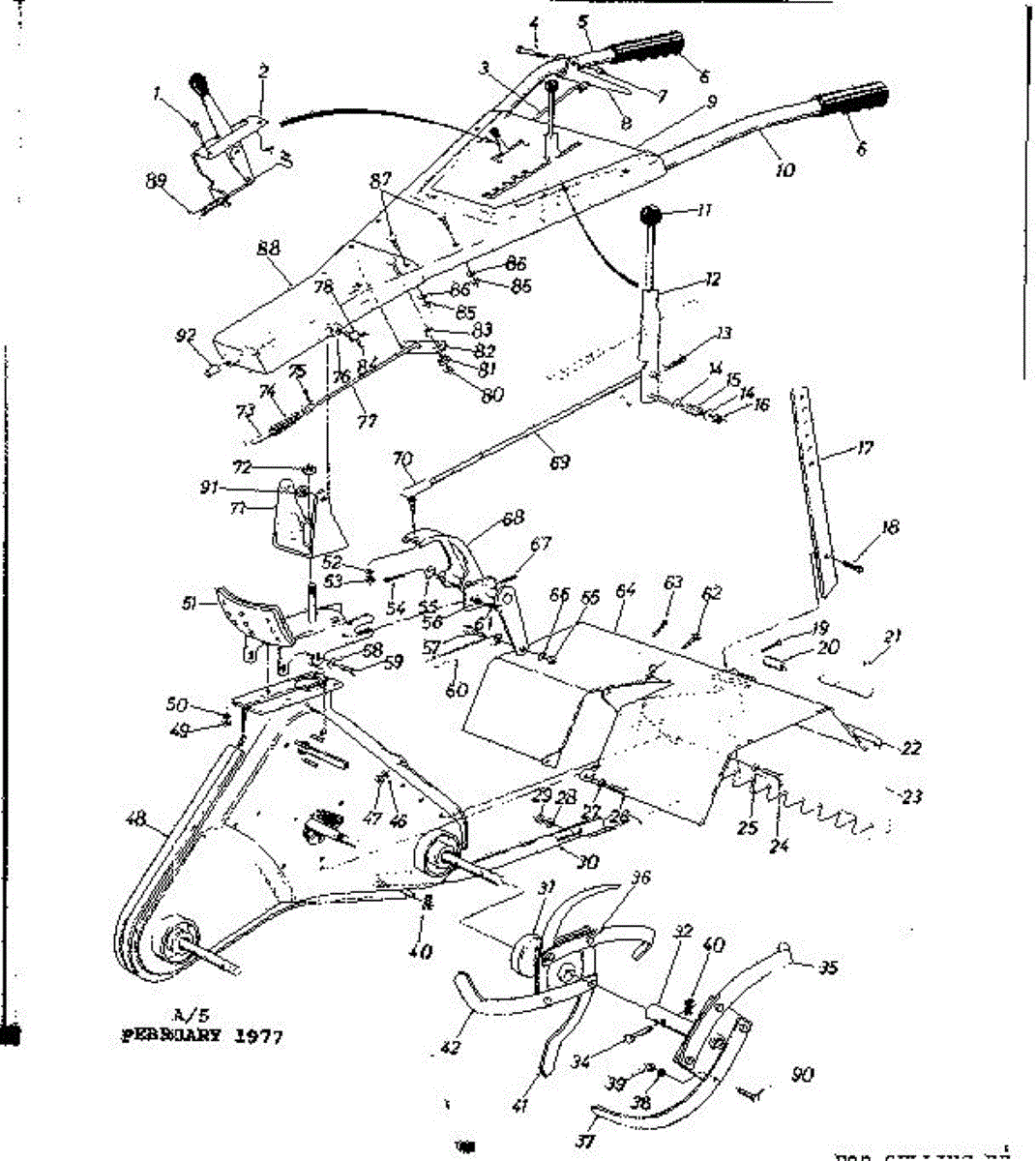

Parts for Craftsman 247297780: Handle And Chain Case Assembly Parts

This OEM part is a cotter pin for lawnmowers. The cotter pin is the small clip that secures the mower deck to the mower. A cotter pin can become rusted or damaged due to exposure to the elements. If the cotter pin is no longer securing the mower deck, then it will need to be replaced. Luckily replacing this part is a relatively simple fix.To replace the cotter pin, start by making sure the mower is turned off. After that, locate the old damaged pin. Use a pair of pliers to pull it out of its place. Once removed, slide the new pin into its opening and make sure it is set securely on the mower deck. Once secured, turn the mower on to see if the pin can hold the mower deck.This genuine replacement part is sold individually and is compatible with MTD brand mowers.

This replacement part is a hex screw. This part is small but important in many different kinds of machinery. Screws secure components within the equipment.Over time, screws can become stripped or corroded, causing them to break or get stuck in place. Excessive vibration during the use could also eventually lead to a screw coming loose and being lost.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This is a simple flat washer that can be used for lawn and garden equipment. Washers are used to help evenly distribute a load when they are used to fasten pieces together. This can help to reduce the risk of damage to the material. If the washers are missing or broken, it could create excess noise or vibrations depending on how or where they had been used.Washers tend to be durable, but they could still require a replacement. The washers could become bent or break over time. They could also become corroded or get lost when working on other parts of the machine. Owners should check the washers and replace them as needed.The washer here is for use with many types of lawn and garden tools from the likes of MTD, Yard-Man, Troy-Bilt, Craftsman, and Yard Machines. Keep in mind that each of the flat washers is sold individually. It is a genuine OEM replacement piece.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This type of screw is commonly found in many types of machinery and appliances. Screws are able to keep certain parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged in any way or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal use. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required on top of a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This is a ball joint assembly that is used in many snowblowers and lawnmowers. The ball joint is an important component of the equipment's steering system and helps secure drag links and tie rod ends. The ball joint assembly is made of durable metal but can experience wear and tear. It should be inspected regularly for damage or signs of wear and tear. If the ball joint assembly is broken, damaged, or bent, it will need to be replaced.If the ball joint assembly is damaged or detaches from the gear shift, a replacement is needed. An adjustment wrench can be used to make the replacement. First, make sure the equipment has been turned off. Remove the spark plug wire while doing the replacement. The ball joint can be removed using the wrench after removing any screws required to access it. Install the new ball joint assembly in its place.This is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual part. The ball joint assembly is designed to be compatible with lawnmowers and snowblowers manufactured by Cub Cadet, Craftsman, and MTD.

This replacement part is a hex nut. This is a genuine replacement part made by MTD. Hex nuts are small but important to the overall workings of many appliances. These parts work with other small pieces such as screws and washers to ensure that all parts of the machine are secure during use.A new hex nut might be needed if the current one is missing or damaged in any way. This can be caused by normal wear and tear with years of extended use. Hex nuts can experience large amounts of friction over time and may become stripped down. Be sure to replace the part as it might not be as effective as in prior uses. Refer to the user manual for specific directions on how to replace this part.This hex nut is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This part is a replacement washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective, broken, or lost washer in outdoor power equipment.Washers are a standard piece of hardware that provide a larger bearing surface for screws and bolts, allowing them to securely fix comonents together more efficiently. They may become lost or worn, requiring replacement. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This center hex nut is a genuine MTD part, sold individually. This center hex nut can be used as a replacement part in lawn mowers, snowblowers, tillers, leaf blowers, edgers, log splitters, and wood chippers. The purpose of the center hex nut for one of these small engine outdoor appliances is to work in conjunction with a bolt to provide a fastening component for one or more parts within the internal mechanisms of the appliance.The center hex nut might need to be replaced if the small fastening component is lost, misplaced, or damaged within the typical lifespan of the small engine outdoor appliance in which it has been installed.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This center hex nut is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This replacement part is a bushing washer. This is a genuine replacement part made by MTD. Washers work with other small parts like nuts and screws to hold certain pieces in place. This allows for the engine to run smoothly and efficiently. A new bushing washer might be needed if the current one is missing or damaged in any way. This can include being dented, bent, or cracked. Washers can become worn down due to normal wear and tear over time. This is caused by friction inside of the engine. Refer to the user manual for more specific instructions on how to replace this part. This bushing washer is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer for long-lasting use.

This replacement part is a hex screw. It is a genuine replacement part made by MTD. Hex screws are able to hold other parts in place and secure them so that everything can operate smoothly. This part is small yet very important to the overall operation of many different machines.A new hex screw might be needed if the user notices that the current ones are damaged or missing. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous screw is stuck. It is possible that screws become stripped or lodged over time and should be replaced when this occurs. Be sure the engine is completely powered down before starting a repair. This is a genuine OEM replacement part sourced directly from the manufacturer. This screw is sold individually. Be sure to purchase the correct amount as many appliances require more than one.
