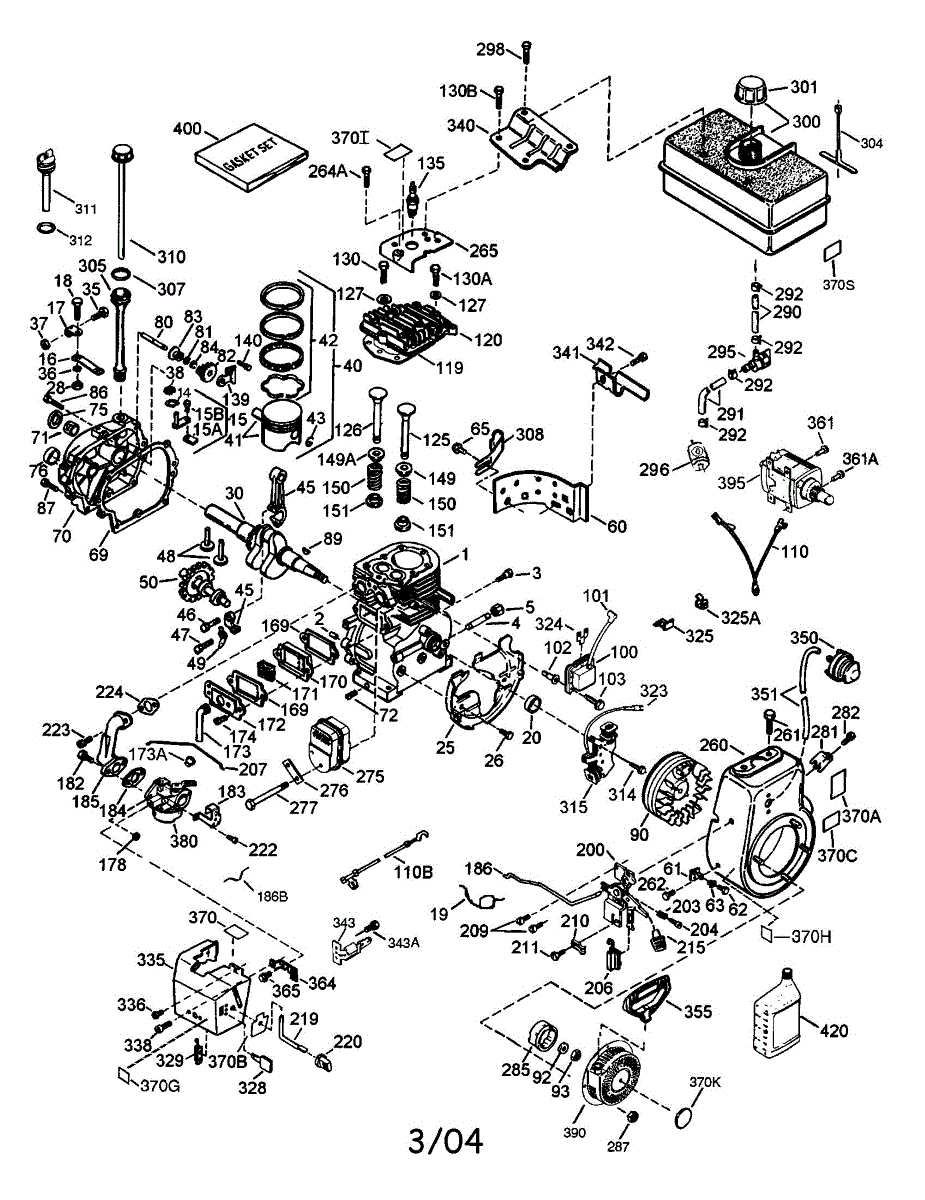

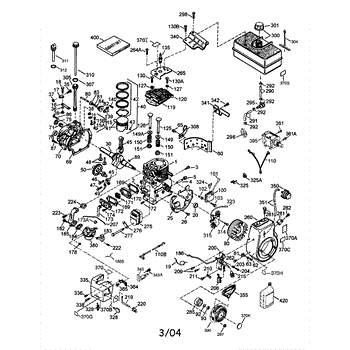

Parts for Tecumseh HMSK80-155719X: Engine Parts

This is an oil drain cap for lawn equipment. It is sometimes called a pipe cap. It sits at the bottom or side of the oil pan and helps to ensure that the oil in the motor does not leak out. If the oil drain cap is stripped or not functioning properly, it could mean the engine will start to leak oil, which will hamper the performance or cause additional damage.This component may start to corrode with extended use, or the threads could become damaged. The oil drain cap is relatively simple to replace. A wrench will be needed to replace this part. Wait until the engine is cool and then disconnect the spark plug wires before starting work.This oil drain cap is intended for use with lawn equipment from Tecumseh, Toro, MTD, Husqvarna, and Craftsman. The piece is sold individually, and it is a genuine OEM replacement part.

Spark plug covers can help to ensure added protection for the sparkplugs and can make sure that there is no debris getting on them. While the spark plug covers are long-lasting, they will eventually need to be replaced. Over time, they will start to dry, crack, and come apart. When this happens, replace the covers right away. Also replace the spark plugs at the same time. The OEM spark plug cover is sold individually, be sure to get enough to cover all the plugs. The cover can work with many different brands, including Craftsman, Briggs & Stratton, Toro, Cub Cadet, Troy-Bilt, Tecumseh, Lawn-Boy, Snapper, MTD, and Simplicity. The covers can work for many types of machines, including lawnmowers, generators, chippers, log splitters, edgers, pressure washers, tillers, and other small engines.

This is a genuine replacement exhaust valve. The exhaust valve allows the engine to exhaust as needed. This part also includes the retaining ring, which holds the valve in place as it moves in and out to allow the exhaust to escape from the system. Over time and due to repetitive motion, this valve can break down or become damaged. A replacement will be necessary for proper operation of the machine. If the exhaust valve is faulty, the engine may not run correctly. It may not run at all. A replacement will ensure proper operation of outdoor equipment. Be sure to wear gloves and allow the engine to cool completely before doing any type of engine repairs. This OEM exhaust valve is manufactured by Tecumseh. It meets manufacturer standards for an OEM replacement and is compatible with several machines from the brand. The exhaust valve is sold as an individual part and does not include any additional parts or hardware. Those must be purchased separately.

This is a genuine cylinder head bolt replacement designed for use on select small engines found in outdoor power equipment. The cylinder head bolt is responsible for securing the cylinder head in the engine. It is exposed to constant vibrations and high pressure, which can lead to eventual wear and damage. These bolts will need to be replaced immediately if they become damaged or broken. If the bolts are not replaced, the cylinder head will not be secure and that could cause further engine damage or total failure. This genuine OEM replacement bolt is manufactured by Tecumseh and designed for use in engines in a number of its small outdoor power machines. This part is compatible with dozens of engines and the exact number of bolts and placement may vary based on the model. The parts diagram should provide information on the application and location of this part. This bolt is sold as an individual unit, and those who need more than one will have to order multiple quantities. Always wear gloves for hand protection and allow the engine to cool before performing any engine repairs. This replacement bolt requires a hex socket or screwdriver.

This breather gasket is made of durable but flexible plastic, designed to seal the cylinder block and the breather body. A breather is a pipe that enables internal combustion in the engine to properly vent any crankcase pressure out of the engine. It is essentially a venting pipe or system and ensures that the engine's piston rings seal tighter against the cylinder walls (however many there are in that engine). When this gasket dries out, that pressure and seal cannot be created effectively and the engine may malfunction. Replacing the breather gasket means using a wrench to disassemble the breather, clean the surfaces, remove the original gasket, and use this authentic replacement part before reassembling This is an OEM replacement part designed for Toro, Tecumseh, Lawn-Boy, MTD, and Husqvarna equipment, including snowblowers and other small engine systems. This item ships individually.

This is a breather designed to be used on various types of lawn and garden equipment. The breather is an essential part that is responsible for venting out excess air from the engine's crankcase. If the equipment's engine isn't working as well as it used to, it could be related to a broken or damaged breather. In this situation, the breather will need to be replaced.Replacing the breather will require a socket set, a nut driver, a Phillips head screwdriver, and a set of pliers. Inspecting the breather or making a replacement starts with removing the equipment's muffler. This will give access to the original breather for visual inspection. If it has damage, it should be removed. The new part can be replaced before reassembling the tool.This breather is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual component. The breather is designed to fit onto lawnmowers, snowblowers, tillers, generators, and wood chippers manufactured by Briggs & Stratton, Craftsman, Toro, Cub Cadet, Tecumseh, Lawn-Boy, MTD, and Simplicity.

This on-off switch terminal is composed of electrical contact areas that connect to a charge or load on a battery. One is marked for positive current while the other is where the current returns to. These terminals can sometimes stop working or suffer corrosion which makes them dangerous to use. Brushing and cleaning a terminal can help remove dirt and debris, but a malfunctioning terminal requires a replacement. This is the case if the corrosion is severe enough to eat away at the metal or the terminal doesn’t clamp on the way that it should. The battery terminals can be removed and replaced using tools like pliers, a socket set, a wrench set, and a hacksaw. This terminal is a genuine OEM component directly from the manufacturer. It’s designed to be used on engines of snowblowers, lawnmowers, chipper shredders, and tillers. It is compatible with Tecumseh, Husqvarna, Toro, Troy-Bilt, Craftsman, Simplicity, Cub Cadet, Briggs & Stratton, and MTD equipment. Some items that can help with installation include anti-corrosion spray, felt pads, and heat-shrink tubing.

The screw is used on various parts of lawn and garden equipment for various purposes. It is used to help fasten different pieces to one another. The screws ensure the machine is working properly, and it can help to reduce vibrations. The screws in the equipment may need to be replaced for any number of reasons. In some cases, they might have developed issues with the threads and no longer hold properly. They could have become corroded or they could have been lost when working on the engine. When there is an issue with the screw, it should be replaced right away. The authentic replacement screws are sold individually. They can be used with lawn mowers, snowblowers, log splitters, wood chippers, tillers, pressure washers, generators, and other small engines. The compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Tecumseh, Lawn-Boy, MTD, and Simplicity. When buying screws, owners need to get the correct size for their needs. It may be a good idea to have several extra screws on hand.

This intake manifold allows an engine to get the air it needs in order to run properly. Any engine runs on three things - air mixed fuel, the sparks, and combustion. It is the intake manifold that delivers the air to all of the cylinders and guarantees function. This gasket is used to replace a pre-existing intake manifold gasket that has dried out or has failed to keep the intake manifold properly sealed to the engine. This may allow air leaks or uneven air pressure in the cylinders, affecting how well the engine runs. Any gasket may wear out with time and use, and replacing the a failed intake manifold gasket with this OEM part is one way to ensure that the engine is again running at optimal levels. The repair requires wrenches, socket sets, and the appropriate components for the engine in question. This is a gasket for an intake manifold on an array of lawnmowers, lawn tractors, and snowblowers made by Tecumseh, Toro, MTD, and Lawn-Boy, and others. This high-quality intake gasket ships individually and is made of composite materials.

This is a genuine fuel line replacement that can be used with select small engines found in outdoor lawn and garden equipment. The fuel line is responsible for delivering or returning fuel to or from the engine while it is in operation. The engine typically has a fuel return line and an intake line, and both can become corroded, worn, or cracked over time with constant exposure to chemicals and high temperatures. If the fuel lines are damaged, they can leak or fail to work at all, making the engine inoperable. When doing repairs, both lines should be replaced at the same time for consistency. This genuine fuel line provides an exact fit for compatible models. This genuine OEM fuel line is manufactured by Craftsman and designed for use in engines on their lawn and garden equipment, as well as certain models from MTD. It can be used on 4-cycle engines found in lawn tractors and chipper/shredder units that are compatible. This fuel line is made of durable rubber and sold as a single unit. Those who need two lines will have to purchase additional quantities. Always drain the fuel and disconnect the spark plug before working on the fuel tank assembly or fuel lines of any engine.

This durable metal screw is used in various types of lawn and garden equipment. A screw can be used on its own to attached two components together. It can also be used with a nut when there is a pre-drilled, threaded hole for it to go in. If a nut is being used, it should have the same finish and use the same threading as the screw does.This screw is typically used to fasten a fuel tank to a tank mounting bracket on the engine. It can be damaged in many ways and will need to be replaced if it has failed. Extreme temperatures, excess stress, and corrosion can all damage or break the screw. Do a visual inspection of the part to see if it has any wear and tear or has broken. If it has, it can be replaced using a screwdriver.This screw is designed to be used with lawnmowers, snowblowers, tillers, pressure washers, edgers, generators, and wood chippers manufactured by Briggs & Stratton, Craftsman, Cub Cadet, Toro, Tecumseh, Lawn-Boy, Snapper, Simplicity, and MTD. It is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual screw.

This part is an oil filler tube. The oil filler tube is what directs replacement oil into the engine when oil is being replaced or added to the engine. This allows the user to easily fill the engine with oil. A new oil filler tube may be needed if there is any sign of wear or damage to the part. If there are any leaks when refilling the engine with oil, then the oil filler tube should be replaced.This part is a genuine Tecumseh part and is an OEM part sourced directly from the manufacturer and it is sold individually. This oil filler tube is compatible with chippers, shredders, edgers, engines, pressure washers, vacuums manufactured by Tecumseh, Husqvarna, Toro, Lawn-Boy, Cub Cadet, and MTD.

This is a starter handle used for several types of lawn and garden equipment. It makes starting the equipment's engine more convenient and comfortable for the user. The starter handle is made of durable plastic and comes in a mitten style that fits the hand. Over time, the handle can break, fall off, or become damaged. If any of these things occur, the starter handle will need to be replaced.A visual inspection of the handle will give evidence of any damage. It might have cracks or excessive scratches that make it difficult or impossible to use properly. If the handle is broken or missing, it has to be replaced. Replacement is simple and does not require any additional tools. The original handle should be slipped off of the starter shaft. Once it has been removed, replace it with a new handle.This is a genuine OEM replacement starter handle that is directly sourced from the manufacturer. It is sold as an individual part. The handle is made to fit lawnmowers and snowblowers manufactured by MTD, Lawn-Boy, Tecumseh, Toro, and Craftsman.
