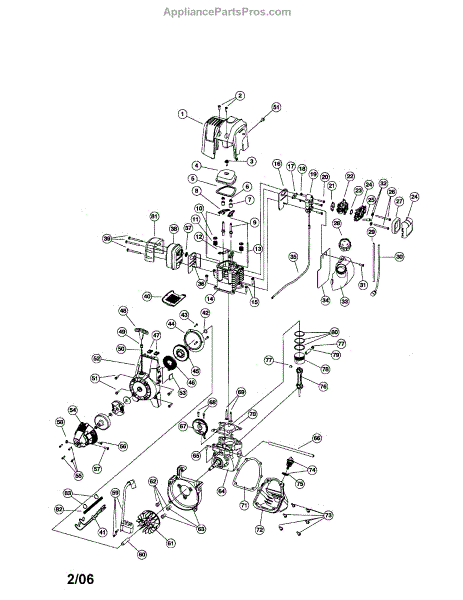

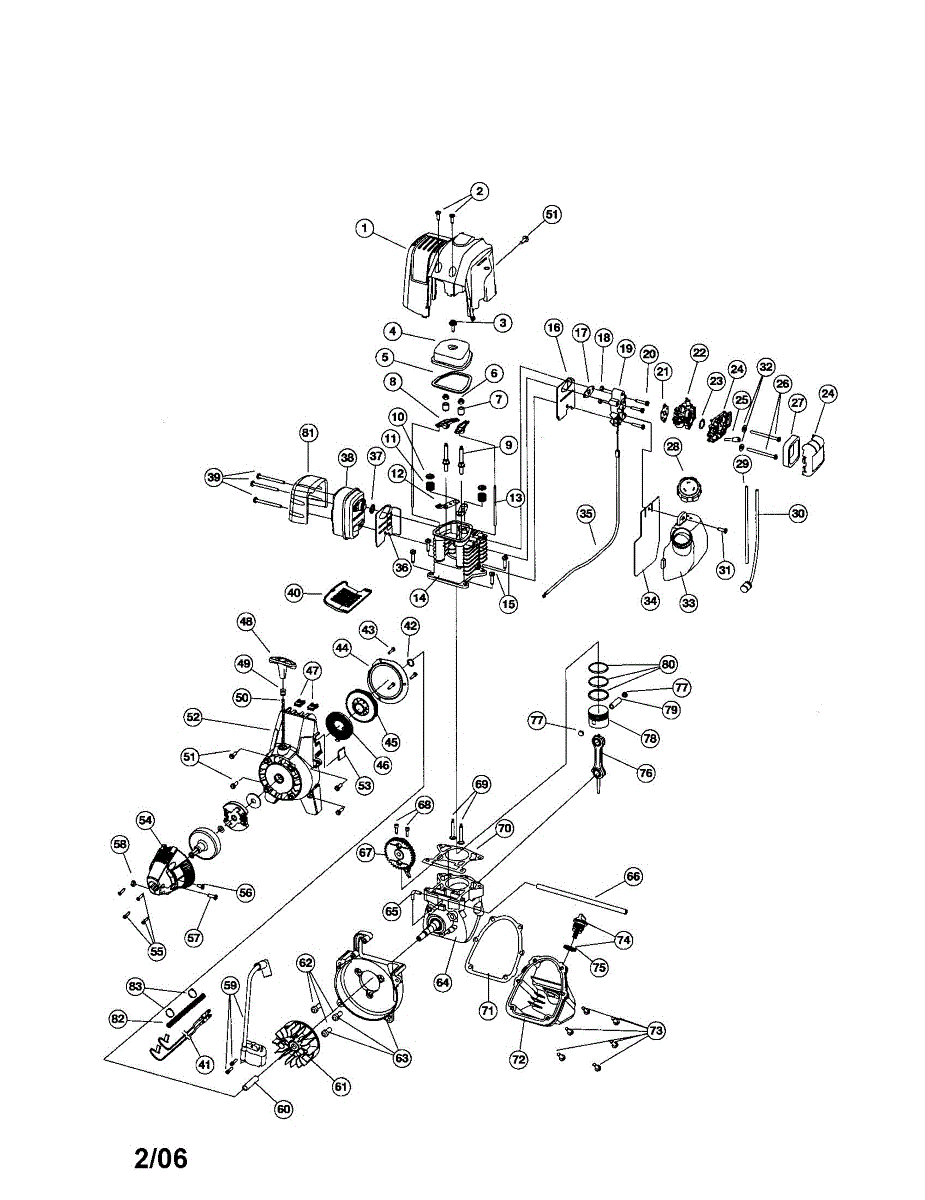

Parts for Troy-Bilt TB415CS: Engine Parts

Engine won't start or runs rough? This spark plug provides reliable ignition for small engines in trimmers, blowers, and tillers. Easy DIY replacement.

Fastener screw for tillers and lawn equipment. Secures components together for stable operation. Replace if stripped, missing, or damaged during maintenance.

Carburetor insulator gasket for gas line trimmers. Sits between carburetor and engine block. Replace if cracked, warped, or missing to prevent air leaks.

The carburetor replacement part here can work with several types of gas-powered machines for use in lawn care and gardening. The carburetor is one of the most important parts of an engine. It is where the air and fuel are mixed before the fuel goes into the engine. The correct ratio helps to ensure that the engine starts easily and functions properly. If the engine is difficult to start, if there are gas leaks, or the engine has trouble continuing to run after being started, the carburetor could be at fault. Over time, parts of the carburetor could fail. When there are issues with the carb, it should be replaced as soon as possible. This genuine OEM replacement carburetor is sold individually. It can replace the carburetors in certain models of edgers, trimmers, and tillers. Compatible brands include MTD, Bolens, Yard-Man, Yard Machines, Ryobi, Cub Cadet, Troy-Bilt, and Craftsman. Owners must ensure they are choosing the correct carb for their make and model.

This is a genuine replacement O-ring, which is a standard part on a number of engines. This O-ring is specifically designed as a replacement for the one found in the carburetor on select lawn and garden engines. The O-ring is designed to create a seal in the carburetor to ensure optimal performance and prevent leaks. It is also designed to help create the right amount of pressure. Over time, O-rings can become corroded, worn, or damaged due to their exposure to pressure and high heat. If they become broken or damaged, they can result in poor engine performance or even total engine failure. This genuine OEM O-ring is manufactured by RYOBI and compatible with a number of tillers, trimmers, and blowers from this brand. It is also designed for use with select models from Bolens, Yard Man, MTD, and Troy-Bilt. There are more than 150 models that can use this specific O-ring. It is made of durable materials and sold as an individual unit. Keep in mind that because O-rings have multiple applications and engines may have more than one type, it is important to double-check the location and application of the part to ensure the right one is being used.

Protective cover that secures over the air filter on gas line trimmers and leaf blowers. Replace if cracked, broken, or missing to keep debris out.

Breather housing assembly for line trimmers and tillers. Replaces cracked, broken, or damaged housings. Installs on engine to maintain proper ventilation.

Fix reduced engine performance and rough running on your leaf blower or trimmer. This replacement air filter prevents dust from entering the engine.

Replacement fuel return line carries excess fuel from carburetor back to tank. Replace if you smell fuel or experience engine misfires. Confirm fit by model.

The fuel line assembly is a complete piece that will replace the entire fuel line in a compatible MTD engine. The fuel pickup line includes a filter and is designed to pump fuel into the carburetor when the primer bulb is activated. The filter is designed to sit in the fuel tank and the line is fed out a hole in the side and connected to the primer bulb. The filter can become clogged with debris and buildup over time and will require changing. There may also be cases when the line is damaged or leaking, and this OEM replacement fuel line assembly can replace it. This fuel line includes the line itself and the mesh fuel filter screen that will ensure that debris is removed before fuel enters the carburetor. This genuine OEM part is manufactured for use with various lawn and garden equipment engines, including edgers, trimmers, blowers, and cultivators. The fuel line assembly will fit select models from RYOBI, Troy-Bilt, MTD, Yard-Man, Bolens, and Cub Cadet.

Throttle cable for gas line trimmers. Controls engine speed from the handle. Replace if cable is frayed, kinked, stuck, or broken for proper operation.

Fastening nut for tillers, trimmers, blowers, and edgers. Secures components by working with bolts. Replace if stripped, corroded, or missing.

Replace a broken recoil spring when your gas trimmer, edger, or blower won't pull-start or the cord won't retract. Simple DIY repair in under 30 minutes.

This replacement part is a rope guide, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This rope guide allows the user to pull start the engine. The rope is connected to the transmission inside the engine that allows it to be turned off and on when desired. A new rope guide might be needed if the current one is damaged or missing. If the user is unable to start the lawn mower, then the rope guide might not be connected and should be replaced. Be sure that the engine is completely powered off while attempting this repair as this part is close to the engine inside the appliance. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer to ensure proper fit in all appliances. Reference the owner's manual for more specific guidance.

If your trimmer won't start or the pull cord doesn't retract, the starter housing assembly may need replacement. Moderate DIY repair in 30-45 minutes.

Few parts fulfill as many roles on lawn mowers and other landscaping power tools than the cover screw. This screw serves to attach metal housing parts, assemblies, and shrouds to one another on equipment such as power vacuums, snow blowers, edgers, tillers, hedge trimmers, lawn tractors, leaf blowers, grass trimmers and cultivators. As these are extremely durable metal screws, they seldom fail under ordinary use. It should be noted, however, that they are most often used at connection and pressure points. Stresses at these junctions sometime loosen screws, causing them to be lost or occasionally resulting in stripped threads. It's also occasionally the case that these screws are lost during repair or routine maintenance of yard equipment because of their small size. Users should make sure to consult their owner's manuals for replacement steps and any special instructions. Because of their small size and the ease of losing them during repair work or maintenance, it's recommended to keep a supply of appropriately sized screws on hand. Most importantly, when replacing a part make sure to use a genuine OEM replacement part. They are manufactured according to the specs of the original parts and are perfect replicas.

This is a genuine replacement screw designed for use in select MTD engines on lawn and garden equipment. Specifically, this is an anti-rotation screw, which is used to stop the drive shaft housing from turning inside of the main housing assembly. This screw is a small part that is subject to constant vibrations, pressure, and high temperatures. It can sometimes become worn or damaged as a result or even break off entirely, which would mean that the inner housing would no longer be held in place accordingly. If this screw is damaged or lost, it needs to be replaced with a genuine OEM replacement as soon as possible. This MTD anti-rotation screw is manufactured with high-quality materials and designed for use in select trimmers from MTD, RYOBI, Yard-Man, Troy-Bilt, Murray, Cub Cadet, Yard Machines, and Bolens. This replacement will require a screwdriver. Simply remove the damaged screw, if it is not already missing, from the clutch cover assembly, and then install the new screw. It should only take a few minutes to perform the replacement. Be sure to wear gloves to protect the hands. This screw is sold individually and does not include any additional parts or hardware.

Flywheel assembly for tillers and outdoor power equipment. Replaces cracked, damaged, or worn flywheels that affect engine timing and cooling fan operation.

This breather hose is a component that makes up part of the ventilation system for the crankcase with lawn and garden tools. It has a single way valve that prevents excess exhaust gases from transferring to the engine. A reed is included to help lubricate the piston as the hose moves oil to the crankcase. The tube is made with special fibers that filter and cool the air to prevent the engine from overheating.If oil is leaking from lawn and garden equipment, this can indicate that the breather hose needs to be cleaned or has been damaged. If it is dirty, it will often create blue smoke that leaves the exhaust pipe. If the smoke is dark, this is a sign that the breather hose may be damaged and need replacement. Inspect the hose to see if it looks dirty or damaged so a replacement can be made if needed.This breather hose is an OEM replacement component directly sourced from the manufacturer. It is a single individual hose. The breather tube can be used with lawnmowers, tillers, string trimmers, edgers, and leaf blowers by Yard-Man, Craftsman, Cub Cadet, Bolens, Ryobi, Troy-Bilt, Murray, MTD, and Yard Machines.

This replacement part is an oil plug ring. It is a genuine replacement part made by MTD. This specific part is typically found in machines and appliances that have an oil tank. This ring is used to make sure that the oil from the machine does not escape during use.A new oil plug ring might be needed if the current one is allowing oil to escape from the tank. If there are oil drips near the engine it is possible that the ring is damaged or broken. This part is small but important to the overall use of many machines. Be sure to reference the specific user manual for more information on how to replace this part. This part is sold individually. It is a genuine OEM replacement part and is sourced directly from the manufacturer to ensure a proper fit and long-lasting use.
