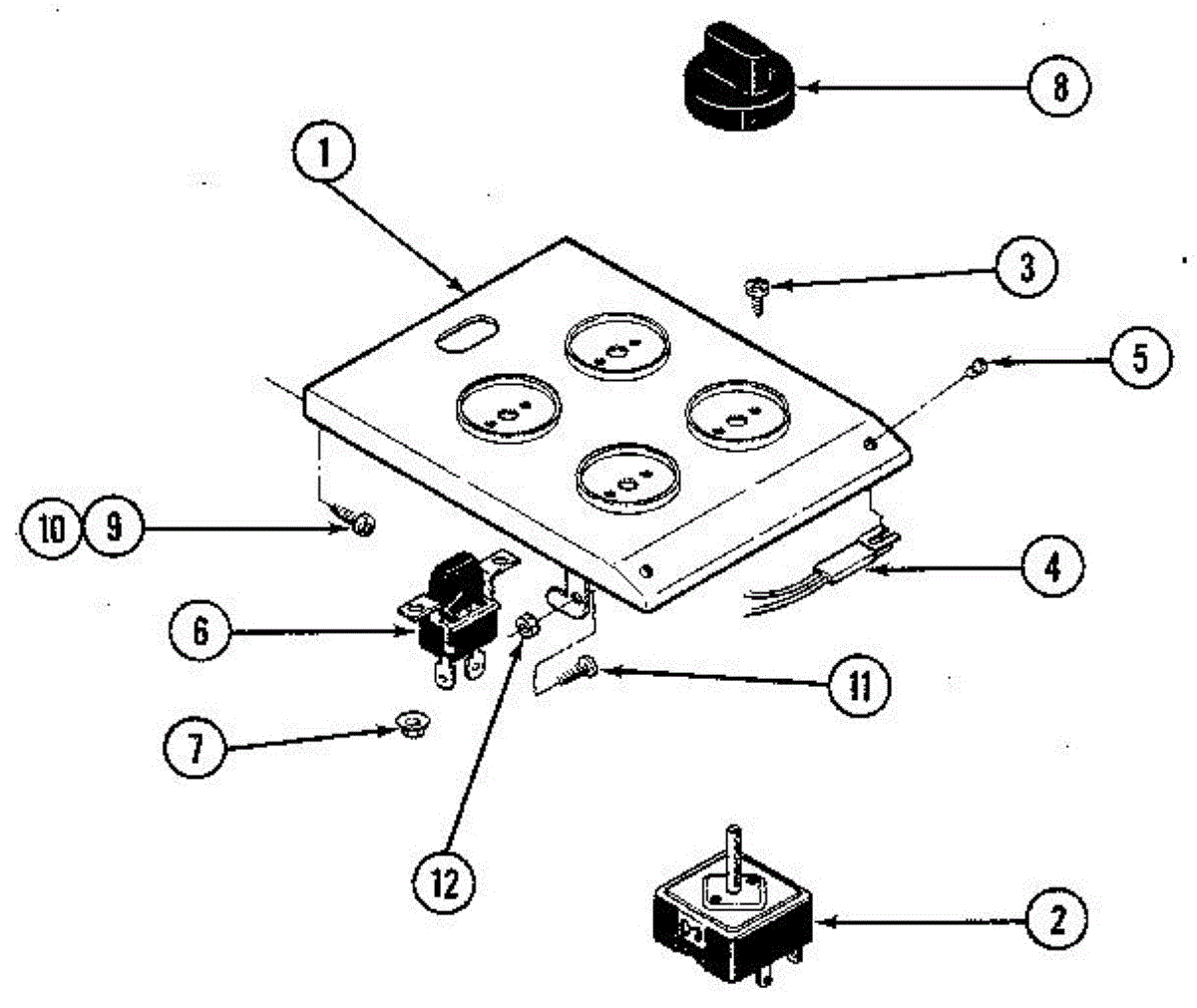

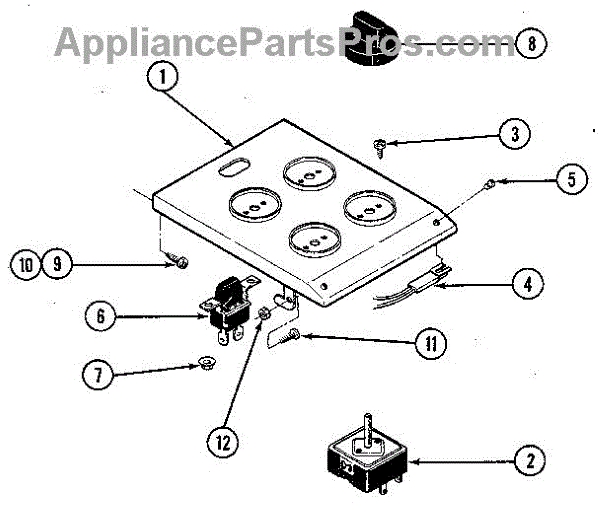

Parts for Kenmore 223.07(1988) (22307(1988), 223 07(1988)): Escutcheon Assembly Parts

Burner stuck on high or won't turn off? This burner control switch regulates heat settings. Moderate DIY repair—label wires before swapping.

This part has been discontinued and is no longer available

Mounting nut secures burner components to your range cooktop. Replace if cracked, stripped, or missing to properly fasten burner parts in place.

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing

Metal hinge assembly that mounts to the oven door frame, enabling smooth opening and closing. Replace if cracked, broken, or no longer holding door securely.

Size: 8-32 x 1/4 inch.

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

Energy saver grill assembly.

Color: White. For black order A341. Size: 21 inches x 11 1/2 inches. This one piece Jenn-Air Designer Line electric grill cover adds that clean look to your cooktop when not in use. It also provides the extra work space when cooking. Handles are attached on each end for easy removal.

This Jenn-Air flat bottom wok will work on any electric element or gas burner. Includes the lid, steaming rack, two rice paddles and instruction manual.

Size: 19 5/16 inches x 10 3/4 inches. This Jenn-air Designer Line non-stick aluminum electric griddle accessory fits over the electric grill elements and has two drain holes on the one end to make ease of separating the grease from the food. For the gas griddle order JGA8200ADX.

Size: 8 inches. Includes a 1 inch elevated vent to improve air circulation. This Jenn-Air big pot canning element is perfect for those meals where a heavy pan is required. Its also great for canning your fruits and vegetables. This element can be used in place of the standard large burner element with male plug-in terminals.

Wire harness for cooktops and ranges. Connects electrical components for proper operation. Replace if wires are damaged, frayed, or connectors are broken.

Wire harness assembly for cooktops. Connects electrical components and controls. Replace if wires are frayed, connectors damaged, or harness is broken.

Color: Black. For white order A341W. Size: 21 inches x 11 1/2 inches. This one piece Jenn-Air Designer Line electric grill cover adds that clean look to your cooktop when not in use. It also provides the extra work space when cooking. Handles are attached on each end for easy removal. For gas order AG341B.

This spring kit replaces worn or broken return springs in the applicable assembly, restoring proper tension and smooth movement so the mechanism operates reliably throughout the cycle and returns to its proper position. What it does:

• Provides the correct tension to move or hold parts in place
• Helps resolve weak return action, sticking, failure to engage/latch, or sagging components
• Can reduce noise caused by loose or fatigued springs
• Maintains consistent operation throughout the appliance's cycle

What's included:

• Manufacturer-supplied spring kit

Install notes:

• Disconnect power; turn off water supply if applicable
• Springs are under tension—use eye protection and release carefully
• Note original spring routing and attachment points before removal
• Replace both for balanced operation

Radiant element cartridge for modular electric cooktops. Replaces cracked, broken, or worn plug-in cooking modules. Restores smooth heating surface.

Black plug-in coil cartridge for modular cooktops. Replace worn, damaged, or discolored modules to restore a clean, uniform appearance across your cooktop.

This radiant cartridge is the plug-in cooking surface used on Designer Line modular cooktops. It restores a smooth black surface and consistent, even heat when the original cartridge is damaged or no longer heating properly.

• Provides radiant heat beneath a smooth glass surface for everyday cooking tasks
• Self-contained plug-in module that seats in the cooktop bay and delivers heat to cookware
• Common symptoms prompting replacement: no heat, uneven or intermittent heat, or visible cracks/discoloration on the surface
• Restores normal heating performance when matched to a compatible modular cooktop

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Lift out and unplug the old cartridge straight up; avoid prying on the glass surface
• Inspect and clean the receptacle; align and firmly seat the new cartridge until fully engaged
• Restore power and test heating at low and high settings using appropriate cookware

This is a complete plug-in cooking module for compatible Jenn-Air/Whirlpool modular cooktops. It drops into the cooktop bay and provides a pair of electric coil burners so you can swap configurations as needed.

• Provides two electric coil surface elements within a self-contained module
• Restores heating performance when a cartridge is damaged or not heating
• Symptoms can include no heat, uneven heating, or visible damage to the module
• Designed to plug into the cooktop's cartridge receptacle for quick changeovers

• Disconnect power before servicing
• Allow the cookware and module to cool completely before removal
• Lift out the old cartridge straight up; align and seat the new module fully into the receptacle
• Test each burner on low and high to ensure proper operation
