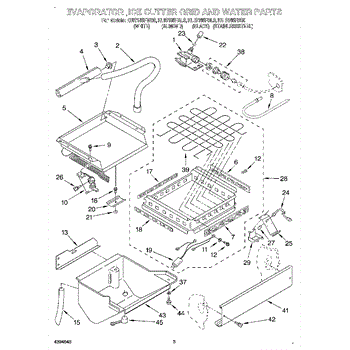

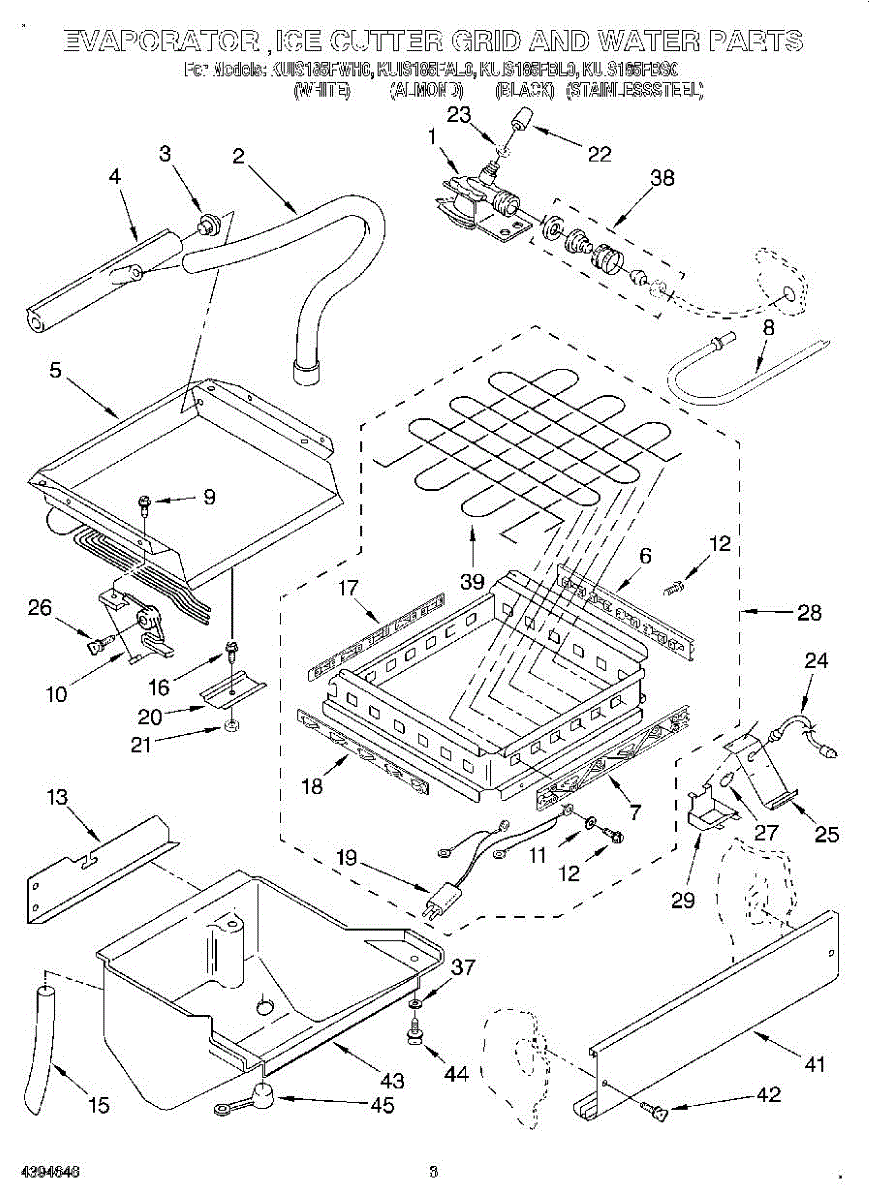

Parts for Kitchenaid KUIS185FBS0: 02 - Evaporator, Ice Cutter Grid And Water Parts

Specs: 10-16 x 1/2 inch.

8-16 thread screw secures panels, brackets, and trim inside refrigerators, dishwashers, and ice makers. Replace if missing, stripped, or damaged.

Replace cracked or missing compression fitting inserts for 1/4-inch water tubing in refrigerators and ice makers. Prevents leaks at connections.

1/4 inch compression nut for securing plastic water lines in refrigerators and ice makers. Replace worn, cracked, or missing nuts to prevent leaks.

Package of 2.

This grid assembly cuts ice into uniform cubes as it rotates within the ice maker mechanism. Located inside the ice maker module, replace it when ice cubes are irregularly shaped, too large, or when the ice maker fails to produce ice properly.

The Cutting Grid Kit is an OEM replacement part for Whirlpool ice machines. It cuts sheets of frozen ice into individual cubes, ensuring ice is available in uniform sizes. Each kit contains 8 screws and approximately 10 feet of wire. Two kits are required to replace both directions of the cutting grid to ensure comprehensive restoration of the ice maker’s functionality.

Causes of a bad Cutting Grid Kit can be attributed to mineral deposits buildup, which can obstruct the cutting process, electrical malfunctions affecting the heating element, or physical damage to the grid wires.

Symptoms of a malfunctioning Cutting Grid Kit are:

• Ice sheets not being cut into cubes
• Accumulation of uncut ice in the bin
• The heating element fails to warm up
• Inconsistent ice cube sizes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-32 x 5/8 inch.

Size: 10-32 x 5/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 1/4 lb.

Foam insulation panel that fits inside refrigerator doors to maintain temperature efficiency. Replace if cracked, compressed, or missing.

Putty sealer adhesive for refrigerators and freezers. Seals joints, gaps, and connections. Replace when old sealant is cracked, dried out, or missing.

Sealer for refrigerant line insulation.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.

The Adhesive is an OEM part for Whirlpool appliances, designed for securing and sealing various components within the appliances. This adhesive is ideal for use in situations where a durable and heat-resistant bond is necessary.Size: 2 oz. tube. This silicone rubber adhesive can be used on door gaskets, felt seals, and much more.

Over time, seals and insulation can become loose or detached due to wear, heat, or mechanical action, potentially compromising the appliance's functionality, efficiency, or safety.

The need for this adhesive may become apparent through symptoms such as:

• Loose seals or gaskets that result in heat loss, inefficiency, or the escape of moisture.
• Detached insulation leading to increased noise, heat transfer, or loss of energy efficiency.
• Components that have become unattached, affecting the appliance's performance or structural integrity.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
