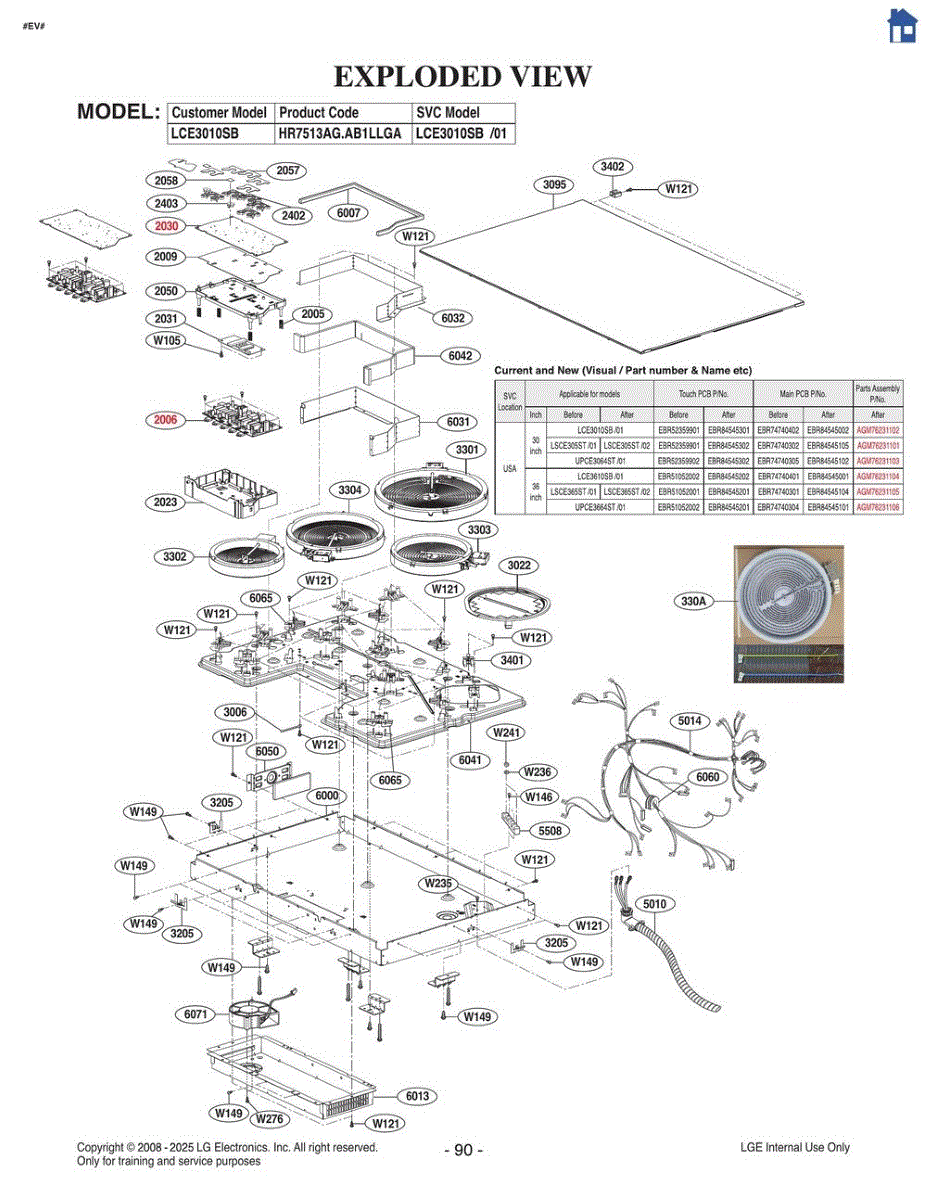

Parts for Lg LCE3010SBE: Exploded View Parts

Secures interior panels and components. Replace when stripped, corroded, or missing to stop rattles and secure loose trim. Verify fit with your model number.

Replacement mounting nut for cooktops and ranges. Secures components during installation. Order a new nut if yours is stripped, missing, or damaged.

This power control board assembly regulates and routes electrical power to the appliance's main components so the unit can operate reliably. Replaces a failed board to restore control functions and normal electrical switching. What it does:

• Distributes power to motors, valves and user-interface circuits to enable normal operation
• Routes signals between the main control and subsidiary circuitry for proper cycle control
• Can help address symptoms such as no power to the unit, unresponsive controls, or intermittent operation
• Works with the appliance's control system; use only the correct board for your model

• Disconnect power before servicing to avoid electric shock.
• Handle the board by its edges and avoid static discharge; use an ESD strap if available.
• Compare the replacement board to the original for connector alignment and mounting before installation.

Fix unresponsive buttons or controls not working on your electric cooktop. This control board PCB assembly restores reliable operation. DIY repair.

Controls user interface buttons and display communication with the main board. Replace if the interface board is faulty, unresponsive, or damaged.

Replace the PCB support housing for your electric cooktop. This component secures and protects the control board assembly. Order a new one if cracked or broken.

This is a small indicator mark or pointer attached to or near the control knob on the range. It helps you visually align the knob to the correct temperature or function setting. Replace it if the indicator is broken, missing, or no longer lines up properly, making it difficult to select the correct burner or oven setting.

Replace your cooktop's indicator light lens when cracked, discolored, or missing. Restores visibility of heating element status. Verify fit with your model number.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

This is a warming or induction surface heating element designed for use in a range cooktop. It provides low, consistent heat to keep food warm without overcooking. Replace this element if the warmer zone on your cooktop no longer heats up, heats unevenly, or fails to maintain temperature.

Mounting bracket for electric cooktops. Secures the cooktop unit to the countertop or cabinet. Replace if bent, broken, or missing during installation.

This is a radiant surface heating element measuring 5-1/2 inches in diameter and rated at 1200 watts. It sits beneath the glass cooktop surface and provides heat to the burner area when activated. Replace this element if the burner fails to heat, heats unevenly, or does not reach full temperature.

Support plate for electric cooktops. Mounts underneath the cooktop surface to provide structural stability. Replace if cracked, broken, or damaged.

Support plate for electric cooktops. Mounts underneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Fixes power connection issues or arcing at the terminal block. This socket connects your range power cord to internal wiring. Moderate DIY repair.

Idle cap for electric cooktop. Installs on the control panel assembly. Replace if your cap is cracked, broken, missing, or worn from regular use.

Metal support plate for electric cooktops. Mounts underneath the cooktop surface to provide structural reinforcement. Replace if cracked or damaged.

If your cooktop is overheating or shutting down unexpectedly, this cooling fan motor assembly restores proper airflow and temperature regulation.
