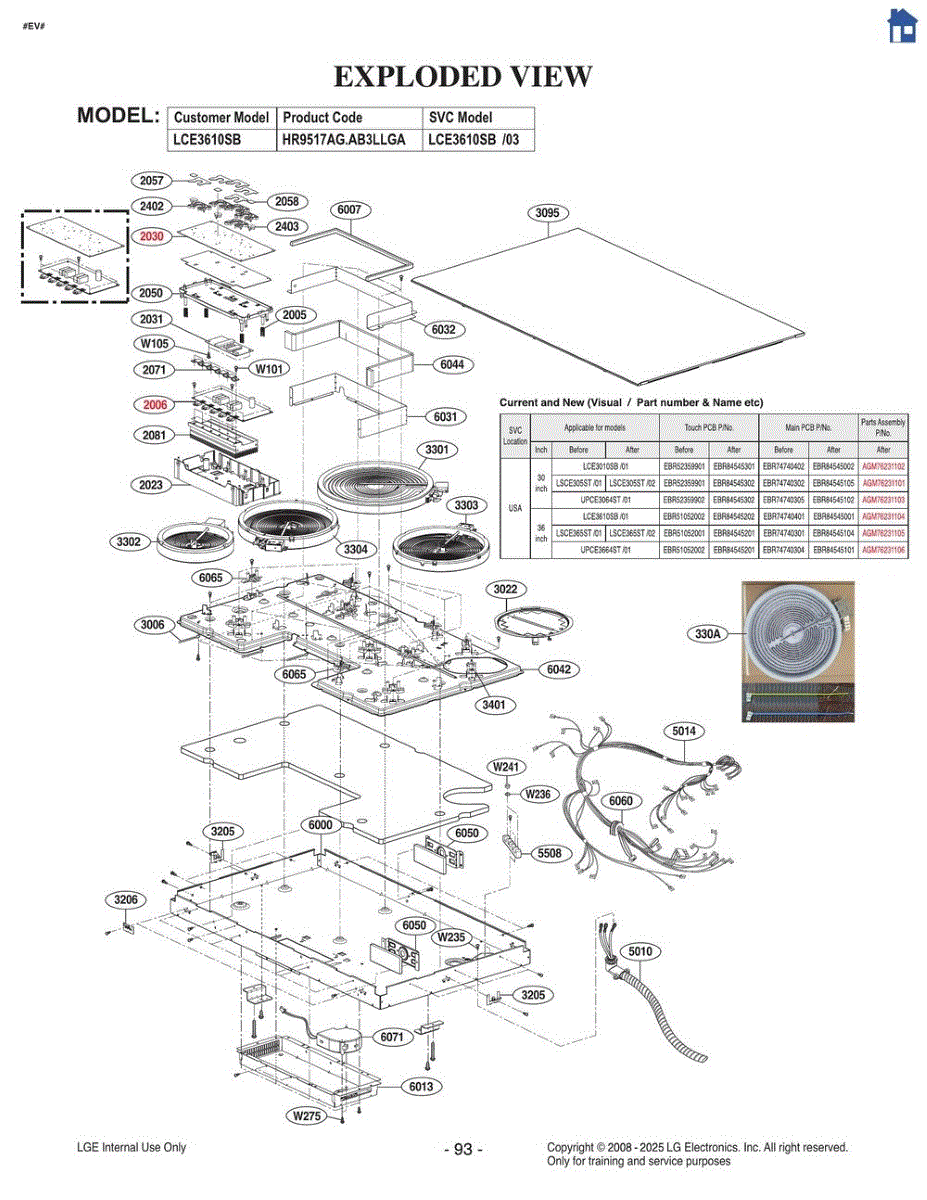

Parts for Lg LCE3610SBE: Exploded View Parts

A Tap-Tite binding-head screw used to fasten appliance panels and components where a self-tapping metal thread is required. Replaces missing or damaged fasteners to restore secure assembly and reduce vibration or rattling. What it does:

• Creates its own mating thread in thin sheet metal for a secure hold without a nut.
• Holds panels, brackets, and trim in place to prevent looseness or movement.
• Commonly used where stripped, missing, or broken screws cause rattling, misalignment, or parts that won't stay attached.
• Compatible with standard screwdrivers or nut drivers sized to the binding-head.

• Disconnect power and unplug the appliance before working on it.
• Use the correct driver bit to avoid cam-out or head damage.
• Start straight and apply steady pressure; avoid overtightening to prevent stripping the formed threads.
• If the original hole is badly damaged, assess for repair or use of a larger fastener as needed.

Replacement mounting nut for cooktops and ranges. Secures components during installation. Order a new nut if yours is stripped, missing, or damaged.

This keypad PCB is the electronic control board that connects the appliance's touch/press buttons to the control system, restoring user input and display functions for responsive operation and reliable control feedback. What it does:

• Registers button presses or membrane inputs and sends corresponding signals to the main control
• Provides the interface for cycle selection, start/pause, and other user commands
• Helps restore non-responsive or intermittent keypad behavior caused by a failed keypad board
• Resolves symptoms such as unresponsive buttons, erratic controls, or no display/input feedback

• One keypad PCB assembly

• Disconnect power before any service to avoid shock or damage
• Remove the control panel per your model's service instructions to access the keypad PCB
• Handle the board by its edges and avoid touching circuit traces or components
• Reassemble panels and test functions before finalizing repair

Controls user interface buttons and display communication with the main board. Replace if the interface board is faulty, unresponsive, or damaged.

This is a small indicator mark or pointer attached to or near the control knob on the range. It helps you visually align the knob to the correct temperature or function setting. Replace it if the indicator is broken, missing, or no longer lines up properly, making it difficult to select the correct burner or oven setting.

Replace your cooktop's indicator light lens when cracked, discolored, or missing. Restores visibility of heating element status. Verify fit with your model number.

This is a circular wire harness holder that secures and organizes internal wiring within the range. It clips onto the frame or mounting points to keep wires routed properly and away from heat sources. Replace this part if it is broken or missing, which can cause loose wiring or potential contact with hot surfaces.

This is a warming or induction surface heating element designed for use in a range cooktop. It provides low, consistent heat to keep food warm without overcooking. Replace this element if the warmer zone on your cooktop no longer heats up, heats unevenly, or fails to maintain temperature.

Mounting bracket for electric cooktops. Secures the cooktop unit to the countertop or cabinet. Replace if bent, broken, or missing during installation.

This radiation heater assembly provides the heat source used by the appliance's heating system, restoring warm-air or radiant heat so the appliance can reach proper operating temperatures. Designed as a direct-replacement heating component. What it does:

• Converts electrical power into radiant heat for the appliance's heating circuit
• Restores normal heating when a failed radiation heater causes weak or no heat
• Works as the primary heat source in the oven/dryer/heater module where applicable
• Compatible with factory mounting points and electrical connections

• One heater radiation assembly

• Disconnect power (unplug or switch off circuit breaker) before starting work
• Handle the element carefully; avoid bending, denting, or touching heating surfaces with bare hands
• Verify wiring connections and mounting orientation match the removed part before final assembly

This is a radiant surface heating element measuring 5-1/2 inches in diameter and rated at 1200 watts. It sits beneath the glass cooktop surface and provides heat to the burner area when activated. Replace this element if the burner fails to heat, heats unevenly, or does not reach full temperature.

Support plate for electric cooktops. Mounts underneath the cooktop surface to provide structural stability. Replace if cracked, broken, or damaged.

Fixes power connection issues or arcing at the terminal block. This socket connects your range power cord to internal wiring. Moderate DIY repair.

Idle cap for electric cooktop. Installs on the control panel assembly. Replace if your cap is cracked, broken, missing, or worn from regular use.

Metal support plate for electric cooktops. Mounts underneath the cooktop surface to provide structural reinforcement. Replace if cracked or damaged.

If your cooktop is overheating or shutting down unexpectedly, this cooling fan motor assembly restores proper airflow and temperature regulation.
