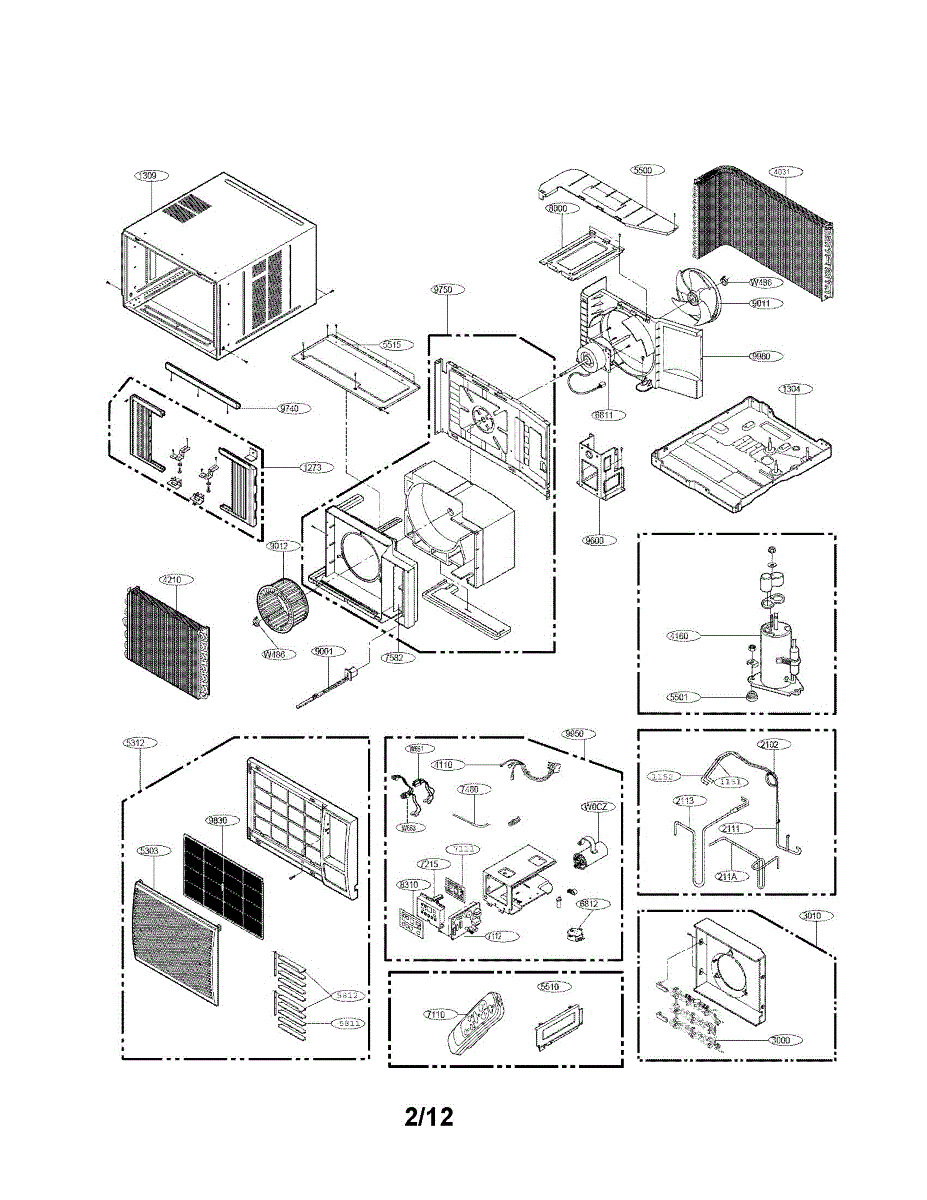

Parts for Lg LWHD2400HR: Exploded View Parts

This film capacitor box is the boxed capacitor assembly used to stabilize and filter voltage in the appliance's control/power circuit. It restores proper electrical smoothing to help reduce noise and improve starting/operation reliability. What it does:

• Provides filtered, stabilized capacitance for control and power electronics
• Reduces electrical noise that can cause erratic control behavior or interference
• Helps ensure reliable motor or compressor starting and steady operation
• Can address symptoms such as humming, intermittent operation, or control errors related to power conditioning

• Disconnect power to the appliance before servicing to avoid shock hazard
• Capacitors can hold charge—discharge safely and verify voltage is zero before touching terminals
• Handle the assembly carefully and avoid crushing or deforming the box or leads

This clamp secures a line or connection inside your appliance, maintaining a tight fit under vibration. Replacing a fatigued clamp helps prevent leaks or disconnections and keeps components anchored so the system operates reliably.

• Holds a line/fitting firmly to keep the joint sealed and secure
• Helps prevent leaks or disconnections at hose/tube connections
• Resists vibration that can loosen fittings during operation
• Replace if bent, weakened, or corroded, or if the connection repeatedly loosens

• Disconnect power and, if applicable, shut off water supply before service
• Note clamp orientation and routing; seat the clamp just behind the fitting bead/stop
• Use the correct tool for your clamp style to compress or tighten evenly
• After reassembly, restore utilities and test for leaks or movement

This installation kit includes the manufacturer-specified hardware used to secure and align an appliance during setup. Use it to replace missing or damaged install hardware and restore a safe, stable, factory-correct fit in the opening. What it does:

• Provides required mounting hardware for proper installation
• Helps prevent shifting, rocking, or tipping when the appliance is used
• Aids in correct alignment and spacing within the cabinet/opening
• Replaces lost or damaged original install parts

• One installation kit

• Disconnect power (and gas/water, if applicable) before starting
• Follow your model's installation instructions for bracket locations and fasteners
• Use appropriate anchors for wall/floor material as specified by the manufacturer
• After installation, verify the unit is level and securely anchored

This capillary tube assembly controls refrigerant flow in the sealed refrigeration system, helping maintain proper cooling performance. It's a small-diameter tubing assembly used where precise pressure drop is required inside the system. What it does

• Metering section for refrigerant to regulate pressure and flow into the evaporator
• Helps maintain stable evaporator coil temperatures for consistent cooling
• Faulty or damaged tube can contribute to poor cooling, frost irregularities, or system performance loss
• Used as part of the sealed refrigerant circuit; typically replaced when damaged or during matched component repair

• One capillary tube assembly

• Sealed-system work may require certified refrigerant handling and vacuum/recharge equipment
• Disconnect power before beginning any service and follow safety guidance for sealed-system repairs
• Inspect related fittings and valves for leaks; replace any damaged components to ensure a proper seal

This horizontal louver directs airflow inside the appliance to help even cooling and prevent direct blasts on food. It restores proper air distribution when vent fins are broken or stuck. What it does:

• Guides refrigerator/freezer airflow for more even temperature distribution
• Replaces cracked, warped, or missing horizontal vent slats
• Helps reduce cold spots caused by misdirected air
• Visible damage or a louver that won't hold position are common symptoms

• One horizontal louver

• Disconnect power before servicing to avoid electrical hazards
• Remove nearby shelves or drawers for access if needed
• Typically snaps or slides into the vent housing; align and seat gently to avoid breaking tabs
• Inspect surrounding clips and housing; replace if damaged

The Thermistor Assembly is an OEM part for LG air conditioners. It is typically located near the evaporator coil or in the air intake area of the unit. It measures the ambient temperature and sends signals to the control board to adjust the cooling output accordingly.

Causes of a faulty or malfunctioning thermistor assembly can include normal wear and tear, exposure to extreme temperatures, or electrical issues. These factors can lead to inaccurate temperature readings, improper cooling performance, or erratic behavior of the air conditioner.

Symptoms of a bad thermistor assembly may include:

• Inconsistent cooling or insufficient cooling
• Inaccurate temperature display on the control panel
• Frequent cycling on and off of the compressor

This OEM LG part can also be used on Kenmore/Sears appliances.

This Guide Assembly, Air is an OEM part designed specifically for LG air conditioning units. Its primary function is to facilitate proper airflow direction and distribution within the air conditioning system, ensuring optimal cooling or heating performance.

Over time, this part may encounter issues due to extended usage or physical damage, leading to potential misalignment or restriction of airflow. Moreover, the accumulation of dust, dirt, or debris within the assembly can impede its functionality, ultimately affecting the unit's overall efficiency.

Symptoms indicating a bad guide assembly, air include:

• Inadequate cooling or heating output
• Uneven air distribution across the room
• Unusual sounds emanating from the air conditioning unit during operation
• Visible signs of damage or misalignment in the guide assembly

This OEM LG part is also compatible with some Sears/Kenmore models.
