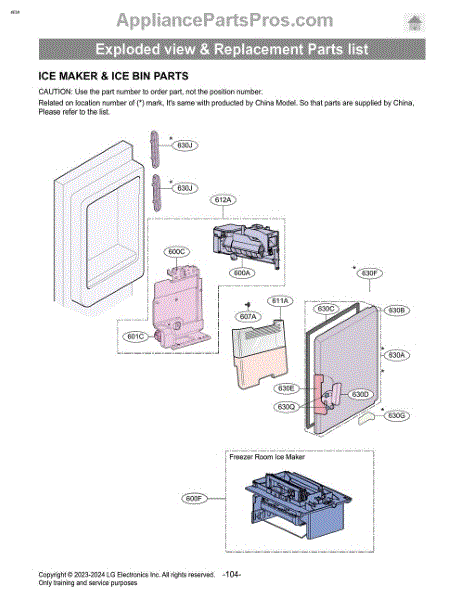

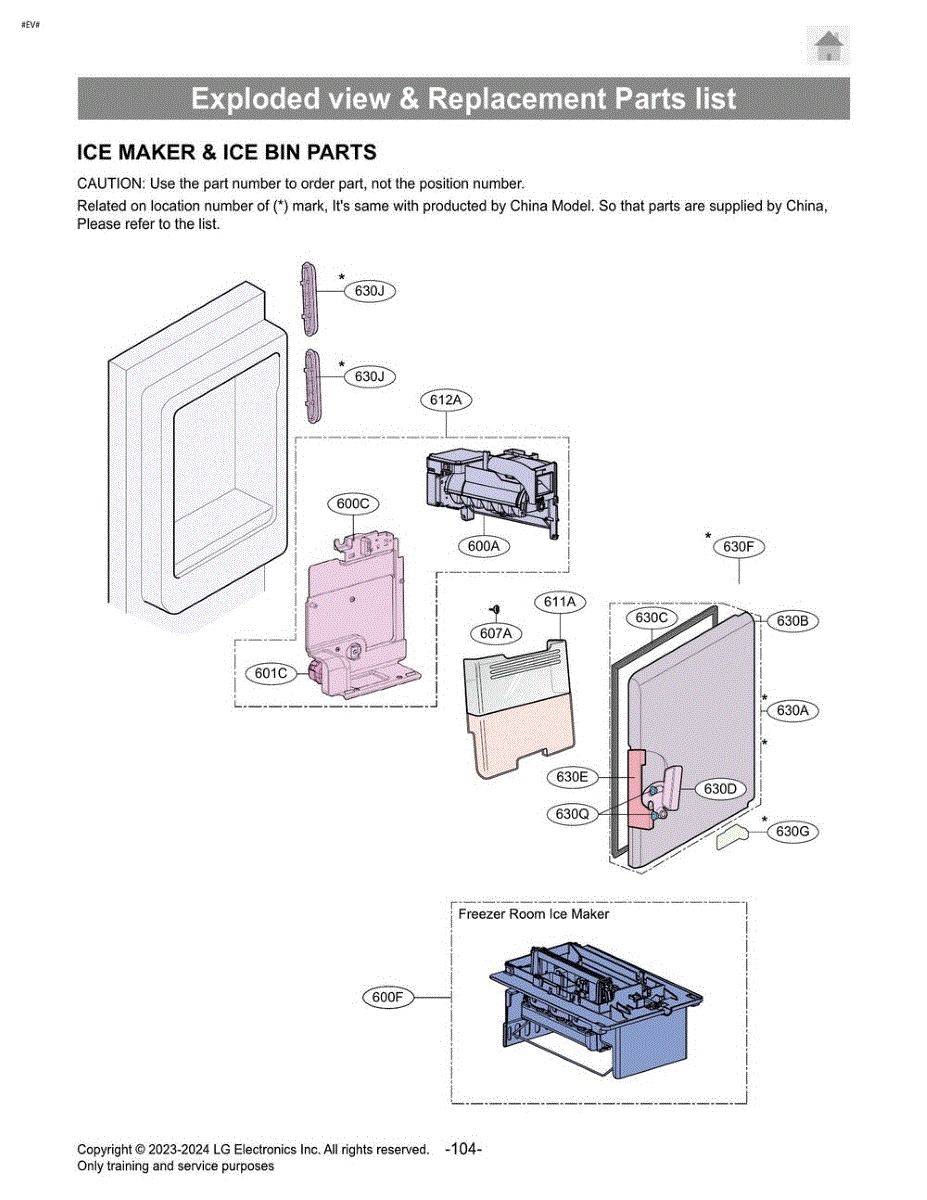

Parts for Lg LHFS28XBS: Exploded View & Replacement Parts List Parts

This ice maker assembly kit replaces the frozen-water dispensing mechanism in compatible refrigerators so your appliance resumes making ice reliably. Installs in the freezer compartment and restores automatic ice production. What it does:

• Houses the ice mold, ejector and motor drive that form and harvest ice cubes
• Controls ice-making cycles via the assembly's switch/thermostat and motor
• Stops making ice when the bin is full and restarts on demand (symptom: no ice or small/noisy ice harvest)
• Replaces a damaged or malfunctioning ice maker to stop leaks, jams, or intermittent ice production

• Disconnect power and water supply before starting any repair
• Handle wiring connectors and the fill tube carefully to avoid damage or leaks
• Basic hand tools typically required; access steps may vary by model

The Ice Maker Assembly kit is an OEM replacement part for LG refrigerators. The ice maker receives water from the water inlet valve and then holds the water in the ice mold until the water freezes solid. It then automatically ejects the ice and refills to continue the process until the ice storage bin is full.

Causes of failure can be mineral buildup affecting moving parts, wear from the motor over many harvest cycles, or damage to internal wiring from door mishandling.

Symptoms of a problematic ice maker include:

• Incomplete or below-normal ice production
• Ice cubes appearing oddly shaped or cloudy
• Strange noise or vibrations heard from inside the freezer
• Dispenser not functioning or unresponsive

This part is also compatible with some models from Sears/Kenmore.

The Auger Motor is an OEM part for LG refrigerators. It is responsible for dispensing ice from the icemaker into the ice bucket.

Symptoms of a bad auger motor include:

• Slow or incomplete ice filling of the ice bucket
• Ice clumping or jamming in the auger assembly
• Grinding or rubbing noises coming from the icemaker region
• The icemaker not producing any ice at all

Causes of a bad auger motor can be wear and tear over time, freezing or ice buildup preventing proper operation, or failure of internal motor components.

This OEM LG part is also compatible with select Sears/Kenmore models.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

Ice won't dispense or jams in the chute? This refrigerator ice dispenser assembly restores smooth ice delivery and fixes broken dispenser mechanisms.

Complete freezer door assembly for bottom-mount refrigerators. Replaces cracked, dented, or damaged freezer doors. Includes door shell and inner components.

This lever cover is a molded trim/protective piece that fits over a user-operated lever on the appliance. Replacing a damaged or missing cover helps protect the mechanism and restores a clean, finished appearance. What it does:

• Shields and guides the lever mechanism to help ensure smooth operation
• Helps keep internal components covered and aligned
• Restores the finished look when the original cover is cracked or missing
• Common symptoms: cracked or broken cover, loose/wobbly lever feel, sticking or misaligned lever action

• Includes 1 lever cover

• Disconnect power before servicing; if working near a dispenser, shut off water supply as applicable
• Remove any screws or clips and release locking tabs carefully to avoid breaking adjacent plastics
• Transfer any reusable hardware from the original part
• Check lever movement and engagement before final reassembly

Roller component for the ice dispenser door handle on bottom-mount refrigerators. Replaces broken, worn, or missing rollers. Ensures smooth handle operation.

Seals the ice bank door to prevent warm air from melting ice and causing clumping. Replace if ice melts, refreezes into clumps, or frost forms around the bin.
