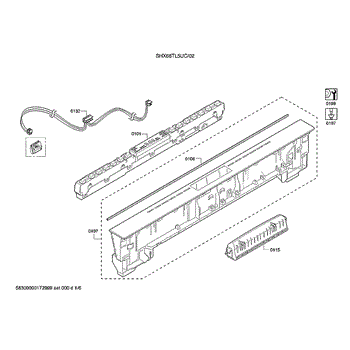

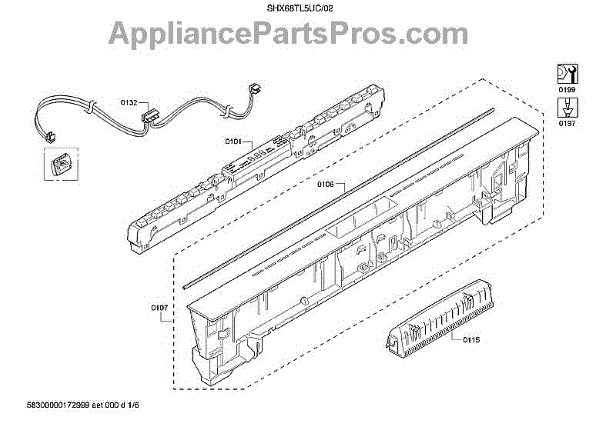

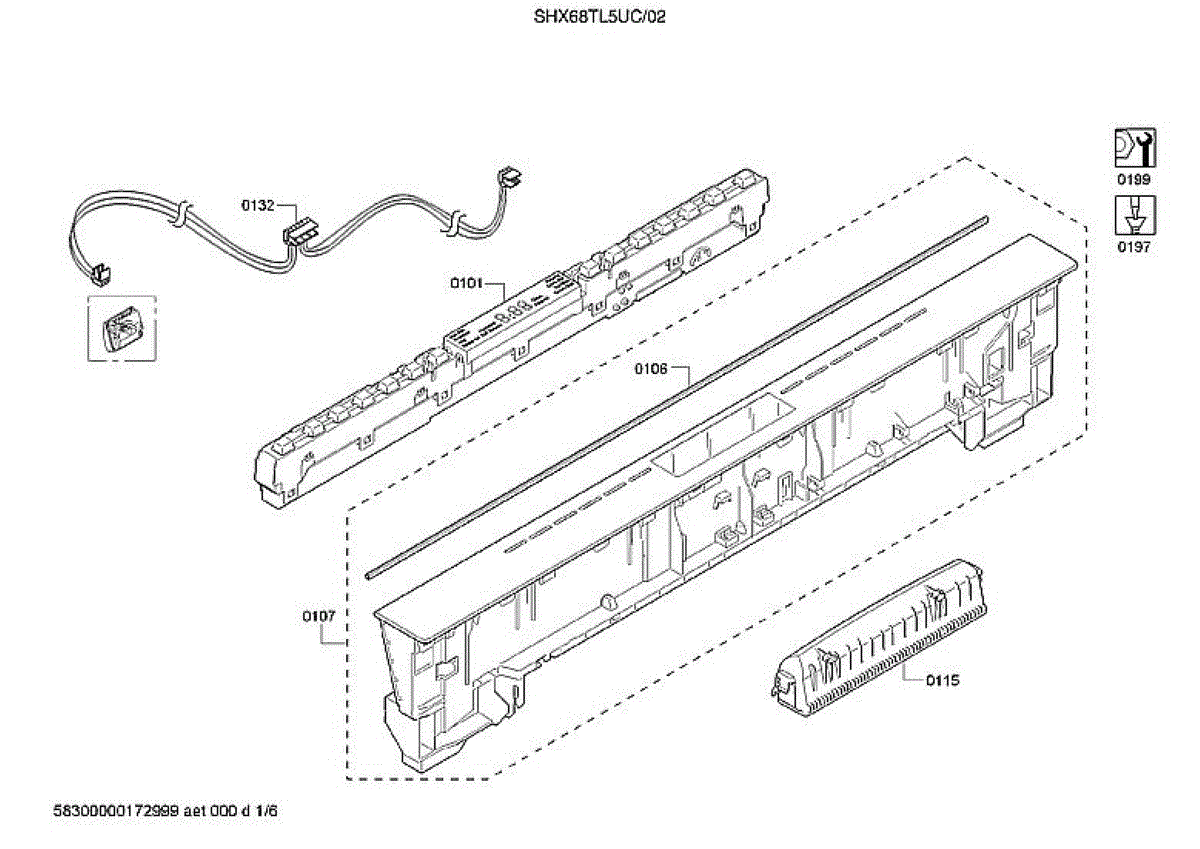

Parts for Bosch SHX68TL5UC/02: Facia Panel / Operating Module Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This programmed operating module is the appliance's user-interface control board. It reads keypad/touch inputs, manages panel indicators or the display, and relays your selections to the main control—restoring dependable operation when the UI stops responding.

• Interprets button/touch inputs and sends commands to the main control
• Drives panel indicators or display for status and feedback
• Enables selection of cycles/programs and start/stop functions
• Common symptoms: unresponsive buttons, dead or flickering panel, random beeps/errors, unable to start or change settings

• Disconnect power at the breaker or unplug before servicing
• Use ESD protection; handle the board by the edges and avoid flexing it
• Note connector locations; move harnesses one at a time and seat fully
• Transfer any model-specific brackets, light pipes, or trim from the original module as required

The On/Off Switch is an OEM part for Bosch dishwashers. This switch controls the power to the dishwasher, allowing the user to turn the appliance on and off. It is typically located on the control panel and is essential for initiating and halting the wash cycles.

Causes of a bad On/Off switch can include wear and tear from regular use, electrical malfunctions, or physical damage such as cracks or breaks. When the switch fails, it can prevent the dishwasher from powering on or off correctly, disrupting the appliance's functionality.

Symptoms of a bad On/Off switch include:

• Dishwasher not turning on
• Difficulty in turning the dishwasher off
• The switch feeling loose or unresponsive
• Flickering power or intermittent operation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Sealing is an OEM part for Bosch dishwashers. It serves as a protective barrier between the control panel and the internal components of the dishwasher, preventing moisture and dust from entering and causing damage.

A bad sealing can occur due to wear and tear, exposure to moisture, or accidental damage. Signs of a faulty sealing include water seeping into the control panel, visible cracks or gaps, or a loose fit.

Symptoms of a bad sealing include:

• Water or moisture around the control panel
• Visible cracks or gaps in the sealing
• A loose or ill-fitting seal

Replace your damaged or worn-out sealing with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


This facia panel is the finished front trim that covers and protects the appliance's control area, restoring the unit's appearance and shielding internal controls from dirt and damage. It gives a clean, factory look after replacement. What it does

• Replaces cracked, chipped or cosmetically damaged front trim to restore appearance
• Covers and protects control buttons and electronics from spills and debris
• Provides the proper mounting surface for control overlays and handles
• Helps maintain a finished, factory-aligned front on the appliance

• Disconnect power to the appliance before beginning any service
• Removal typically requires removing door trim or control bezel screws/clips; keep fasteners for re-use
• Handle carefully to avoid scratching the finish during installation

This replacement handle restores a secure, comfortable grip for opening and closing your appliance. Use it to replace a worn, loose, cracked, or missing handle and bring back the original look and everyday usability. What it does:

• Provides the handhold needed to open and close the door, drawer, or panel
• Attaches to the appliance panel using model-specific fasteners
• Helps maintain proper alignment and a clean, finished appearance
• Common symptoms: loose or wobbly handle, cracks/breaks, missing handle, difficulty opening

• 1 handle

• Disconnect power at the breaker and, if applicable, shut off water before servicing
• Access and remove the mounting fasteners from the opposite side of the panel/door; support the handle while removing
• Transfer and reuse the original screws, spacers, and end caps as required by your model
• Tighten fasteners evenly and avoid overtightening; verify smooth operation after reassembly

This cable harness routes power and control signals between the appliance's control and its components. Replacing a damaged harness restores solid electrical connections so the unit starts, runs, and completes cycles without intermittent failures or non-working functions. What it does:

• Distributes electrical power and control signals between boards, motors, valves, and sensors
• Replaces wiring that is burnt, brittle, frayed, or corroded
• Helps resolve symptoms like won't start, intermittent operation, inoperative features, or error/fault indications related to open/shorted circuits
• Restores safe, reliable connectivity to prevent further electrical damage

• 1 cable harness assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph/label connections and routing to match the original layout
• Seat connectors fully by the housings; do not pull on wires
• Route and secure away from sharp edges, moving parts, and hot surfaces to avoid chafing or heat damage

The Installation Set is an OEM component specifically designed for installing Bosch dishwashers. It contains mounting fittings and hardware required to securely attach your dishwasher into place beneath countertops or cabinetry.

Symptoms of a faulty installation set can include coming loose from mounting surfaces over time or missing, damaged parts that inhibit proper attachment. Replacement ensures accurate install fit.

Causes of a bad installation set include wear and tear related to repeated load shifting, impact, or mishandling leading to broken brackets/screws, or missing pieces after DIY installation attempts.

Causes of a bad installation set include:

• Vibrations or rocking motions during wash cycles
• Drainage or plumbing connection issues
• Installation difficulties requiring replacement parts

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.


The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This installation kit provides the mounting hardware needed to secure compatible appliances during installation, helping ensure a stable, professional fit. It's a straightforward replacement for worn or missing installation components. What it does:

• Supplies the mounting brackets, screws, and related fasteners required for appliance installation
• Helps secure the appliance in cabinetry or framing to prevent shifting or vibration
• Replaces missing or damaged hardware to restore safe, stable installation
• Addresses common installation issues like loose trim or unstable mounting

• Follow the appliance manufacturer's installation instructions and local codes
• Turn off power and water before beginning work
• Use appropriate tools and hardware for secure mounting; tighten fasteners to manufacturer specs

This repair kit restores the pump sump area on compatible Bosch dishwashers, helping stop leaks and restore proper water flow. Use it to replace worn sump components without replacing the entire pump assembly. What it does:

• Replaces worn pump-sump components that can cause leaks or allow water to pool in the dishwasher sump.
• Restores sealing and impeller engagement to help the drain and circulation pumps move water effectively.
• Can stop symptoms like water remaining in the tub, unusual pump noise, or visible leaks around the sump area.

• Disconnect power and water supply before starting any repair.
• Inspect removed parts and mating surfaces for damage; replace the full pump assembly if housings are cracked.
• Follow manufacturer instructions for proper seal and impeller seating; test for leaks and correct operation after reassembly.

This replacement power cord restores mains power to compatible Bosch appliances, providing a safe, OEM-style connection so your appliance can turn on and run reliably. Use when the original cord is damaged or not supplying power. What it does

• Supplies electrical power from the wall outlet to the appliance for normal operation.
• Replaces frayed, cut, or melted cords that can cause intermittent power or no power.
• Helps eliminate loose connections that can cause arcing, flickering, or tripped breakers.
• Restores a secure, strain-relieved connection where the cord meets the appliance chassis.

• Always disconnect power at the breaker or unplug the appliance before beginning service.
• Follow the appliance wiring diagram and secure all terminal connections per the manufacturer instructions.
• Route the cord through strain reliefs and grommets to prevent chafing; use supplied or OEM fasteners if present.

This power cord provides the appliance's main electrical connection, restoring reliable power when the original cord is damaged or failing. It replaces worn or frayed cords so the appliance can receive safe, consistent power. What it does:

• Carries mains electricity from the outlet to the appliance so controls and motors can run
• Replaces cords with visible damage, fraying, or exposed conductors
• Fixes symptoms like the appliance not powering on or losing power intermittently
• Prevents unsafe operation from a compromised cord that could cause arcing or overheating

• Always disconnect the appliance from power at the breaker or unplug before starting work
• Inspect strain relief and terminal connections; secure wires under terminals and tighten to spec
• Do not cut or splice the cord; replace with the correct, intact cord to maintain safety

This repair set renews the hinge pivot components so the door opens smoothly and closes squarely. Replacing the worn hardware helps maintain proper alignment and a tight gasket seal for consistent performance. What it does:

• Replaces worn hinge pin/bushing hardware to restore door support
• Helps fix a door that sags, scrapes, or won't close flush
• Can reduce clicking, squeaking, or grinding at the hinge
• Helps the door seal make full contact to prevent warm air leaks

• 1 repair set

• Disconnect power; if applicable, turn off the water supply
• Remove items from the door; support the door and lift it off the hinge
• Install the new hinge hardware in the original orientation
• Reinstall and align the door; verify gasket seal and adjust leveling if needed
