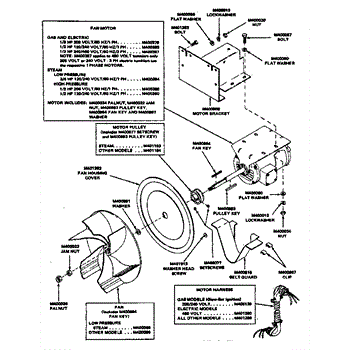

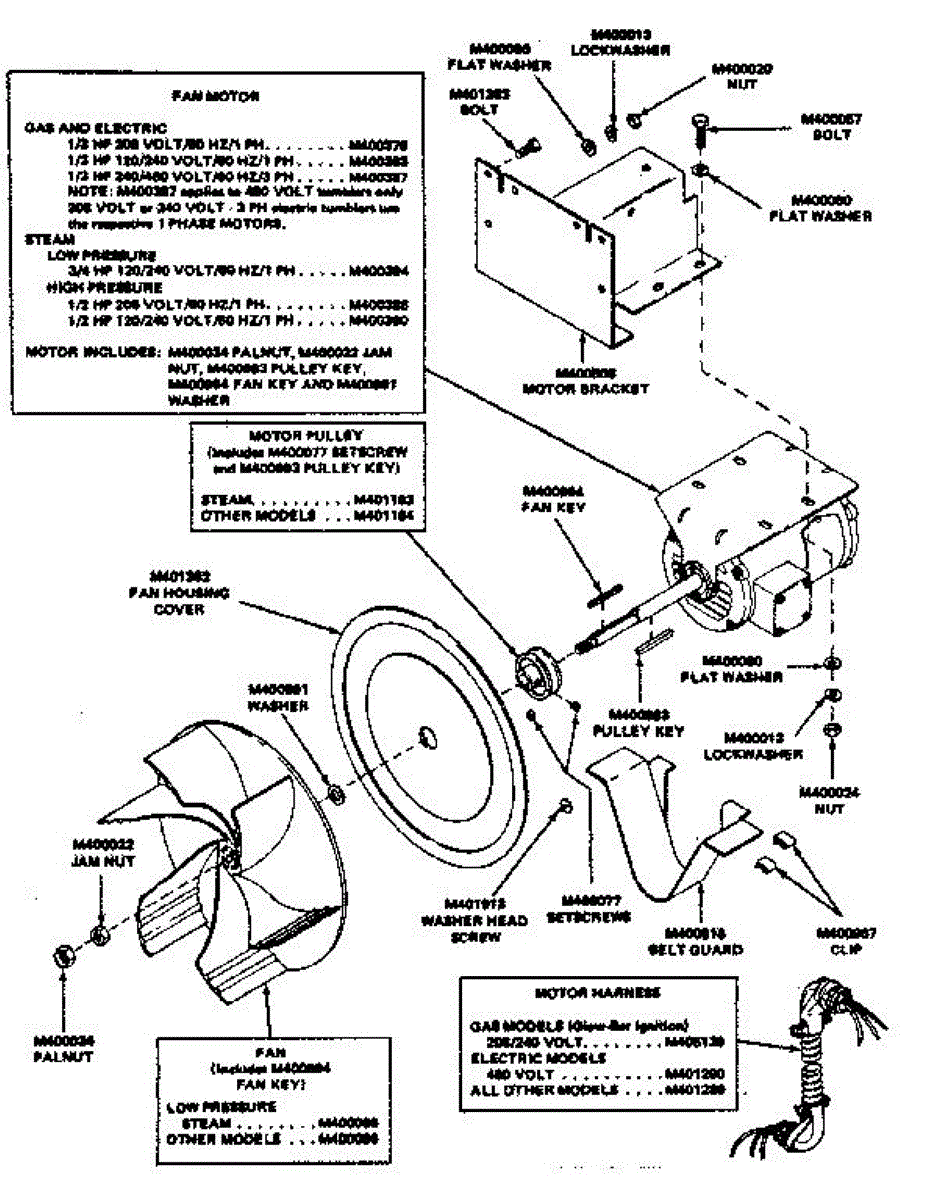

Parts for Huebsch 30EG: Fan And Motor Assembly Parts

This motor bracket secures the motor to the appliance chassis, keeping the motor aligned for reliable drive operation and reducing vibration. It's a direct-fit replacement when the original bracket is bent, cracked, or missing. What it does:

• Provides a stable mounting point to hold the motor in proper position
• Helps maintain correct belt/drive alignment for smooth operation
• Reduces motor movement that can cause noise or premature wear
• Restores secure motor attachment after impact or corrosion damage

• One motor mounting bracket

• Disconnect power before starting any repairs.
• Installation typically requires removing the motor or access panels; keep all original fasteners or replace with equivalent hardware.
• Verify motor alignment and belt tension after installation; test operation for unusual noise or vibration.
• If mounting holes or fasteners are damaged, replace them to ensure secure attachment.

A flat washer that provides a stable bearing surface to space and protect fastened connections. Designed to maintain proper part alignment and reduce metal-on-metal wear for quieter, longer-lasting operation. What it does:

• Provides a smooth, even surface for nuts and bolts to distribute load and prevent damage
• Maintains correct spacing and alignment of components to reduce binding and vibration
• Reduces metal-on-metal wear at connection points, helping prevent loosening over time
• Common replacement when fasteners are loose, noisy, or show visible wear

• Disconnect power and water to the appliance before attempting any repair
• Install flat against the mating surface; do not stack thin washers unless specified by manufacturer
• Do not overtighten fasteners; replace any damaged or corroded hardware for a secure fit

Hex jam nut (9/16-18 UNF) that secures threaded shafts and fasteners in laundry equipment, resisting loosening from vibration to help maintain alignment and reliable operation of assemblies that rely on tight, secure connections. What it does:

• Locks onto a 9/16-18 UNF threaded shaft or stud to prevent fastener rotation and axial movement
• Helps keep pulleys, collars, shafts or linkages from working loose during normal use and vibration
• Reduces wobble, noise or misalignment caused by loose threaded connections
• Used as a thin (jam) nut where space is limited or as a secondary lock nut

• Disconnect power and move the appliance to a safe, stable work area before servicing.
• Use the correct 9/16" wrench or socket; hold the mating fastener steady while tightening the jam nut.
• Do not overtighten; follow OEM service manual torque guidance if available and inspect threads for damage before reuse.

This hex-style palnut secures components on a 9/16-18 threaded stud or shaft, providing a low-profile locking fastener to help keep assemblies tight during normal operation. Simple, durable replacement for worn or missing retaining nuts. What it does:

• Locks onto a 9/16-18 threaded stud to secure pulleys, spacers, hubs or other rotating parts.
• Helps prevent loosening from vibration and normal use that can cause noise, wobble or part separation.
• Used where a low-profile, self-retaining nut is needed for reliable retention in tight spaces.
• Common service part when a threaded connection is loose, stripped, or missing its retaining nut.

• One (1) hex palnut, 9/16-18, unless a different quantity is specified at checkout.

• Verify the size and thread pitch match the stud before installing; do not force mismatched threads.
• Clean threads and inspect for damage; replace the stud or nut if either is worn or stripped.
• Hand-start threads, then tighten with the appropriate wrench; follow manufacturer torque/spec guidance when available.
• Disconnect power and follow all safety precautions before servicing moving parts.

This pilot orifice for natural gas ovens and ranges meters gas to the pilot burner for a stable pilot flame, helping reliable ignition and proper burner operation. Use when the pilot flame is weak, sputters, or won't stay lit. What it does:

• Controls the gas flow to the pilot burner so the pilot flame remains steady
• Restores consistent ignition when the pilot flame is low or inconsistent
• Helps prevent improper burner lighting related to restricted pilot flow
• Matches OEM pilot orifice sizing for intended gas type

• Turn off gas supply and power to the appliance before servicing
• Replace only with the correct orifice for natural gas; do not modify the part
• Inspect pilot tubing and fittings for leaks; test with a soapy water solution after installation
