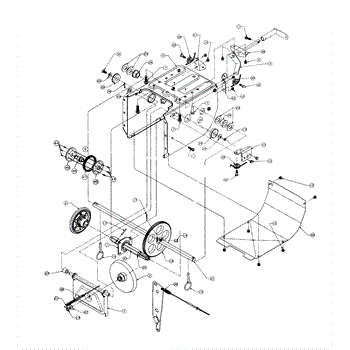

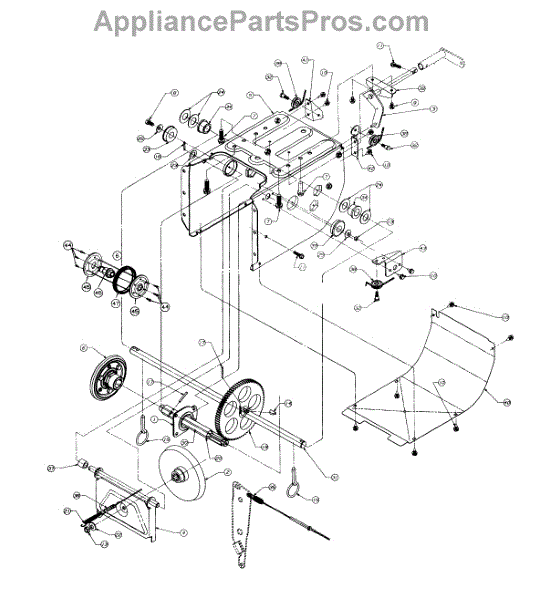

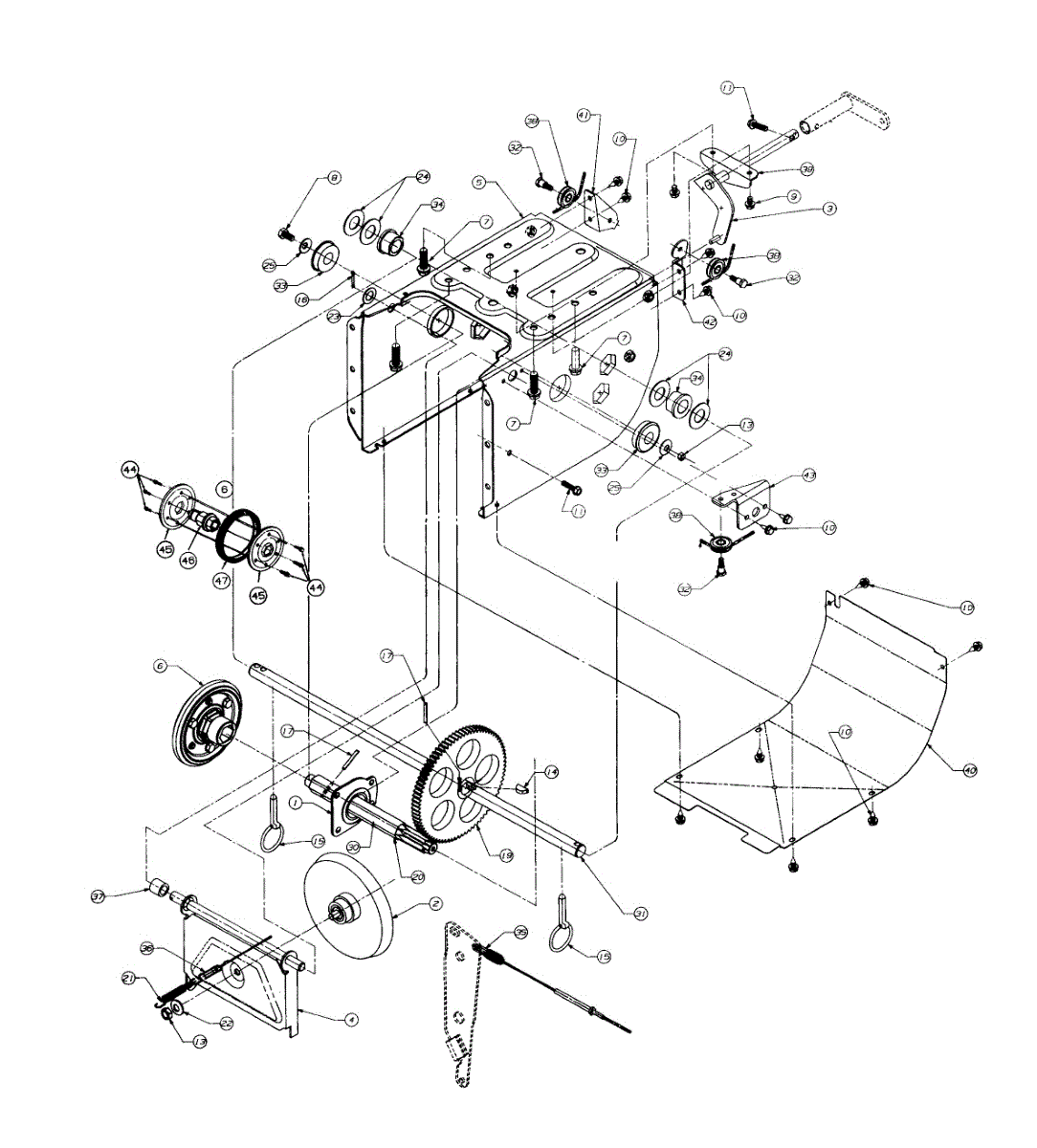

Parts for Yard Machines 317E644E302 / 1997: Frame Assembly Parts

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

The Hex Jam Nut is a genuine 4 oz. jam nut. This part is half the height of most standardized hex nuts. Typically used as a locknut, hex jam nuts are used for two general purposes. The first application is that a jam nut can be used in conjunction with a bolt to be tightened against a standard nut. By using the hex nut and the bolt together, the standard nut will lock in place and will not back off. The second application is that jam nuts are used in tight uneven places as a means to level. Further, jam nuts can be used in situations where sufficient space is lacking for a standard nut.The Hex Jam Nut is sold individually. If a hex jam nut is lost through general use, it can be replaced simply with the same OEM part sourced directly from the manufacturer. The part can be replaced and installed with a wrench and should only take a few minutes to replace. This product is suitable for use with chippers, lawnmowers, lawn tractors, log splitters, snowblowers, and vacuums. Sturdy and durable, the product is made from galvanized steel.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

Washers are used in various locations on many types of lawn and garden equipment and can help to keep a bolt or screw in place. The washer will also help to spread the load from connection, which can help to reduce the risk of damage. One of the most common reasons to replace a washer is if the current washer is lost. If the washer is corroded or if it has been bent or otherwise damaged, it should be replaced, as well. Replacing a washer is generally easy, but this can depend on the location of the washer that needs to be replaced. The authentic OEM replacement flat washer is sold individually. Having several of these available for future needs is a good idea. The washer can be used on snowblowers, lawn mowers, tillers, edgers, log splitters, chainsaws, and wood chippers. Compatible brands include Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This part is a replacement wheel axle. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current wheel axle is defective, this part can be used as a replacement. It is intended for use with a variety of snow blower models.The wheel axle attaches the wheel to the frame of the snow blower and allows it to rotate. If the axle is broken or in any way defective, the user may have trouble maneuvering the snow blower. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this wheel axle, the appropriate owner's manual and equipment diagrams should be referred to. This wheel axle is suitable for use on a variety of snow blower models manufactured by MTD, Craftsman, and other brands. It is a genuine OEM part and thus is made of high-quality, durable materials. Part sold individually.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in lawnmowers, snowblowers, and wood chippers. This part assists in fastening two components together by creating a slight gap that reduces friction.The spacer might have to be replaced if it is lost, misplaced, or damaged from general wear and tear with long-term use. If the spacer is lost at some point within the typical operation of the appliance and its absence is noticed by the operator, the spacer should be replaced by this genuine OEM replacement part. If the spacer is damaged beyond functionality, the spacer should be immediately replaced. This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Huskee, Yard Machines, Montgomery Wards, Yard-Man, Turf King, and MasterCut.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.
