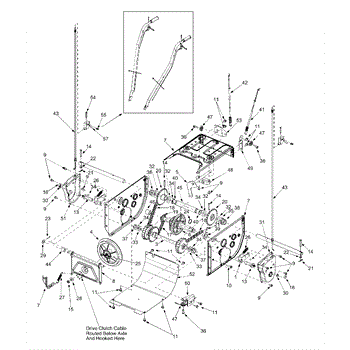

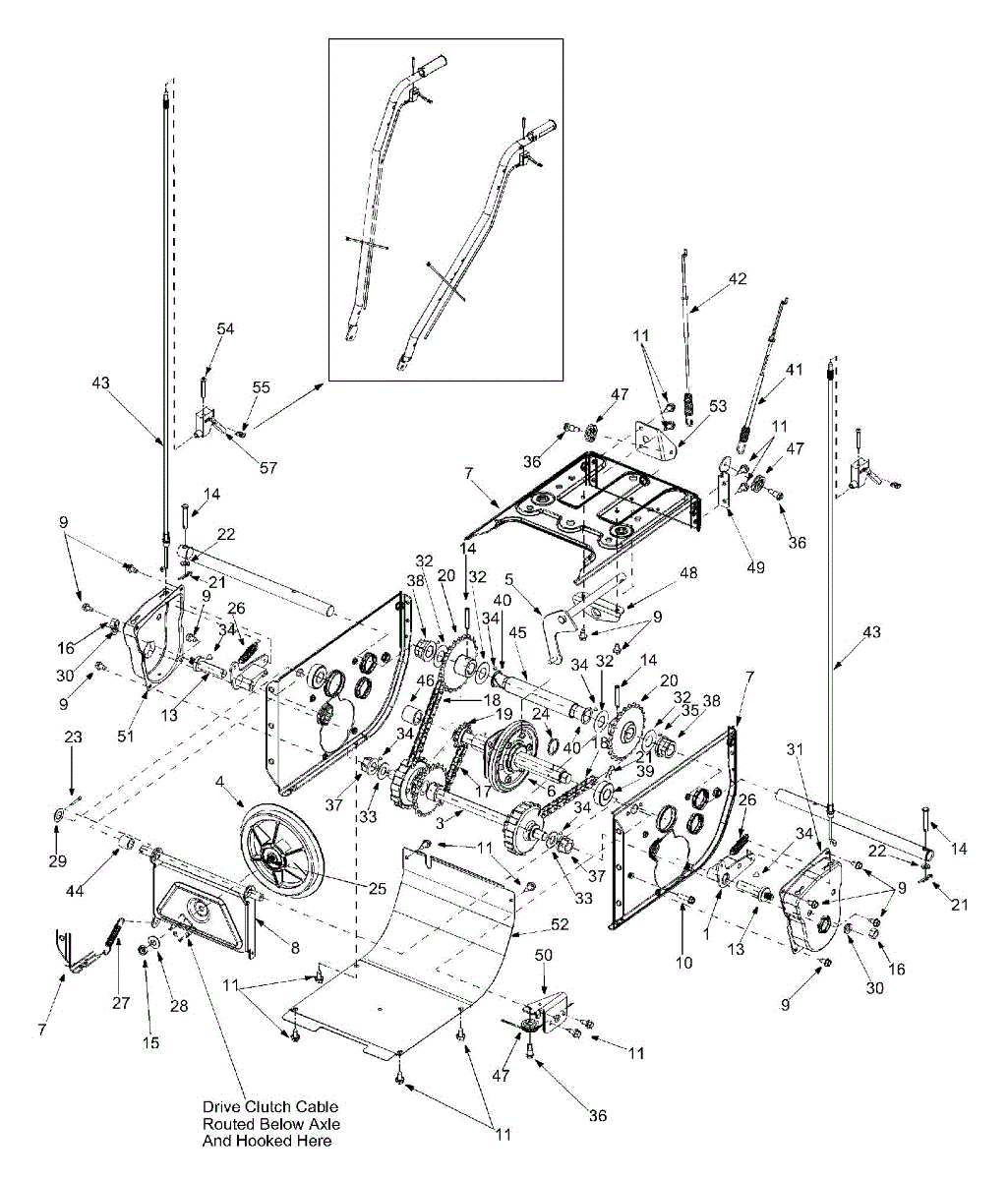

Parts for Yard-Man 31AH5C3F401 / 2002: Frame Assembly Parts

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

The Hex Jam Nut is a genuine 4 oz. jam nut. This part is half the height of most standardized hex nuts. Typically used as a locknut, hex jam nuts are used for two general purposes. The first application is that a jam nut can be used in conjunction with a bolt to be tightened against a standard nut. By using the hex nut and the bolt together, the standard nut will lock in place and will not back off. The second application is that jam nuts are used in tight uneven places as a means to level. Further, jam nuts can be used in situations where sufficient space is lacking for a standard nut.The Hex Jam Nut is sold individually. If a hex jam nut is lost through general use, it can be replaced simply with the same OEM part sourced directly from the manufacturer. The part can be replaced and installed with a wrench and should only take a few minutes to replace. This product is suitable for use with chippers, lawnmowers, lawn tractors, log splitters, snowblowers, and vacuums. Sturdy and durable, the product is made from galvanized steel.

This drive chain is a genuine MTD part, sold individually. A drive chain can be used as a replacement part in a snowblower or a tiller. This genuine OEM part is made out of durable, high quality metal material meant to stand up to exposure to the elements as well as general wear and tear over long-term usage.The drive chain in a snowblower or a tiller can be subject to damage that can render it beyond functionality. If this damage takes the form of puncturing, denting, cracking, warping, or eroding, the drive chain should be removed and replaced by this genuine OEM replacement part in order to guarantee safe continued use of the appliance.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This drive chain is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, and Yard Man.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in lawnmowers, snowblowers, and wood chippers. This part assists in fastening two components together by creating a slight gap that reduces friction.The spacer might have to be replaced if it is lost, misplaced, or damaged from general wear and tear with long-term use. If the spacer is lost at some point within the typical operation of the appliance and its absence is noticed by the operator, the spacer should be replaced by this genuine OEM replacement part. If the spacer is damaged beyond functionality, the spacer should be immediately replaced. This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Huskee, Yard Machines, Montgomery Wards, Yard-Man, Turf King, and MasterCut.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

This screw is a genuine MTD part, sold individually. This screw can be used as a replacement part for a snowblower or a chainsaw. The function of a screw for a snowblower or a chainsaw is to affix two or more components to one another.The screw for a snowblower or a chainsaw is a small component which can become lost or stripped over time. If the screw is loosened to the point that the components it holds together are no longer kept affixed to one another, it should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, and Yard Man.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.
