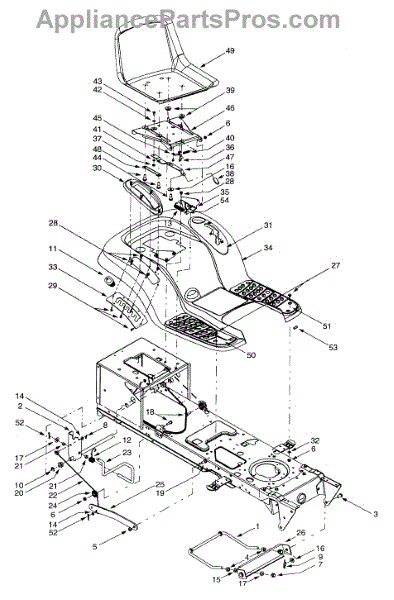

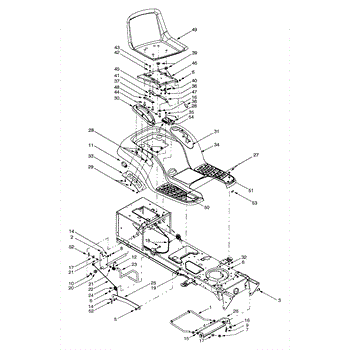

Parts for Yard-Man 13AX604G401 / 2001: Frame Components & Seat Parts

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This hex nut is a genuine OEM replacement part sourced directly from the manufacturer. The hex nut is used in many different lawn and garden machines and in many different applications. Hex nuts are made to work with threaded parallel screws or bolts. Hex nuts are six-sided and require the use of a hex wrench to remove and replace them during repairs. Hex nuts, like other nuts and screws, may become loose or rusty over time due to normal wear and tear. If this happens, the parts being secured by the hex nut will not be secure and the hex nut should be replaced. During routine maintenance, all hex nuts should be checked to ensure they are tight and in good shape. If not, they should be replaced. When preparing to replace the hex nuts, count all the nuts needed and make sure to order enough. It is a good idea to keep extra hex nuts on hand for emergency repairs. This hex nut is a heavy-duty metal nut that is sold individually. It is designed to be used in many different lawn and garden machines manufactured by Craftsman, Yard Machine, and many other outdoor equipment manufacturers.

This replacement part is a grip handle. It is a genuine replacement part made by MTD. This part is responsible for helping the user control the machine or appliance. The grip handle is important to allow for total control over the appliance so that the user may operate it properly. A new grip handle might be needed if the current one is damaged in any way including being dented, cracked, chipped, or stripped. This can be due to normal wear and tear or a single incident. If the user is unable to hold the appliance using the grip handle, it might be time to replace it. Refer to the owner's manual before replacing this part. This is a genuine OEM replacement part to ensure long-lasting use. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken, lost, or defective flat washer in a variety of outdoor power equipment models. Flat washers are a standard piece of hardware that can be used with a wide variety of equipment. They enable components to be tightly secured together by providing a larger surface area for screws or bolts. When working on or near an engine, it's important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and equipment diagrams should be utilized.As an authentic replacement part, this flat washer is suitable for use on several different models of outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

This is an authentic OEM replacement flat washer that has been sourced directly from the manufacturer. It is used with bolts and screws for fastening components on various lawn and garden equipment parts. Flat washers spread the load of the bolt or screw or are used if the hole for the fastener is larger than necessary. The washer fills in the gap, making it more secure. Washers may also be used to prevent the bolt or screw from coming in contact with the component and creating heat or friction that could damage the part. Flat washers are found underneath the head of the bolt or screw, between the fastener and the connected component. Washers may rust or break over time. These changes are visible, and a replacement washer should be installed when necessary.The tools required to remove the bolt or screw depend on what type it is. Wear work gloves when removing and replacing parts. Broken or frayed metal edges can cut. Use the appropriate tool to loosen and remove the fastener. Slide the washer off and place the new one on. Reinstall the bolt or screw and tighten. The flat washer is made of durable metal and sold as an individual component. The flat washer is compatible with chippers, shredders, lawnmowers, tractors, blowers, and other lawn and garden tools manufactured by Craftsman, Bolens, Yard Machines, Troy-Bilt, MTD, Yard-Man, and more.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.

This lift cable is designed for use with many lawnmowers and snowblowers to ensure that the gears run smoothly while using the equipment. The lift cable is made of durable materials but has delicate connectors on each end which may eventually wear out. When the connectors or cables are damaged, the part will need to be replaced. This component is important since it helps control how fast the blades or other parts of the tool can operate. If the cable breaks, the tool may not start.If the lift cable has gone bad, is worn out, or is damaged, replacement is needed. There will be no need to use tools during the process, but work gloves can be helpful. The lift cable can be untwisted from the housing and removed from the tool. Take the new component and place it in the same location. Make sure to reassemble any additional parts before useThis is an authentic OEM replacement part that is directly sourced from the manufacturer. It is sold as an individual component. The lift cable is made to fit lawnmowers and snowblowers manufactured by Craftsman, Toro, Cub Cadet, Troy-Bilt, MTD, Huskee, Montgomery Wards, and Yard-Man.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

This genuine replacement part is a MTD flat washer flange sized .339 X .640 inch X .033 inch. This MTD flat metal washer flange has a variety of applications for many types of equipment including lawn mowers, snow blowers, tillers, edgers, and log splitters. Washers are important to the proper functioning of the product. They spread the load of a threaded fastener, such as a bolt or nut, or can be used as a spacer. However, they can often wear down or become damaged through extended normal use and may not last the full life cycle of the product, leading to improper operation. This high quality OEM replacement part is sourced directly from the manufacturer, and is sold individually. This MTD flat washer flange has multiple applications in a wide range of products from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery, Wards, Bolens, Yard-Man, Turf King, MasterCut, and more. Please note: original part number 166763 is now obsolete, and manufacturer has replaced the original part number with this part.

This genuine OEM replacement bracket stop seat is for riding lawn mowers or tractors. The part is located underneath the seat on riding mowers or tractors. Its purpose is to provide a safety shut off function when the rider leaves the seat while the blade is engaged. Over time, constant use of the mower can cause wear on the bracket, requiring it to be replaced. If a mower is left in the elements over an extended period of time, the bracket could rust. This would require the bracket to need replacing. Failure to replace a worn or rusted bracket stop seat could cause potential safety hazards as the engine may to fail to shut off if the rider should leave the seat while the blade is engaged. Replacing a bracket stop seat requires a screwdriver to replace. It is a fairly easy repair that should take under 30 minutes to complete. This part serves as a replacement if needed for the original bracket stop seat. This bracket is compatible with Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Husky, Montgomery Wards, Bolens, Yard-Man, and Ryobi brands. This bracket is sourced directly from the manufacturer and is sold individually.

This replacement part is a ratchet fastener, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by Husqvarna. This ratchet fastener is found on most lawn mowers and is similar to a screw in that it helps keep parts of the appliance in place and secure.A new fastener might be needed if the current ones are damaged or missing. It is common for these types of fasteners to become stripped over time after years of normal wear and tear. The repair for this part should be fairly easy and will only require a screwdriver and possibly pliers if there is a fastener stuck. If there are parts of the lawn mower that are loose or falling off, a new fastener might be needed. This small part is sold individually and is a genuine OEM replacement part. Be sure to purchase the correct amount as some appliances require more than one.
