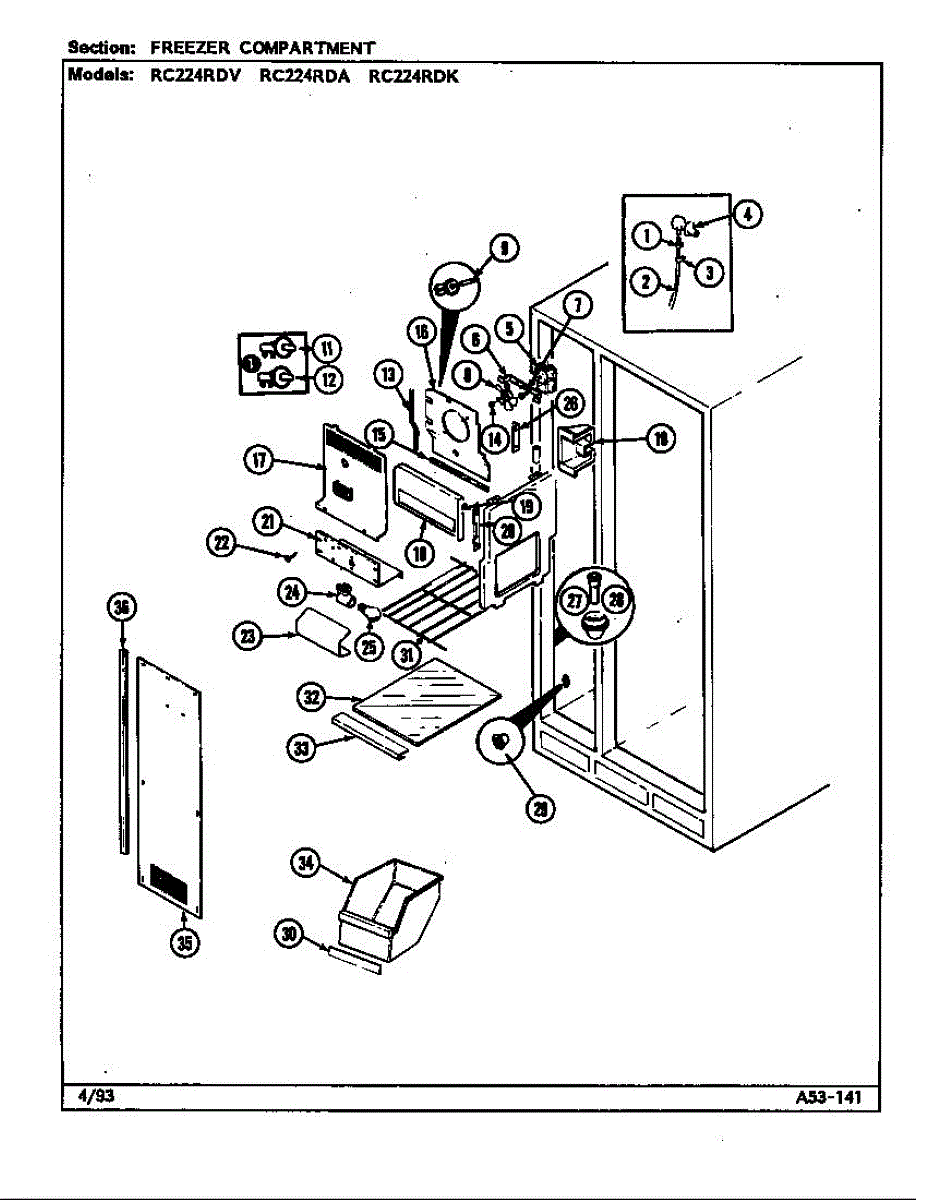

Parts for Magic Chef RC224RDA/DS35A: Freezer Compartment (Rc224rda / Ds37a) (Rc224rda / Ds37b) (Rc224rdk / Ds35a) (Rc224rdv / Ds36a) (Rc224rdv / Ds36b) Parts

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

Ice maker water line: 1/4x 8ft.

This evaporator fan motor circulates cold air across the evaporator coils and through the freezer and fresh-food sections to maintain even temperatures. Replacing a failed or noisy motor restores proper airflow and dependable cooling performance.

• Drives the evaporator fan blade to move air over the coils and throughout the cabinet
• Helps maintain consistent temperatures between freezer and refrigerator compartments
• Failure symptoms include weak/no airflow, the fan not running, loud squealing/rumbling, or the fresh-food section warming up
• Poor airflow can also lead to frost or ice buildup on the freezer back panel

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the motor behind the freezer's rear panel; use caution around sharp metal and evaporator fins
• Note wire positions; transfer the fan blade and any brackets/grommets from the original motor; secure wiring connections
• Ensure the blade spins freely; engage the door switch when testing and strong airflow after reassembly

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
