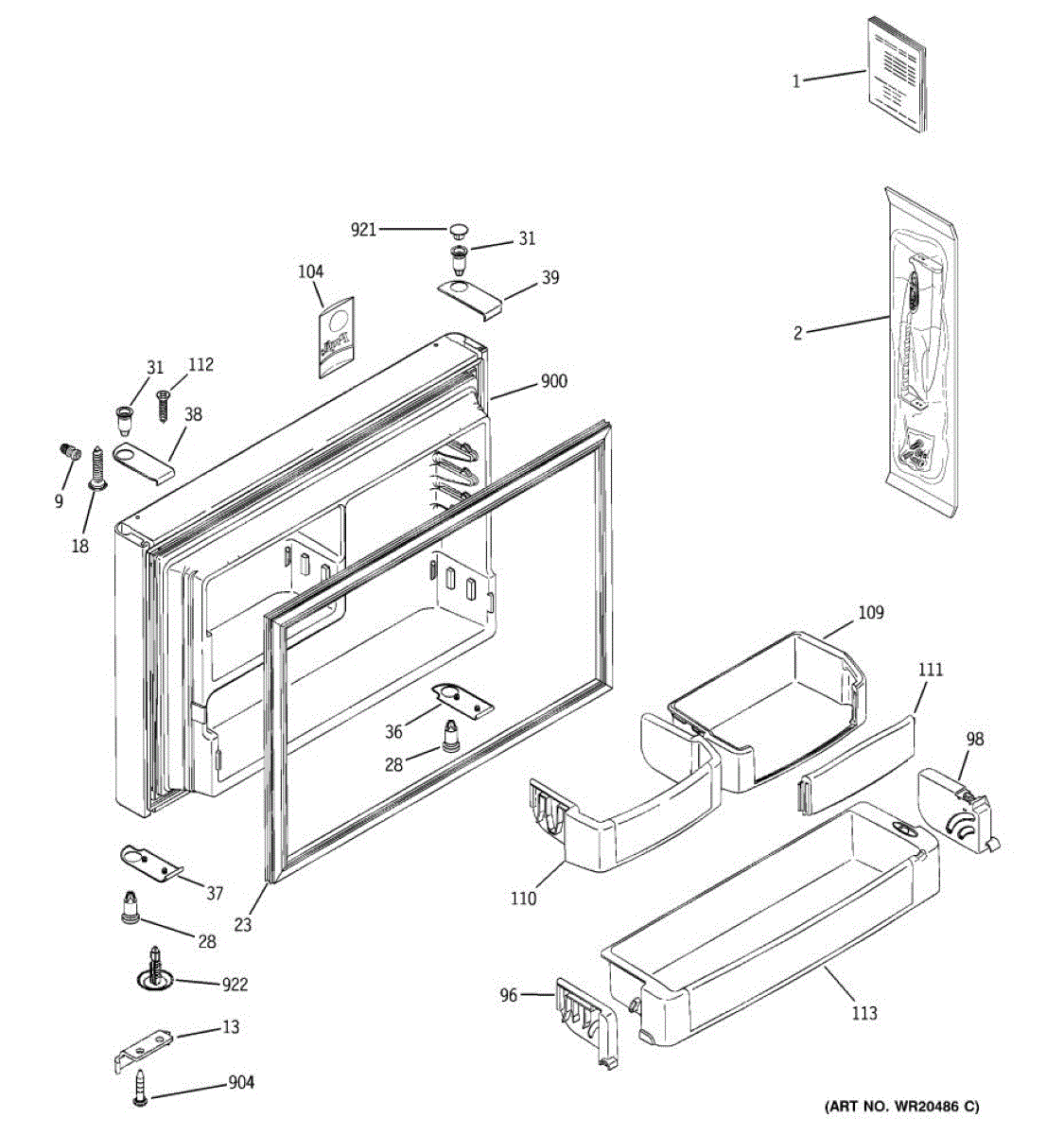

Parts for Ge PTS22LCSCRBB: 01 - Freezer Door Parts

The Screw Package is an OEM replacement part for GE refrigerators. It contains a pack of 12 identical screws for miscellaneous securing and assembly needs.

These screws play a supporting role, helping attach shelf tracks, cover panels, door hinges, and other interior parts. By maintaining components securely in place, they help ensure smooth operation and prevent rattling or other noises.

Symptoms of insufficiently secured parts include:

• Noises heard from loose shelves or door components
• Detaching handles, hinges, or panels
• Shelves shifting positions or becoming misaligned

Causes of needing replacement screws can include loss, stripping, or wear over time from repeated securement and removal of parts during cleaning or repairs.

This multipack of GE screws is perfect for minor refrigerator maintenance or to stock up on extras. They are also compatible with replacement hardware from Hotpoint, RCA, and certain Kenmore models.

This is the flexible perimeter seal for the freezer door. Replacing a worn gasket helps the door close snugly to keep cold air in and moisture out, supporting stable freezer temperatures and reducing frost at the door edge.

• Creates an airtight seal between the freezer door and cabinet
• Helps with symptoms like frost or moisture around the door opening
• Can address a door that won't seal, gaps at the corners, or a torn/hardened gasket
• Helps stabilize freezer temperature when the seal is compromised

• Disconnect power and clear items from the door
• Warm the new gasket in hot water to relax folds before installation
• If your model uses screws or a retainer, loosen as needed; remove the old gasket and press the new gasket fully into the groove, ensuring corners are seated
• Close the door and check for uniform contact all around; adjust hinges/leveling as needed and allow the gasket to conform over the next 24 hours

This freezer door gasket forms an airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn or damaged seal helps restore proper temperature, reduce frost, and improve energy efficiency.

• Seals the freezer door perimeter to maintain set temperature and airflow
• Helps reduce frost/ice buildup and condensation around the door opening
• May help if you notice warm spots, frequent frost, the door not staying shut, or visible gasket tears/gaps
• Reduces warm air infiltration that can cause long run times and temperature swings

• Unplug the refrigerator before servicing
• Warm the new gasket in hot tap water or with a hair dryer on low to make it pliable; seat the corners first
• Depending on the model, either press the gasket into the retainer channel or loosen and retighten inner-liner screws to secure—do not overtighten
• After installation, check the seal all around (dollar-bill test); gently warm and reshape any areas with gaps

This thimble door top is the white trim piece that covers and protects the upper edge of the appliance thimble/dryer vent opening, restoring a finished look and helping keep the seal area intact. What it does:

• Replaces a cracked, chipped or warped top trim to improve appearance and fit
• Helps keep the vent/thimble opening properly covered and aligned
• Protects the upper edge of the opening from wear and impacts
• Prevents gaps that can allow lint or debris accumulation around the opening

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools; hold parts securely to avoid scratching surrounding surfaces
• Inspect mating surfaces and remove lint/debris before installing for proper fit

A replacement bottom door cap that restores the finished edge and support at the lower corner of the appliance door. Keeps the door looking complete and helps protect the hinge area from damage. What it does

• Covers and protects the bottom edge of the door for a finished appearance
• Helps shield the hinge/mount area from wear and debris
• Replaces cracked, broken, or missing bottom cap pieces
• Improves door fit and prevents snagging from a damaged trim piece

• One bottom door cap (white)

• Unplug the appliance or shut off power before starting work
• Remove any screws or retainers holding the old cap and snap the new cap into place
• Handle trim pieces gently to avoid breaking adjacent clips or tabs

This fixed mod shelf is a direct-fit freezer shelf assembly that restores storage stability and organization in compatible refrigerators. It replaces a broken or missing shelf so frozen items stay supported and accessible. What it does

• Provides a stable, stationary shelf surface for freezer storage.
• Replaces cracked, warped, or missing shelves that cause items to shift or fall.
• Restores original shelf spacing and support for proper organization.
• Helps prevent cold-air obstruction by maintaining intended shelf layout.

• One fixed mod shelf assembly.

• Unplug the appliance or disconnect power before installing.
• Remove food and any items from surrounding shelves before replacement.
• Installation typically involves aligning shelf supports and seating the shelf into place; basic hand tools may be helpful.
• Refer to the refrigerator owner's manual or service instructions for model-specific guidance and safe handling.

This replacement module shelf insert restores the shelf support that holds the refrigerator control module area and helps keep the shelf level and components secure. Fits into the module shelf to replace broken or missing inserts. What it does:

• Secures the control/module area so the module and wiring stay in place and out of direct contact with stored items
• Restores proper shelf alignment to prevent sagging or uneven loading
• Reduces rattling or noise caused by a loose or damaged shelf insert
• Helps protect the module area from minor impacts or shifting contents

• Disconnect power to the appliance before servicing to avoid electric shock.
• Remove the shelf or access panel per your owner's manual for clear access to the module shelf area.
• Snap or press the new insert into the designated slot until it seats firmly; verify fit and alignment.

This reversible door plug covers the unused hinge or mounting hole after changing a door swing, restoring a clean appearance and helping keep out dirt and drafts. Simple, color-matched replacement for a neat finish. What it does:

• Covers exposed hinge or mounting holes on the door edge for a finished look
• Helps block dust, pests and drafts from entering through unused openings
• Matches original geometry to sit flush with the door surface
• Designed to work with reversible door installations where a hole is no longer used

• One (1) reversible door plug

• No tools are typically required; press plug into the unused hole until it seats securely
• Confirm correct orientation before installing to ensure a flush fit
• Inspect surrounding sealing surfaces and clean area before installation
• If plug is damaged or does not seat properly, replace with the exact part number

A replacement reversible plug door that covers and protects the appliance power inlet while letting the cord exit left or right for tidy cord routing. Restores a clean back panel appearance and helps keep the power connection protected from debris. What it does:

• Covers the power inlet opening to protect the plug and inlet from dust and debris.
• Reversible design lets you route the power cord to either side to fit against the wall.
• Helps keep the cord tucked close to the appliance so the unit can sit flush with cabinetry or walls.
• Replace when the door is cracked, broken, missing, or no longer holds the plug securely.

• Always unplug the appliance before starting any repair or inspection.
• May require access to the rear panel; check your owner's manual for disassembly steps.
• Check orientation before finalizing installation to ensure correct left/right cord routing.

This reversible door plug fills the unused mounting hole when you switch the door swing on your refrigerator. It restores a finished appearance and helps keep air and moisture from entering through the opening.

• Covers the unused door hole created during a door swing reversal
• Helps maintain proper sealing and resists drafts/condensation at the opening
• Restores a clean, finished, factory look to the door
• Common symptoms: missing or cracked plug, exposed hole, cosmetic gap on door edge

• Disconnect power before servicing any door components
• Gently pry out the old plug with a plastic trim tool to avoid scratches
• Align the new plug with the opening and press until fully seated and flush
• Verify the door closes properly and the gasket seals evenly

This Mod tilt and insert (freezer) is the replacement tilt/insert mechanism used to secure and angle freezer inserts so they open and close smoothly. Restores proper positioning and support for the affected freezer insert. What it does:

• Holds and tilts the freezer insert/drawer to allow smooth opening and closing
• Keeps the insert properly aligned to prevent binding or uneven gaps
• Helps maintain consistent access to frozen items by stabilizing the drawer
• Addresses symptoms like a tilted, loose, or uneven freezer insert

• One Mod tilt and insert (freezer) part

• Basic hand tools may be required; follow manufacturer instructions for safe removal and replacement
• Disconnect power to the appliance before working on internal components
• Handle plastic parts gently to avoid cracking; confirm correct orientation before final fastening

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly
