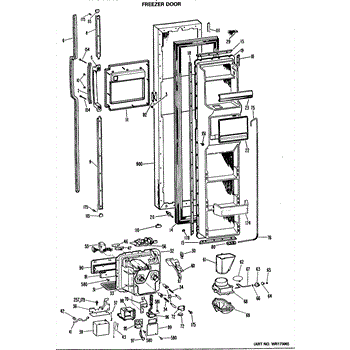

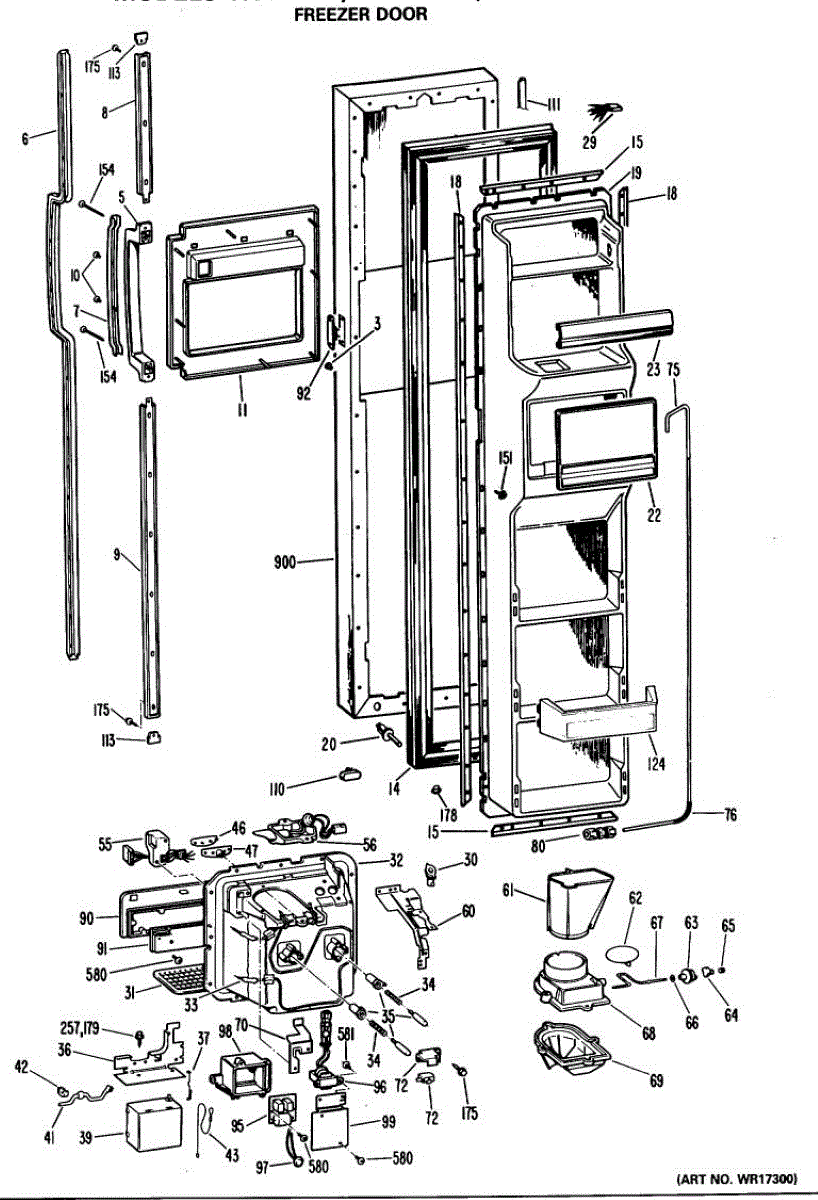

Parts for Ge TFX27FLL: 01 - Freezer Door Parts

Spring for recess duct. For spring sleeve use WR2X4822.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Color: clear. It's 7 watts 130 volts.

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

This is the right side duct gasket. For left side use WR14X247.

This is the left side duct gasket. For right side use WR14X246.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws. Size: 8-18 ab.

This housing power module supplies the main power/control interface inside the appliance housing, restoring electrical distribution and control signals so features like lights, fans, and dispenser can operate reliably. What it does:

• Routes power from the main harness to internal components and control circuits
• Replaces a failed housing module that can cause partial or complete loss of power to lights, fans, dispenser, or control functions
• Helps resolve intermittent operation, no-power at certain modules, or safety shutdowns tied to the housing electronics
• Works as the internal mounting and connection point for related wiring and connectors

• One housing power module assembly

• Disconnect power to the appliance before servicing to avoid shock or damage
• Requires removal of the control/housing panel; keep track of screws and connectors
• Handle with care to avoid bending pins or damaging wiring; use anti-static precautions if available

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

Includes 12 screws.

Includes 12 screws.

Includes 12 screws.

The Defrost Timer is an OEM part for GE refrigerators. It serves as a crucial component in managing the defrost cycle of the refrigerator, ensuring that frost buildup is regularly melted away from the evaporator coils. This timer periodically switches the refrigerator between cooling and defrost mode, helping to maintain efficient operation and prevent overcooling or excessive ice accumulation.

Symptoms of a bad Defrost Timer include:

• Frost building up more than usual in the freezer compartment.
• The refrigerator or freezer sections becoming too warm due to prolonged defrost cycles.
• The refrigerator not transitioning out of defrost mode, leading to spoiled food due to inadequate cooling.

Causes of a bad defrost timer can include mechanical wear from continuous use, electrical failures that impede the timer’s operation, or simply aging components that no longer function reliably.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This plug button is a small push-in cap that covers unused holes and secures trim or panels for a finished appearance. It helps keep debris and moisture out while providing a simple, low-profile finish on appliance surfaces. What it does:

• Covers exposed screw holes and openings to improve appearance and prevent dirt entry
• Helps secure lightweight trim pieces and panels by snapping into place
• Reduces chance of small-object ingress around mounting points
• Common replacement when original plug is cracked, missing, or worn

• Disconnect power to the appliance before working near electrical components.
• Install by aligning and pressing the plug squarely into the hole until it snaps in; remove with a flat tool if necessary.
• Do not force into undersized holes; replace with correct size if fit is tight or loose.
• If the plug secures a component, verify the component is properly seated before finalizing installation.

Package of 12
