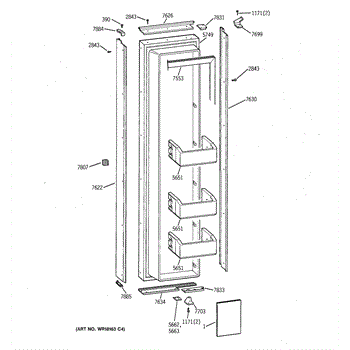

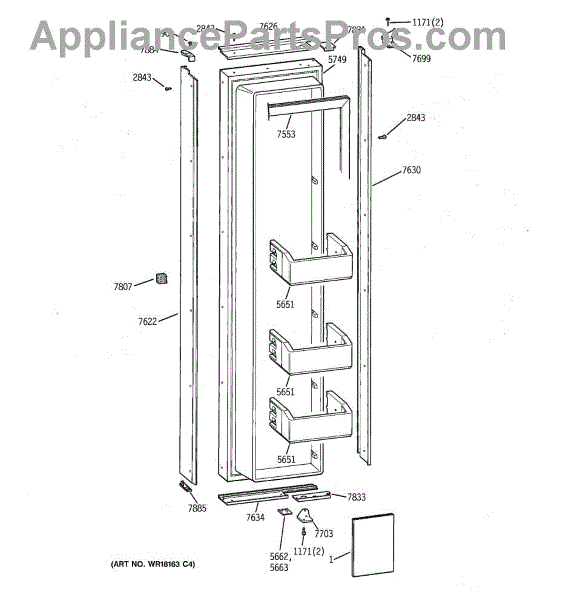

Parts for Ge ZIS48NSB: 01 - Freezer Door Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

This .030-inch shim is a thin leveling spacer used to correct small height and alignment gaps. It helps stabilize and align appliance components for proper fit and reduced vibration during operation. What it does:

• Provides a precise 0.030-inch thickness to raise or level panels, doors, or chassis components
• Helps eliminate small gaps that can cause rubbing, misalignment, or uneven sealing
• Reduces vibration or rocking by evening out contact points and load distribution
• Useful during cabinet installation or when replacing worn leveling feet or brackets

• Disconnect power (and water if applicable) to the appliance before performing service
• Use appropriate hand tools and keep shims flat and properly seated under the component being adjusted
• Add shims incrementally—do not force parts into position or over-tighten fasteners after shimming

This refrigerator door gasket creates an airtight seal between the door and cabinet to keep cold air in and moisture out. Replace a torn, warped, or leaky gasket to restore proper sealing and consistent temperatures around the door opening. What it does:

• Seals the door perimeter against the cabinet to limit air leaks
• Helps maintain interior temperature and reduce condensation or frost near the door
• Supports proper door closing and alignment
• Common symptoms of a failed gasket: visible cracks/tears, door not sealing, condensation or frost at the door edge, warm spots near the door

• One door gasket

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or use low heat) to make it pliable
• Remove the old gasket and clean the retainer/channel thoroughly
• Press the new gasket fully into the retainer; square corners, check for even contact all around, and use gentle low heat to relax waves; allow up to 24 hours for the gasket to conform

Freezer door handle.

Freezer door side trim.

This bottom freezer door trim piece provides a finished edge and helps seal the freezer door while restoring the appliance's appearance. It replaces a cracked, dented, or missing lower door trim for a clean, consistent look. What it does:

• Covers and protects the lower edge of the freezer door, keeping the door looking finished
• Helps maintain an even door seal by supporting the door edge where trim mounts
• Commonly replaced when trim is cracked, warped, bent, or cosmetically damaged
• Matches factory fit and mounting locations for straightforward replacement

• One bottom freezer door trim piece

• Designed for bolt- or snap-on installation; remove power to the appliance before starting work
• Handle trim carefully to avoid scratching finish; use non-marring tools as needed
• Small fasteners or clips may be required

Freezer side bottom door hinge.

Freezer side top hinge shim. For bottom hinge shim use WR2X8593.

Freezer side bottom hinge shim. For top hinge shim use WR2X8592.

For fresh food door bottom handle endcap or freezer door top handle endcap.

For fresh food door top handle endcap or freezer door bottom handle endcap.
