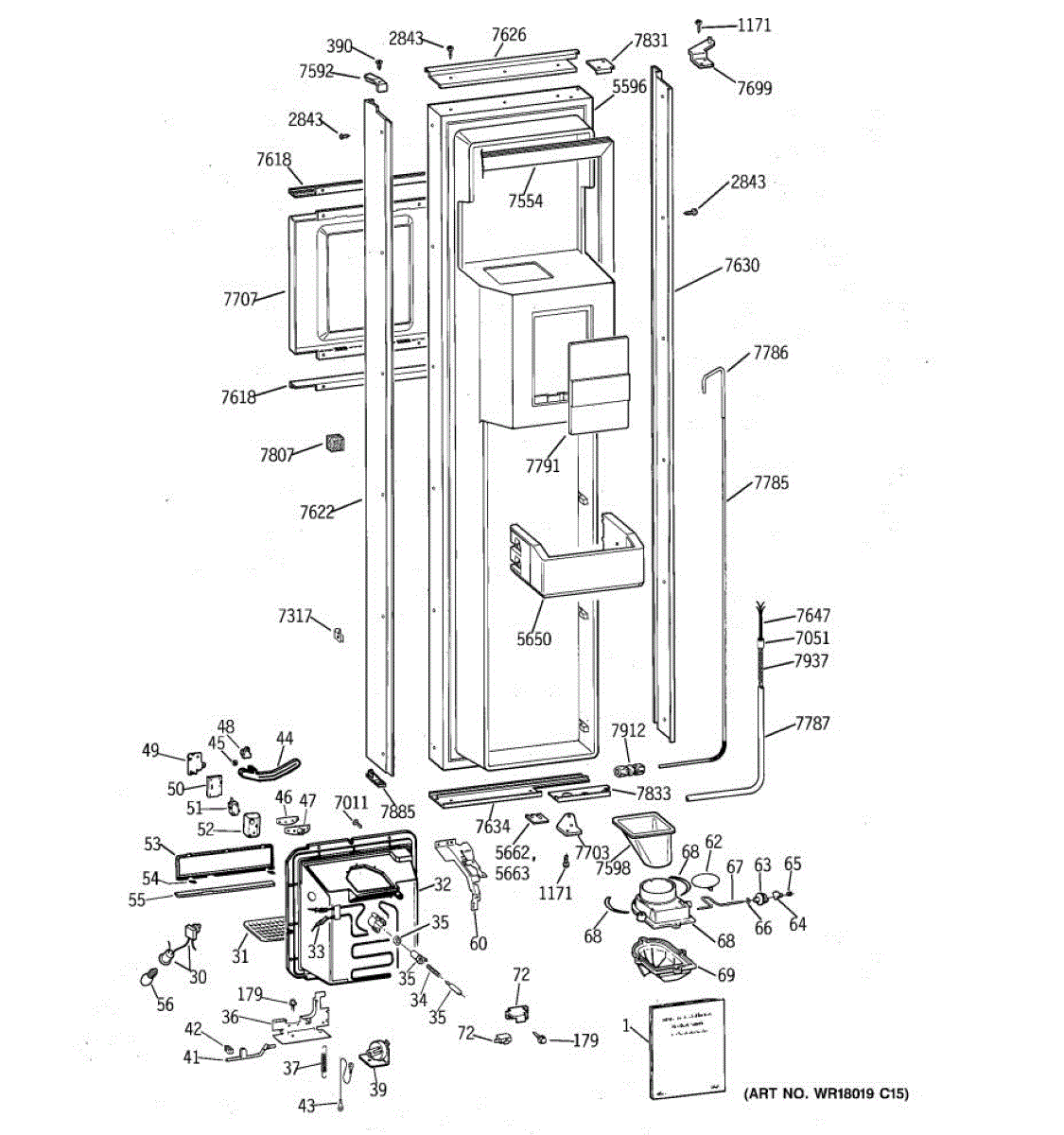

Parts for Ge ZISB36DSC: 01 - Freezer Door Parts

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Spring for recess duct. For spring sleeve use WR2X4822.

This part has been discontinued by the manufacturer and is no longer available.

Lanyard for dispenser door.

Lever for dispenser selector switch.

This dispenser cradle is the molded housing that supports and guides the refrigerator dispenser components, helping keep the dispenser chute and actuator aligned for smooth water or ice dispensing. Replacement restores proper fit and function. What it does:

• Holds the dispenser chute and actuator assembly in the door for stable dispensing
• Guides water or ice flow to the dispense area and helps prevent spills
• Replaces cracked, warped, or broken housing that can cause misalignment or leaks
• Restores a solid mounting surface for switches, nozzles, and trim

• One dispenser cradle housing

• Disconnect power and shut off water supply before beginning any work
• Removal typically requires opening the freezer/refrigerator door and removing inner door trim and screws to access the cradle
• Handle plastic parts gently to avoid cracking; use a trim tool to disengage clips where needed

Color: clear. It's 7 watts 130 volts.

Ice maker dispenser door.

Time delay display arm.

Includes 12 washers.

Ice chute door lever.

This is the right side duct gasket. For left side use WR14X247.

This is the left side duct gasket. For right side use WR14X246.

Includes 12 screws.

This pack contains twelve replacement screws used to fasten appliance panels, trim, and components. They restore secure mounting and help stop rattling, loose panels, and gaps for a safer, quieter appliance. What it does:

• Secures exterior and interior panels, brackets, and trim pieces
• Restores proper fit where missing or stripped screws cause movement or noise
• Helps maintain appliance alignment and prevents parts from vibrating loose
• Used for general-purpose repairs on compatible GE appliances

• Disconnect power or unplug the appliance before performing any internal repairs
• Use the correct screwdriver bit and avoid overtightening to prevent stripping threads
• Keep remaining screws in a labeled container for future service
• If a screw does not seat easily, stop and verify correct fit to avoid damage

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

This .030-inch shim is a thin leveling spacer used to correct small height and alignment gaps. It helps stabilize and align appliance components for proper fit and reduced vibration during operation. What it does:

• Provides a precise 0.030-inch thickness to raise or level panels, doors, or chassis components
• Helps eliminate small gaps that can cause rubbing, misalignment, or uneven sealing
• Reduces vibration or rocking by evening out contact points and load distribution
• Useful during cabinet installation or when replacing worn leveling feet or brackets

• Disconnect power (and water if applicable) to the appliance before performing service
• Use appropriate hand tools and keep shims flat and properly seated under the component being adjusted
• Add shims incrementally—do not force parts into position or over-tighten fasteners after shimming

Size: 1/4 inch diameter.

This is the magnetic door gasket that seals the refrigerator compartment. A tight, intact gasket helps maintain proper temperature and reduces energy loss by keeping warm air out and cold air in.

• Creates an airtight seal between the refrigerator door and cabinet
• Helps prevent temperature swings, frost, and moisture around the door
• Worn, torn, or warped gaskets can cause warm spots, condensation, or doors not closing properly
• Replace if you see cracks, gaps, or if the gasket no longer holds a seal

• Unplug the appliance before service and remove door contents for easier handling
• Gently warm the gasket (hair dryer on low) to relax folds and improve fit
• Transfer and reuse any retaining hardware; seat the gasket fully in the channel
• Check door alignment and perform a dollar-bill test around the perimeter to confirm sealing

For fresh food door top handle endcap or freezer door bottom handle endcap.

Freezer door handle.

Freezer door top trim.

Freezer door side trim.

Freezer door bottom trim.

Freezer side bottom door hinge.

Freezer side top hinge shim. For bottom hinge shim use WR2X8593.

Freezer side bottom hinge shim. For top hinge shim use WR2X8592.

For fresh food door top handle endcap or freezer door bottom handle endcap.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fiberglass sleeve protects and insulates tubing and wiring, helping prevent chafing and damage where lines pass through openings or near sharp edges. It's a simple, durable way to extend component life and reduce noise from rubbing. What it does:

• Provides abrasion protection for water lines, hoses, and electrical wiring
• Adds thermal insulation to help reduce condensation and exposure to temperature extremes
• Cushions components where they pass through metal or plastic panels to prevent wear
• Helps reduce rubbing noises caused by vibration or movement

• Disconnect power and water supply before starting
• Inspect surrounding areas for sharp edges or corrosion; replace sleeve if frayed or damaged
• Slide sleeve over the hose or wire; trim to length with scissors if needed and ensure full coverage of exposed areas
• Use appropriate clamps or zip-ties as required to secure the sleeve without compressing it
