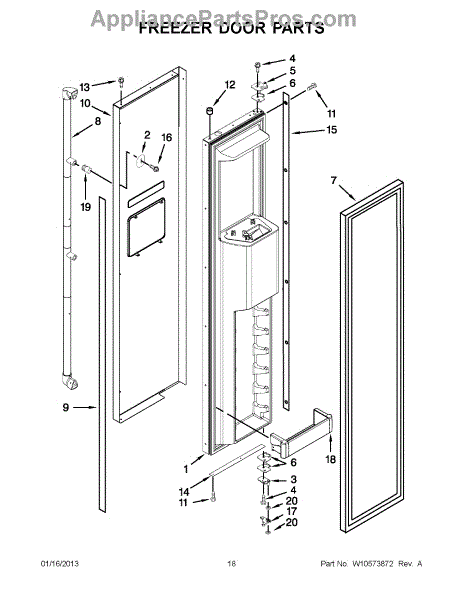

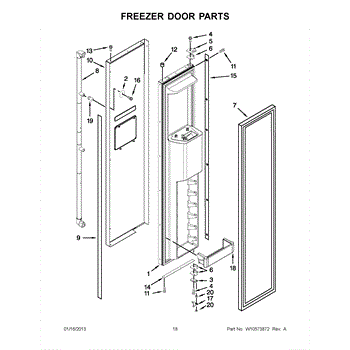

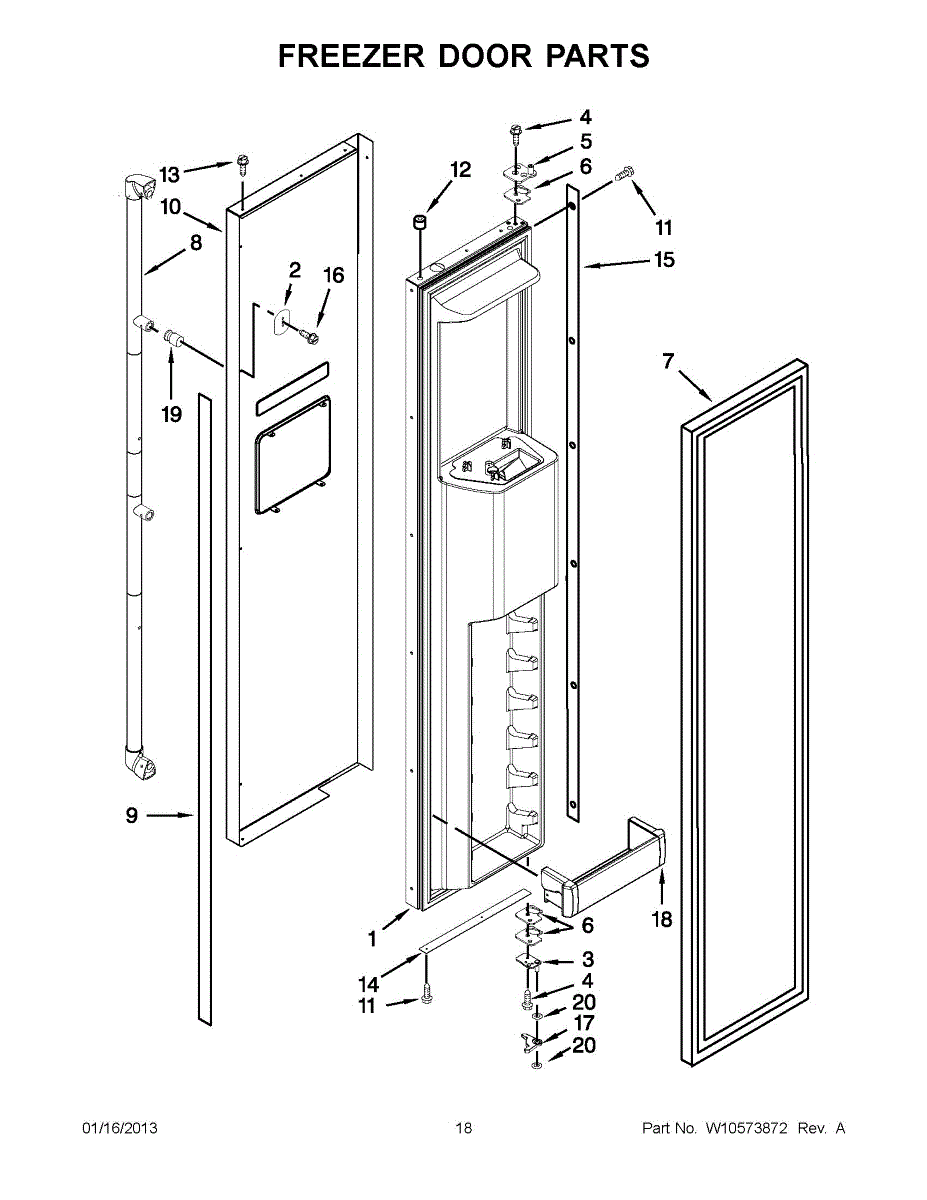

Parts for Jenn-Air JS48PPDUDB15: 09 - Freezer Door Parts

This door hinge secures and guides a refrigerator door so it opens and closes smoothly, restoring proper door alignment and a tight seal. It's a direct-fit replacement when a worn or damaged hinge causes sagging or misalignment. What it does:

• Supports the refrigerator door and provides a pivot point for smooth opening and closing
• Restores proper door alignment and helps maintain an even door seal
• Reduces sagging, rubbing, or uneven gaps that prevent full closure
• Stops squeaks and sticking caused by worn hinge surfaces

• One door hinge

• Always unplug the appliance or shut off power to the unit before starting any repair
• Remove food and secure the door; have a helper support the door during removal and installation
• Use common hand tools; keep screws and mounting hardware organized for reassembly
• Check door alignment and adjust as needed after installation; replace any worn mounting hardware if present

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

This door hinge restores smooth, aligned door operation. Replacing a worn hinge ensures the door opens and closes properly, supports the door's weight, and helps the gasket seal evenly to reduce air or heat loss.

• Provides the pivot point that lets the door open and close smoothly
• Maintains door alignment so the seal sits flush against the cabinet
• Helps prevent sagging, rubbing, or binding at the door edge
• Common symptoms: door drops or won't close flush, squeaks/pops, visible play or hinge damage

• Disconnect power; turn off water supply if applicable
• Support the door before removing hinge fasteners to prevent strain or damage
• Transfer any spacers/bushings from the old hinge to the new hinge if present
• Reinstall and verify door alignment and seal contact; adjust as needed

This magnetic refrigerator door gasket forms the airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn gasket restores a tight seal for stable temperatures and reliable performance.

• Creates a magnetized, airtight seal around the door perimeter to prevent air leaks
• Helps maintain set temperatures and reduce condensation or frost around the door
• Supports consistent cooling and overall efficiency
• Common symptoms of failure: gaps or warping, torn corners, door not closing securely, moisture or frost at the door edge

• Disconnect power before servicing
• Allow the gasket to warm and relax; use warm water or a hair dryer on low to soften—do not overheat
• Remove the old gasket from the retainer and press the new gasket in, starting at the corners and seating evenly around the perimeter
• Check door alignment and retighten/adjust hinges as needed; verify seal with a paper slip test

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This top door spacer positions and supports the upper edge of the appliance door to maintain correct clearance and alignment for smooth opening and closing. It helps keep the door trim and glass properly spaced for reliable operation. What it does:

• Keeps the top edge of the door correctly spaced from the cabinet to prevent rubbing or binding
• Helps maintain door alignment for an even seal and consistent closing
• Reduces vibration-related noise by stabilizing the door assembly
• Protects trim and glass from contact damage at the top edge
• Useful when replacing worn or missing door support components

• One top door spacer

• Disconnect power to the appliance before starting any repair
• Remove the door or door trim panels per the manufacturer's instructions to access the spacer
• Handle door glass and trim carefully; use appropriate tools and support to avoid damage

This is a fastener screw used to secure appliance panels and components where a 10-24 thread is required. It provides a reliable hold for reattaching parts during repairs and maintenance. What it does:

• Fastens panels, brackets, or components with a 10-24 threaded hole
• Restores original attachment points that have missing or damaged screws
• Helps reduce vibration and rattling when properly tightened
• Works with metal or reinforced plastic mating components designed for 10-24 hardware

• One screw (quantity: 1)

• Use the matching 10-24 driver/socket and turn until snug; avoid over-tightening
• Verify mating threads and alignment before driving to prevent cross-threading
• Disconnect power and follow appliance safety procedures before servicing
• Check for proper washer or spacer if originally present

The GAP-HINGE is an OEM component for Whirlpool brand refrigerators. It is designed to fill the space between the refrigerator door and cabinetry, creating a flush fit. The hinge allows the door to open and close smoothly while preventing air and moisture leaks around the door frame.

Symptoms of a bad gap hinge include:

• Gaps around the refrigerator door letting hot or humid air enter the refrigerator interior
• Increased energy costs from lack of insulation due to air gaps
• Buildup of moisture on internal surfaces from improper sealing
• Difficulty opening or closing the refrigerator door smoothly

Causes can include normal wear over time, or damage from repeated opening and closing of the door putting stress on the hinge.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brands.

This shallow freezer door bin mounts on the inner door and restores organized storage for smaller items. Replace a cracked, loose, or missing bin to keep packages secure and easy to access.

• Creates a dedicated shelf on the freezer door for boxed or bagged foods
• Replaces bins with cracked plastic, broken locking tabs, or discoloration
• Helps prevent items from falling when the door opens and closes
• Restores a secure fit if the original bin won't seat or keeps popping off

• Empty and remove the old bin by lifting up to release it, then pulling out
• Align the new bin with the door liner slots and press down until fully seated
• Handle plastic carefully; install at room temperature to reduce risk of cracking
• No tools typically required; match position and orientation to the original bin

This door bearing fits the washer door assembly to restore smooth opening and closing and reduce noise, wobble, or binding. Replacing a worn bearing helps maintain proper door alignment for reliable operation. What it does:

• Supports the door hinge so the door pivots smoothly without sagging or sticking
• Reduces squeaks, grinding, or rough movement when opening or closing the door
• Helps keep the door aligned to reduce stress on the latch and door seal
• Addresses symptoms like door wobble, uneven closing, or noisy operation

• Disconnect power (and water if accessing near waterlines) before starting any repair
• Removing the door panel or inner door trim may be required; retain all fasteners and document their locations
• Inspect surrounding parts (hinge, seal, latch) and replace if damaged; improper alignment can cause premature wear
