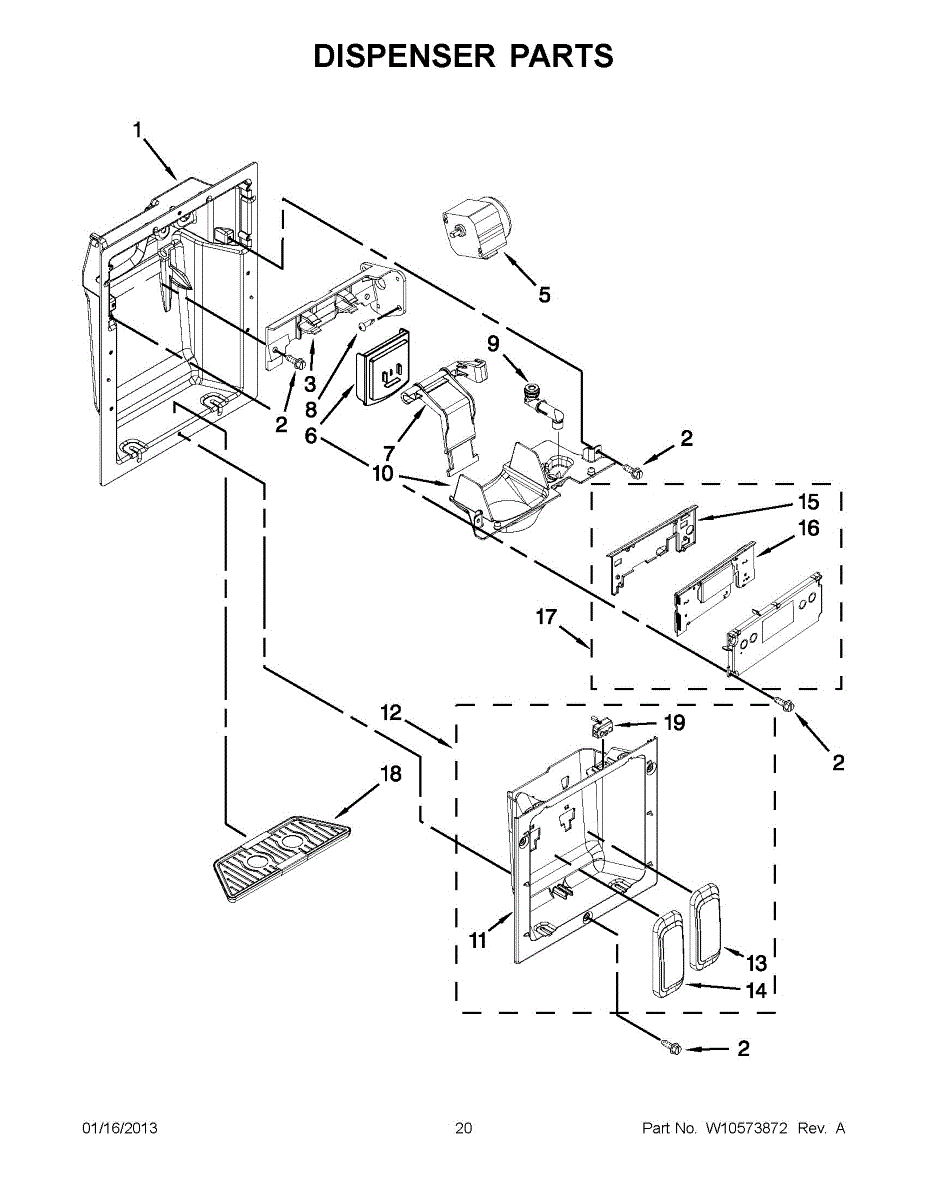

Parts for Jenn-Air JS48PPDUDB15: 10 - Dispenser Parts

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This motor bracket secures the ice door motor assembly to the freezer door, keeping the dispenser door aligned for reliable opening and closing. Designed as a direct-fit replacement to restore proper ice door movement. What it does:

• Holds the ice door motor in the correct position to operate the ice/dispenser door
• Maintains alignment so the ice door opens and closes smoothly
• Helps prevent rattling or binding from a loose or damaged motor mount
• Can resolve dispenser/door symptoms such as the ice door not opening or closing fully

• Disconnect power to the appliance before beginning any repair
• Handle clips and trim carefully; small screws or fasteners may be reused if undamaged
• Requires removal of the inner freezer door panel or dispenser trim for access
• If the motor or gears are damaged, replace those components as well for reliable operation

This ice door motor drives the dispenser flap that opens for ice dispensing and closes to seal the chute. Replacing a weak or failed motor restores smooth door movement and helps prevent warm air and moisture from entering the freezer. What it does:

• Actuates the ice chute door during dispensing and returns it closed for a proper seal
• Helps reduce frost, condensation, and ice clumping around the dispenser
• Can address ice not dispensing due to the door not opening/closing
• May resolve clicking or grinding noises from the dispenser area

• Unplug the refrigerator before servicing; wear cut-resistant gloves
• Remove dispenser trim/control panel to access the ice door assembly; handle wiring carefully
• Note linkage and wire orientation before removal to ensure proper reassembly
• After installation, test the dispenser to verify the door opens/closes and seals the chute

This ice dispenser chute door assembly opens to release ice and closes to help seal the dispenser opening. It helps limit warm air and moisture from entering the freezer so the chute stays clear and dispensing remains reliable.

• Opens during dispensing and closes to help seal the ice chute
• Helps reduce frost, moisture, and warm air intrusion at the dispenser
• Worn or warped door can stick open/closed or fail to seal
• Common symptoms include frost/ice around the chute, moisture at the dispenser, or clumping in the ice bin

• Unplug the refrigerator before servicing
• Remove the dispenser front panel/cover to access the chute area
• Note the door orientation and any spring/hinge positioning before removal
• After installation, manually cycle the door to confirm smooth movement and proper seal

This support mounting bracket secures internal components to the appliance chassis to restore proper alignment and reduce vibration or movement. It replaces a worn or broken bracket to help stop rubbing, sagging parts, and excessive noise. What it does:

• Secures the appliance cabinet or internal assembly to maintain correct alignment
• Prevents shifting that can cause rubbing, scraping, or contact-related noise
• Restores stable support for moving parts to reduce vibration and uneven wear
• Helps eliminate symptoms like loose panels, sagging components, or intermittent contact sounds

• Disconnect power before beginning any repair
• Use appropriate hand tools; avoid overtightening fasteners

Screw for control panel.

This spigot body assembly routes water from the refrigerator supply to the dispenser and replaces a worn, cracked, or leaking dispenser spigot. It restores proper water flow and helps stop drips or visible leaks at the dispenser. What it does:

• Channels water from the supply line through the dispenser area for normal dispense operation.
• Provides the structural mounting for the dispenser valve and actuator components.
• Common symptoms it can address: leaking or dripping at the dispenser, visible cracks or broken spigot housing, or intermittent water flow from the dispenser.
• Works with existing dispenser valve and seals when those components are undamaged.

• Disconnect power to the appliance and shut off the water supply before starting work.
• Access may require removing the refrigerator door panel or inner dispenser bezel.
• Inspect and replace any worn O-rings or seals during reassembly to prevent leaks; tighten fasteners only to specified torque if provided by the manufacturer.

This separator is a molded baffle that helps position and isolate internal components to ensure proper airflow and reliable operation. Replaces a worn or broken separator to restore correct internal alignment and reduce noise or rubbing. What it does:

• Keeps internal parts separated and secured to prevent contact or misalignment
• Directs or channels airflow where required for proper operation
• Helps reduce vibration noise caused by loose or shifted components
• Prevents chafing or rubbing that can lead to premature wear on nearby parts

• One separator/baffle as shown

• Refer to your model's exploded parts diagram for correct placement and orientation
• Disconnect power (and water, if applicable) before beginning repairs
• Use basic hand tools; avoid forcing the part into place to prevent damage
• If other plastic mounting tabs are damaged, inspect and replace those parts as needed

Color: Universal Silver

Used on the black and aluminum models

Used on the black and aluminum models

This replacement cover is a protective panel that helps shield internal components from dust and debris and restores the appliance's finished appearance. Installing the correct cover keeps parts protected and helps maintain safe, reliable operation. What it does:

• Protects internal electronics and wiring from dust, lint, and incidental contact
• Restores the appliance's exterior finish where the original cover was damaged or removed
• Helps prevent accidental access to moving or energized components
• Can reduce noise by covering openings near motors or fans

• One replacement cover

• Disconnect power to the appliance before beginning any work
• Handle edges carefully to avoid cuts and to prevent damage to the cover finish
• Verify orientation and fastener locations before tightening screws; do not overtighten

Includes cover part number 2305219

This dispenser user interface assembly is the touch-control module at the door dispenser that lets you select water, cubed/crushed ice, light, and lock. Replacing a failed UI restores proper button response and indicator display.

• Accepts touch/button inputs for water, ice type, light, and lock
• Sends commands to the main control to operate dispenser functions
• Drives the dispenser's status indicators/LEDs
• Common symptoms: buttons unresponsive or intermittent, can't change cubed/crushed, lock won't toggle, indicator lights out or erratic

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/escutcheon to access the UI; note screw/tab locations
• Disconnect wire harnesses and release retaining tabs; use ESD precautions when handling the board
• Reconnect harnesses fully and secure the assembly; transfer any reusable overlay/trim from the original if your model uses one, then restore power and test

This Drip Tray catches stray drips and condensation from the area it serves, helping keep nearby surfaces dry and tidy. Replacing a cracked or missing tray reduces puddles, staining, and recurring cleanup. What it does:

• Collects drips, splashes, and minor overflows to protect surrounding surfaces
• Helps direct moisture away to reduce puddling and mineral buildup
• Removable design makes routine cleaning quick and easy
• Common symptoms: cracks or warping, discoloration, persistent water around the tray area, or the tray not seating securely

• 1 drip tray

• Disconnect power and turn off water supply before servicing
• Remove the old tray and clean the seating area for proper fit
• Align and fully seat the new tray without forcing
• Restore power/water and monitor initial operation to confirm drips collect properly

This indicator light assembly notifies you when a control or function is active, restoring visible status feedback on the appliance's control panel. It replaces a dim, flickering, or non-illuminating indicator to improve user feedback and usability. What it does:

• Provides a visible status indicator on the control panel when cycles or functions are active
• Replaces burned-out or dark indicator lights that make controls hard to read
• Helps diagnose control-panel lighting issues by restoring expected illumination
• Matches OEM fit and function for the listed part number

• Disconnect power to the appliance before servicing to prevent shock or injury.
• Handle the light and any lens or wiring carefully to avoid damage.
• Verify the part number on the original component before ordering and installation.
