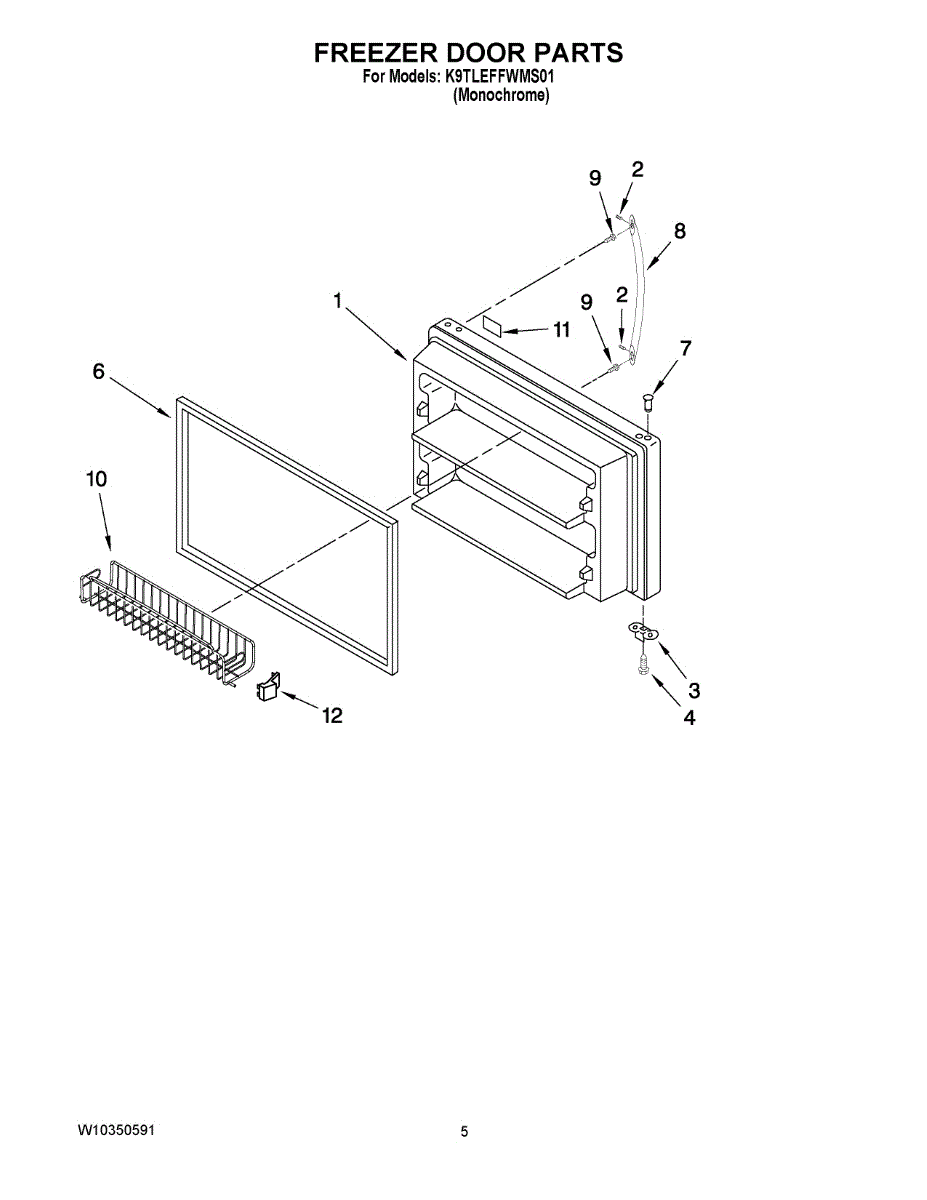

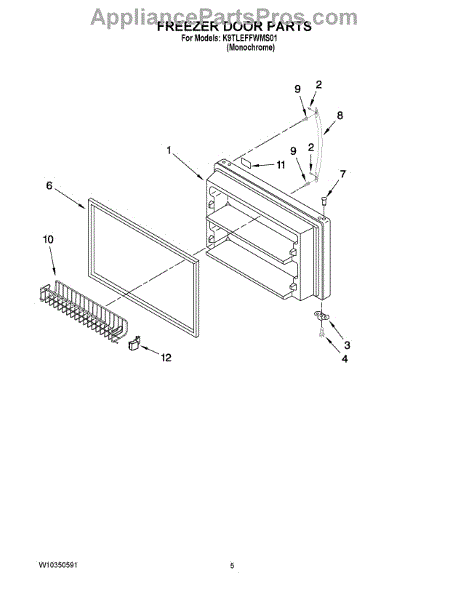

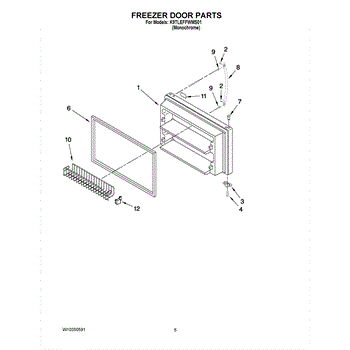

Parts for Kitchenaid K9TLEFFWMS01: 03 - Freezer Door Parts

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

Replace a worn or torn refrigerator door gasket to restore a tight seal and help maintain proper cooling. This exact-service door gasket in Apollo Gray fits the door edge and compresses to keep cold air in and warm air out. What it does:

• Seals the refrigerator/freezer door to help maintain internal temperature and energy efficiency.
• Prevents warm, humid air from entering and forming frost or condensation inside the compartment.
• Helps eliminate drafty edges, clicking door behavior, and uneven cooling near the door.
• Restores proper door closure when the original gasket is cracked, flattened, or damaged.

• High-level replacement: remove the old gasket, align the new gasket in the door channel, and press into place; follow factory warm-water or heat-stretch procedures if required by the OEM.
• Inspect the door flange and mounting channel for damage or debris before installing the new gasket.
• For best seal, allow gasket to settle for 24 hours and check for gaps; use care when heating or stretching to avoid distortion.
• Disconnect power only if instructed by the appliance manufacturer for your specific model.

This door handle thimble is a small spacer/bushing used on select refrigerator and freezer doors. It sets the correct stand-off for the handle hardware so the handle mounts securely, aligns properly, and feels solid in use.

• Spaces and aligns the door handle to the correct distance from the door
• Supports the handle mounting stud/screw for a secure fit
• Helps reduce handle wobble, gaps, or scuffing against the door
• Replace if the handle won't tighten evenly or the original thimble is cracked, worn, or missing

• Disconnect power before servicing the appliance
• Support the handle to protect the door finish during removal
• Loosen the handle's set screw(s) or mounting bolt, remove the old thimble, and clean the area
• Seat the new thimble fully, reinstall hardware, and tighten evenly—do not overtighten

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
