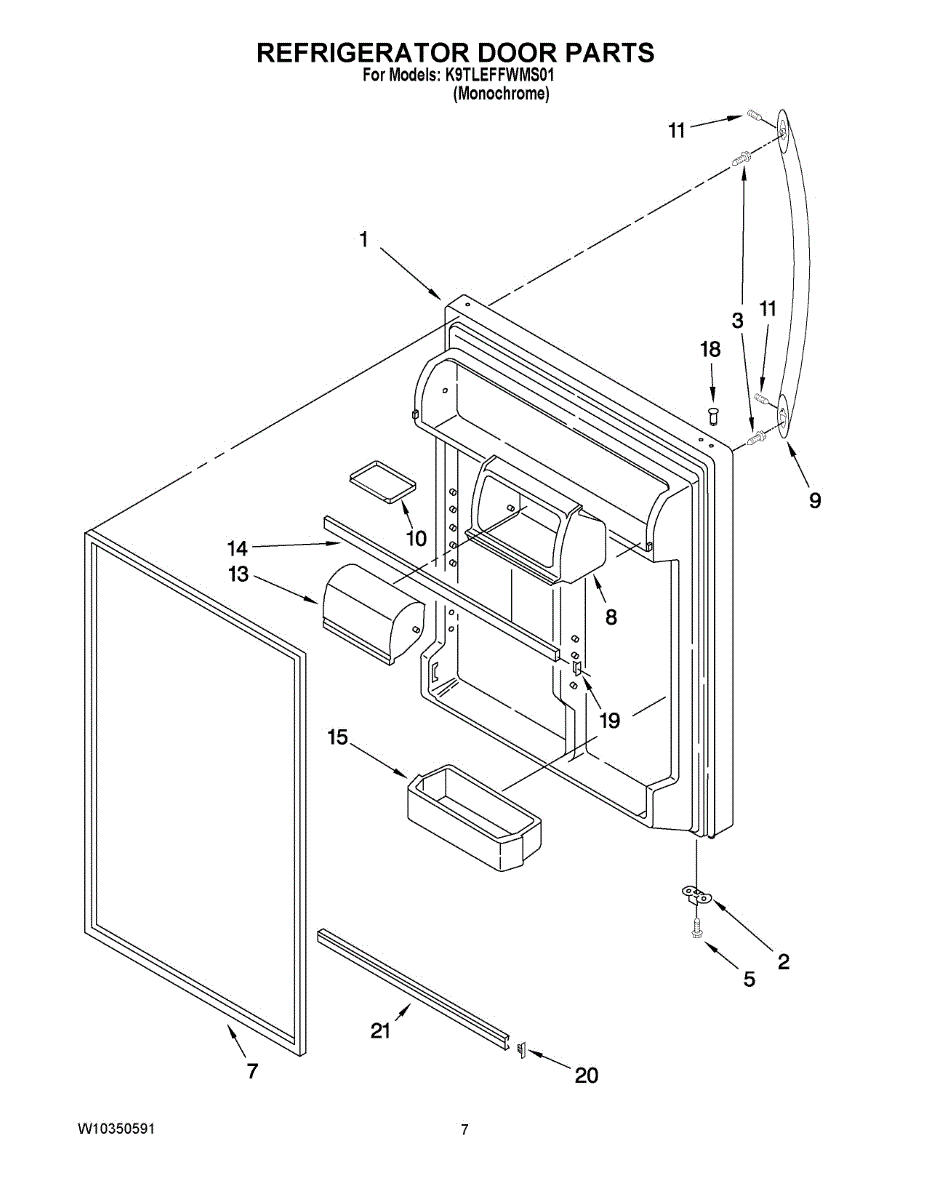

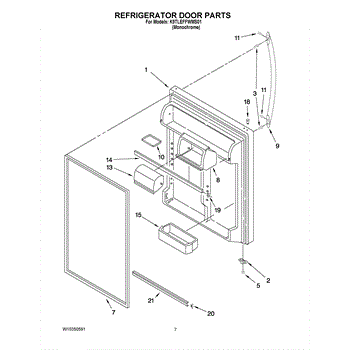

Parts for Kitchenaid K9TLEFFWMS01: 05 - Refrigerator Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

This door gasket seals a refrigerator door to maintain proper temperature and reduce moisture and frost buildup. Replacing a worn gasket restores a tight seal for more efficient cooling and helps prevent spoiled food. What it does:

• Creates an airtight seal around the refrigerator door to keep cold air in and warm air out.
• Helps reduce frost and moisture buildup inside the compartment.
• Can improve cooling performance and energy efficiency when the original gasket is cracked or deformed.
• Common symptoms: noticeable warm spots near the door, visible cracks or gaps, or excessive frost buildup.

• One door gasket (Apollo gray)

• Disconnect power to the appliance before beginning any repair.
• Remove the old gasket by loosening the door trim or retainer screws as required; install the new gasket evenly around the door.
• Avoid sharp tools that could damage the gasket; use a soft tool or hand pressure to seat the seal.

This door compartment housing provides a durable replacement section for the refrigerator door, restoring secure storage and proper fit for your door bins. It helps return stable support to stored items and keeps the door interior sealed. What it does:

• Replaces a cracked, broken, or warped door compartment housing to restore bin stability
• Supports door bins and helps keep stored items from shifting or falling
• Restores proper spacing and alignment of the door interior for consistent use
• Can reduce rattling or movement caused by a damaged housing

• Designed for drop-in replacement; remove door bins and fasteners before installing
• Inspect surrounding clips and mounting points; replace if damaged to ensure secure fit
• Use basic hand tools; disconnect power only if working near electrical components

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

This door shelf trim replaces a cracked, broken or worn front edge on a refrigerator door shelf to restore a clean look and help keep items contained. Fits the shelf edge and snaps or screws into place depending on your model. What it does:

• Replaces a damaged or missing door shelf front/trim for a finished appearance
• Helps prevent stored items from sliding off the door shelf
• Restores proper alignment and support for the door bin or shelf
• Useful when the shelf lip is chipped, cracked, or has cosmetic damage

• Typically installs by snapping or fastening into the front edge of the door shelf; you may need to remove the shelf/bin first
• Use basic hand tools if fasteners are present; keep track of any clips or screws
• Inspect mating surfaces for debris or broken clips and replace clips if needed
• No electrical disconnect is required for this cosmetic/mechanical part, but follow manufacturer safety guidance when working on the appliance

This door handle thimble is a small spacer/bushing used on select refrigerator and freezer doors. It sets the correct stand-off for the handle hardware so the handle mounts securely, aligns properly, and feels solid in use.

• Spaces and aligns the door handle to the correct distance from the door
• Supports the handle mounting stud/screw for a secure fit
• Helps reduce handle wobble, gaps, or scuffing against the door
• Replace if the handle won't tighten evenly or the original thimble is cracked, worn, or missing

• Disconnect power before servicing the appliance
• Support the handle to protect the door finish during removal
• Loosen the handle's set screw(s) or mounting bolt, remove the old thimble, and clean the area
• Seat the new thimble fully, reinstall hardware, and tighten evenly—do not overtighten

This end cap is a small door trim piece that restores the finished look and edge protection on the appliance door. It helps cover exposed edges and fasteners for a clean, factory appearance. What it does:

• Replaces damaged, cracked, or missing door trim end caps to restore appearance.
• Covers and protects exposed screw holes and door edges from wear.
• Prevents loose trim and helps keep the door surface smooth and snag-free.
• Commonly used when door trim pulls away, is broken, or shows cosmetic damage.

• High-level replacement: usually snaps or fastens into place from the door edge; remove trim carefully to avoid cracking adjoining pieces.
• Disconnect power (or water supply on dishwashers) before removing panels if access requires panel removal.
• Use gentle, even pressure and the correct trim tools; avoid excessive force to prevent breakage.
• Follow the appliance's service manual or OEM diagram for removal and reassembly steps.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool refrigerators. It secures interior door shelves securely in place during operation.

Causes of a faulty retainer bar include stress cracks or fractures from repeated door opening/closing over time.

Symptoms of a bad retainer bar include:

• Shelves detaching from the refrigerator door
• Items falling or spilling due to unstable shelves
• Exposed sharp edges posing a safety hazard

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
