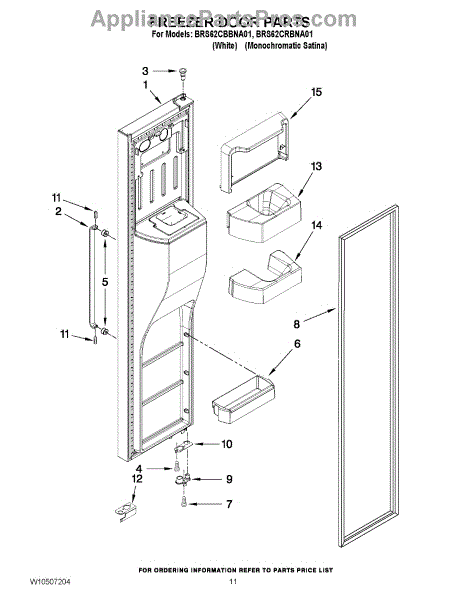

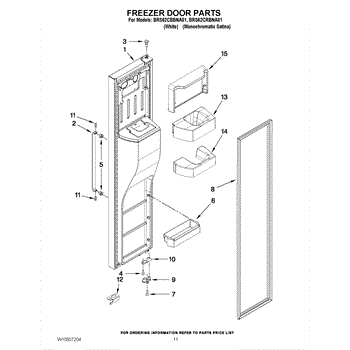

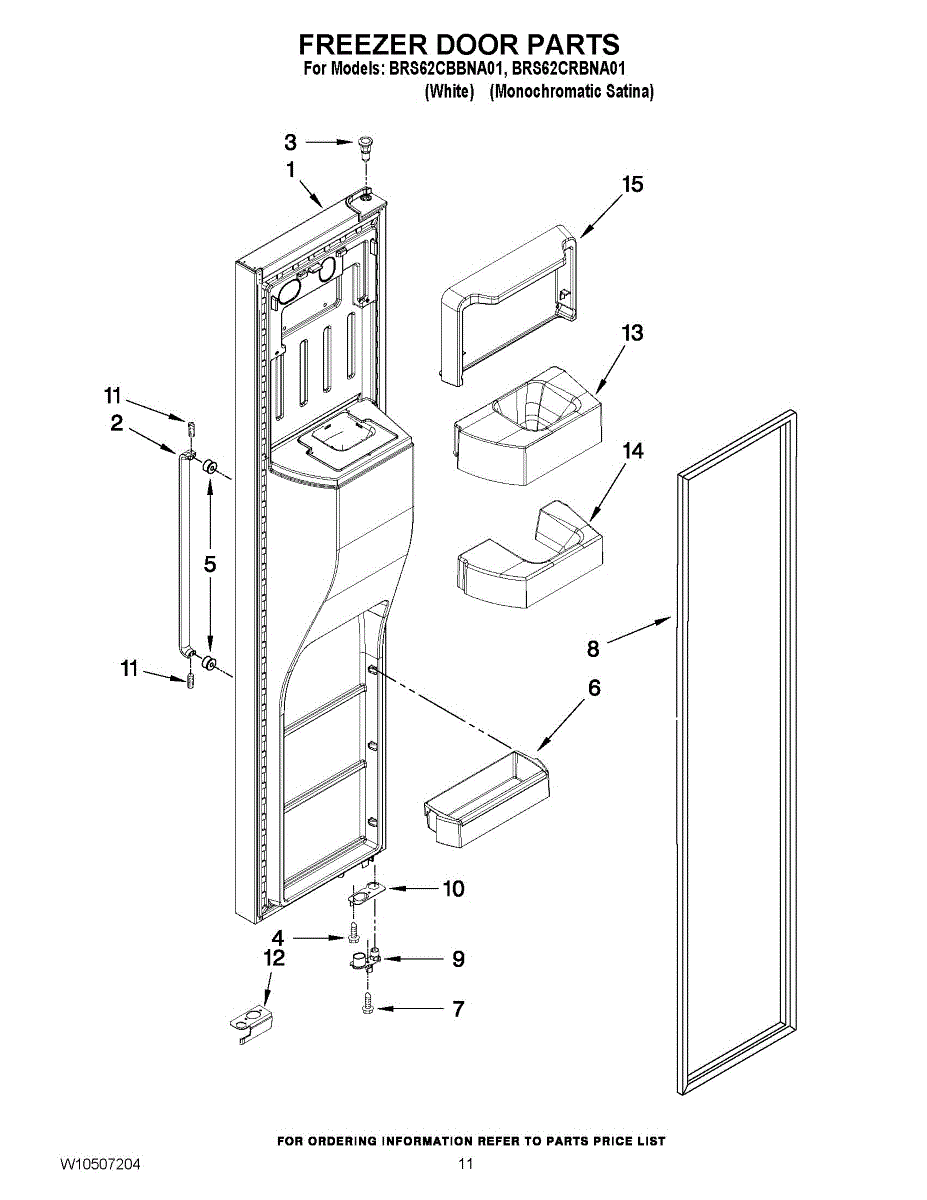

Parts for Whirlpool BRS62CBBNA01: 07 - Freezer Door Parts

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 machine screw secures appliance components such as brackets, panels, and trim. Replace missing or stripped hardware to restore a tight, rattle-free fit and maintain proper alignment of the assembly.

• Fastens parts that require a 10-32 threaded fastener
• Helps prevent vibration, noise, and movement from loose hardware
• Restores correct fit and alignment after a screw is lost or damaged
• Common signs: loose panel/trim, rattling, or a missing/stripped screw

• Disconnect power and shut off water/gas as applicable before servicing
• Compare to the original and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping or damage
• Match thread size and length to your original fastener for proper fit

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

Color: Mist Beige

Color: Grey

This small bushing fits over the hinge cam to guide the door's swing. Replacing a worn thimble restores smooth movement and alignment so the door opens and closes consistently and helps maintain a proper seal. What it does:

• Provides a low-friction bearing surface between the hinge pin and cam
• Helps control door swing and detent/self-close action
• Supports proper door alignment to reduce rubbing or sagging
• Symptoms may include popping/clicking, grinding, binding, uneven closing, or a door that doesn't fully close

• 1 door hinge cam thimble

• Disconnect power and remove items from the door before servicing
• Support the door; remove hinge cover/fasteners and lift the door off the hinge
• Replace the thimble on the hinge/cam, matching the original orientation and fully seating it
• Inspect the mating cam and hinge surfaces; replace worn parts as needed and verify gasket seal after reassembly

Thimble cam that secures and guides the dryer door latch assembly, helping the door close and stay latched so the appliance can run safely and reliably. Replaces worn or damaged door cam components. What it does:

• Engages the door latch/strike to keep the door closed during cycles.
• Helps maintain proper door alignment so the lid/door seals and latches correctly.
• A worn or broken cam can cause the door to hang, fail to latch, or prevent the dryer from starting.
• Works as the mechanical interface between the door and latch assembly.

• Disconnect power (and shut off gas supply on gas models) before servicing.
• Access typically requires removing the dryer door trim or access panel.
• Inspect the latch, strike, and mounting hardware; replace any worn or damaged fasteners when installing the new cam.

The Bracket is an OEM part for Whirlpool-brand refrigerators. These brackets are mounted internally to provide secure anchoring points for door assemblies on the refrigerator frame.

Causes of a bad bracket can include cracks from over-tightening during installation, or metal fatigue over many open/close cycles.

Symptoms of a bad bracket include:

• Loose or sagging refrigerator doors that do not close flush
• Gaps appearing around door seals
• Noises or vibrations emitting from door areas
• Doors difficult to open/close smoothly

As a core mounting component, brackets ensure doors remain firmly and safely attached year after year of use. Replacing a damaged bracket with this OEM part restores a proper secure fit. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

This replacement door stop cover protects the dryer/washer door stop assembly and restores a finished look to the front-control area. It helps cover the stop hardware and prevents snagging or cosmetic damage. What it does:

• Covers the door stop hardware on front-control appliances to protect clothing and hands
• Restores the finished appearance where the original cover is cracked, missing, or worn
• Helps prevent edges of the stop assembly from catching fabric
• Matches the original white finish for a neat, factory look

• Disconnect power to the appliance before starting any repair
• Remove the front-control panel or access trim per your model's instructions to reach the stop cover
• Use basic hand tools; avoid force to prevent damage to surrounding trim or clips
• If clips or fasteners are broken, replace them with OEM parts for a secure fit

This COVER-WIRE protects appliance wiring from abrasion and incidental contact, helping keep connections organized and shielded. It's a simple replacement that restores the factory routing and protection for exposed harnesses. What it does:

• Shields wiring from chafing and contact with sharp edges
• Helps prevent insulation wear that can lead to exposed conductors
• Keeps harnesses routed neatly to reduce stress and snagging
• Can reduce intermittent electrical issues caused by damaged wire insulation

• One COVER-WIRE as shown

• Disconnect power (and water, if applicable) before servicing to avoid shock or damage
• Inspect surrounding wiring and connectors; replace any damaged wires or terminals
• Typically secures with factory clips or fasteners—use OEM fasteners where required
