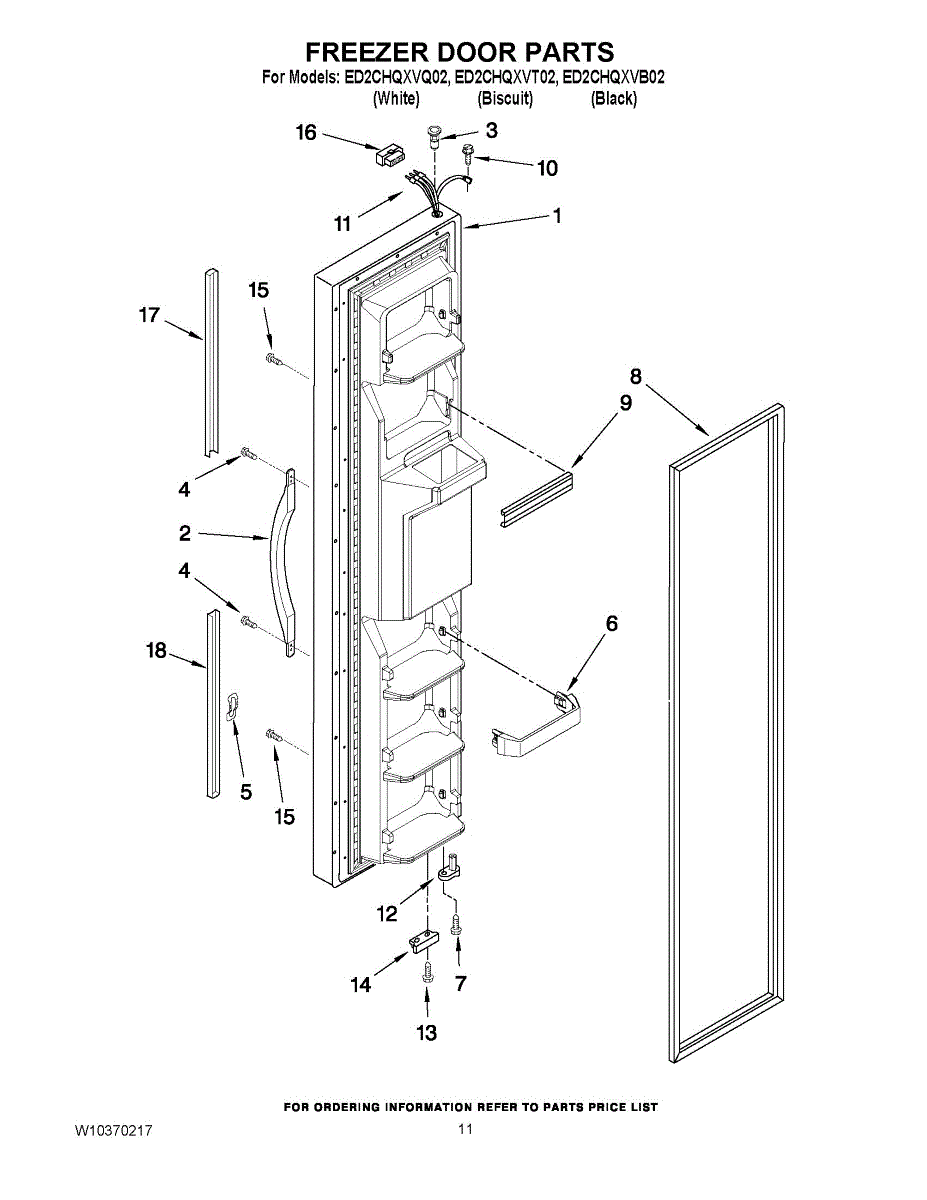

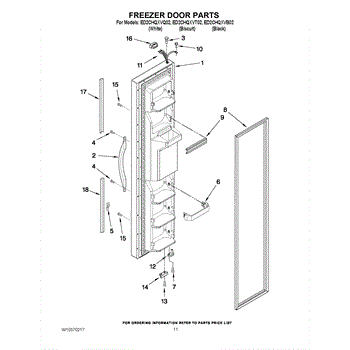

Parts for Whirlpool ED2CHQXVB02: 07 - Freezer Door Parts

Top door hinge thimble bearing supports the upper refrigerator hinge for smooth door operation. Replace if cracked, worn, or causing popping noises.

Replacement screw secures appliance panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

Secures exterior trim pieces to your refrigerator cabinet. Replace this clip if missing, bent, or broken to keep panels flush and prevent rattling trim.

This is a plastic trim rail that attaches to the inside of the freezer door to hold a door shelf bin in place. It serves as a retaining bracket that keeps the bin securely mounted so items stored in the door don't shift or fall. Replace this part if the shelf bin is loose, wobbles, or won't stay attached to the freezer door.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

Replace your refrigerator freezer door gasket to restore proper seal and prevent warm air leaks. Fits select side-by-side models. Verify compatibility.

Seals your refrigerator freezer door to prevent air leaks and maintain temperature. Replace if door pops open, feels loose, or shows visible damage.

Horizontal metal rod that secures glass shelf panels inside your refrigerator door. Replace if broken, bent, or missing to prevent shelf slippage.

Screw: 8-16 x 3/8 inch.

Replaces a worn or broken upper closure cam on your refrigerator door hinge. Ensures proper door alignment and smooth closing action when damaged.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Mounting bracket for refrigerator interior components. Secures shelves, bins, or panels in place. Replace if cracked, bent, or broken to restore stability.

Replacement screw secures appliance panels, brackets, and internal components. Needed when original screws are stripped, missing, or damaged during repair.

Fix refrigerator electrical issues with this wire connector. Restores power to components when connections fail. Simple plug-in installation.

This is a top trim piece that attaches along the upper edge of the refrigerator or freezer door, providing a finished appearance and helping to seal the door properly. It is typically a 22-inch trim assembly made of plastic or metal that snaps or screws into place. Replace this part if it is cracked, broken, discolored, or missing, which can affect the door's appearance and potentially allow cold air to escape.

This decorative trim piece covers gaps and provides a finished appearance to your refrigerator's exterior surfaces. It snaps or clips into place to hide seams between panels or around door frames. Replace this part if the trim is cracked, discolored, or has fallen off your refrigerator.
