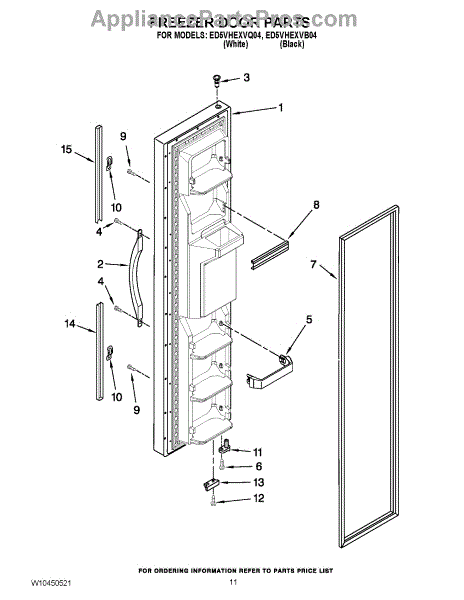

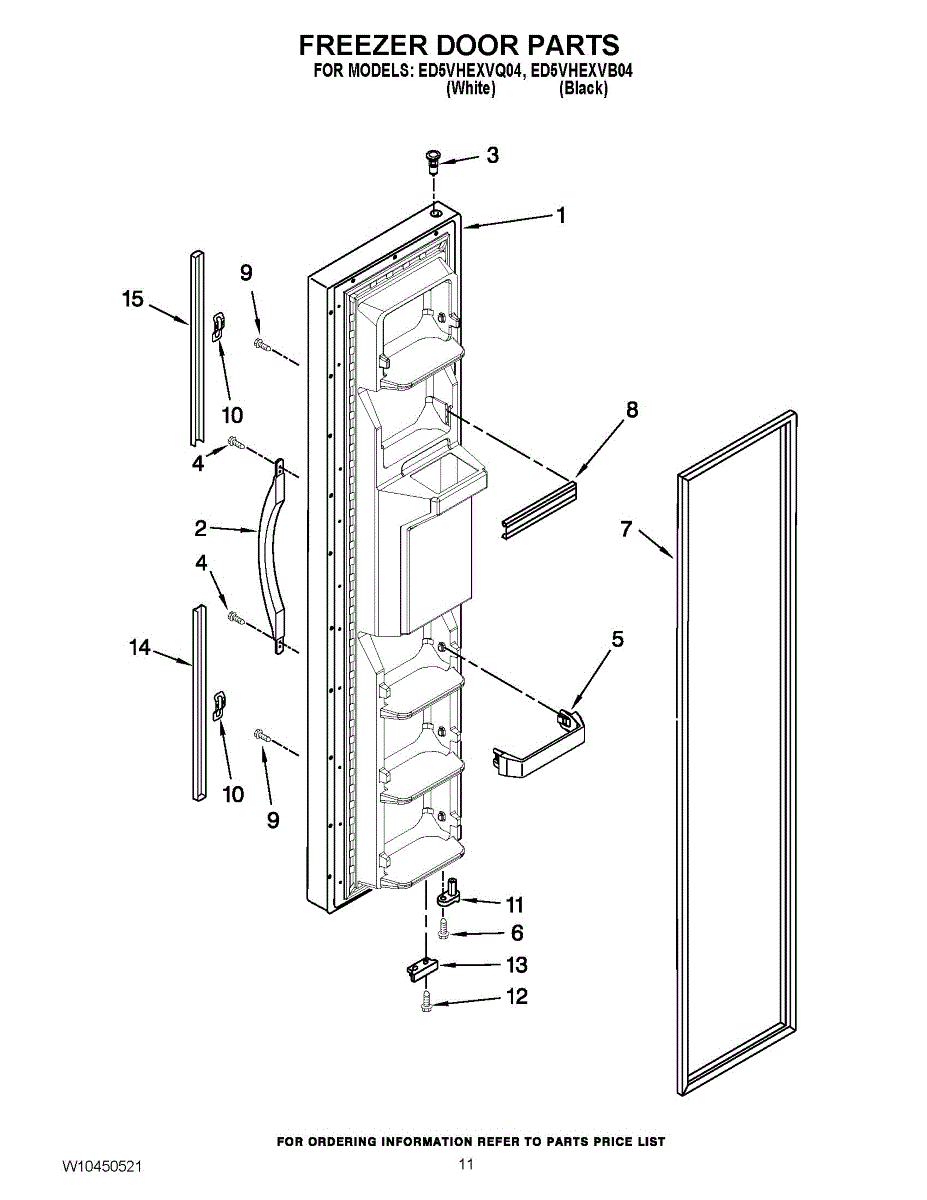

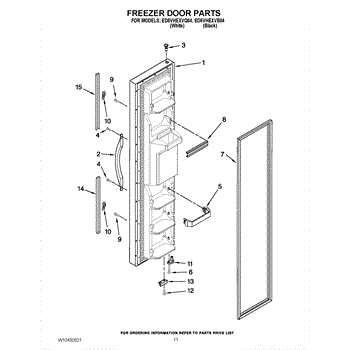

Parts for Whirlpool ED5VHEXVQ04: 07 - Freezer Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This freezer door shelf trim is the integrated retaining rail that secures items on the door bin. Replacing a cracked or missing rail restores a snug, reliable hold and keeps your freezer door storage tidy and usable.

• Holds items in place on the freezer door bin/shelf
• Replaces broken, warped, or missing trim so bins stay secure
• Helps prevent items from sliding or falling when the door opens
• Common signs: loose or damaged rail, items falling, visible cracks

• Disconnect power to the refrigerator before servicing
• Remove the bin if needed; align the trim with the tabs and snap into place
• Allow cold plastic parts to warm to room temperature to reduce the risk of cracking
• Do not force; verify the trim is fully seated before loading items

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

The Freezer Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates a tight insulating seal around the perimeter of the freezer door opening.
The gasket helps maintain consistent sub-freezing temperatures inside by preventing cold air loss.

Causes relate to natural compression fatigue over time, cracks developing with use, or accidental slicing/tears from sharp edges within the freezer.

Symptoms of a compromised gasket include:

• Frost or ice buildup near the door threshold from leaks
• Difficulty keeping foods frozen solid in compartments near the door
• The cold air felt escaping around door edges when closed

It is also compatible for use in Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Freezer Door Gasket is an OEM part for Whirlpool side-by-side and bottom-freezer refrigerators. As the seal that encloses cold air inside the freezer compartment, this gasket is critical for maintaining proper freezing temperatures.

Causes of a bad freezer door gasket can include cracking or deterioration from repeated compression and expansion during opening and closing of the freezer door over time. Food debris or moisture trapped against the gasket rim can also damage the sealing integrity.

Symptoms of a bad freezer door gasket include:

• Difficulty closing or sealing the freezer door properly
• Higher energy bills from the refrigerator running excessively
• Frost and ice buildup inside the freezer sections
• Loss of interior temperature regulation

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Retaining Bar is an OEM component for Whirlpool refrigerators. It is a horizontal metal rod located within the refrigerator door that secures glass shelf panels in place during opening and closing. Maintaining structural integrity prevents accidental shelf removal or breakage.

Symptoms of a damaged retaining bar may include:

• Shelves that suddenly fall or slide out of position while accessing contents
• Gaps or spaces where shelves are unable to fully lock into place along guides
• Noisy rattling or clanking sounds emanating from loose shelving inside the door

Causes generally relate to standard wear over extended use. Repeated door movements may gradually weaken connecting joints, sockets, and bends within the thin metal bar material over time.

Compatible brands are KitchenAid, Jenn-Air, and some Kenmore refrigerator models too.

This trim mounting clip secures appliance exterior trim pieces to the cabinet, restoring proper fit and preventing loose or rattling trim. Use it to replace a missing, bent, or broken clip so panels sit flush and stable. What it does:

• Holds appliance trim or decorative panels in place for a clean, finished appearance
• Prevents trim from shifting, vibrating, or creating gaps during operation
• Replaces a damaged or missing clip that can cause loose or uneven trim
• Works as a direct-fit fastener where a small stamped clip is required

• Designed for simple replacement—clip typically snaps into trim or cabinet slot; no special tools usually required
• Disconnect power to the appliance and follow OEM safety guidance before servicing nearby components
• Inspect surrounding trim and fasteners for damage and replace any additional broken clips for a uniform fit

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
