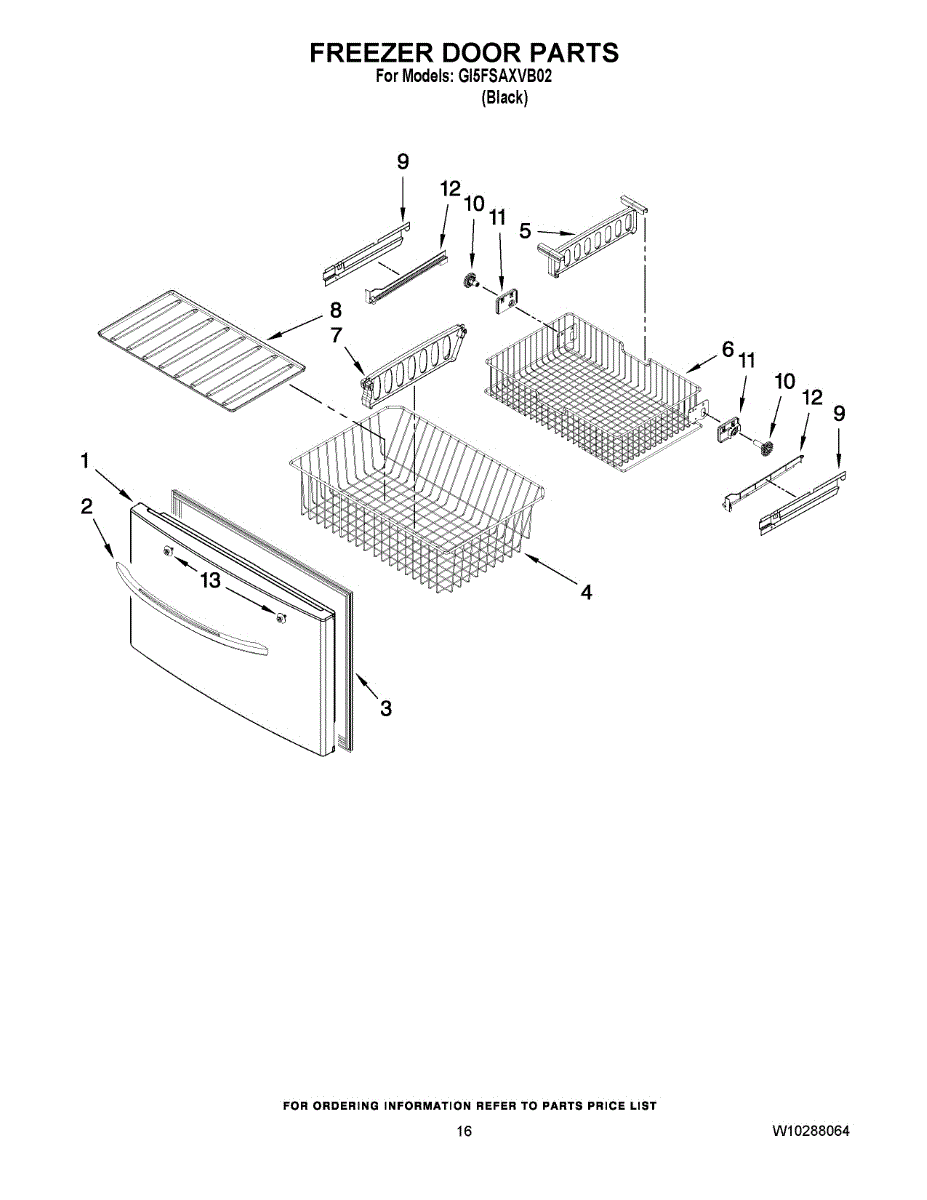

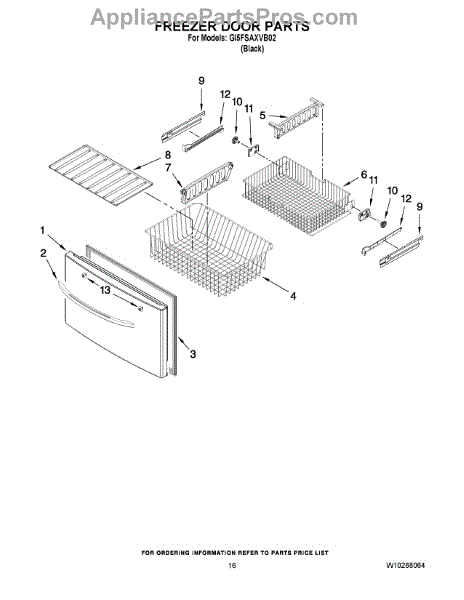

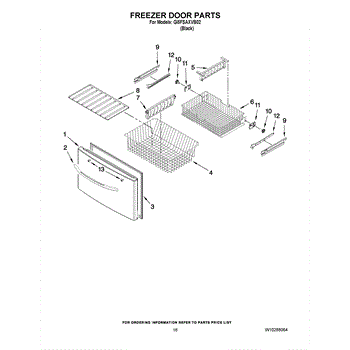

Parts for Whirlpool GI5FSAXVB02: 09 - Freezer Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: Black

This freezer basket is a replacement storage bin that organizes frozen foods and keeps items accessible. It restores usable freezer space and helps prevent loose items from shifting or blocking airflow inside the compartment. What it does:

• Holds and organizes frozen foods for easy access and stacking
• Keeps smaller or loose items contained to prevent shifting during drawer movement
• Helps maintain airflow by keeping items off walls and away from vents
• Replaces cracked, warped, or missing baskets that can snag or spill contents

• One freezer basket assembly

• Unplug the appliance or disconnect power before beginning work
• Empty the freezer section and remove any shelves or drawers that obstruct access
• Slide the basket into the existing rails or support ledges until it seats; avoid forcing it
• If fasteners or brackets are present, reinstall them securely; inspect rails/holders for damage

This Divider keeps items organized inside a refrigerator drawer by creating separate sections for food storage. It restores neat storage and prevents items from shifting or falling when the drawer opens and closes. What it does:

• Provides a stable partition inside a refrigerator drawer to separate foods and containers
• Helps prevent items from shifting, tipping, or becoming disorganized during use
• Replaces a cracked, broken, or missing divider that won't stay in place
• Fits into existing divider slots or guides in the drawer for a secure separation

• One replacement divider

• No special tools usually required; slides into the drawer slots or clips into place
• Remove food and the drawer for easier access before installing
• Align tabs or guides, then gently press until the divider locks into position
• Handle carefully to avoid cracking plastic; wash with mild soap and water before reinstalling if needed

This cradle supports and secures the freezer basket inside the compartment, keeping the basket properly aligned for smooth sliding and storage. Fits the OEM mounting locations and restores original basket support. What it does:

• Holds the freezer basket in the correct position to prevent sagging or misalignment
• Provides a stable mounting point so the basket slides smoothly
• Replaces cracked, broken, or missing bracketry that can cause rattling or uneven basket movement
• Helps restore proper function after impact or wear to the basket support

• Disconnect power to the appliance before servicing to reduce shock risk
• Remove the freezer basket and any obstructions to access the mounting area
• Typically secures with existing screws/clips; retain original fasteners when possible

This freezer basket cradle bracket supports and secures the freezer basket so it slides and rests correctly in the freezer compartment. Replaces a worn or broken cradle to restore proper basket alignment and support. What it does

• Holds the freezer basket in the correct position so the basket slides smoothly on its track
• Keeps the basket from tipping or sagging when loaded
• Prevents the basket from coming loose or falling out of the compartment
• Reduces noise and binding caused by a damaged or missing cradle

• One freezer basket cradle bracket

• Disconnect power to the refrigerator before starting any repair
• Access the cradle by removing the freezer basket and any obstructing panels or shelves
• Fasten with the existing screws or clips; the basket slides smoothly after installation
• Wear gloves and eye protection; for model-specific instructions

The Drawer Glide Gear is an OEM part for Whirlpool refrigerators. This part ensures the smooth operation of refrigerator drawers, allowing them to slide in and out with ease. This gear mechanism is vital for the user-friendly access to stored food items, contributing to the efficient organization and optimization of space within the refrigerator.

Causes for replacement include physical damage such as cracks or breakage, wear that impedes smooth operation, or a malfunction that prevents drawers from opening or closing properly.

Symptoms of a bad Drawer Glide Gear include:

• Difficulty in sliding the refrigerator drawers
• Uneven movement or jamming of the drawer
• Noise when opening or closing the drawer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This spur gear is part of the appliance's drive assembly, transferring motor power to mating components. Replacing a worn or stripped gear restores smooth, consistent motion and helps eliminate grinding, slipping, or no-drive issues. What it does

• Transfers rotational power within the drive mechanism
• Maintains proper engagement with mating gear(s) for smooth operation
• Common failure symptoms: grinding/clicking noises, slipping or stalled movement, irregular motion
• Visual clues: rounded, chipped, or missing teeth

• One spur gear

• Disconnect power; turn off water supply before service
• Access the drive assembly and note gear orientation and any shims/washers during disassembly
• Inspect mating gears, bushings, and bearings; replace any worn components to prevent rapid re-failure
• Apply manufacturer-specified grease if required and tighten fasteners per service information

Left side mount

Right side mount

The Drawer Slide Rail is an OEM part for Whirlpool refrigerators. It allows movement of the refrigerator drawer.

A bad drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you experience issues such as the drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer slide rail include:

• Difficulty in opening or closing the refrigerator drawer
• Uneven or jerky movement of the drawer
• Drawer falling off or not staying in place

Replace your faulty drawer slide rail with this genuine OEM part to restore your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Side Rack is an OEM part for refrigerators. It is designed to ensure movement of the freezer drawer, allowing easy access to frozen items.

A bad freezer drawer slide rail can be caused by regular use, wear and tear, or accidental damage. If you notice issues such as the freezer drawer sticking, not sliding smoothly, or falling off the rail, it may indicate a problem with the slide rail.

Symptoms of a bad drawer rail include:

• Difficulty in opening or closing the freezer drawer
• Uneven movement of the drawer
• Freezer drawer falling off

Replace your faulty freezer drawer slide rail with this genuine OEM part to restore smooth functionality and convenient access to your frozen goods.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: For white, black and bisque models.
