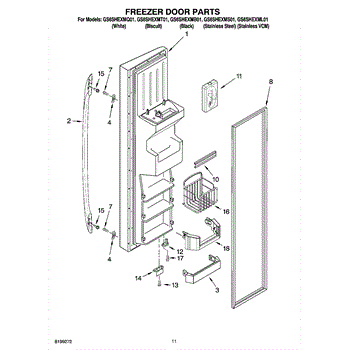

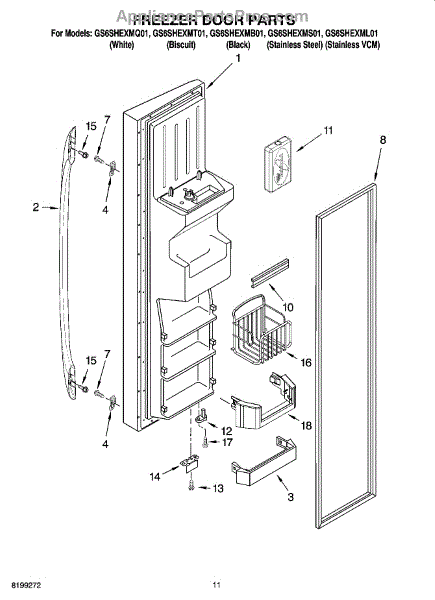

Parts for Whirlpool GS6SHEXMT01: 07 - Freezer Door Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This trivet shelf is the shelf insert that adds a usable storage level inside the compartment. Replace a missing or damaged shelf to restore organization and keep items off the liner surface for better use of space.

• Provides stable support for food packages and containers
• Rests on existing side supports or brackets inside the compartment
• Replace when the original shelf is missing, bent, broken, or won't sit level
• Restores the intended storage layout and airflow

• Clear the area by removing or shifting nearby items
• Align the shelf with the side supports and seat both sides fully before loading
• Wear gloves and avoid forcing the shelf into place
• Confirm the shelf sits level and is secure before use

This replacement handle clip secures a cabinet or door handle to the appliance, restoring a firm fit and preventing a loose or sagging handle. Simple part that helps the handle stay aligned and usable. What it does:

• Secures the appliance handle to the door/frame so the handle stays fixed during normal use.
• Replaces a broken, cracked or missing clip that lets the handle wobble or detach.
• Stops symptoms like a loose, wobbly or slipping handle and restores proper handle alignment.
• Small plastic/metal retainer designed to snap into the handle or door bracket.

• Disconnect power or unplug the appliance before starting any repair to avoid injury.
• Remove the old clip by releasing the handle and prying the clip out with a flat screwdriver or needle-nose pliers.
• Press the new clip into the handle or bracket until it snaps into place; verify the handle is secure and aligned.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

The Freezer Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates a tight insulating seal around the perimeter of the freezer door opening.
The gasket helps maintain consistent sub-freezing temperatures inside by preventing cold air loss.

Causes relate to natural compression fatigue over time, cracks developing with use, or accidental slicing/tears from sharp edges within the freezer.

Symptoms of a compromised gasket include:

• Frost or ice buildup near the door threshold from leaks
• Difficulty keeping foods frozen solid in compartments near the door
• The cold air felt escaping around door edges when closed

It is also compatible for use in Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Freezer Door Gasket is an OEM part for Whirlpool side-by-side and bottom-freezer refrigerators. As the seal that encloses cold air inside the freezer compartment, this gasket is critical for maintaining proper freezing temperatures.

Causes of a bad freezer door gasket can include cracking or deterioration from repeated compression and expansion during opening and closing of the freezer door over time. Food debris or moisture trapped against the gasket rim can also damage the sealing integrity.

Symptoms of a bad freezer door gasket include:

• Difficulty closing or sealing the freezer door properly
• Higher energy bills from the refrigerator running excessively
• Frost and ice buildup inside the freezer sections
• Loss of interior temperature regulation

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Retaining Bar is an OEM component for Whirlpool refrigerators. It is a horizontal metal rod located within the refrigerator door that secures glass shelf panels in place during opening and closing. Maintaining structural integrity prevents accidental shelf removal or breakage.

Symptoms of a damaged retaining bar may include:

• Shelves that suddenly fall or slide out of position while accessing contents
• Gaps or spaces where shelves are unable to fully lock into place along guides
• Noisy rattling or clanking sounds emanating from loose shelving inside the door

Causes generally relate to standard wear over extended use. Repeated door movements may gradually weaken connecting joints, sockets, and bends within the thin metal bar material over time.

Compatible brands are KitchenAid, Jenn-Air, and some Kenmore refrigerator models too.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw fastens specified components in your appliance, restoring a secure fit. Replace stripped or missing hardware to stop vibration and keep panels, brackets, or handles properly aligned so the unit operates as intended.

• Secures panels, brackets, or assemblies to the frame or mounting points
• Helps maintain alignment and reduces rattling or vibration
• Replaces hardware with stripped threads or damaged heads
• Common signs it's needed: loose or missing screw, misaligned panel, rattling during operation

• Disconnect power; shut off water supply
• Use the correct driver/bit; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping or cracking
• Match the original screw's location and length per the parts diagram

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads
