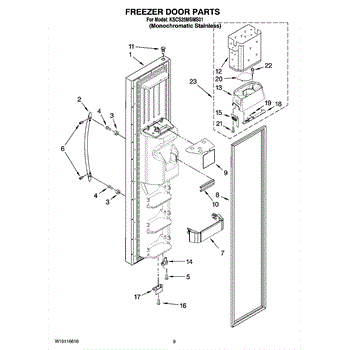

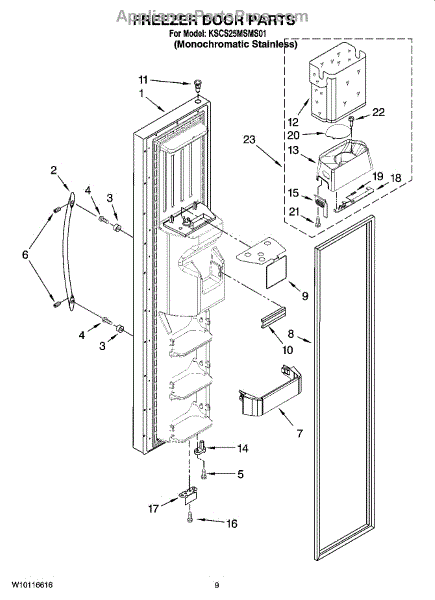

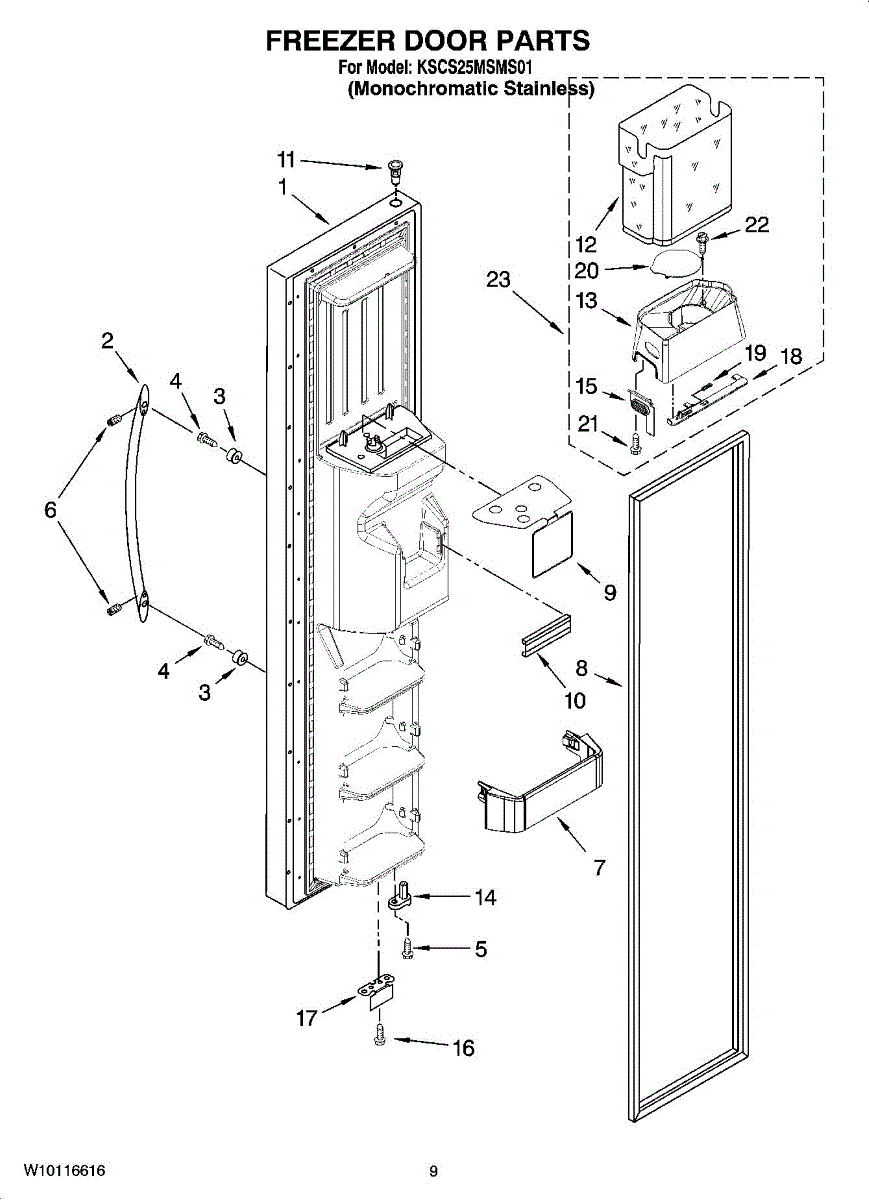

Parts for Kitchenaid KSCS25MSMS01: 06 - Freezer Door Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.

The Door Shelf Retaining Bar is an OEM component for Whirlpool refrigerators. It is a horizontal metal rod located within the refrigerator door that secures glass shelf panels in place during opening and closing. Maintaining structural integrity prevents accidental shelf removal or breakage.

Symptoms of a damaged retaining bar may include:

• Shelves that suddenly fall or slide out of position while accessing contents
• Gaps or spaces where shelves are unable to fully lock into place along guides
• Noisy rattling or clanking sounds emanating from loose shelving inside the door

Causes generally relate to standard wear over extended use. Repeated door movements may gradually weaken connecting joints, sockets, and bends within the thin metal bar material over time.

Compatible brands are KitchenAid, Jenn-Air, and some Kenmore refrigerator models too.

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bin button is a small snap-in component used on refrigerator storage bins. It helps secure and align the bin so it seats properly and operates smoothly, restoring a tight fit when the original button is cracked, worn, or missing.

• Snaps into a designated opening on the bin or cabinet liner to act as a support/stop
• Keeps the bin aligned and secured during everyday use
• Replaces a damaged or missing button that can cause wobble, binding, or the bin to fall out
• Restores proper fit and smooth operation of the affected bin

• Disconnect power and remove items from the affected bin
• Remove the bin; pry out the damaged/missing button from its seat
• Align and press the new button fully into the opening until secure
• Reinstall the bin and check for smooth, secure operation

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting bracket secures internal components and panels so they stay aligned and stable during operation. It replaces a worn or broken bracket to restore proper support and reduce vibration or movement. What it does:

• Provides a secure mounting point for internal parts or panels
• Helps prevent rattling, misalignment, or loose panels during use
• Restores proper fit and stability when an original bracket is cracked or bent
• Works as a direct-replacement hardware piece where specified by the manufacturer

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; keep fasteners and orientation the same as removed
• If the bracket is attached to electrical components, handle wiring carefully and inspect connectors

The Whirlpool latch spring is an OEM replacement part responsible for securing the ice container or bin in place on a refrigerator. Its main function is to provide tension and support to the ice container latch, allowing it to engage and disengage properly. When the ice container is inserted into the refrigerator's ice compartment, the latch spring ensures that it securely locks in place, preventing accidental spillage of ice.

Causes of a bad latch spring can include metal fatigue from repeated use, rust or corrosion from exposure to moisture, or physical damage from accidental impacts.

Symptoms of a bad latch spring include:

• The ice container not staying in place and sliding out of position
• Difficulty in properly attaching or detaching the ice container from the refrigerator
• The ice container feeling loose or wobbly when inside the ice compartment
• The ice container not aligning correctly with the ice dispenser or auger

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw secures appliance panels and small components, restoring proper fit and reducing vibration or rattling. It's a direct-replacement fastener sold individually. What it does

• Secures panels, trim, brackets or small assemblies to restore proper alignment
• Stops loose panels, gaps, or rattling caused by missing or damaged screws
• Matches OEM fit so replacement installs like the original fastener
• Simple, single-piece replacement when one screw is lost or stripped

• One screw

• Unplug or disconnect power before servicing the appliance to avoid shock
• Hand-start the screw to avoid cross-threading, then snug with the correct driver
• Do not overtighten — overtightening can strip threads or crack plastic
• If other hardware is corroded or damaged, replace matching fasteners as needed

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal
