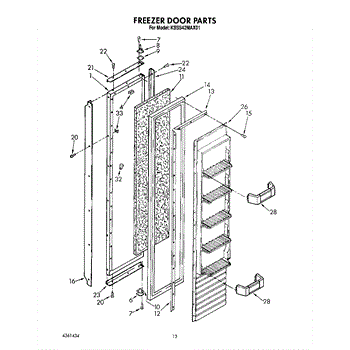

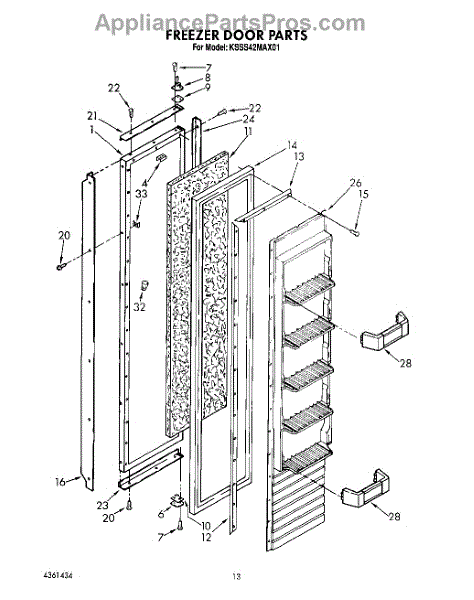

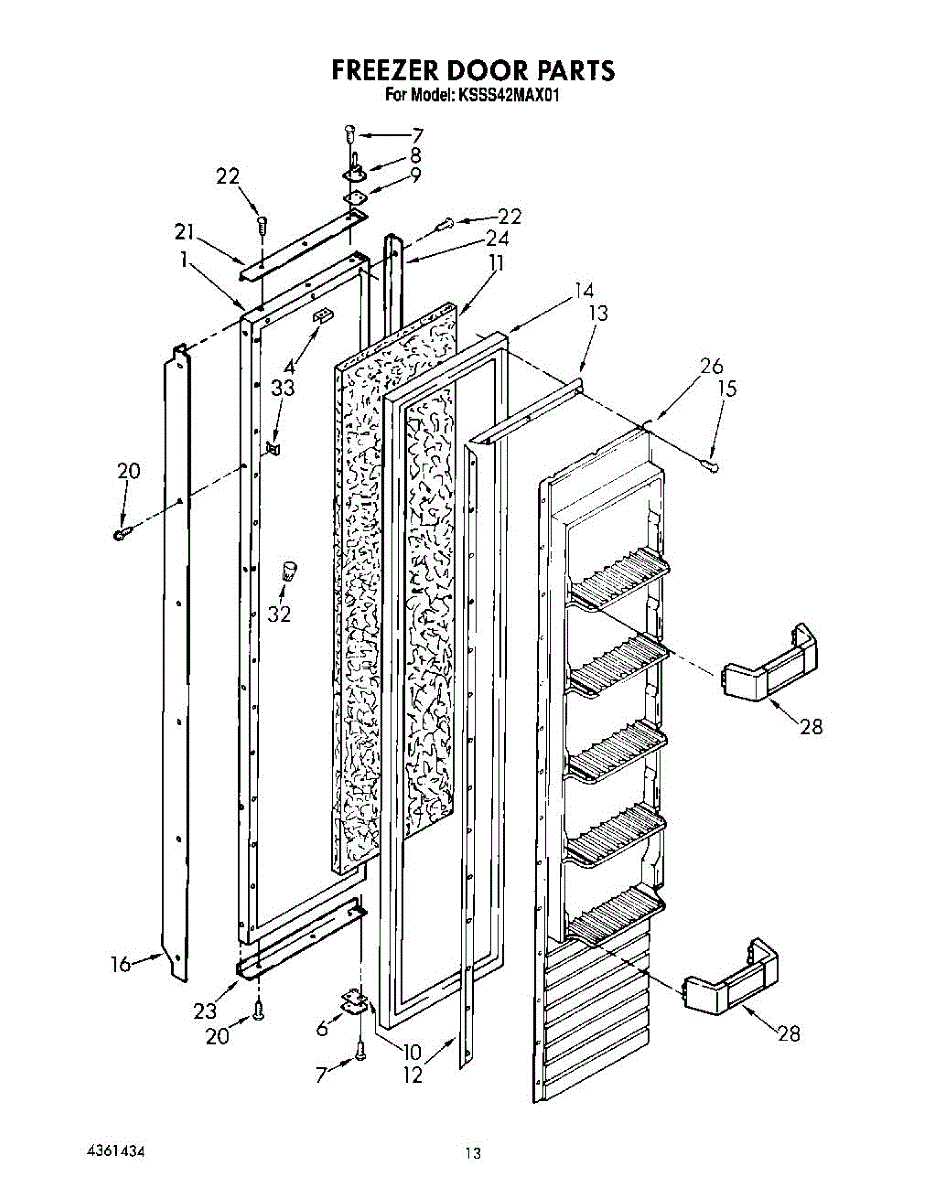

Parts for Kitchenaid KSSS42MAX01: 10 - Freezer Door Parts

The Screw is an OEM part for Whirlpool refrigerators. This screw plays a small but important structural role, securely fastening the refrigerator door hinges in place.

Causes of a bad screw include normal wear and tear, repeated door opening/closing stress, or accidental damage during cleaning or servicing of the hinge area.

Symptoms of a bad hinge screw include:

• Loose or sagging door that does not close or seal properly
• Increased vibration or noise from the hinge area
• Difficulty opening/closing the door smoothly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This part has been discontinued and is no longer available.

This part has been discontinued and is no longer available.

This replacement refrigerator door gasket restores a tight seal between the door and cabinet to help maintain proper temperature and reduce frost and moisture. Use it when the existing seal is torn, warped, or not sealing evenly.

• Creates an airtight barrier around the door to limit warm air infiltration and cold air loss
• Helps minimize frost/ice buildup and condensation at the door opening
• Replaces cracked, shrunken, or deformed gaskets that leave gaps or air leaks
• Common symptoms include visible tears, moisture on or around the seal, temperature fluctuations, or a door that won't seal fully

• Unplug the refrigerator; allow the new gasket to warm to room temperature. Gentle warming (hot water bath or low heat) can help relax kinks.
• Clean the door's sealing surface. Remove the old gasket carefully to avoid damaging any retaining channel.
• Fit corners first, then work along the sides for an even, uniform seal. Design and attachment method vary by model.
• Close the door and check for even contact (dollar-bill test). Readjust gasket seating or door alignment as needed.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

This door shelf trim is the front bar that snaps onto a refrigerator's door bin to keep bottles and containers secure. Replace a cracked or missing retainer to restore safe, organized storage on the door.

• Attaches to the door shelf/bin to hold items in place during door movement
• Restores function when the original bar is cracked, broken, warped, or missing
• Helps prevent items from sliding or falling from the door
• Common symptoms: loose or broken trim, bar won't stay attached, door shelf won't hold items properly

• Disconnect power and remove items from the affected shelf before service
• Release the old bar (squeeze tabs or slide ends free), align, and snap the new trim onto the door shelf/end caps
• Allow cold plastic to warm to room temperature to reduce risk of cracking
• Verify secure engagement before reloading the shelf

This screw anchor is a small plastic fastener that secures panels and trim on appliances, preventing screws from stripping or pulling out. It provides a reliable anchor point for screws where threaded material is thin or absent. What it does:

• Creates a secure mounting point for screws in sheet metal, plastic or thin panels
• Helps prevent screw looseness, stripping, and parts that shift or rattle
• Commonly used to hold trim, panels, or interior components in place
• Works with compatible screws to distribute load and stabilize attachments

• Use the correct screw size and length; anchors are made for specific screw diameters—do not force oversize screws
• Align anchor in the prepared hole before driving the screw to avoid cracking the anchor or surrounding material
• Hand-start screws until seated, then tighten gradually—do not overtighten to prevent stripping or damage
• Disconnect power and follow appliance safety procedures before accessing internal panels
