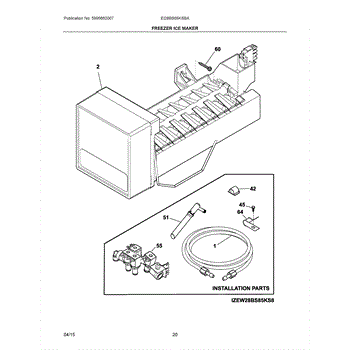

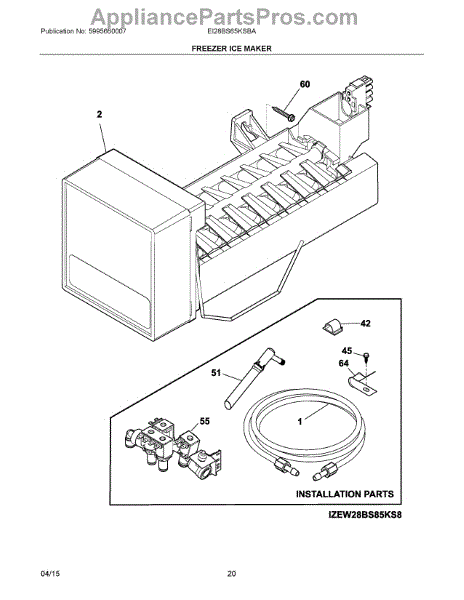

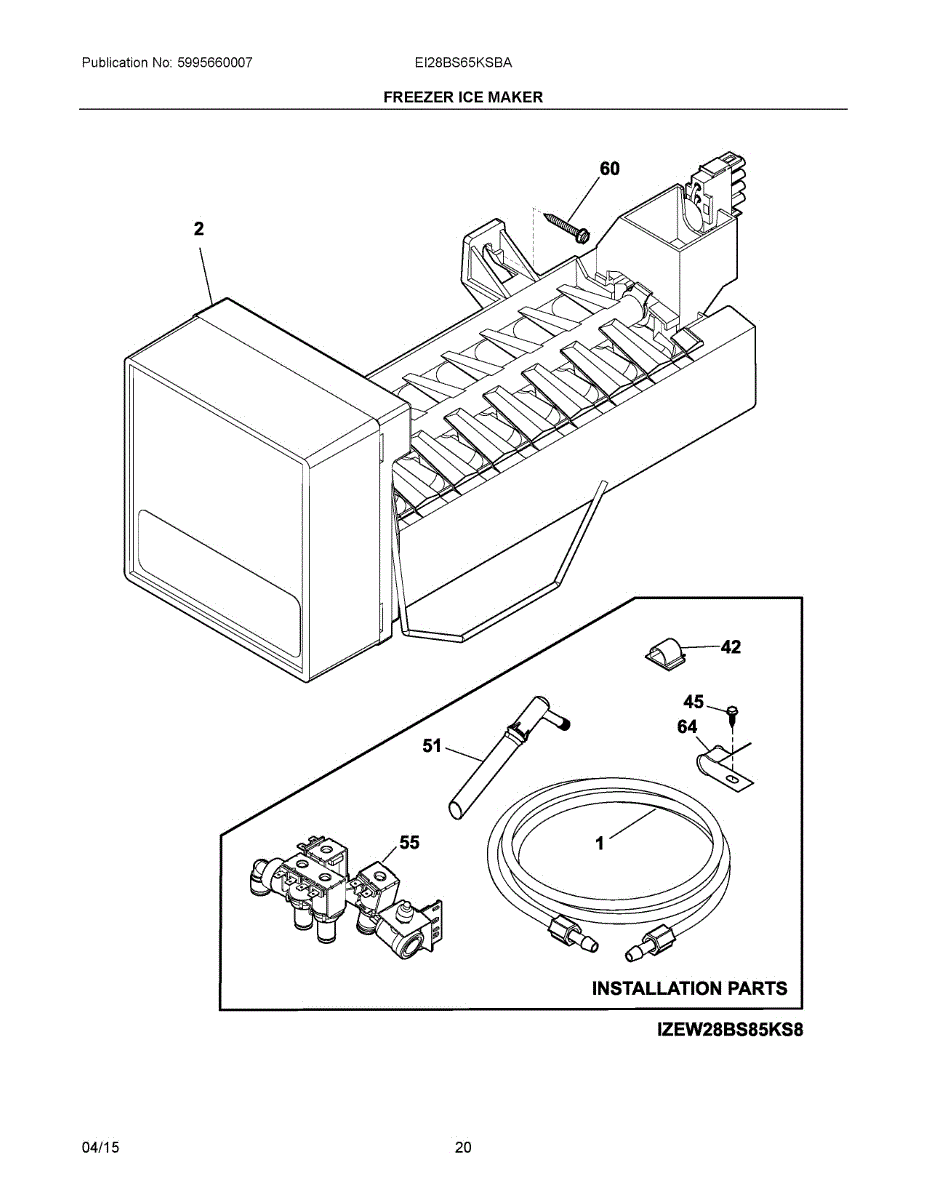

Parts for Electrolux EI28BS65KSBA: 10 - Freezer Ice Maker Parts

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.

The Freezer Ice Maker is an OEM part for Frigidaire freezers. It is responsible for producing ice within the freezer compartment, providing a steady supply of ice cubes.

Causes of a bad ice maker can include wear and tear over time, issues with the water supply line, or electrical problems affecting the ice-making cycle.

Symptoms of a bad ice maker include:

• The ice maker not producing ice
• Ice cubes being smaller or misshapen
• Unusual noises coming from the ice maker
• Water leaks around the ice maker area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Inlet Valve is an OEM part for Frigidaire refrigerators. It is designed to manage the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control, opening to allow water in and closing to stop the flow, ensuring proper operation of both ice production and water dispensing functions.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• Leaking water at the back or bottom of the refrigerator
• An unusually noisy operation when the valve is activated

Causes of a bad water inlet valve can include mineral buildup, which may obstruct the flow of water, mechanical failure of the solenoids, or wear and tear that leads to leaks or failure to open/close properly.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

This water fill chute kit channels incoming water from the fill tube into the ice maker mold. Replacing a cracked or deformed chute helps stop leaks and ice buildup at the fill area and supports consistent, properly directed fills for reliable ice production.

• Directs water from the inlet/fill tube into the ice maker mold during the fill cycle
• Helps prevent splashing, leaks, and ice accumulation at the fill point
• Replaces damaged, warped, or missing chute/funnel components
• Typical symptoms: water dripping near the ice maker, frost/ice around the fill area, cubes clumping together, intermittent ice production

• Disconnect power and shut off the household water supply before servicing
• Remove the ice bin and access the fill area at the rear/top of the ice maker
• Clear any ice blockage; remove fasteners/clips to take out the old chute; transfer any seals or grommets if present
• Align the new chute with the fill tube and mold, seat fully, secure, then restore water/power and run a test fill to check for leaks

Replacement water tube that routes water from the inlet valve to the refrigerator dispenser and ice maker, helping restore proper water flow for reliable dispensing and ice production. What it does:

• Carries water from the refrigerator inlet/valve to the dispenser and ice maker fill system.
• Used when cracked, kinked, clogged or brittle tubing prevents water flow.
• Helps stop leaks and restore normal ice maker fill when tubing is damaged.
• Addresses symptoms such as no water at the dispenser, ice maker not filling, or visible leaking under the fridge.

• Turn off the water supply and unplug the refrigerator before beginning any work.
• May require basic hand tools and careful routing to avoid kinks; do not overtighten fittings.
• Inspect and replace any damaged clamps or seals; test for leaks after reconnecting the water supply.

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
