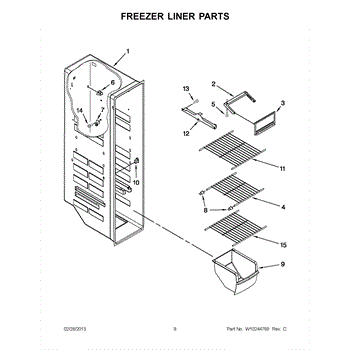

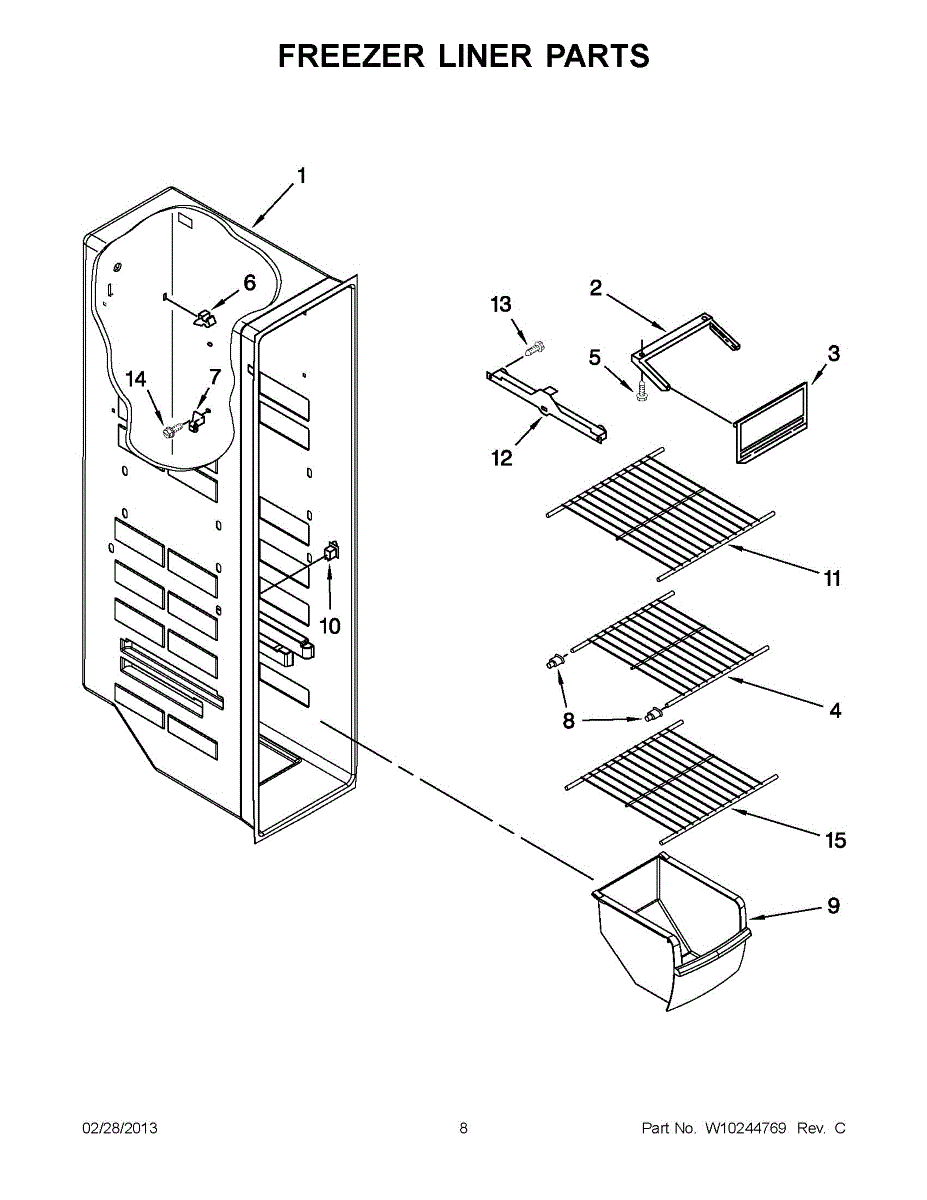

Parts for Whirlpool ED2VHEXVQ01: 04 - Freezer Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

Replacement ice dispenser door that restores proper ice chute coverage and helps prevent ice spillage and air leaks in compatible refrigerators. OEM-style fit keeps the dispenser operating cleanly and helps maintain freezer interior order. What it does:

• Covers the ice chute so cubes are directed into the dispenser, reducing spills and mess.
• Prevents drafts and helps limit frost buildup around the dispenser opening.
• Replaces cracked, warped, or stuck dispenser doors that interfere with ice delivery.
• Restores proper alignment so the dispenser lever and chute operate smoothly.

• Disconnect power to the appliance before accessing the dispenser area to avoid injury.
• Removal typically requires taking off the inner door trim or access panel; retain all fasteners for reinstallation.
• Handle edges carefully to avoid damage; verify proper alignment and dispenser function after installation.

Approximate measurement: 13.5" x 9.5"

Size: 8 x 1/2 ab.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This shelf support stud secures a refrigerator shelf or rail to the liner wall, restoring proper support so shelves sit level and stay in place during everyday use.

• Provides a stable mounting point for the shelf/rail in the cabinet wall
• Helps correct a sagging, loose, or uneven shelf
• Replaces a broken, stripped, or missing stud
• Helps prevent shelves from slipping or falling when loaded

• Unplug refrigerator and wear cut-resistant gloves
• Remove the shelf/rail to access the mounting point
• Install the new stud fully seated and aligned before reinstalling the shelf
• Do not overtighten or force; replace any damaged mating parts for a secure fit

This freezer shelf mounting cup fits into the liner opening to support the ribbed freezer shelf post, keeping the shelf level and secure. Replace cracked or missing cups to restore proper shelf support and prevent sagging.

• Supports the ribbed freezer shelf post and anchors it in the liner
• Helps keep the shelf level and properly positioned
• Replaces cracked, worn, or missing cups
• Common symptoms: shelf tilts, won't stay in place, rattles, or falls

• Unplug the refrigerator before starting
• Remove the freezer shelf; carefully pry the old cup straight out of the liner opening to avoid damage
• Press the new cup fully into the opening until flush; reinstall the shelf post into the cup
• Verify the shelf is seated and level before loading items

This freezer bin replaces a cracked or missing bin to restore organized storage in your freezer. It mounts on existing tabs or rails to keep frozen items secure and easy to access.

• Provides storage and organization within the freezer compartment
• Replaces a broken, warped, or missing bin
• Helps prevent items from tipping or falling when the door opens
• Restores proper fit so the bin stays seated on its mounts

• Power isn't required for this replacement; open the freezer and remove items from the affected area
• Lift the old bin straight up and out from the tabs/rails
• Align the new bin with the mounting points and slide or press down until fully seated
• Do not force into place; distribute weight evenly and avoid overloading

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Approximate measurement: 15" x 11"

This track is the replacement rack guide that supports and guides a dishwasher or oven rack so it slides smoothly in and out. It restores proper rack alignment and prevents the rack from sticking or tipping. What it does:

• Provides a smooth sliding surface for a rack to roll or glide along
• Restores proper rack alignment to prevent tipping and rubbing
• Replaces worn, cracked, or broken guides that cause sticking or noisy operation
• Compatible with factory mounting points to maintain original movement

• Disconnect power and water (if applicable) before servicing the appliance
• Remove the affected rack and any retaining clips or screws to replace the track
• Tighten fasteners securely and test rack movement after installation

This track is the replacement support rail that guides and stabilizes a sliding component so it moves smoothly and stays aligned. Replacing a worn track restores proper slide action and reduces binding or scraping. What it does:

• Guides a drawer, rack or assembly along a straight path to prevent tipping or catching
• Keeps the sliding component aligned for smooth opening and closing
• Reduces noise and wear caused by a worn or damaged rail
• Common symptom: drawer or rack sticks, drops, or moves unevenly when operated

• Disconnect power (or unplug appliance) before starting repairs to reduce shock risk
• Keep track of all screws, clips and any retained fasteners during removal
• Use basic hand tools; support the sliding component while removing/installing the track

This is a wire shelf for the freezer compartment that restores stable, usable storage space. Replace a bent or missing shelf to keep items level and help maintain proper airflow and organization.

• Provides a sturdy, level surface for frozen foods in the freezer compartment
• Slides into the existing side rails/slots and removes easily for cleaning
• Replace if the frame is bent, coating is chipping/rusting, or it won't stay seated
• Restores designed spacing to support proper air circulation

• Unplug the refrigerator and clear the freezer area before starting
• If rails are iced over, defrost first to avoid damage
• Insert the shelf into the matching rail slots; ensure both ends are fully engaged and level
• Wear cut-resistant gloves; wire edges can be sharp
