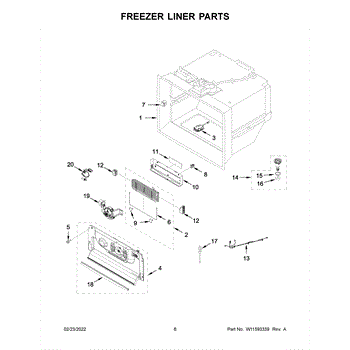

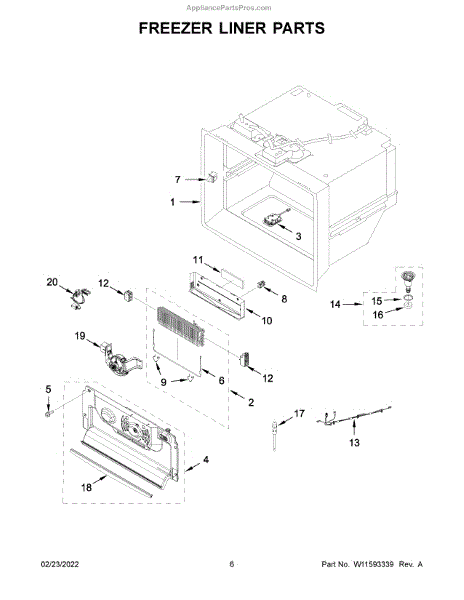

Parts for Kitchenaid KRFC704FSS04: Freezer Liner Parts

The LED Light Module Kit is an OEM part compatible with Whirlpool refrigerators and freezers. The kit contains 12 LED lights to replace all LEDs within the refrigerator. Within the interior cavity, this module evenly illuminates the compartment to visually check contents. LED technology provides a cool, energy-efficient light source.

Causes of a bad light module can include failure of individual LED bulbs over time, wires detaching from the circuit board, or damage from moisture intrusion.

Symptoms of a bad LED light module include:

• Dim, flickering, or completely non-functional lighting
• Hot spots or sections of the module not illuminating
• Audible buzzing or humming from internal electronics

This replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch is an OEM part for Whirlpool-brand French door refrigerators. Located inside refrigerator door frames, it functions to detect the opening and closing of doors.

Causes of a bad door switch failure can include cracks in wiring from repeated door flexing or moisture/debris buildup inside the sensitive contact points over time.

Symptoms of a bad door switch include:

• Interior lights failing to illuminate on door opening
• Refrigeration system running constantly
• Door alarm incorrectly detecting doors as ajar

Replacing with this OEM switch helps optimize efficiency and restores the alerts homeowners rely on. Compatible also with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore French door models.

The Drain Funnel is an OEM part for Whirlpool French door refrigerators. It serves as the sloped plastic strainer that guides water from the evaporator coils s it into the drip pan below.

Causes of a faulty Drain Funnel include cracks or punctures developing from continuous use transferring water weight. Mineral deposits or food particles that gradually collect on funnel surfaces could restrict proper drainage as well over time.

Symptoms involve:

• Puddling or spilled water inside refrigerator interiors
• Uncontrolled leaks potentially damaging other components
• Restricted airflow if funnel clogs from sediment buildup
• Musty odors developing without efficient drainage management

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This main wire harness routes power and control signals between the appliance's electrical components to restore reliable connections and proper operation. Replaces a damaged or broken harness to help eliminate intermittent power and control issues. What it does:

• Connects controls, switches, motors and sensors to the appliance's electrical system
• Restores circuit continuity when original wiring is cut, burned or has failed connectors
• Helps stop intermittent power, no-starts, or erratic control behavior caused by damaged wiring
• Prevents loose or corroded connections that can lead to arcing or component malfunctions

• Disconnect power (unplug or shut off breaker) before starting any repair
• Verify harness routing and connector match before final installation
• Inspect mating connectors and terminals for damage; replace if corroded or bent
