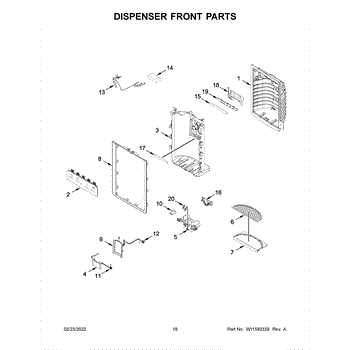

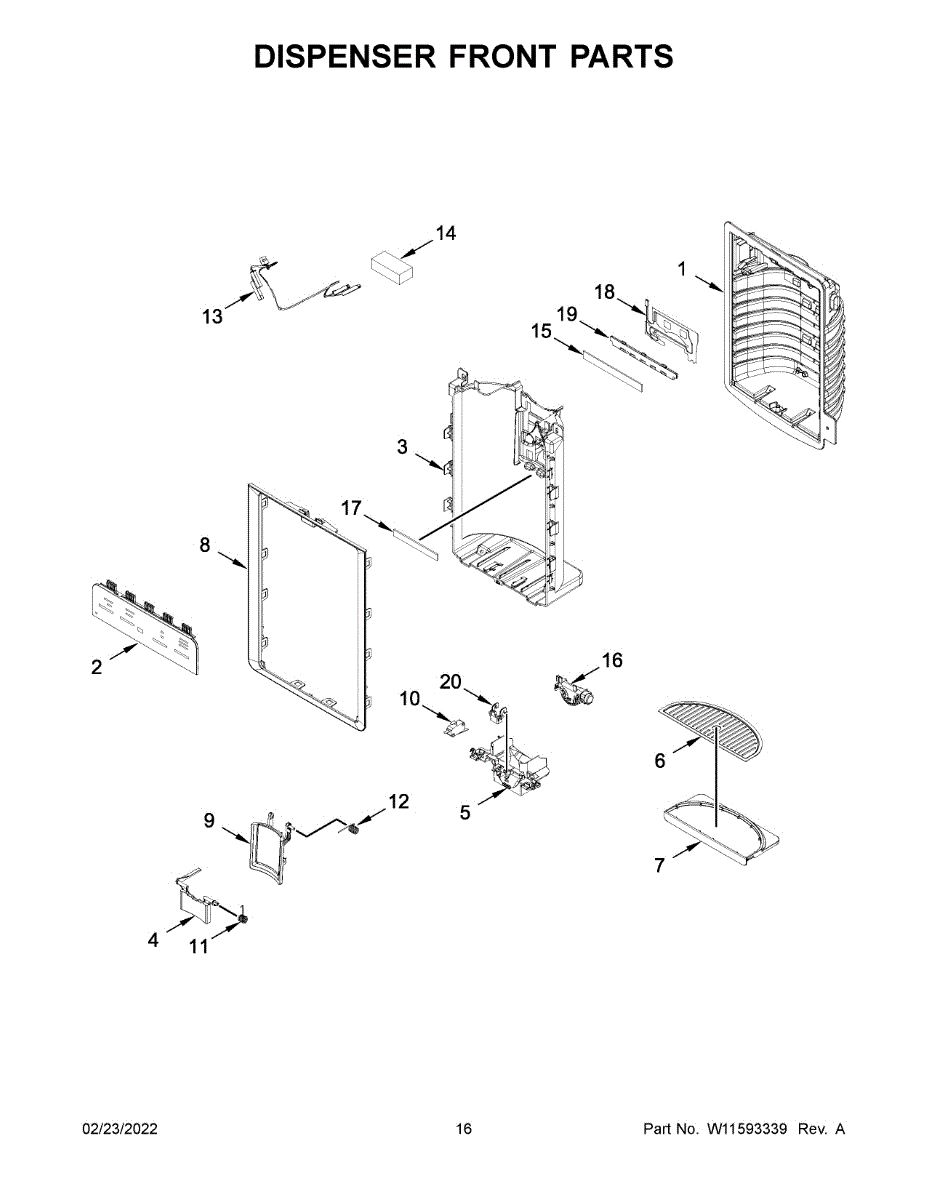

Parts for Kitchenaid KRFC704FSS04: Dispenser Front Parts

Shield that protects internal appliance components by keeping debris, heat, and moving parts away from vulnerable areas. Helps reduce rubbing noise and contact wear when installed correctly, supporting reliable operation and part longevity. What it does:

• Protects wiring, sensors, and adjacent parts from debris and incidental contact.
• Keeps airflow or heat directed away from sensitive components where applicable.
• Helps prevent rubbing, rattling, or damage caused by loose or exposed parts.
• Reduces risk of further component wear when the original shield is cracked, bent, or missing.

• Disconnect power (unplug or shut off circuit) before inspecting or replacing this part.
• Use the appliance service manual or diagram to locate correct mounting points and hardware.
• Reuse original screws/clips only if undamaged; replace fasteners if they are worn or broken.

This is the dispenser actuator paddle located on the front of the refrigerator door where you press your glass to dispense water. It activates the water dispenser switch when pushed inward. Replace this paddle if it is cracked, broken, sticking, or no longer engages the switch properly when pressed.

Ice dispensing poorly or warm air leaking into freezer? This ice dispenser door seals the chute to restore clean delivery and maintain temperature.

Drip tray installs beneath the water dispenser outlet to catch overflow and spills. Replace if cracked, broken, or missing after a move or cleaning.

Drip tray collects defrost and condensation water inside your refrigerator. Replace if cracked, warped, or missing to prevent pooling and odors.

Decorative trim piece that covers exposed seams and edges on your refrigerator. Replace if damaged, scratched, loose, or missing to restore a finished look.

This is the pad assembly that sits on the ice or water dispenser lever on the front of the refrigerator. It is the part you press with your glass or cup to activate the dispenser. Replace this pad if it is cracked, broken, or missing, which can make it difficult to engage the dispenser switch properly.

The Switch is an OEM replacement part for Whirlpool refrigerators. It is designed to control the water dispensing function of your refrigerator, providing a convenient and easy way to access filtered water. It is responsible for activating the water flow when pressed, allowing you to dispense water into your glass or container.

A bad refrigerator water dispenser switch can occur due to wear and tear, physical damage, or electrical malfunction. If you notice symptoms such as the switch not responding when pressed, inconsistent water flow, or a complete lack of water dispensing, it may be time to replace the switch.

Symptoms of a bad refrigerator water dispenser switch include:

• Switch not responding when pressed
• Inconsistent water flow
• Lack of water dispensing

Restore your refrigerator's water dispenser by replacing the faulty or damaged water dispenser switch with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Fix sagging doors or noisy compartments with this refrigerator tension spring. Restores proper return action to moving parts for reliable operation.

Ice dispensing poorly or warm air leaking into freezer? This ice dispenser door seals the chute to restore clean delivery and maintain temperature.

Replace your refrigerator door gasket to restore the tight seal that keeps cold air in and energy costs down. Prevents drafts and keeps food fresh.

Replacement door gasket that seals your refrigerator door to prevent air leaks and maintain proper temperature. Replace if worn, cracked, or loose.

Ice dispenser not working or leaking? This ice door seals and controls ice release from your refrigerator's dispenser chute. Direct OEM fit replacement.

Seals the fresh-food door to maintain proper cooling and prevent energy waste. Replace if torn, compressed, or leaking to restore an airtight seal.

Fixes frost buildup in freezer or refrigerator not cooling properly. This defrost heater melts ice from evaporator coils during defrost cycles.

Replacement mounting bracket that secures internal refrigerator components. Needed when the original bracket is damaged, cracked, or missing.

Aligns and stabilizes refrigerator or freezer doors and drawers for smooth operation. Replace if worn, broken, or missing to eliminate misalignment.
