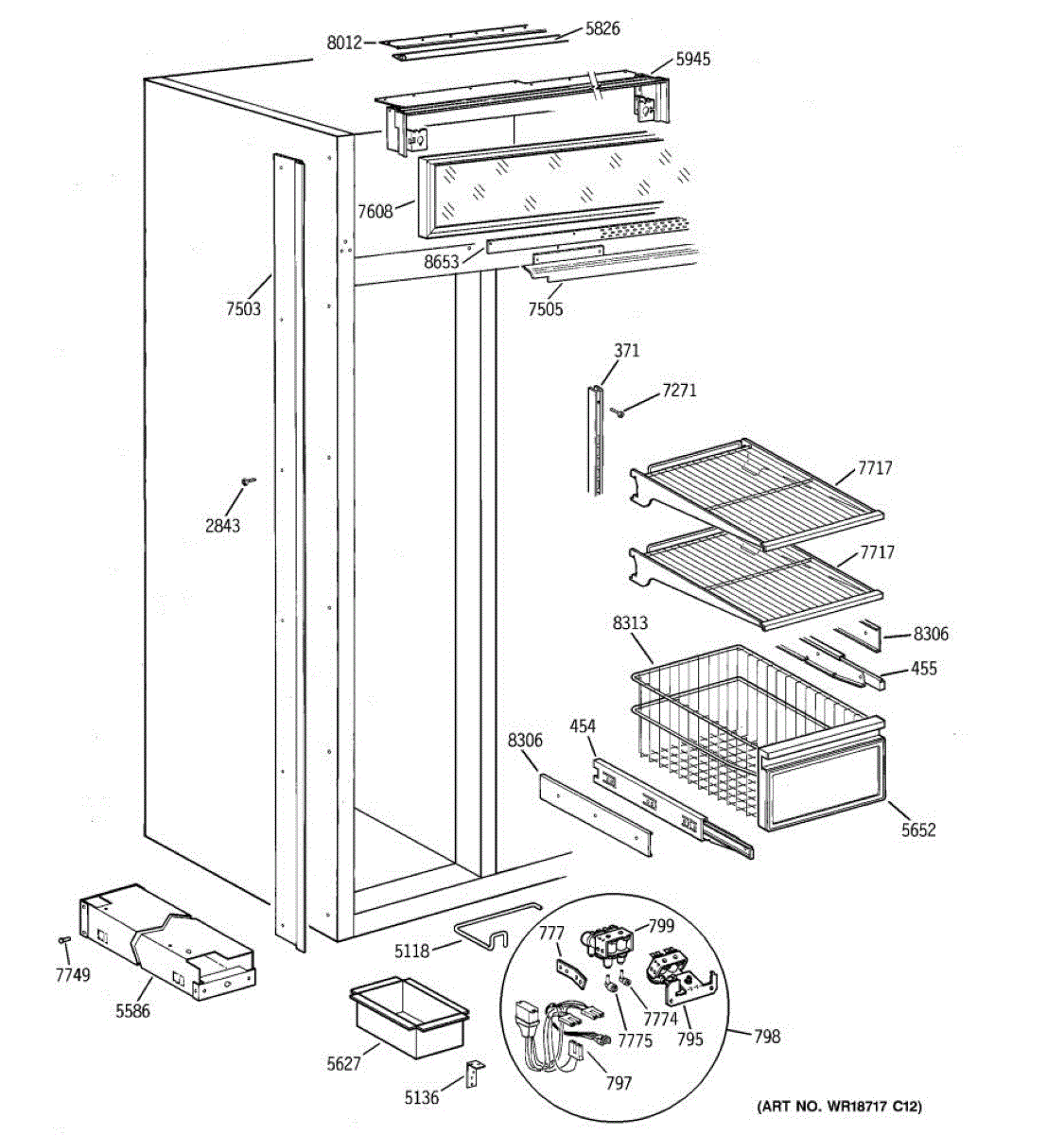

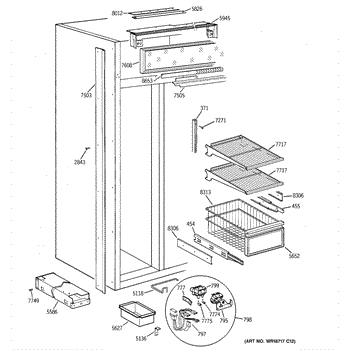

Parts for Ge ZISS48DCBSS: 04 - Freezer Section Parts

Freezer side shelf track.

This is the right hand side slide assembly. For the left hand side order WR72X285.

This is the left hand side slide assembly. For the right hand side order WR72X284.

Refrigerator primary ice and water dual coil water inlet valve. For the filter valve order WR57X10024. For the assembly including both the primary and filter valve having the short bracket order WR57X10026. For the assembly including both the primary and filter valve having the long bracket order WR57X10022.

This wiring harness is a factory-style wire assembly that routes power and signals between refrigerator components to restore electrical connections and proper function. It replaces damaged, frayed, or broken wire bundles to help eliminate intermittent operation or a loss of function. What it does:

• Provides the correct wires, connectors and routing to link controls, sensors, and motors
• Restores secure electrical connections when original wiring is cut, burned, or corroded
• Helps stop intermittent control issues, lights or components that work only sporadically
• Maintains OEM routing and connector fit for a reliable replacement

• One complete wiring harness assembly as pictured

• Disconnect power at the breaker or appliance plug before starting any repair
• Compare the new harness to the original to confirm connector types and lengths before installation
• Secure wiring with existing clips and retainers; avoid pinching or routing near hot components

The Water Valve and Bracket Kit is an OEM part for GE refrigerators. It includes a water valve and a mounting bracket designed to facilitate the connection and operation of your refrigerator's ice maker and water dispenser system. This part controls the flow of water into the refrigerator, ensuring that both the ice maker and water dispenser receive the proper amount of water at the correct pressure.

Causes of a bad Water Valve and Bracket Kit can include mineral deposits from hard water, which can clog or damage the valve, and normal wear that might cause the valve to leak or fail to open or close properly.

Symptoms of a bad Water Valve and Bracket Kit include:

• No water output from the dispenser
• Slow or no ice production
• Water leakage around the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water inlet valve controls the flow of household water into the refrigerator's ice maker during fill cycles. Replacing a sticking or leaking valve restores proper ice fills and helps prevent nuisance leaks at the back of the unit. What it does:

• Opens when energized to supply water to the ice maker, then closes to stop flow
• Common symptoms: no ice production, weak/empty fills, or leaking from the rear valve area
• Ice maker overfilling or fill-tube icing from a valve that doesn't fully close
• Humming/buzzing from the valve with little or no water flow

• 1 water inlet valve assembly

• Disconnect power and shut off the water supply before servicing
• Pull the refrigerator forward to access the rear; place a towel to catch residual water
• Transfer any mounting bracket/tubing from the old valve and secure all connections firmly
• Restore water and power, then check every connection for leaks while the ice maker cycles

Replacement screw that secures panels and internal components, helping stop rattles and keep parts aligned. Use it to replace stripped, rusted, or missing fasteners and restore a secure fit. What it does:

• Secures panels, trim, or internal parts to prevent movement and vibration.
• Replaces worn, corroded, or missing screws that cause loose panels or rattling.
• Restores proper alignment for doors, covers, and mounted components.
• Provides a simple hardware fix that helps maintain safe, stable operation.

• Always disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or bit to avoid stripping the head; apply firm but controlled torque.
• Verify screw length, head style, and thread type match the original before installation.
• If threads are damaged, replace with a matching OEM screw rather than over-tightening.

This vent top gasket seals the front edge of the range vent to help contain heat, steam and cooking vapors and maintain a snug fit between the vent assembly and the cooktop. It replaces a torn, flattened or missing gasket to restore the vent seal. What it does:

• Seals the front vent seam to reduce heat and steam escape from the cooktop area
• Helps prevent grease, crumbs and debris from entering the vent cavity
• Reduces rattling or air gaps caused by a worn or compressed gasket
• Restores a proper fit between the vent top and surrounding surfaces

• Disconnect power (and gas if applicable) to the appliance before starting work
• Remove the vent top or cooktop per the appliance service instructions to access the gasket area
• Clean mating surfaces and remove old adhesive residue before installing the new gasket
• Use care with tools and sharp edges; wear gloves and eye protection

Slide for both right and left sides. 1 per package.
