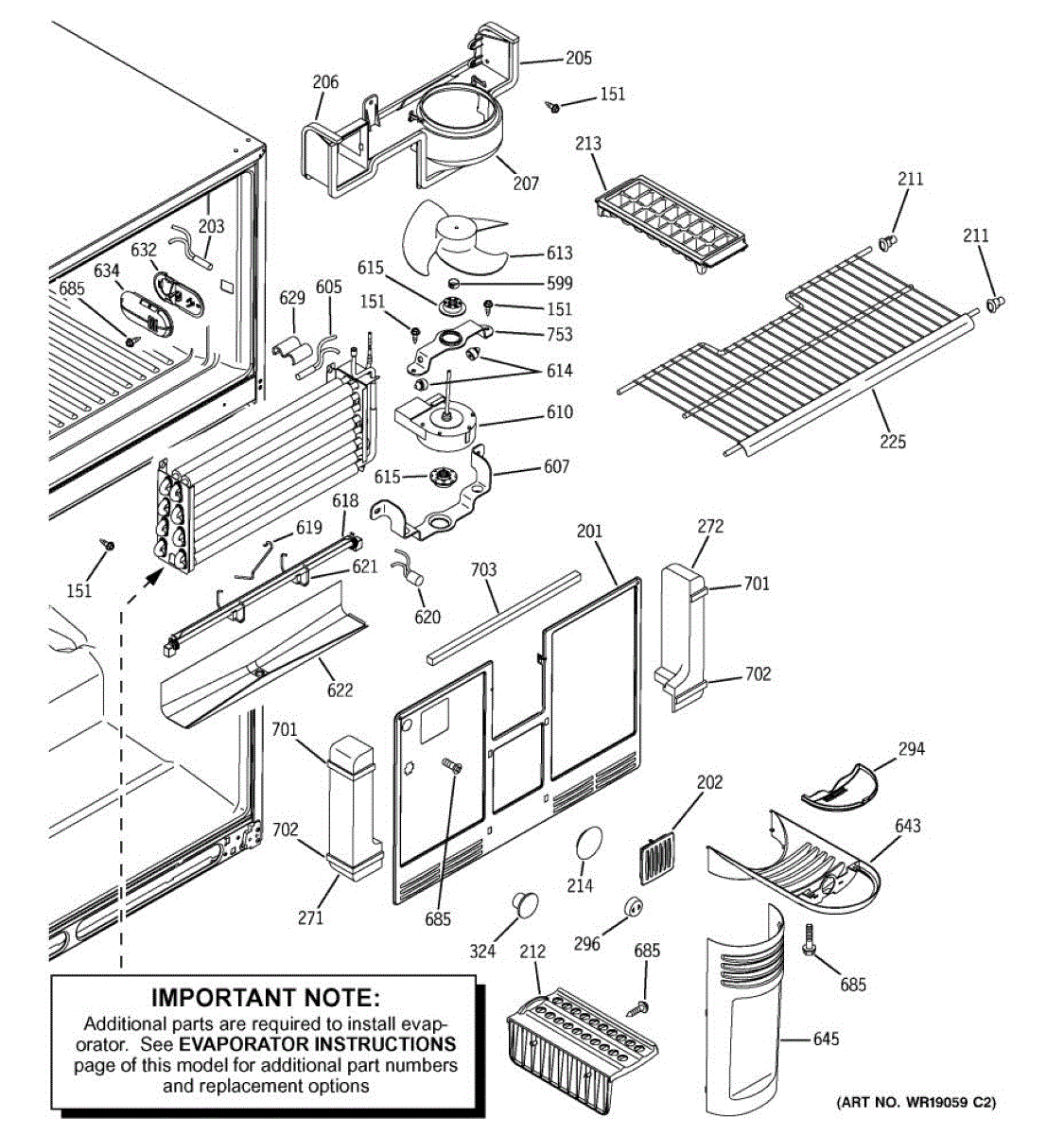

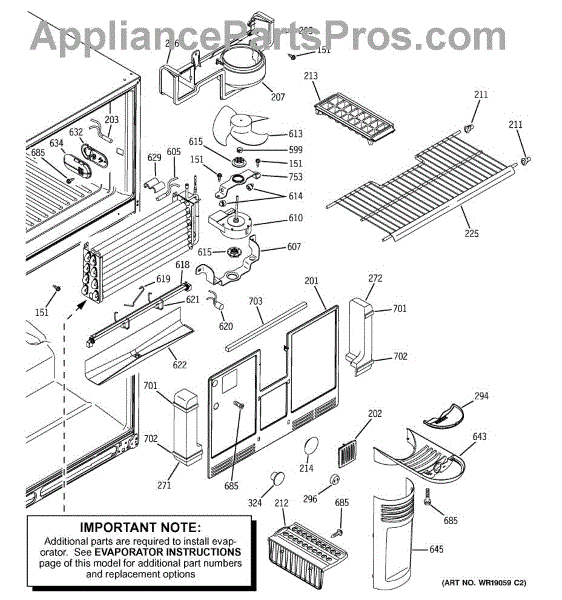

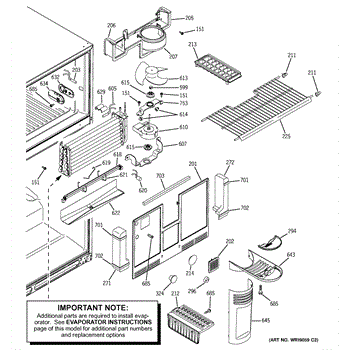

Parts for Ge GTS22IBMARWW: 03 - Freezer Section Parts

Replacement 8-18 x 9/16 machine screw for securing panels, brackets, and internal components. Needed when fasteners are stripped, missing, or worn.

Evaporator cover assembly for your refrigerator. Installs over the evaporator coils in the freezer section. Replace if cracked, damaged, or missing.

Fix uneven cooling or defrost issues with a new temperature sensor. Most DIYers complete this repair in under an hour with basic tools and our video.

Self-adhesive foam strip that installs around the refrigerator door perimeter. Replace if the original strip is damaged, cracked, or missing to restore seal.

Self-adhesive foam insulation strip for refrigerator doors. Replaces worn, compressed, or missing foam that affects door seal and energy efficiency.

Refrigerator ice tray top shelf installs above the ice maker compartment. Replace if cracked, warped, or broken to restore proper storage and support.

Replace your refrigerator's ice bin tray when cracked, broken, or missing. This tray sits in the freezer compartment to collect and store ice cubes.

Foam insulation block that surrounds the evaporator coils in your refrigerator. Replace if cracked, deteriorated, or missing to restore proper insulation.

Evaporator housing block for refrigerators. Secures and protects the evaporator assembly. Replace if cracked, broken, or missing to restore coverage.

Replace your refrigerator's freezer light lens cover when cracked, yellowed, or missing. Protects the bulb and ensures proper lighting. Verify fit.

Replacement plug cover and gasket assembly for refrigerator electrical access areas. Restores secure fit when original is cracked, broken, or missing.

Secures and seals water line connections in your refrigerator's dispensing system. Replace if leaking or loose to prevent water damage. Confirm fit.

Fix uneven cooling or defrost issues with a new temperature sensor. Most DIYers complete this repair in under an hour with basic tools and our video.

Mounting bracket that secures the evaporator fan in place inside your refrigerator. Replace if cracked, bent, or broken to properly support the fan.

If your refrigerator compartment isn't cooling while the freezer stays cold, the evaporator fan motor likely failed. DIY-friendly repair with video guide.

Freezer fan loud or not spinning? This evaporator fan blade circulates cold air over the coils. DIY-friendly repair with our video guide.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Rubber grommet that seals and cushions where the evaporator fan motor shaft mounts. Replace if cracked, worn, or missing to eliminate noise and vibration.

Fix a warm fridge or freezer ice buildup. This defrost heater melts frost on evaporator coils to restore cooling. Moderate DIY repair, 1-2 hours.

This replacement defrost heater warms the freezer's evaporator area during the automatic defrost cycle. It melts accumulated frost so air can circulate, helping maintain stable temperatures and preventing ice buildup on the back wall.

• Heats the evaporator to clear frost and ice during defrost
• Helps keep airflow passages and the defrost drain path open
• Common symptoms of a failed heater: heavy frost on the back panel/coils, poor cooling or warm sections, fan noise from ice contact, cooling returns temporarily after a manual defrost
• Typically located behind the rear freezer panel

• Disconnect power before servicing; wear cut-resistant gloves
• Access the evaporator by removing the freezer's rear panel; thaw heavy ice before removal
• Transfer any clips/brackets and route wires exactly as original, keeping them away from plastic parts
• After installation, ensure wiring connections are secure and the heater is not contacting plastic surfaces

The Defrost Thermostat is an OEM replacement part designed for use in GE refrigerators. This component acts as a safety device in the refrigerator's defrost system, preventing the freezer from overheating during the defrost cycle. It works by monitoring the temperature of the evaporator coil and turning off the defrost heater when the coil gets warm enough, thus safeguarding the freezer from getting too hot.

Causes of a bad defrost thermostat can include corrosion, a blown fuse inside the thermostat, or wear and tear over time, which can lead to malfunctioning of the refrigerator's defrost system.

Symptoms of a bad Defrost Thermostat include:

• Frost buildup on the back wall of the freezer
• The refrigerator is not cooling properly
• The freezer is cold but the refrigerator is warm
• The defrost heater not turning on

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder element assembly secures the appliance's heating element in the correct position so the element stays stable for consistent operation and safe performance. It's a direct-fit replacement for worn or damaged holders. What it does:

• Secures and supports the heating element inside the appliance to maintain proper alignment
• Prevents element sagging or contact with other components that can cause noise or arcing
• Helps reduce vibration and movement that can lead to intermittent heating
• Common symptom: visible holder damage, loose or shifted element, unusual noise during operation

• Disconnect power (unplug or switch off breaker) before starting any repair
• Allow appliance and element to fully cool before handling
• Handle the element and holder carefully to avoid bending or damaging the element

Routes defrost water from the evaporator to the drain system. Replace this trough if cracked, clogged, or damaged to prevent water pooling inside your fridge.

Secures evaporator thermistor to tubing for accurate temperature readings. Replace if broken or missing to restore proper cooling and defrost cycles. Confirm fit.

Protective cover cap for refrigerator temperature sensor. Snaps into place to shield sensor from damage. Replace if cracked, broken, or missing.

8-18 CA HX 1/2 S

Self-adhesive foam strip seal for refrigerators. Fills gaps between panels or trim to block drafts and moisture. Replace when worn, compressed, or missing.

Adhesive foam insulation strip for refrigerators. Seals gaps around doors, cabinets, or interior panels. Replace when worn, compressed, or missing.

Self-adhesive foam strip seals gaps around refrigerator doors to prevent air leaks and improve energy efficiency. Replace when worn or compressed.

Secures the evaporator fan assembly behind the rear freezer panel. Replace if cracked, rusted, or missing to restore proper fan mounting and clearance.
