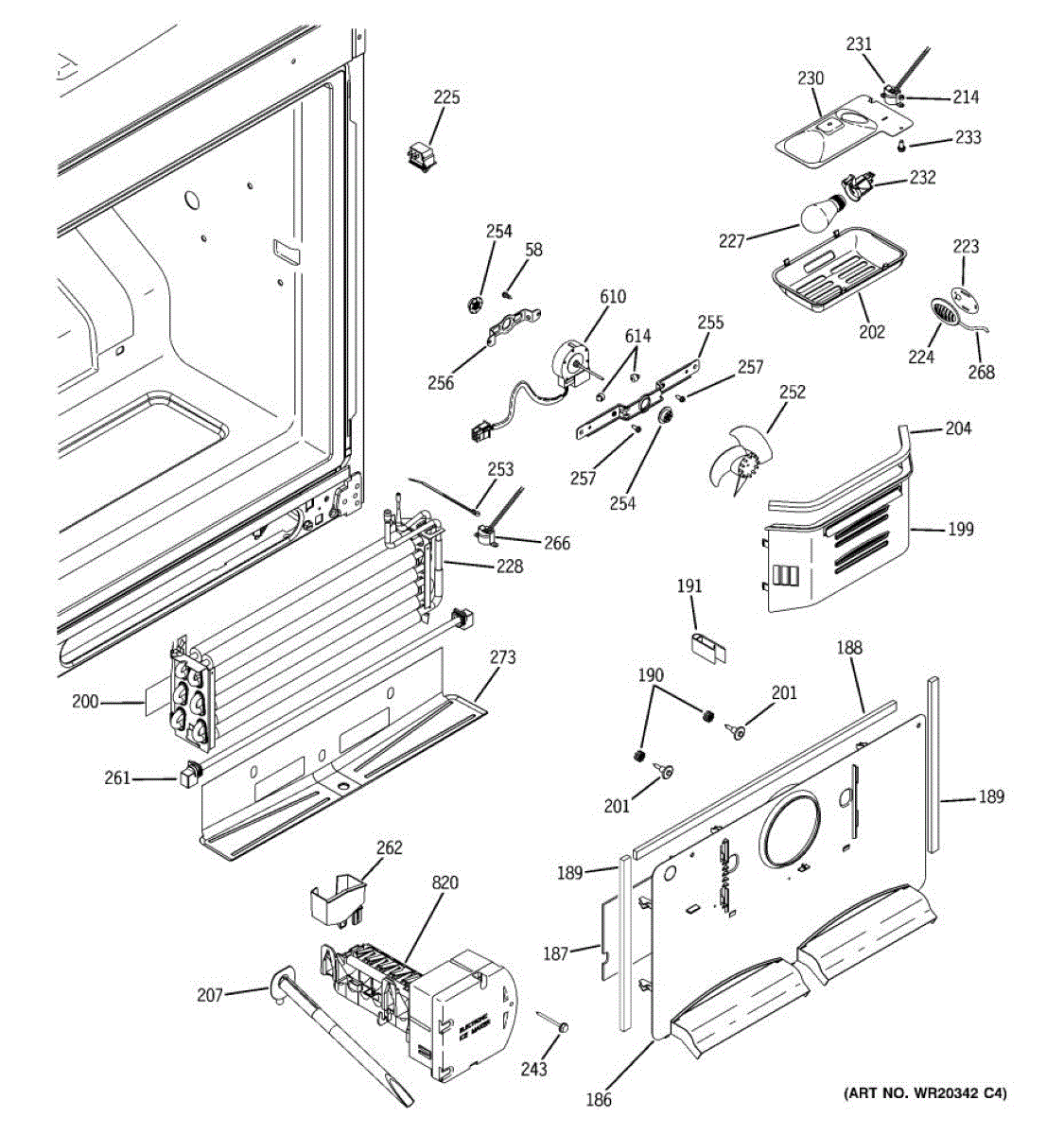

Parts for Ge PFSW2MIXBSS: 02 - Freezer Section Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

A self-adhesive foam strip that cushions gaps and seals edges to reduce air leaks, vibration, and moisture intrusion. Simple peel-and-stick design makes it a fast way to restore proper sealing and quiet operation. What it does

• Creates a soft seal along doors, panels or trim to help stop cold air loss and drafts.
• Dampens vibration and rattles caused by loose or worn mounting surfaces.
• Helps block dust and moisture from entering seams and crevices.
• Works where a thin, compressible filler is needed for a snug fit.

• Clean and dry the mounting surface thoroughly before installation for best adhesion.
• Measure and trim foam to fit; peel backing and press firmly to adhere along the entire length.
• Avoid stretching the foam during installation; allow adhesive to set before regular use.
• If adhesive residue remains on hands or surfaces, use a mild solvent per manufacturer guidance.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Door Light Switch is an OEM Replacement Part that serves as the Freezer Door Fan and Light Switch. The switch is made from metal, wiring, and plastic. It plays an essential role in energy conservation by turning off the light when the refrigerator or freezer door is closed

Over time, the door light switch can wear out or fail due to frequent use, exposure to moisture, or electrical issues. When this happens, the interior light may not function correctly, which can hinder visibility inside the refrigerator.

Symptoms of a bad door light switch may include:

• Interior light not turning on when the door is opened
• Interior light not turning off when the door is closed
• Flickering or intermittent operation of the interior light

This switch is compatible with select GE and Hotpoint models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan bracket secures the evaporator fan assembly behind the rear panel. A rigid, correct-fit mount preserves blade clearance and airflow across the evaporator coils for steady temperatures while minimizing vibration and noise.

• Holds the evaporator fan assembly firmly in position
• Maintains alignment and clearance to prevent fan rubbing and excess noise
• Supports proper airflow through the evaporator compartment for consistent cooling
• Replace if the bracket is cracked, warped, or loose; symptoms may include rattling, scraping sounds, or the fan contacting the shroud

• Disconnect power before servicing and use cut-resistant gloves
• Remove shelves/drawers and the rear evaporator cover to access the fan assembly
• Transfer the fan motor and existing hardware to the new bracket; ensure the blade spins freely without contact
• Avoid damaging the evaporator coils; reassemble panels and restore power to test

The Defrost Heater Assembly is an OEM replacement part for GE refrigerators. It contains the heating element responsible for maintaining optimal temperatures within the refrigerator. As a crucial component, the heater works to keep stored food safely cooled and prevent freezing.

Causes of a bad defrost heater can include gradual wear over time, mineral buildup reducing heat transfer efficiency, and physical damage.

Symptoms of failure are:

• Fluctuating temperatures inside the fridge
• Food spoiling more quickly
• Compressor running excessively
• Error codes indicating heating issues

This GE OEM part is also compatible with Hotpoint, RCA, and Kenmore models for simple cross-referencing.

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.

The Defrost Thermostat is an OEM replacement part designed for use in GE refrigerators. This component acts as a safety device in the refrigerator's defrost system, preventing the freezer from overheating during the defrost cycle. It works by monitoring the temperature of the evaporator coil and turning off the defrost heater when the coil gets warm enough, thus safeguarding the freezer from getting too hot.

Causes of a bad defrost thermostat can include corrosion, a blown fuse inside the thermostat, or wear and tear over time, which can lead to malfunctioning of the refrigerator's defrost system.

Symptoms of a bad Defrost Thermostat include:

• Frost buildup on the back wall of the freezer
• The refrigerator is not cooling properly
• The freezer is cold but the refrigerator is warm
• The defrost heater not turning on

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Evaporator Fan Motor is an OEM part for GE refrigerators. This motor is responsible for circulating air over the evaporator coils, which are crucial for maintaining the desired temperature inside the refrigerator compartment.

Symptoms of a bad evaporator fan motor:

• Inadequate cooling or temperature fluctuations
• Loud or unusual noises coming from the refrigerator
• Ice buildup or frost accumulation on the evaporator coils
• The fan not running or rotating properly

Causes of a faulty evaporator fan motor can include general wear and tear over time, dust or debris buildup inhibiting proper operation, or electrical issues such as short circuits or faulty wiring.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
