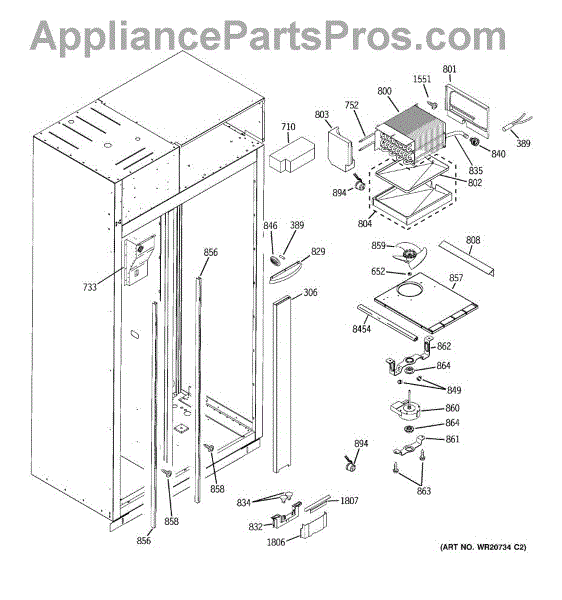

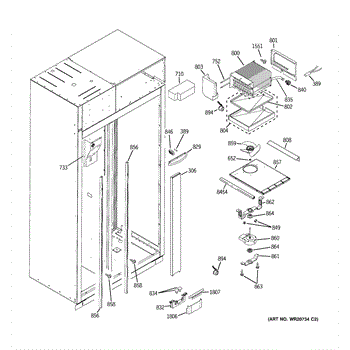

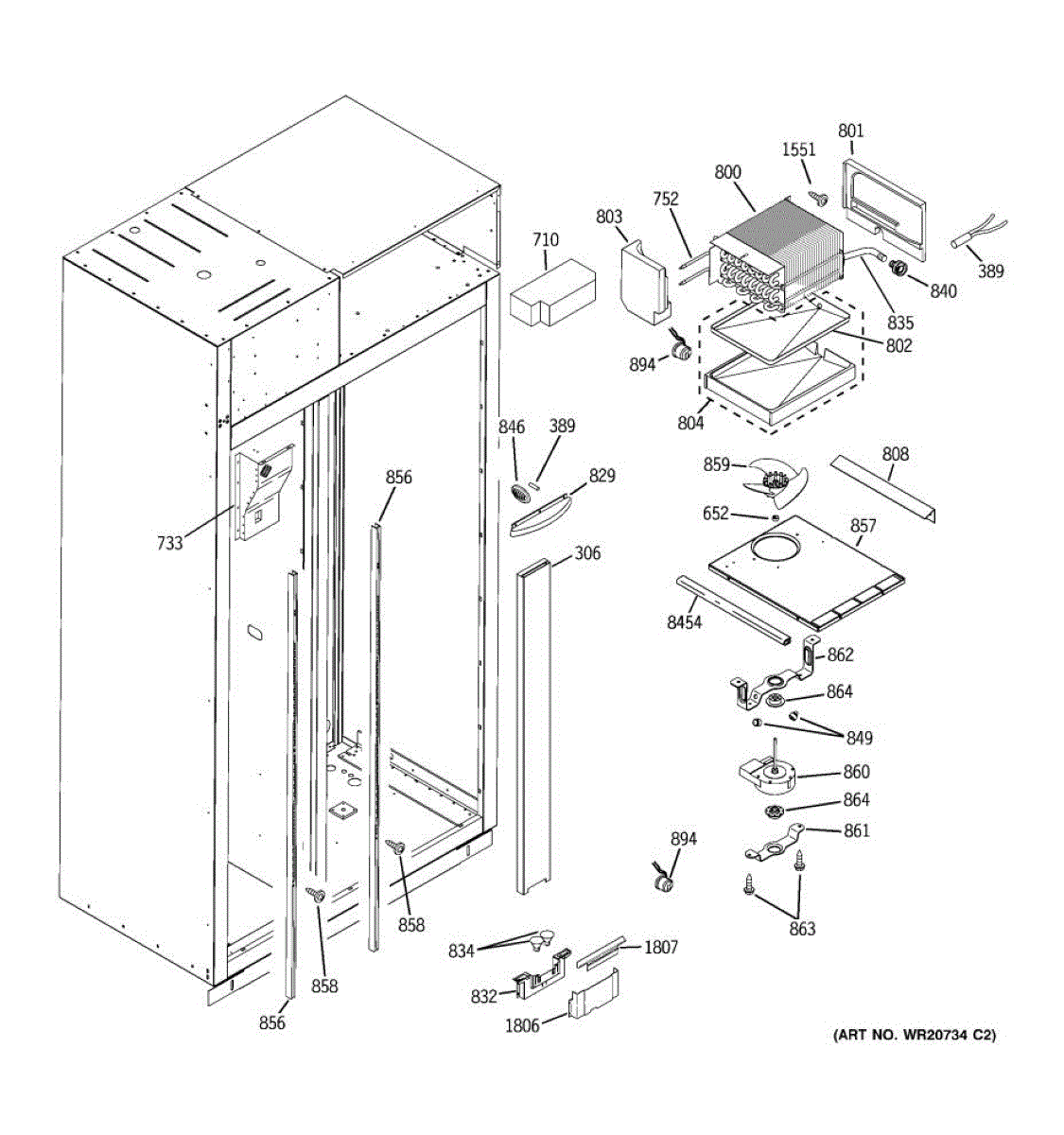

Parts for Ge ZISP420DTBSS: 04 - Freezer Section Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This light column assembly provides the internal lighting and trim for compatible refrigerator/freezer enclosures, restoring proper illumination and a finished interior appearance. It replaces a worn or damaged light column so the compartment lights correctly. What it does

• Houses and positions the light(s) to evenly illuminate the refrigerator interior.
• Protects the bulb and wiring from spills and contact while allowing light to pass.
• Restores damaged or cracked trim that can let debris into the light area.
• Common symptom: interior light is dim, misaligned, or the trim is cracked/broken.

• One light column assembly as shown.

• Disconnect power to the appliance before servicing to avoid shock.
• Handle lens or trim pieces carefully to avoid scratching or cracking.
• Installation generally requires removing interior shelves and unsnapping or unscrewing the old assembly; keep fasteners for reinstallation if reusable.
• If the bulb or wiring is damaged, replace those components only with compatible parts.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a GE refrigerator defrost heater assembly. The defrost heater assembly is the component responsible for defrosting the freezer compartment.If the refrigerator has been having trouble defrosting or making loud noises when the defrost heater turns on, this part could need a replacement. When this part malfunctions there could be a noticeable increase in ice building up in the freezer compartment. This situation should be fixed quickly because the increasing ice could damage other parts. Start any repairs by unplugging the refrigerator first. Take all the shelves out of the freezer and remove the freezer light shield. Unthread the two screws securing the rear freezer panel inside of the freezer. Detach the clip and remove the panel. The defrost heater should be accessible at this point. This part is located near the bottom of the freezer. Unthread the screws holding it in place and disconnect it from its wiring. Repeat these steps in reverse to install the new appliance.This is a genuine OEM replacement product sourced directly from GE. This heater assembly is only available individually and is not included with other parts.

The Drain Pan and Heater Assembly is an OEM part for GE refrigerators. Located beneath the fridge’s evaporator coil, this pan collects condensed moisture that forms during normal operation. An integrated electric heating element prevents drain line freezing in cold environments.

Causes of a bad drain pan can include mineral buildup clogging drain hole fittings or cracks developing from constant temperature cycling. The heater coil may fail after years of heating moisture evaporation.

Symptoms include:

• Puddles of water under the fridge
• Ice accumulation inside the pan hindering evaporation
• Non-functioning heater results in frozen or blocked drain line

This GE OEM replacement restores reliable moisture drainage with corrosion-resistant materials. The integrated automatic heater defrosts lines as needed to avoid backups or leaks from frozen condensate. Counts as an upgrade for GE and select Hotpoint or RCA side-by-side refrigeration models.

This halogen light bulb installs in the refrigerator's vertical light column to restore bright, even interior illumination. Replace a failed bulb to keep shelves and drawers clearly visible whenever you open the door. What it does:

• Provides interior lighting as part of the column assembly when the door opens
• Common symptoms: interior light is out, flickers, or appears noticeably dim
• Bulb may show darkening or a broken filament
• Replacing the bulb restores normal brightness inside the compartment

• 1 halogen light bulb

• Unplug the refrigerator or switch off power at the breaker before service
• Allow the old bulb and surrounding area to cool completely
• Handle halogen bulbs with clean gloves or tissue; avoid touching the glass
• Align with the socket like the original and do not force; reinstall any cover or lens

This flexible drain tube routes defrost and condensation water from the evaporator to the drain pan to help prevent water pooling and ice buildup in the freezer or refrigerator. Durable, shaped tubing makes routing through the cabinet easier. What it does:

• Channels defrost and condensate water away from the evaporator area to the drain pan
• Helps stop water from collecting inside the fridge or forming ice on the evaporator
• Flexible design eases routing through tight cabinet spaces and around components
• Used when the original drain tube is cracked, clogged, hardened, or leaking

• Disconnect power to the appliance before starting work to avoid shock or injury
• Remove food and any panels blocking access to the evaporator housing
• Ensure proper seating and routing of the tube; secure with existing clamps or clips and trim excess only if specified by OEM instructions
• After installation, pour a small amount of water into the evaporator drain area to verify proper flow to the drain pan

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

An evaporator fan blade mounts on the evaporator fan motor to move cold air across the coils and throughout the refrigerator compartments. Replacing a cracked, warped, or loose blade restores proper airflow, temperature balance, and quiet operation.

• Circulates air across the evaporator and into the fresh food and freezer sections to maintain even temperatures
• Helps reduce frost/ice buildup on the evaporator cover by improving airflow after defrost
• Common symptoms of a damaged blade: rattling or scraping noises behind an interior panel, weak or no airflow at vents, warming in the fresh food section, or uneven cooling
• A cracked or loose blade may spin but move little air even when the motor runs

• Disconnect power to the refrigerator before service
• Access the evaporator fan behind the interior rear panel; remove the cover/shroud as required (varies by model)
• Note blade orientation; seat the new blade fully on the motor shaft and verify clearance inside the shroud
• Reassemble panels, restore power, and confirm the fan spins freely without rubbing

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

Keep the refrigerator's rear fan assembly secure and airflow on track with this fan orifice bracket. It supports the fan shroud/orifice so the motor and blade stay aligned, helping maintain proper cooling and reduce vibration.

• Secures the fan orifice/shroud to the machine-compartment frame
• Maintains correct fan motor and blade positioning for smooth operation
• Helps direct airflow through the condenser area for effective heat removal
• Typical symptoms of a failed bracket include rattling/buzzing from the back, a loose or wobbling fan assembly, reduced airflow, or warm temperatures

• Disconnect power and move the refrigerator to access the rear machine compartment
• Remove the rear access cover; support the fan motor/blade before loosening fasteners
• Transfer any reusable mounting hardware to the new bracket; align the orifice/shroud properly
• Ensure the fan spins freely and the assembly is secure before reinstalling the rear cover and restoring power

Specs: 8-18 AB IHW 5/8 S

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

This cover harness organizes and protects the main wiring inside a side-by-side refrigerator, helping keep electrical connections secure and routed safely for reliable operation. Use it when wiring cover damage or wear exposes connectors. What it does

• Routes and protects internal wiring behind refrigerator panels to prevent chafing and accidental disconnection.
• Secures connector positions so components receive consistent power and signals.
• Common symptom: visible frayed wiring or loose connectors behind the fresh-food/freezer panel.
• Can be a factor when intermittent component operation or wiring-related faults are observed.

• Disconnect power to the appliance before service to avoid shock or damage.
• Remove panels per the OEM service instructions to access the old harness; note connector positions before removal.
• Inspect connectors and adjacent wiring; replace any damaged clips or grommets to prevent future abrasion.

This is a replacement edge trim piece that restores a clean, finished edge and helps protect cabinet or door surfaces from chips and wear. It improves the appearance and prevents edges from catching on seals or gaskets. What it does:

• Covers and protects exposed metal or plastic edges on appliance doors or panels
• Replaces cracked, split, or missing trim that can catch on clothing or seals
• Helps maintain a smooth sealing surface to reduce gaps or snags
• Restores finished appearance after damage or wear

• One edge trim piece as shown

• Remove any old adhesive or debris before installing for a secure fit
• Trim to length if required and press firmly into place; some installations use adhesive or snaps
• Wear gloves to avoid sharp edges during removal and installation
