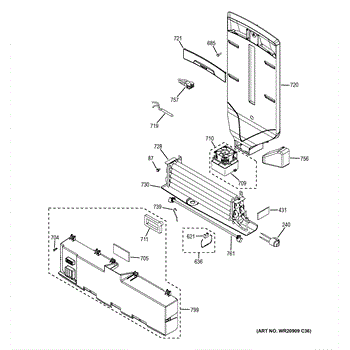

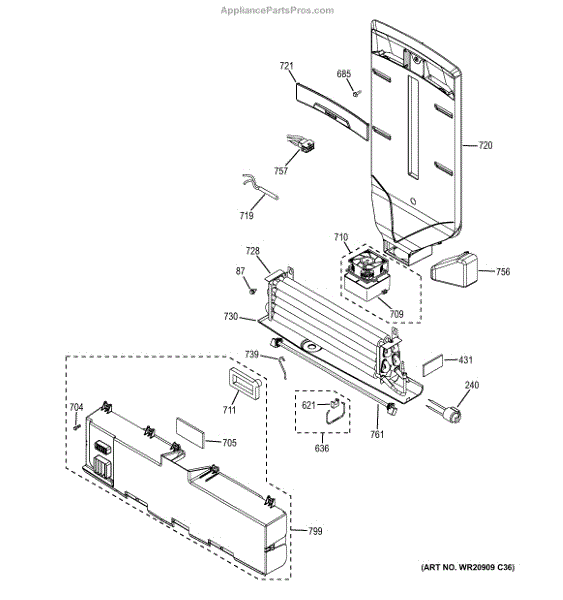

Parts for Ge GFE29HMDDES: Freezer Section Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

The Defrost Thermostat is an OEM part for GE refrigerators. This part is a safety device attached to the evaporator coil or nearby, and it functions by monitoring the temperature of the refrigerator's coils during the defrost cycle. When the coils reach a specific temperature, the defrost thermostat shuts off the defrost heater to prevent the refrigerator from overheating.

Causes of damage to the Defrost Thermostat can include wear and tear over time, exposure to extreme temperatures that degrade its responsiveness, or electrical issues that cause it to fail.

Symptoms of a bad Defrost Thermostat include:

• The refrigerator or freezer compartment is too warm, indicating that the defrost system is not working correctly
• Frost buildup on the evaporator coils that does not go away
• The refrigerator cycling on and off more frequently or running longer than it should

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator block seal is a refrigerator freezer gasket that helps seal the evaporator assembly to limit air and moisture migration, reducing frost buildup and helping the cooling system run efficiently. What it does:

• Seals the evaporator block area to prevent moist air from reaching cold surfaces
• Helps reduce frost and ice accumulation on the evaporator and evaporator cover
• Supports consistent cooling by maintaining the intended airflow path
• Can reduce defrost frequency when the original seal is damaged or worn

• 1 evaporator block seal

• Disconnect power to the appliance before starting any repair
• Replacement typically requires removing the evaporator cover or assembly; handle evaporator fins and components carefully
• Inspect surrounding foam, clips, or adhesive; replace or resecure as needed to ensure a proper seal
• After installation, restore power and verify proper cooling and defrost operation

This holder element assembly secures the appliance's heating element in the correct position so the element stays stable for consistent operation and safe performance. It's a direct-fit replacement for worn or damaged holders. What it does:

• Secures and supports the heating element inside the appliance to maintain proper alignment
• Prevents element sagging or contact with other components that can cause noise or arcing
• Helps reduce vibration and movement that can lead to intermittent heating
• Common symptom: visible holder damage, loose or shifted element, unusual noise during operation

• Disconnect power (unplug or switch off breaker) before starting any repair
• Allow appliance and element to fully cool before handling
• Handle the element and holder carefully to avoid bending or damaging the element

This element holder assembly secures an oven/range heating element and keeps it positioned for even heat delivery. It restores proper element alignment to reduce arcing and prevent rubbing or uneven baking. What it does:

• Secures the bake or broil heating element to the range/oven housing
• Keeps the element properly spaced for consistent heating performance
• Helps stop element movement, rubbing, or intermittent contact that can cause arcing
• Commonly replaced when the element is loose, misaligned, or makes noise during operation

• Disconnect power to the appliance before beginning any repair
• Handle heating elements carefully—sharp edges and fragile terminals can be damaged
• Verify element alignment and secure mounting hardware; replace only as needed
• If you see damaged element terminals or insulation, replace the element

8-18 CA HX 1/2 S

This selector control provides the hi/lo switching function for the oven/range heating circuit, restoring user control over high and low heat settings. It replaces a failed selector so the range can select the proper heat level reliably. What it does:

• Switches between high and low heat settings for the heating element or burner
• Restores control when heat setting changes do not respond or stick
• Helps eliminate intermittent or no-heat conditions caused by a worn selector
• Matches OEM function and mounting for a direct replacement

• One selector control assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle electrical connections carefully; note wire locations or take a photo before removal
• Use basic hand tools; do not force connectors or mounting tabs

This gasket seals the fan-front housing in the appliance to help maintain proper airflow and reduce air bypass. Replacing a worn gasket restores a tight seal for more consistent cooling and quieter operation. What it does:

• Seals the fan/front housing to prevent air leakage that can disrupt airflow and cooling
• Cushions the fan assembly to help reduce vibration and noise caused by a loose or damaged seal
• Helps maintain proper circulation so the refrigeration system can run efficiently
• Can prevent moisture buildup and reduce frost in the fan area when sealing is restored

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Remove access panels or shelving as needed to reach the fan housing; keep hardware for reassembly
• Inspect the mating surfaces and clean away debris before installing the new gasket for a proper seal
• Repair those before installing the gasket

The Evaporator Motor Mounting Seal is an OEM part for GE refrigerators, designed to ensure a secure and airtight seal around the evaporator motor. This small but critical component helps to minimize the escape of cold air and the entry of warm air into the evaporator area, enhancing the efficiency of the refrigerator's cooling system.

Causes of a bad evaporator motor mounting seal can include deterioration over time, damage due to improper installation or handling, and wear and tear from continuous operation. A compromised seal can lead to the motor shifting or vibrating excessively, which can affect the efficiency of the cooling system and cause further damage to the motor or surrounding components.

Symptoms of a bad Evaporator Motor Mounting Seal include:

• Noticeable frost build-up in the freezer compartment
• The refrigerator or freezer section not cooling adequately
• Unusual noises due to air leakage that affects fan operation
• Increased energy consumption as the refrigerator works harder to maintain the desired temperature

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement damper gasket that seals the refrigerator air damper to help maintain proper air flow between compartments. Restores the damper seal so the cooling system can regulate temperatures more effectively. What it does:

• Seals the air damper opening to prevent unwanted air exchange between compartments
• Helps maintain proper airflow paths for consistent cooling and temperature balance
• Can reduce cold-air leakage and related temperature swings or excess frost near the damper
• Helps stop drafts or whistling noises caused by a worn or damaged damper seal

• One gasket damper

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels or the damper housing—follow your model's service instructions
• Handle the gasket gently to avoid tearing; ensure it seats fully and evenly around the damper opening
• If the damper housing or mounting clips are damaged, replace them as needed for a proper seal

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This fresh food duct tower assembly channels cold air from the refrigerator's cooling system and distributes it throughout the compartment. Replacing a cracked or warped tower restores proper airflow and helps maintain even, consistent temperatures between shelves.

• Directs and distributes airflow through the fresh food section to reduce hot and cold spots
• Helps maintain an air-tight path to prevent leaks and airflow noise
• Supports proper temperature regulation for food storage
• Typical symptoms: uneven cooling in the fridge, weak airflow from tower vents, visible cracks/broken tabs, or rattling behind the tower

• Disconnect power before servicing; wear cut-resistant gloves
• Remove food and shelves for access; release screws/tabs and lift the old tower straight off the rear duct
• Transfer any reusable clips, seals, or covers from the original part
• Seat the new tower evenly over the duct and secure fasteners snugly; restore power and allow up to 24 hours for temperatures to stabilize

This diverter and badge assembly replaces the dispenser diverter on compatible refrigerators, restoring proper flow direction and the finished exterior badge for the dispenser area. It helps stop leaks and stabilizes the dispenser trim. What it does:

• Directs dispenser water/ice flow through the correct outlet to prevent misdirected dispensing
• Secures the dispenser badge/trim to the appliance front for a finished appearance
• Helps stop leaks or drips caused by a damaged or worn diverter
• Reduces wobble or looseness at the dispenser face when the badge/clamp is intact

• One diverter & badge assembly

• Disconnect power (and water supply if applicable) before beginning work
• Access may require removing the dispenser bezel or door trim—follow your model's service instructions
• Handle plastic components gently to avoid cracking; replace any damaged fasteners or seals

The Refrigerator Evaporator with Heater is an OEM part for GE refrigerators. This component cools the air within the freezer and fresh food compartments through vaporization and circulation. It also contains an internal heater to prevent condensation and frost formation.

Causes of a bad evaporator can include normal wear over time, damage from leaks, or issues with the heater component.

Symptoms of a bad evaporator include:

• Inadequate or inconsistent cooling within compartments
• Frost or condensation buildup that requires frequent defrosting
• High energy usage but inability to maintain proper temperatures
• Foreign or musty odors emanating from within the refrigerator

Replace this evaporator to restore optimal cooling performance, efficiency, and freshness preservation in your refrigerator. This GE OEM part is also compatible with later Hotpoint, RCA, and select Kenmore refrigerator models.


This trough drain directs defrost water from the evaporator to the refrigerator drain system, helping prevent water buildup and puddling inside the freezer compartment. It's a direct-fit replacement for the damaged or cracked drain trough. What it does:

• Channels defrost and condensation water away from the evaporator area to the main drain
• Prevents ice buildup and water pooling that can lead to floor or compartment leaks
• Restores proper drain flow when original trough is cracked, warped, or clogged
• Works with the refrigerator's defrost cycle to keep the compartment dry

• One trough drain piece

• Disconnect power to the appliance before starting any work
• Remove stored food and secure shelving or trim that blocks access to the evaporator area
• Inspect and clear the drain path and drain tube while installing the new trough

This cover connector secures the fan housing and wiring in the refrigerator's fan assembly, helping protect components and maintain proper airflow. It's a direct-fit replacement designed to restore correct fan enclosure alignment. What it does

• Holds the fan housing and wiring connectors in place to prevent rubbing or disconnection
• Protects fan assembly wiring from damage and helps maintain reliable airflow
• Can address symptoms such as intermittent fan operation, unusual fan noise from misalignment, or airflow-related cooling issues
• Works as part of the fan enclosure to keep components positioned for proper function

• Disconnect power before beginning any service to avoid shock or injury
• Installation typically requires removing the fan housing or access panel; handle plastic parts carefully to avoid breaking tabs
• Inspect adjacent wiring and fan blades for damage while replacing the connector

This heater harness installs in the refrigerator's fresh food section. It provides defrost heat and the correct wiring connections to clear frost from the fresh food evaporator, restoring airflow so the compartment cools evenly and reliably.

• Delivers defrost heat to the fresh food evaporator to melt frost and ice
• Includes the correct harness/wiring for a precise, plug-in connection
• Helps restore proper airflow and temperature regulation in the refrigerator compartment
• Symptoms include heavy frost on the fresh food evaporator cover or back wall
• Also presents as a warm fridge (with normal freezer) or fan noise from ice contact

• Disconnect power before servicing; use cut-resistant gloves
• Access is behind the fresh food evaporator cover; protect delicate fins and sensors
• Route the harness exactly as the original and fully seat all connectors/clips
• After reassembly, ensure the drain path is clear and the fan spins freely

The Defrost Heater is an OEM part for GE refrigerators. It plays a crucial role in the defrost cycle, preventing the buildup of frost or ice on the refrigerator's evaporator coils.

Symptoms of a faulty Defrost Heater include:

• Excessive frost or ice buildup on the evaporator coils
• Inefficient cooling performance or temperature fluctuations
• Increased energy consumption due to the refrigerator working harder to cool
• Error codes or indicators related to the defrost system

Causes of a defrost heater failure can include electrical malfunctions, physical damage, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator cover assembly protects the freezer evaporator and defrost components while directing cold air for proper circulation. Replacing a damaged cover helps restore airflow, reduce frost buildup, and support consistent freezer temperatures. What it does:

• Covers and shields the evaporator coil and defrost heater from damage and debris
• Channels cold air from the evaporator for more even cooling throughout the freezer
• Helps minimize frost and ice buildup when the cover is intact and properly sealed
• Replace if you see cracks, warped plastic, excessive frost near the evaporator, or unusual fan/airflow noise

• Disconnect power before servicing; follow all safety precautions
• Part installs behind the freezer liner and may require removal of shelves, drawers, or the ice maker for access
• Handle the evaporator and defrost components carefully; avoid bending or touching the evaporator coil
