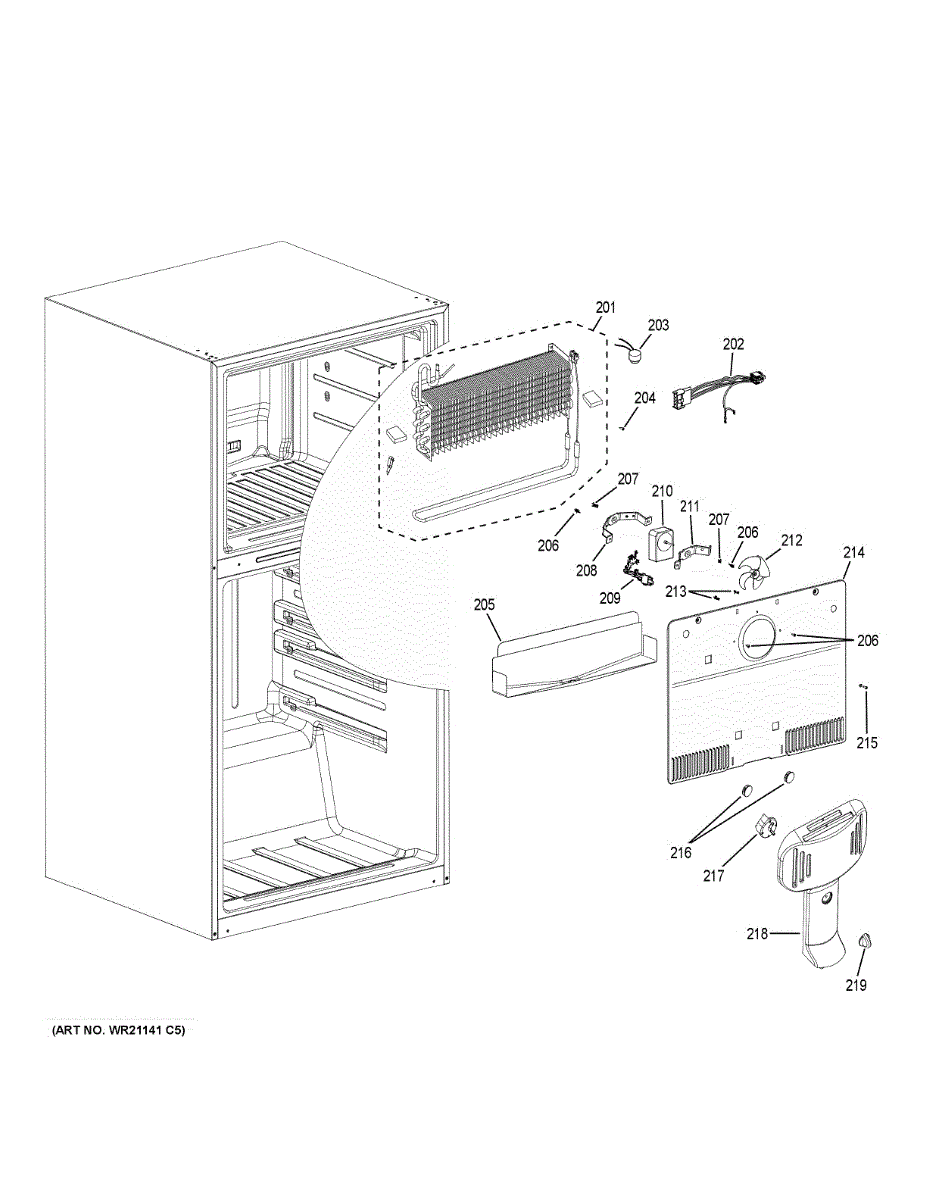

Parts for Ge GTS21FMKCES: Freezer Section Parts

The Evaporator is an OEM part for GE refrigerators. It is responsible for removing heat from the refrigerator and maintaining the desired temperature.

A bad evaporator can occur due to factors such as refrigerant leaks, frost buildup, or damage to the coils. If you notice symptoms such as inadequate cooling, excessive frost in the freezer, or unusual noises coming from the refrigerator, it may indicate a faulty or malfunctioning evaporator.

Symptoms of a bad evaporator include:

• Inadequate cooling or inconsistent temperature control
• Excessive frost buildup in the freezer
• Unusual noises coming from the refrigerator

Restore your refrigerator by replacing the faulty evaporator with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This defrost cable connects the ice maker assembly to the refrigerator's defrost system, helping melt frost and maintain proper ice production. Replaces a worn or damaged cable to restore reliable defrost operation. What it does:

• Transfers defrost system signals/power to the ice maker area so frost and ice do not build up
• Helps prevent ice clumping or reduced ice production caused by a faulty cable connection
• Restores proper defrost function when the original cable is cracked, frayed, or broken
• Works with the refrigerator's defrost components to support consistent ice-making performance

• One defrost cable (quantity: 1)

• Recommended for users comfortable with basic appliance repairs; unplug the appliance before servicing
• Handle connectors gently to avoid bending pins or damaging terminals
• Verify correct routing and secure connections per OEM layout to prevent chafing or interference

This defrost cable connects the ice maker assembly to the refrigerator's defrost system, helping melt frost and maintain proper ice production. Replaces a worn or damaged cable to restore reliable defrost operation. What it does:

• Transfers defrost system signals/power to the ice maker area so frost and ice do not build up
• Helps prevent ice clumping or reduced ice production caused by a faulty cable connection
• Restores proper defrost function when the original cable is cracked, frayed, or broken
• Works with the refrigerator's defrost components to support consistent ice-making performance

• One defrost cable (quantity: 1)

• Recommended for users comfortable with basic appliance repairs; unplug the appliance before servicing
• Handle connectors gently to avoid bending pins or damaging terminals
• Verify correct routing and secure connections per OEM layout to prevent chafing or interference

This evaporator drip pan collects and directs defrost water away from the evaporator area to prevent leaks and water damage. It keeps moisture contained so the refrigerator can drain properly during defrost cycles. What it does:

• Catches condensation and defrost runoff from the evaporator assembly
• Channels water to the refrigerator drain system to prevent pooling inside the cabinet
• Helps reduce ice buildup around the evaporator by providing a stable drain path
• Commonly replaces a cracked, warped, or overflowing drain pan that causes interior leaks

• One evaporator drip pan

• Disconnect power to the appliance before starting any repair
• Access may require removing the evaporator cover or rear cabinet panel — follow your model's service instructions
• Handle carefully around sharp sheet-metal edges and evaporator tubing
• Ensure the pan seats and aligns with the drain trough so water flows to the drain as intended

This ground screw secures a cabinet or component grounding conductor, providing a reliable electrical ground connection to help reduce shock and interference risk. Compact and simple, it's used where chassis grounding is required. What it does:

• Fastens a ground wire to the appliance chassis or mounting point
• Star washer bites into metal to improve contact and prevent loosening
• Helps maintain a consistent ground to reduce electrical noise and safety hazards
• Commonly used on control panels, motors, or metal cabinet grounding points

• Disconnect power or unplug the appliance before accessing electrical components
• Ensure the mating surface is clean and free of paint or corrosion for proper grounding
• Tighten securely but do not over-torque; washer is designed to bite into metal

This evaporator fan motor jumper is a replacement wire harness that reconnects the evaporator fan motor to the appliance wiring. It restores a secure electrical connection so the fan can run reliably and help maintain proper cooling. What it does:

• Provides a direct, insulated electrical connection between the evaporator fan motor and the main wiring harness.
• Restores power to the evaporator fan when original jumper or pigtail is frayed, broken, or corroded.
• Helps the evaporator fan run consistently, supporting proper airflow across the evaporator coil.
• Resolves symptoms such as the fan not running, reduced cooling, or unusual noise from loose connections.

• One evaporator fan motor jumper / wire harness.

• Disconnect power to the appliance before accessing electrical components to avoid shock.
• Accessing the evaporator area may require removing interior panels or the freezer evaporator cover; follow manufacturer instructions.
• Replace only the damaged jumper; ensure connectors are fully seated and wires are routed clear of moving parts.

The Evaporator Fan Motor is an OEM replacement part for GE refrigerators. It is designed to fit in the freezer compartment, to circulate cold air and maintain a consistent temperature throughout the freezer. This fan ensures proper airflow, preventing the formation of frost and ice buildup. The felt helps reduce noise and vibration, providing a quieter and smoother operation.

A bad evaporator fan can occur due to various factors, including normal wear and tear, motor failure, or damage to the fan blades. If you notice symptoms such as unusual noises, reduced cooling performance, or frost accumulation in the freezer, it may indicate a need to replace the evaporator fan.

Symptoms of a bad evaporator fan include:

• Unusual noises coming from the freezer
• Reduced cooling performance
• Frost accumulation in the freezer

Restore your refrigerator's freezer compartment by replacing the faulty freezer fan with felt using this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This evaporator fan blade assembly circulates cold air across the freezer evaporator to help maintain even temperatures and proper cooling. Replacing a damaged or worn blade restores airflow for more consistent refrigerator performance. What it does:

• Spins behind the evaporator to move cold air through the freezer and refrigerator compartments.
• Helps prevent uneven cooling and warm spots caused by reduced airflow.
• Common symptoms indicating replacement: loud or scraping noises from the freezer, no airflow from vents, or excessive frost/ice on the evaporator.
• Works with the existing motor shaft and mounting hardware when compatible.

• Disconnect power to the appliance before beginning any repair.
• Access commonly requires removing the freezer evaporator cover and any shelving or drawers in the path.
• Handle the plastic blade carefully to avoid cracking or bending; ensure it spins freely on the motor shaft before reassembly.
• After installation, restore power and verify proper airflow and quiet operation; defrost any ice buildup before reinstalling covers if necessary.

A small white plug button that covers and protects exposed screw heads or openings, restoring a clean finished look and helping keep dirt and moisture out of the cavity. What it does

• Covers exposed screws or access holes to improve appearance and prevent debris buildup
• Helps reduce rattling by keeping fasteners and openings sealed
• Keeps moisture and contaminants away from internal components in exposed locations
• Works as a simple replacement for worn, cracked, or missing cosmetic plugs

• Snap-fit design; press firmly into the opening until fully seated
• Use a plastic trim tool or small flat screwdriver to remove the old plug gently; avoid damaging surrounding surfaces
• No wiring or special tools required for installation
• Unplug the appliance or disconnect power first

This socket cover protects the icemaker's electrical connector and helps keep the plug secure and free from dirt and moisture. It's a simple replacement that restores a proper protective cap over the icemaker plug. What it does:

• Covers and protects the icemaker's electrical socket and plug from debris and moisture
• Helps maintain a secure connection between the icemaker and refrigerator wiring
• Replace if the cover is cracked, broken, missing or won't hold the plug securely
• Can prevent intermittent connections caused by a loose or damaged socket cap

• Disconnect refrigerator power before starting any work (unplug or switch off breaker)
• Remove the old/damaged cover and press the replacement firmly over the icemaker plug until it snaps into place
• Do not force; inspect the connector for damage before installing the cover
• If wiring or the icemaker connector is damaged, replace or repair the damaged component instead of relying on the cover

This air tower assembly directs cold air from the evaporator into the fresh food section to help maintain even cooling and airflow. Replacing a damaged tower restores proper circulation and reduces uneven temperatures. What it does

• Channels and directs refrigerator airflow from the evaporator to the fresh food compartment.
• Helps maintain consistent temperatures across shelves and drawers.
• Can cause uneven cooling or warm spots when cracked, broken, or improperly seated.
• Works with the evaporator fan and ducts to distribute conditioned air.

• One air tower assembly.

• Disconnect power to the appliance before beginning any service.
• Remove shelves/panels as needed for access; handle plastic ducting carefully to avoid cracks.
• Verify correct orientation and secure fit so air seals are maintained.
• If airflow issues persist after replacement, inspect the evaporator fan and seals.
