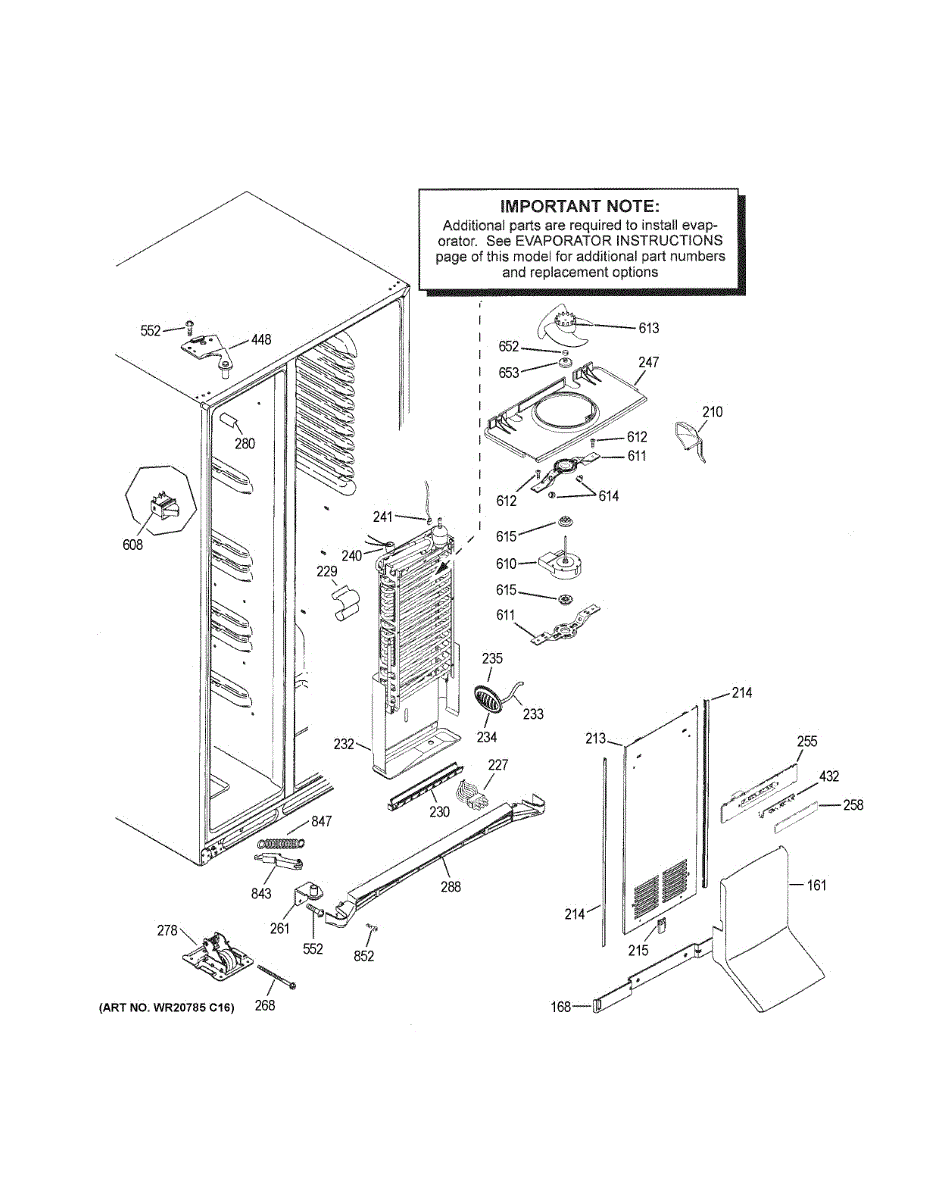

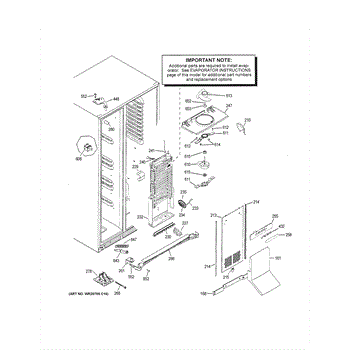

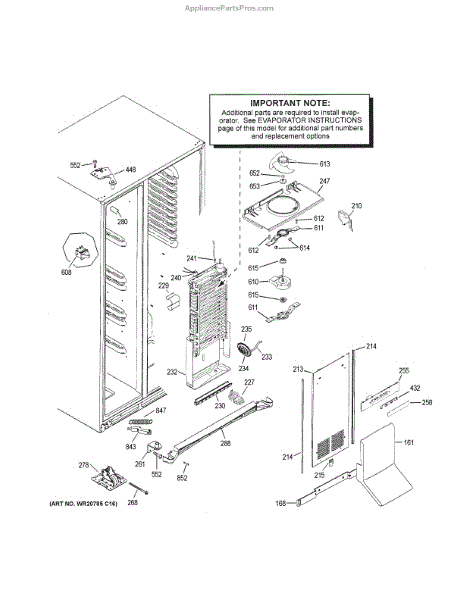

Parts for Ge PSE25KSHKHSS: Freezer Section Parts

The GE XWFE Refrigeration Water Filter is an OEM part for GE refrigerators. This advanced water filter is designed to reduce a wide range of contaminants, including chlorine, lead, cysts, and select pharmaceuticals, providing clean and safe drinking water and ice. It seamlessly integrates into the refrigerator's filtration system, ensuring optimal water quality.

You should replace this water filter if it becomes clogged or reaches the end of its lifespan, typically every six months. Common causes of a bad water filter include excessive contaminants, improper installation, or failure to follow the replacement schedule.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in water and ice
• Cloudy or discolored water
• The filter indicator light on the refrigerator signaling a replacement

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Gasket Evaporator Cover is an OEM part for GE refrigerators. This part seals the evaporator cover, ensuring that cold air does not escape and that the refrigerator operates efficiently.

Causes of a bad Gasket Evaporator Cover can include wear and tear over time, exposure to extreme temperatures that degrade the material, or physical damage that breaks the seal.

Symptoms of a bad Gasket Evaporator Cover include:

• Noticeable frost buildup in the freezer compartment
• The refrigerator runs more frequently or for longer periods
• An increase in energy consumption
• Difficulty maintaining consistent temperatures within the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This upper freezer tower bracket secures the ice/tower assembly inside the freezer, keeping the tower aligned so ice fills and dispenses correctly. It restores proper support to reduce movement and rattling. What it does:

• Holds the upper section of the freezer/ice tower in position to maintain alignment
• Prevents tower movement that can cause noise or interfere with ice delivery
• Helps keep internal components stable so ice fills and dispenses normally
• Supports proper fit of surrounding trim and panels

• Disconnect power to the refrigerator before beginning any work
• Remove ice bin and any nearby trim for safe access to the tower area
• Use appropriate tools and retain original fasteners; replace damaged fasteners if needed
• Inspect surrounding components for damage and test ice operation after installation

The Defrost Heater and Bracket Assembly is an OEM replacement part for GE refrigerators. It is responsible for facilitating the defrosting process, which is essential for maintaining proper cooling and preventing excessive ice buildup within the freezer compartment.

Symptoms of a faulty Defrost Heater and Bracket Assembly include:

• Excessive frost or ice buildup in the freezer compartment
• Inefficient cooling or temperature fluctuations
• Water leaks or puddles forming inside the freezer
• Unusual noises or burning smells during the defrost cycle

Causes of a bad defrost heater and bracket assembly can include normal wear and tear over time, electrical malfunctions, or physical damage to the heating element or bracket.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

NOTE: For a 9" double glass tube heater use WR51X10101

This shield trough assembly catches and channels defrost and condensation water away from the refrigerator cabinet to help prevent leaks and ice buildup. It's a direct-fit replacement that restores proper water drainage and containment. What it does

• Collects defrost and condensation runoff and directs it to the drain pan
• Helps prevent water pooling inside the cabinet and under the appliance
• Reduces ice or frost accumulation caused by redirected water
• Provides structural support for adjacent trim and evaporator covers where applicable

• Disconnect power to the appliance before beginning any repair.
• Remove relevant shelves, drawers, and trim panels to access the trough; keep fasteners organized.
• Handle gently to avoid bending or damaging mounting tabs and seal surfaces.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement bottom door hinge and pin assembly fits refrigerators. The lower hinge supports the door's weight and provides the pivot point, restoring smooth swing and proper alignment for a reliable close and consistent gasket seal.

• Serves as the door's lower pivot and load-bearing support
• Maintains alignment so the gasket seals correctly
• Restores smooth opening and closing after hinge/pin wear
• Common symptoms: door sagging or dragging, popping/squeaking at the hinge, gaps or poor sealing, door not staying closed

• Disconnect power and remove items from the door before servicing
• Support the door, remove bottom hinge fasteners, and lift the door off
• Position the new hinge and transfer any spacers/shims as found
• Reinstall the door, tighten hardware, and verify alignment and gasket seal

This is a mobility screw used to secure mobility-related components in compatible appliances, providing a reliable fastener for stable operation and correct alignment. It replaces worn or missing screws to restore secure mounting. What it does

• Fastens and secures mobility/bracket components to prevent movement or misalignment.
• Helps maintain proper alignment of moving parts that can cause noise or binding when loose.
• Commonly replaced when mounting points are stripped, damaged, or missing.
• Small replacement part that supports overall appliance stability and safe operation.

• One screw as shown/packaged by the manufacturer.

• Use the correct screwdriver or bit to avoid stripping the screw head.
• Ensure the appliance is powered off and disconnected from the power source before accessing internal components.
• Do not overtighten; snug to manufacturer torque or until the part is secure.
• If mounting hardware or threaded inserts are damaged, replace or repair those components before installing this screw.

This mobility front assembly replaces the worn front caster/roller that helps a refrigerator glide when pulled out for cleaning or service. Restores smooth forward movement and stable front support for safe access. What it does:

• Provides a rolling front support so the appliance moves smoothly on the floor
• Helps stabilize the front of the refrigerator when it is pulled out or pushed in
• Reduces sticking and uneven movement caused by worn or damaged rollers
• Can help minimize scraping or surface damage during repositioning

• One mobility front assembly

• Disconnect power and, if applicable, water supply before servicing
• Empty or secure loose items and have a second person help when tilting or moving the appliance
• Remove the kickplate or access panel as required to reach and replace the front assembly
• Tighten fasteners to OEM torque and test mobility before returning the appliance to normal use

The Base Grille is an OEM component for GE bottom-mount refrigerators. It functions as the aesthetic frame surrounding the condenser coils and fan at the base. The base grille works to contain stored cold and hot air within the refrigeration system.

Symptoms of a bad base grille include:

• Excessive dust or pet hair buildup obstructing airflow
• Visible damage or cracks allowing air leaks
• Detachment from the refrigeration system

Over many years, repeated vacuuming can weaken mounting tabs while physical impacts compromise integrity. Proper evaporator function relies on controlled air circulation. Repairing air leaks maintains energy efficiency.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore bottom-freezer models.

The Board LED Light Assembly is an OEM part for GE refrigerators. It is responsible for illuminating the interior of the refrigerator, providing clear visibility of its contents.

Causes of a bad LED light assembly can include electrical issues such as power surges, worn-out components over time, or damage due to moisture exposure. These issues can result in inadequate lighting or complete failure of the LED light assembly, making it difficult to see inside the refrigerator.

Symptoms of a bad LED light assembly include:

• Dim or flickering lights
• No illumination when the refrigerator door is opened
• Intermittent lighting issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Hinge & Pin Assembly is an OEM part for GE refrigerators. It helps maintain the alignment of the door and ensures a tight seal, keeping the cold air inside and the warm air out.

A bad top hinge and pin assembly can be caused by wear and tear over time, excessive weight or force applied to the door, or damage due to accidental impact or mishandling.

Symptoms of a bad top hinge and pin assembly include:

• Difficulty in opening or closing the refrigerator door.
• Uneven alignment or gaps between the door and the refrigerator body.
• Squeaking or creaking sounds when opening or closing the door.
• The door not staying closed.

Replace your worn-out or damaged top hinge and pin assembly with this OEM part and restore the smooth operation of your refrigerator door.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

The Evaporator Fan Motor Assembly is an OEM part for GE refrigerators. It plays a crucial role in circulating air over the evaporator coils, which helps maintain the proper temperature in both the refrigerator and freezer compartments. Used in side-by-side units, this motor includes a 2-wire thermistor in the harness. The assembly includes one Fan Motor with a 6-Pin Harness and Thermistor Assembly. The harness and plug measure 13-7/8" in length.

Common causes of a bad fan motor include electrical issues, debris accumulation, or wear and tear over time. These issues can hinder the motor's ability to circulate air effectively, leading to temperature inconsistencies.

Symptoms of a bad evaporator fan motor assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent or warm temperatures in the fridge or freezer
• Frost buildup on the evaporator coils
• The refrigerator running continuously without cycling off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Evaporator Bottom Bracket secures the lower edge of the evaporator assembly inside your refrigerator, keeping components properly aligned. Replace a cracked or missing bracket to restore a solid mount and help prevent looseness or rattling.

• Supports and stabilizes the bottom of the evaporator assembly
• Helps keep panels/components aligned to reduce vibration and noise
• Restores proper seating of the evaporator area after damage or wear
• Typical signs: broken or missing bracket, loose or rattling panel that won't stay seated

• Disconnect power before servicing; wear cut-resistant gloves
• Remove shelves/bins and the evaporator cover to access the bracket
• Reuse existing screws/fasteners; match the original bracket orientation
• After reassembly, ensure panels are fully seated and clear of the fan/coil

This #8-18 x 5/8-inch Torx T20 screw secures panels, brackets, and trim in your appliance. It replaces missing or damaged hardware to restore a tight, reliable hold and reduce looseness or rattling.

• Fastens sheet-metal or plastic components to the appliance cabinet or frame
• Replaces missing, stripped, or corroded screws to maintain proper fit
• Helps reduce vibration and rattling from unsecured parts
• Torx T20 drive; #8-18 thread; 5/8-inch length

• Disconnect power and shut off water before servicing
• Use a T20 Torx driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping
• Wear cut-resistant gloves; sheet-metal edges can be sharp

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

Color: Black

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.

This manufacturer-specified screw fastens appliance panels, brackets, and internal components in place. Replace a missing or stripped fastener to restore a tight, rattle-free fit and reliable support at the original mounting points.

• Provides the correct fastener for securing covers, brackets, and assemblies
• Replaces lost, rusted, or damaged screws
• Helps resolve loose or vibrating panels and trim
• Maintains alignment of components and hardware

• Unplug the appliance; shut off water if working near supply lines
• Match the new screw to the original location; verify length and thread
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Keep removed hardware organized for reassembly
