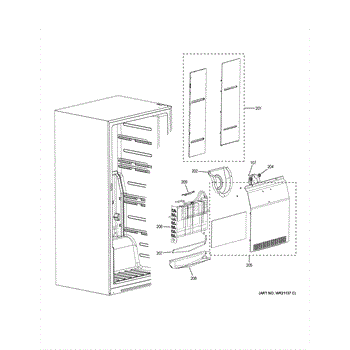

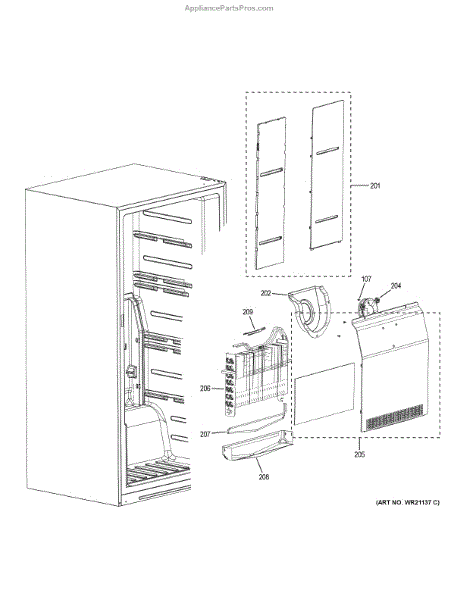

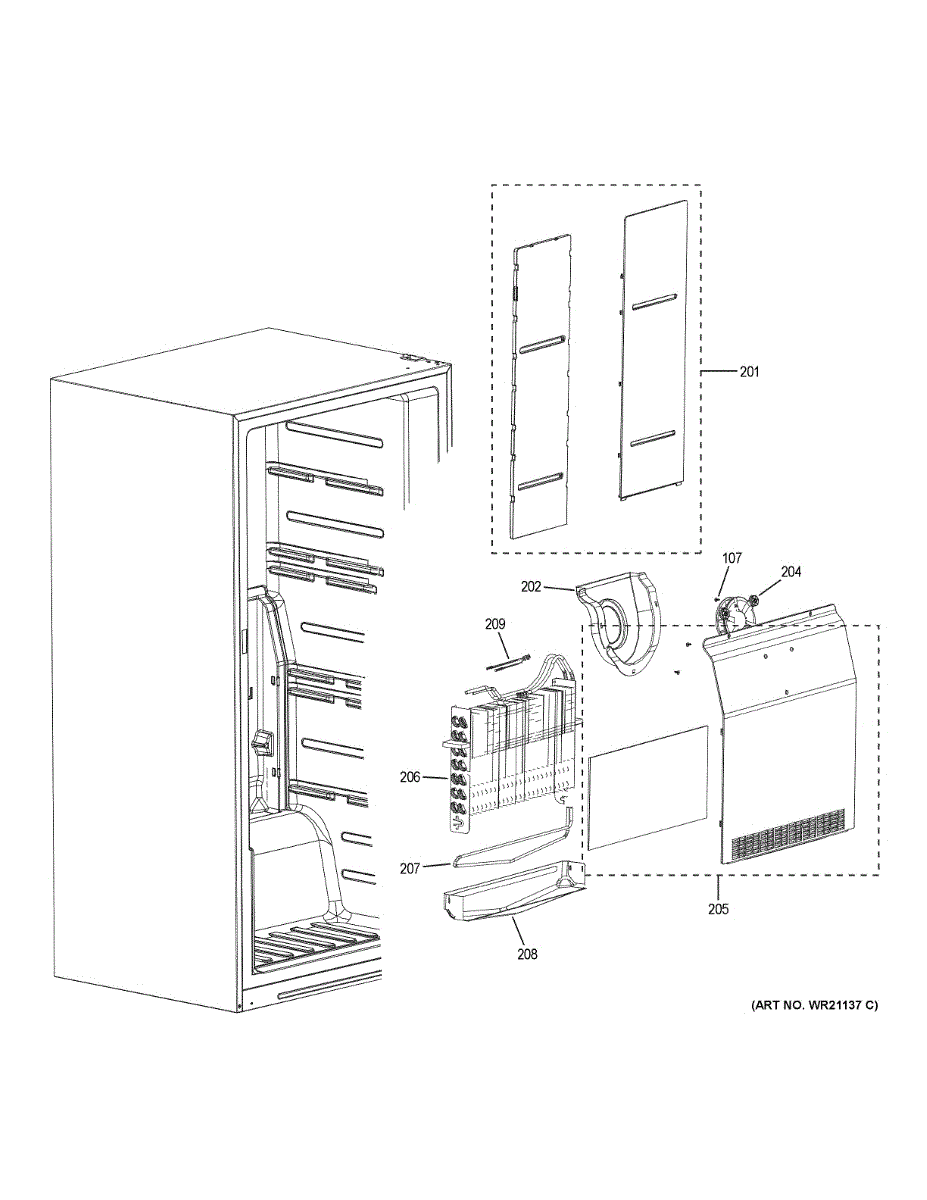

Parts for Ge XUF17SMRDWW: Freezer Section Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for safe, reliable operation. What it does:

• Secures panels, trim, brackets or internal components to prevent loosening
• Helps stop rattling, vibration, or misalignment caused by missing or worn fasteners
• Replaces stripped or corroded screws to maintain safe assembly
• Works wherever the matching screw size and thread are required

• Turn slowly to avoid cross-threading; use the correct screwdriver or bit
• Do not overtighten—tighten until snug and parts are properly seated
• Disconnect power and follow appliance safety guidance when accessing internal components

The Evaporator Fan Shroud is an OEM replacement part for GE refrigerators. It is responsible for directing airflow and ensuring proper circulation in the freezer compartment.

A bad evaporator fan shroud can occur due to normal wear and tear or accidental damage. If you notice symptoms such as reduced cooling in the freezer, excessive frost or ice formation, or unusual noises coming from the fan area, it may indicate a need to replace this essential part.

Symptoms of a bad evaporator fan shroud include

• Reduced cooling in the freezer
• Excessive frost or ice buildup
• Unusual noises from the fan area

Restore your freezer by replacing the faulty evaporator fan shroud with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Evaporator Fan Motor is an OEM part for GE refrigerators. It works to circulate cold air throughout the refrigerator and freezer compartments using a compact, powerful motor.

Causes of a bad evaporator fan motor are generally related to normal wear over time. The motor must run continuously to properly distribute cool air, and this constant use can cause internal mechanisms to degrade.

Symptoms of a failing evaporator fan motor include:

• Uneven or incomplete cooling
• Unusual noises coming from inside the walls
• Less efficient operation as indicated by higher energy bills.

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator cover assembly protects the refrigerator evaporator and helps direct airflow for consistent cooling. It replaces a damaged or missing cover to restore proper airflow and reduce frost buildup risk. What it does:

• Shields the evaporator coil from loose food and debris
• Directs cold air through the evaporator chamber for balanced cooling
• Helps prevent excessive frost accumulation on the coil when the defrost system is working
• Can reduce unusual airflow noises caused by a cracked or misaligned cover

• Disconnect power to the appliance before beginning any work
• Remove interior panels and defrost any heavy ice buildup before installation if necessary
• Align tabs and fasteners; secure with the factory screws—do not force or bend the cover

This defrost heater warms the evaporator coil to melt frost and ice buildup so the freezer can cycle normally. It restores proper defrost operation and helps maintain consistent cooling when the defrost system is functioning. What it does:

• Heats the evaporator coil during the defrost cycle to remove accumulated ice
• Helps prevent frost buildup that can restrict airflow and reduce cooling efficiency
• Commonly replaced when the freezer has heavy ice, reduced cooling, or defrost cycle failures
• Works as part of the refrigerator's defrost system alongside the thermostat and control board

• One defrost heater assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle with care and avoid bending or damaging the heater element or mounting tabs
• Use manufacturer-recommended fasteners and routing; for model-specific instructions

This defrost thermostat monitors evaporator temperature and opens the circuit to the defrost heater at the correct point. It prevents overheating during the defrost cycle and helps restore proper airflow for consistent cooling.

• Senses evaporator coil temperature to control the defrost cycle
• Opens the heater circuit as the coil warms to terminate defrost
• Helps maintain airflow and stable compartment temperatures
• Failure signs: heavy frost/ice buildup, poor cooling, or defrost cycle not initiating/terminating properly

• Disconnect power before service; internal edges can be sharp—wear gloves
• Defrost and expose the evaporator to access the thermostat
• Reinstall in the original location/orientation on the evaporator tubing for firm thermal contact
• Route and secure wiring as originally; keep clear of moving parts and hot surfaces
