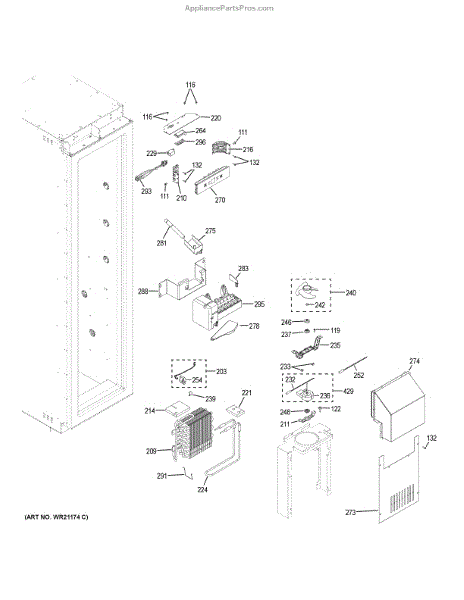

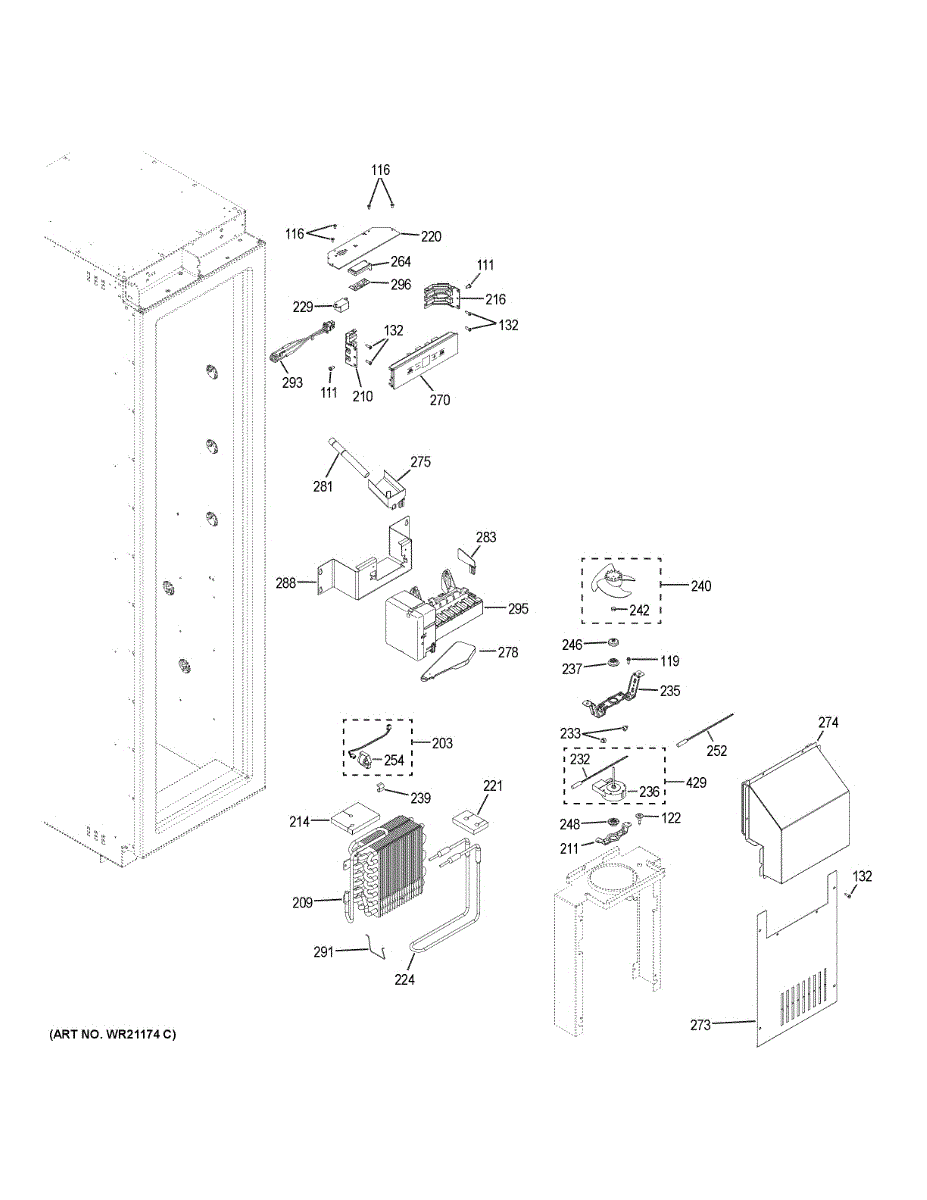

Parts for Ge ZIF180NPKAII: Freezer Section Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This replacement white screw secures trim, panels, and small components in compatible appliances, restoring proper fit and preventing loose parts or rattling. Ideal when the original screw is missing, stripped, or damaged. What it does:

• Secures trim pieces, panels, or small appliance components for a finished appearance
• Replaces missing, stripped, or damaged screws that cause loose parts or vibration
• Restores proper alignment of removable parts that rely on a single fastener

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver bit and seat the screw straight to avoid stripping
• Hand-tighten until snug; do not overtighten to prevent cracking plastic or deforming threads
• Replace with the identical part number for proper fit and finish

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Motor is an OEM part for GE refrigerators. It circulates air over the evaporator coils, ensuring consistent cooling throughout the refrigerator and freezer compartments. The motor operates 9.75 volts DC. The motor has a 1/8" shaft and a 12" long, 4-wire harness.

You should replace the evaporator fan motor if it becomes faulty due to wear and tear, electrical issues, or physical damage. Over time, the motor bearings can wear out, or the motor itself can fail due to continuous operation.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the freezer area
• Frost buildup in the freezer
• The refrigerator running continuously without reaching the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor dust cap is an authentic OEM replacement part found on refrigerator and freezer fan motors. This dust cap prevents the fan motor bearing and housing from being damaged by dirt and debris. If the dust cap is cracked or broken, the fan may make loud squealing noises. If the dust cap is not removed and replaced, the fan could stop working and ultimately cause the refrigerator's temperature to be affected. To start, disconnect the power and water to the refrigerator. Remove food from the freezer so that the back panel of the freezer can be accessed to reach the fan. Remove the ice maker and set it outside the freezer. Disconnect the fan and take it out of the freezer to expose the fan's shaft and the dust cover. Pry the dust cover off and install the new one. Replace the fan and cover. Reconnect the wires and reinstall the icemaker. Put the food back in the freezer. Reconnect the power and water.The evaporator fan motor dust cap is a white plastic part that is sold individually. This dust cover is made for use in refrigerators manufactured by General Electric, Hotpoint, and Kenmore.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

This fill cup directs water into the ice maker so each cycle produces properly filled ice trays. It helps prevent overflows and ensures reliable water delivery to the ice maker assembly. What it does:

• Guides the water fill into the ice maker mold during harvest and fill cycles
• Helps prevent water from spilling into the freezer compartment
• Supports consistent ice size by ensuring proper water placement
• Common replacement when cracked, warped, or leaking and causing underfilled or overflowing ice

• One fill cup for the ice maker

• Disconnect power to the appliance before service to avoid electrical shock
• Remove ice maker/module per manufacturer instructions before replacing the cup
• Inspect the surrounding chute and seals for damage or ice buildup when installing
• Use only manufacturer-recommended fasteners and reassemble components in reverse order

This ice maker guardrail secures and guides the ice maker/ice bin assembly so cubes dispense and stay aligned. It helps restore proper ice flow and prevents the ice bin from shifting or rubbing during harvest cycles. What it does:

• Holds the ice maker/ice bin in place to prevent movement and misalignment
• Guides ice cubes during ejection for smoother dispensing
• Reduces rubbing or contact that can cause noise or wear
• Helps maintain consistent ice delivery to the bin

• One ice maker guardrail/rail

• Disconnect power (and water supply if applicable) before beginning service
• Remove shelves or ice bin as needed for clear access; keep fasteners for reinstallation
• Install using existing mounting points and hardware; inspect surrounding parts for wear

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This DC evaporator fan motor assembly circulates cold air across the evaporator coil to maintain proper refrigerator/freezer temperatures and efficient cooling. Replaces a failed or noisy evaporator fan to restore normal airflow. What it does:

• Spins the evaporator fan blade to move cold air through the evaporator and into the cabinet.
• Helps prevent frost buildup by maintaining airflow across the coil.
• Common symptoms of failure: loud or grinding noise, fan not running, uneven cooling, or warm compartments.
• Works as the airflow drive behind frost buildup and temperature fluctuation issues when the compressor and thermostat are otherwise functioning.

• One evaporator fan motor assembly (DC) as shown.

• Disconnect power at the breaker or unplug the appliance before starting any repairs.
• Access typically requires removing interior panels/evaporator cover and handling evaporator components carefully to avoid coil damage.
• Confirm connector orientation and secure mounting; test operation before reassembling panels.
• If you find ice on the evaporator, fully defrost the compartment and verify no air leaks or drainage issues remain.
