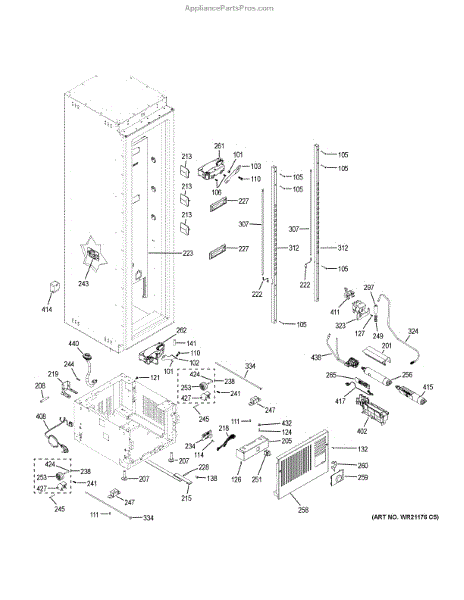

Parts for Ge ZIF180NPKAII: Case Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This 5/16-18 threaded nut secures fasteners on appliance assemblies, restoring stable connections and helping prevent loose or wobbly parts. Simple, durable replacement that fits standard 5/16-18 bolts used in many appliance brackets and components. What it does:

• Secures a 5/16-18 bolt to hold panels, brackets, or components in place
• Restores firm mechanical connections if the original nut is missing, stripped, or corroded
• Helps stop rattling, misalignment, or movement caused by a loose fastener
• Compatible with standard 5/16-18 threaded hardware used in appliance repairs

• Turn off and unplug the appliance before accessing internal components
• Use the correct wrench or socket to seat the nut; avoid using damaged tools
• Tighten until snug to secure the connection; do not overtighten to avoid thread damage
• If threads are damaged or stripped, replace the matching bolt and inspect mating parts

This right-side hinge-to-door support secures the refrigerator door to the hinge assembly, restoring proper door alignment and smooth opening/closing. Replaces a worn or damaged hinge support to reduce sagging and improve seal contact. What it does:

• Attaches the right side of the door to the hinge assembly to maintain correct alignment
• Prevents door sag and helps ensure an even gasket seal for efficient cooling
• Reduces rubbing, binding, or noisy door movement caused by a damaged hinge support
• Restores stable door operation after impact or long-term wear

• One right hinge-to-door support bracket

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing or installing the hinge to prevent dropping or damage
• Use basic hand tools; do not force parts—check fastener fit and alignment during reassembly

This left-side hinge-to-door support secures the refrigerator door to the cabinet and helps the door pivot and close smoothly. It replaces a worn or damaged hinge bracket to restore proper door alignment and function. What it does:

• Anchors the door hinge to the door, providing a stable pivot point
• Keeps the door aligned to prevent gaps, rubbing, and uneven closing
• Helps stop door sag and maintains an airtight seal for proper cooling
• Common symptom: door is loose, misaligned, sags, or won't latch properly

• One left hinge-to-door support bracket

• Disconnect power to the appliance before beginning repairs and remove food from the door if needed
• Support the door while removing/installing the hinge to prevent dropping or damage
• Use appropriate hand tools; avoid over-tightening fasteners which can strip threads
• If the door has glass or molded panels, handle carefully to avoid breakage

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

This SCR is a solid-state switching module that controls on/off power flow in select appliance circuits. Replacing a failed SCR helps stop intermittent operation and restores reliable switching for affected motors or heating elements. What it does:

• Regulates electrical switching in the control circuit to turn motors or heaters on and off.
• Used where a solid-state switch is required for smooth, repeatable control.
• Symptoms of a failing SCR: appliance won't start, runs intermittently, hums without operating, or a controlled circuit does not respond.
• Restores proper switching when the original SCR is shorted, open, or erratic.

• Disconnect power to the appliance before beginning service; follow lockout/tagout procedures.
• Handle as an electronic component—avoid static discharge and protect the spade terminals from bending or contamination.
• Ensure correct orientation and secure mounting; reconnect wiring exactly as shown on the appliance wiring diagram.

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

A #8-18 x 7/8 screw used to fasten appliance panels and components for secure operation. Small, corrosion-resistant fastener that restores proper fit and reduces rattling or loose parts. What it does:

• Secures trim, panels, brackets, or internal components to restore proper alignment
• Helps stop vibration and rattling caused by loose or missing fasteners
• Matches original thread size and length for correct fit in designated mounting points
• Used wherever a #8-18 x 7/8 machine/sheet metal screw is required

• Use the correct #2 Phillips or driver specified for the screw head to avoid stripping
• Do not overtighten; stop when snug to avoid damaging threads or components
• Disconnect power and remove panels before working near electrical parts
• Replace only with the same size and thread type for proper fit and safety

Specs: 6-19 pl flp 3/4 s

Specs: 8-18 AB IHW 5/8 S

This replacement white screw secures trim, panels, and small components in compatible appliances, restoring proper fit and preventing loose parts or rattling. Ideal when the original screw is missing, stripped, or damaged. What it does:

• Secures trim pieces, panels, or small appliance components for a finished appearance
• Replaces missing, stripped, or damaged screws that cause loose parts or vibration
• Restores proper alignment of removable parts that rely on a single fastener

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver bit and seat the screw straight to avoid stripping
• Hand-tighten until snug; do not overtighten to prevent cracking plastic or deforming threads
• Replace with the identical part number for proper fit and finish

This anti-tip tension bolt secures the range/oven anti-tip assembly to keep the appliance stable and help prevent tipping. It provides a simple, adjustable anchor point for the anti-tip bracket to maintain safe appliance positioning. What it does:

• Attaches to the anti-tip bracket or anchor to hold the appliance in place
• Maintains tension on the anti-tip assembly so the appliance resists forward tipping
• Common fix when a range feels unstable or rocks during use
• Works as part of the appliance's safety/anti-tip system

• Turn off power to the appliance and move it away from the wall before installing.
• Tighten until the appliance is secure; avoid over-tightening which can damage threads or bracket.

This hinge limit pin is the replacement door stop that limits hinge travel and helps the door open and close on appliances. It restores proper hinge movement and prevents over-rotation and binding. What it does:

• Stops the hinge at the correct position to prevent the door from over-rotating
• Helps maintain proper door alignment for consistent sealing and operation
• Reduces hinge binding, sagging, and uneven door movement
• Fits into the hinge assembly to act as a physical travel limiter

• One hinge limit pin

• Unplug the appliance or disconnect power before starting work
• Support the door or have a helper when removing hinge components to avoid damage or injury
• Use basic hand tools; inspect surrounding hinge parts and replace if worn

The Cabinet LED is an OEM part for GE refrigerators. This energy-efficient light efficiently illuminates interior shelving areas through integrated circuitry.

Causes of failure relate to heat exhaustion from sustained daily use over many years. Environmental contaminants may accelerate degradation as well.

Symptoms include:

• Dimming or flickering illumination
• Premature lamp burnout
• Inoperable lighting requiring replacement of entire housing unit

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This harness connects the refrigerator humidity sensor to the control board so the fridge can monitor and adjust humidity levels for fresher food. It's a direct-fit wiring harness used where the OEM humidity sensor requires a replacement connector. What it does:

• Provides the electrical connection between the humidity sensor and main control board
• Restores sensor signal if a damaged or corroded lead causes incorrect humidity readings
• Helps resolve symptoms like unreliable humidity reporting, control errors, or sensor-related warnings
• Designed to match OEM connector types and wiring routing for a proper fit

• One humidity sensor harness

• Disconnect power to the appliance before attempting any repair to avoid shock or damage
• Verify harness routing and connector orientation against the service diagram before connecting
• Inspect mating connectors for damage or corrosion; replace any damaged connectors or clips

This anti-tip wall bracket secures the rear of a range or oven to the wall to help prevent tipping and improve stability. It provides a simple way to reduce the risk of the appliance tipping forward during normal use. What it does

• Attaches the appliance to the wall to resist forward tipping when a door is opened or weight is applied
• Helps stabilize a rocking or unsteady range or oven
• Commonly used when moving or reinstalling an appliance to restore a secure connection to the wall
• Works with the appliance anti-tip receiver or screw location at the rear base

• One anti-tip wall bracket

• Install bracket to a wall stud or use approved anchors for secure mounting
• Align bracket with the appliance anti-tip receiver and slide appliance into place so the bracket engages
• Unplug or switch off power at the breaker before moving or reinstalling the appliance; follow all safety precautions

The Pcb Asm Humidity Board is an OEM part for GE refrigerators. This humidity control board regulates the humidity levels within the refrigerator's crispers or drawers. It allows you to adjust and maintain the ideal humidity level for different types of produce, extending their shelf life and preserving their quality.

Symptoms of a bad humidity control board include:

• Inconsistent humidity levels
• Excessive moisture buildup
• Rapid spoilage of produce

A bad humidity control board can occur due to electrical issues, component failure, or other factors. If you notice symptoms such as inconsistent humidity levels, excessive moisture buildup, or produce spoiling quickly, it may be time to replace the humidity control board.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This rear wheel assembly replaces a worn or broken refrigerator drawer roller to restore smooth, stable movement and proper drawer alignment. It helps prevent sticking, scraping, and uneven wear on the drawer track. What it does:

• Replaces a damaged rear roller so the drawer opens and closes smoothly
• Keeps the drawer aligned and prevents it from binding or tilting
• Reduces scraping and uneven wear on the drawer and track
• Supports normal load on the rear of the drawer for stable operation

• Remove drawer contents and slide the drawer out according to your appliance manual before starting
• Inspect the front and rear tracks; replace only the damaged roller(s) and test drawer movement after installation
• Use basic hand tools; avoid forcing parts
• No special wiring or electronic handling required; follow general safety precautions

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

A small spring-style cotter clip that secures shafts and pins to keep moving parts in place. Restores a secure fit to linkage, rods, and pivot points so components stay aligned and don't slip free during operation. What it does:

• Holds shafts, pins and rods in position to prevent components from sliding off
• Provides a spring tension lock around a grooved pin or hole for reliable retention
• Commonly used on linkage, pivots and fastener pins where a compact retaining clip is needed
• Helps stop rattling, loose connections or parts that drop out of place

• Disconnect power before servicing any electrical appliance and work with the appliance in a stable position
• Use needle-nose pliers to spread and install the clip over the pin groove; ensure it seats fully
• Inspect mating pin/hole for wear or damage and replace if deformed
• Replace with an identical clip size and style to maintain secure retention

This replacement key pivot is the small pivoting pin that supports the refrigerator/freezer door key or latch mechanism, restoring secure pivoting and smooth operation at the key location. A direct-fit OE-design replacement. What it does

• Provides the pivot point for the door/key mechanism so the key or latch rotates smoothly
• Restores proper alignment when the original pivot is worn, bent, or broken
• Helps prevent a loose or wobbly key or a latch that fails to engage
• Works as a simple, serviceable part of the door/lock assembly

• One key pivot

• Disconnect power to the appliance before beginning any repair
• Remove door trim or access panel as needed; keep small parts organized
• Replace the pivot and check movement; avoid forcing parts that do not align

This straight 1/4-inch water line coupler joins two sections of 1/4-inch OD refrigerator tubing, restoring a secure connection in dispenser and icemaker supply lines. Use it to splice, repair, or extend existing tubing.

• Creates an inline union for 1/4-inch OD refrigerator water tubing
• Helps address leaks, cracks, or breaks by replacing a damaged connector or splicing a cut line
• Useful when rerouting lines or adding inline components such as filters
• Common symptoms: water dripping at a tubing joint, loose/disconnected line, reduced or no water to dispenser/ice maker

• Unplug the refrigerator and turn off the water supply; dispense water to relieve pressure
• Cut tubing ends square and clean; ensure both tubes are 1/4-inch OD
• Make secure connections per the coupler design (push-to-connect or compression); ensure tubing is fully seated/assembled and gently pull to verify
• Restore water and check thoroughly for leaks

The Light Switch is an OEM part for GE refrigerators. It controls the refrigerator's interior light, turning it on when the door is opened and off when the door is closed. This ensures energy efficiency and convenience, illuminating the refrigerator's interior for easy visibility while searching for items.

Causes of a bad light switch include mechanical wear from constant use, damage from an impact, or electrical issues.

Symptoms of a bad Light Switch include:

• The interior light does not turn on when the refrigerator door is opened
• The light stays on when the door is closed, potentially leading to overheating or melted plastic components in the light housing area
• Intermittent functioning of the light, indicating a loose or damaged switch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mobility wheel is the small cabinet roller that helps your refrigerator glide for cleaning or service. Replacing a worn, cracked, or missing wheel restores smooth movement and supports proper leveling and positioning. What it does:

• Supports the base of the cabinet and allows the unit to roll when repositioning
• Replaces wheels that are cracked, flat-spotted, broken, or missing
• Common symptoms: refrigerator is hard to move, drags or scrapes, sits unevenly, or shows visible wheel damage
• Aids in pulling the appliance out for maintenance or cleaning

• 1 mobility wheel

• Disconnect power and shut off the water supply before moving the appliance
• Use two people and protect flooring; raise/adjust leveling legs to relieve weight from the wheel
• Access the base/roller bracket, remove the damaged wheel, and install the new wheel securely
• Lower and re-level the unit, reconnect utilities, and verify smooth movement

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The RFID Water Filter Board is an OEM part for GE refrigerators. It is an electronic component located inside the filter housing that reads the RFID chip in Genuine GE water filters. The board monitors filter life and provides notification when it's time for a replacement.

Symptoms of a bad RFID water filter board include:

• Inability to detect when a new filter is installed
• Error codes or filter life indicators not functioning properly
• Water dispenser not working or dispensing unfiltered water

Causes may include damage from moisture or leaks over time, failure of electronic components, or normal wear and tear.

This replacement board is also compatible with Hotpoint, RCA, and some Kenmore models.

This cantilever shelf track secures and supports a refrigerator cantilever shelf, restoring stable shelf alignment and adjustability. It provides a durable mounting surface so shelves stay level and slide into preset positions. What it does

• Replaces a worn, cracked, or broken shelf track that lets the cantilever shelf lock into place
• Restores proper shelf alignment and prevents sagging or slipping under load
• Helps shelving slide smoothly between vertical notches for easy height adjustment
• Stops shelves from tipping forward when removing items

• Remove food and shelves from the area before installing; keep small parts and screws in a safe place
• Use basic hand tools; align track with existing mounting points and secure with the original screws or fasteners
• If plastic clips or mounting hardware are damaged, replace them to ensure a secure fit

This freezer water valve wiring harness connects the refrigerator wiring to the freezer water/inlet valve so the dispenser and icemaker receive power and signaling. It restores secure electrical connections for reliable water flow control. What it does

• Provides the electrical connection between the appliance wiring and the freezer water/inlet valve
• Replaces a damaged, frayed, or corroded harness that can cause intermittent or no water flow
• Helps resolve symptoms like no water dispensing, icemaker not filling, or intermittent valve operation
• Maintains proper connector polarity and secure fit to the valve terminals

• One freezer water valve wiring harness

• Disconnect power to the appliance and shut off the water supply before starting
• Inspect connectors and valve terminals for corrosion; replace or clean as needed
• Route the harness along the original path and fully seat each connector until it clicks

The Water Filter Bypass Plug is an OEM part for GE refrigerators. It allows the refrigerator to operate without a water filter by creating a direct connection for the water flow.

Causes of a bad Water Filter Bypass Plug can include wear and tear from regular use, damage from improper installation or removal, and degradation of the sealing components that ensure a tight fit.

Symptoms of a bad Water Filter Bypass Plug include:

• Water leaks from the filter housing
• Reduced or no water flow to the dispenser or ice maker
• Error messages related to the water filter on the control panel
• Improper fit or difficulty in installing the bypass plug

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This axle wheel is a replacement drum support component that helps the dryer drum roll smoothly and quietly. Replacing a worn axle wheel restores proper drum alignment and reduces noise or binding during operation. What it does:

• Supports and centers the dryer drum on its axle so the drum turns freely
• Replaces worn or damaged wheel surfaces that cause squeaks, grinding, or rubbing
• Helps prevent drum wobble and uneven wear on the drum seal or rollers
• Works as part of the drum support system to maintain smooth rotation

• One axle wheel

• Disconnect power before starting and work on a cool, empty dryer
• Removing the dryer front or drum may be required to access and replace the wheel
• Inspect other drum support components (rollers, glides, bearings) and replace as needed

Front mounting grommet.
